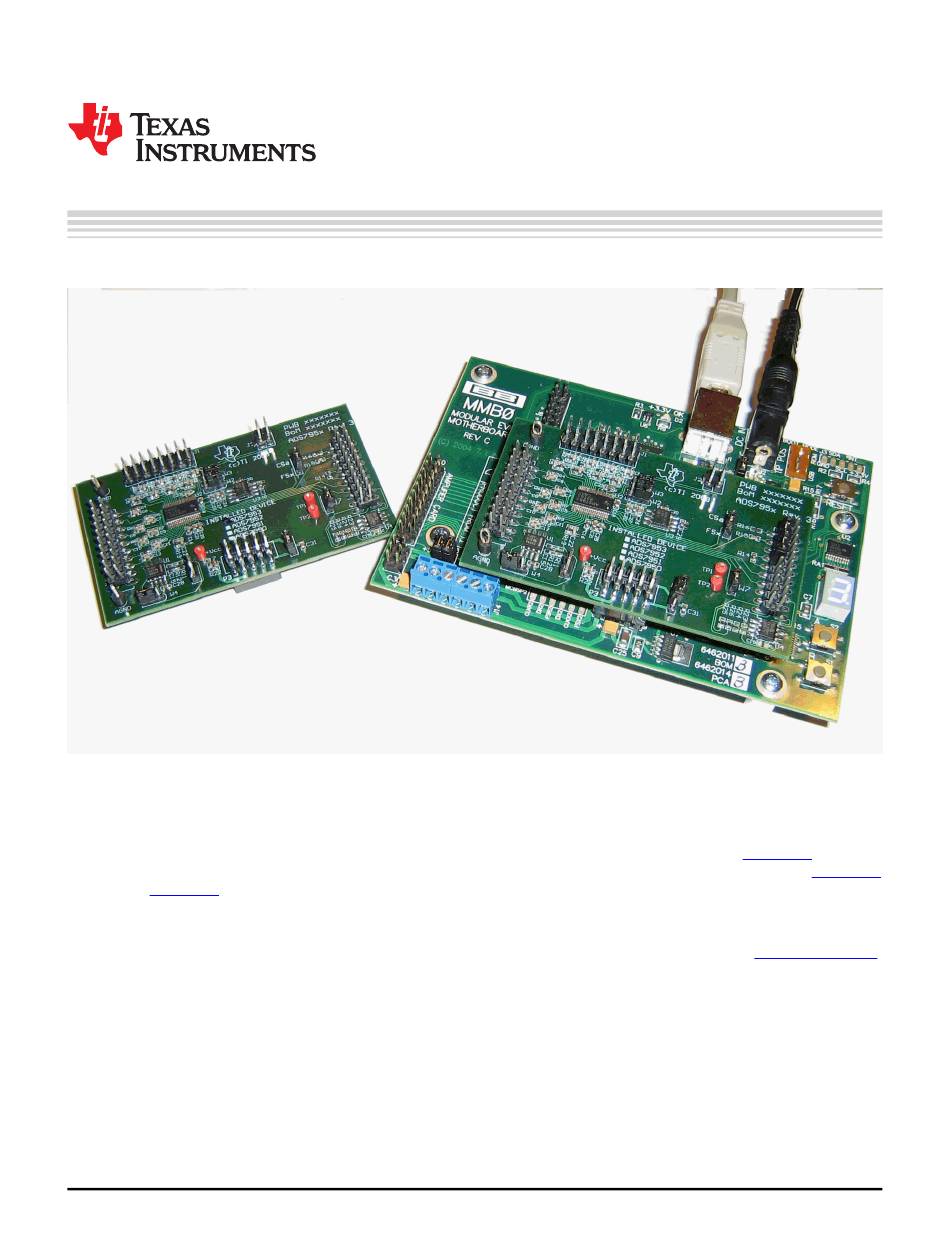

Figure 1. ADS7953EVM (Left) and ADS7953EVM-PDK (Right)
This users guide describes the characteristics, operation, and use of the ADS7953EVM, ADS7957EVM
and ADS7961EVM, both by themselves and as part of the ADS7953EVM-PDK, ADS7957EVM-PDK or
ADS7961EVM-PDK. These evaluation modules (EVMs) are evaluation boards for the ADS7953, a 12-bit,
16-channel, successive approximation register (SAR) analog-to-digital converter (ADC), and the
and ADS7961, which are 10-bit and 8-bit variations of the ADS7953. The EVM allows evaluation of all
aspects of the ADS7953, ADS7957 or ADS7961 device. Complete circuit descriptions, schematic
diagrams, and bills of material are included in this document.
The following related documents are available through the Texas Instruments website at http://www.ti.com.
ADCPro is a trademark of Texas Instruments.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective owners.
SLAU262D – January 2009 – Revised February 2016
Submit Documentation Feedback
ADS79xxEVM and ADS79xxEVM-PDK
Copyright © 2009–2016, Texas Instruments Incorporated
SLAU262D – January 2009 – Revised February 2016
ADS79xxEVM and ADS79xxEVM-PDK
User's Guide
ADS7957
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADS79 EVM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments ADS79 EVM Series

  • Page 1: Ads7953Evm (Left) And Ads7953Evm-Pdk (Right)

    ADS7953, ADS7957 or ADS7961 device. Complete circuit descriptions, schematic diagrams, and bills of material are included in this document. The following related documents are available through the Texas Instruments website at http://www.ti.com. ADCPro is a trademark of Texas Instruments.
  • Page 2: Table Of Contents

    Secondary Analog Interface Pinout ......................Serial Interface Pins ..................P3 Configuration: Power-Supply Input ....................... List of Jumpers ................... ADS7953EVM Bill of Materials ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 3: Evm Overview

    The ADS7953EVM is an evaluation module built to the TI Modular EVM System specification. It can be connected to any of the modular EVM system interface cards available from Texas Instruments. The ADS7953EVM is available as a stand-alone printed circuit board (PCB) or as part of the ADS7953EVM-PDK, which includes an MMB0 motherboard and software.
  • Page 4: Analog Interface

    J1.10 CH11 CH11 input J1.12 CH10 CH10 input J1.14 CH9 input J1.16 CH8 input J1.1-15 (odd) AGND Analog ground connections ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 5: Digital Interface

    DOUT pin. This is the signal that is used by the ADS7953EVM-PDK to read back and display all the channel data via the ADCPro software. SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 6: Power Supplies

    DSP or microcontroller interface board, such as the 5-6KInterface or HPA-MCUInterface boards available from Texas Instruments. When purchased as part of a PDK, the ADS7953EVM can be controlled by the MMB0. For a list of compatible interface and/or accessory boards for the EVM or the ADS7953, see the relevant product folder on the TI website.
  • Page 7: Ads7953Evm Default Jumper Locations

    W6 selects the DV Voltage, +5VD (default) or +3.3VD W7 selects the host processor interrupt source, GPIO1 (default) Short 1-2 or GPIO0 SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 8: Ads7953Evm-Pdk Kit Operation

    J12. If the PDK will be powered through the terminal block, disconnect J12 (see Section 7.3 of this document for additional power supply connection details). ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 9: Mmb0 Initial Setup

    The MMB0 is a Modular EVM System motherboard. It is designed around the TMS320VC5507, a DSP with an onboard USB interface from Texas Instruments. The MMB0 also has 16MB of SDRAM installed. The MMB0 is not intended to be used as a DSP development board, and it is not available separately. TI cannot offer support for the MMB0 except as part of an EVM-PDK kit.
  • Page 10: Connecting An External Power Supply

    It is not necessary to connect a +5V dc supply voltage to the +5VA terminal on J14 if the +5V/+5VA position on J13 is shorted. ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 11: Laboratory Power-Supply Connection

    6, it is not necessary to search for the software; it has already been installed to the PC. • For the remaining steps, accept the default settings. SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 12: Ni-Visa Driver Installation

    ADS7953EVM-PDK Kit Operation www.ti.com Figure 6. NI-VISA Driver Installation Figure 7. NI-VISA Driver Installation Question ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 13: Ni-Visa Driver Installing

    ADS7953EVM-PDK Kit Operation www.ti.com Figure 8. NI-VISA Driver Installing Figure 9. NI-VISA Driver Complete Installation SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 14: Ni-Visa Driver Verification Using Device Manager

    1. Select ADS7953EVM from the EVM drop-down menu. The ADS7953EVM-PDK plugin appears in the left pane, as shown in Figure ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 15: Ads7953Evm-Pdk Plug-In Display Window

    TIMED OUT. Click OK and continue driver installation. The plug-in will attempt to download the firmware again once the driver installation completes. SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 16: Install New Driver Wizard Screen 1

    ADS7953EVM-PDK Kit Operation www.ti.com Figure 13. Install New Driver Wizard Screen 1 Figure 14. Install New Driver Wizard Screen 2 ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 17: Install New Driver Wizard Screen 3

    ADS7953EVM-PDK Kit Operation www.ti.com Figure 15. Install New Driver Wizard Screen 3 Figure 16. Install New Driver Wizard Screen 4 SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 18: Install New Driver Wizard Screen 5

    Figure 18. USBSytx Driver Verification Using Device Manager The driver installation wizard sequence should not appear again, unless the board is connected to a different USB port. ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 19: Evaluating Performance With The Adcpro Software

    Sampling Rate indicator in the upper right corner of the plug-in interface is always visible and updates whenever a setting changes that affects the effective 'per-channel' sampling rate. SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 20: Channel Enable

    In manual mode, any single channel may be selected for conversion. Figure 19. Channel Enable ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 21: Manual Channel Control

    Auto 2 Mode allows the selection of the highest channel to convert. All channels below this will be converted once this selection is made by pressing the 'Accept Selection' button. Figure 20. Manual Channel Control SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 22: Serial Clock, Input Range And Ms Nibble Settings

    (GPIO status or Channel Address of the conversion results). Figure 21. Serial Clock, Input Range and MS Nibble settings ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 23: High And Low Alarm Limits By Channel

    To enable the alarm functions, the GPIO Function tab must be considered next. Figure 22. High and Low Alarm Limits by Channel SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 24: Gpio And System Monitor Control Options

    GPIO3 can be used as a power down input pin. Figure 23. GPIO and System Monitor Control options ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 25: Gpio Selection, Controls And Indicators

    GP outputs, a push button will enable the user to set the desired output state. GP Inputs are monitored with an LED display (bright green = logic high). Figure 24. GPIO selection, controls and indicators SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 26: Schematic And Bill Of Materials

    7. Gerber files are available on request. Please e-mail support@ti.com and ask for details on how to receive the files. ADS79xxEVM and ADS79xxEVM-PDK SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 27: Ads7953Evm Schematic

    Schematic and Bill of Materials www.ti.com Figure 26. ADS7953EVM Schematic SLAU262D – January 2009 – Revised February 2016 ADS79xxEVM and ADS79xxEVM-PDK Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
  • Page 28: Ads7953Evm Bill Of Materials

    • Modified Laboratory Power-Supply Connection image. NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Revision History SLAU262D – January 2009 – Revised February 2016 Submit Documentation Feedback Copyright © 2009–2016, Texas Instruments Incorporated...
