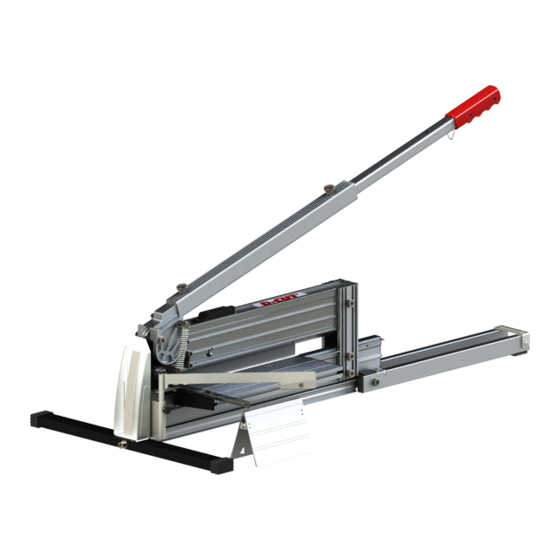

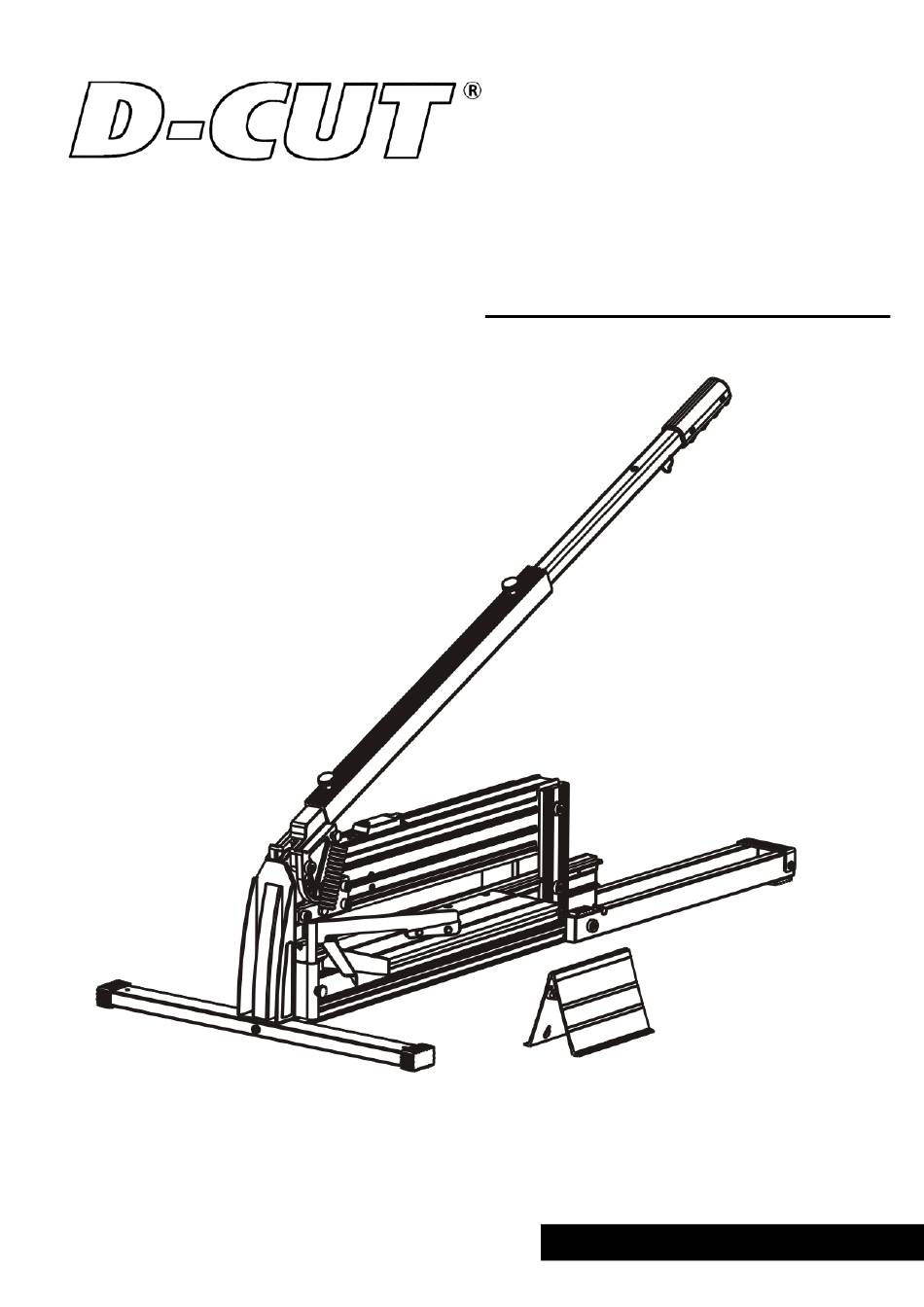

- Page 1 Operation Manual Flooring Cutter LX-340 www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or solid stand. 8. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 SET UP CUTTING AND C Installation of the Cutter (1) Install the cross bar to the cutter base with provided bolts as shown. Warning: Do not put your fingers against the sharp edge of the blade at any time. Installation of the Cutter (2) 1.Install the handle to the cutter as shown.
- Page 4 CUTTING Cutting Preparation Place the angle attachment into the cutter head and push it as much as you can to the bottom. Change the cutting angle 0°or 45°as needed. Warning: Do not put your fingers against the sharp edge of the blade at any time. Cutting (1) Insert material between the cutting blade and the base as...
-
Page 5: Maintenance
MAINTENANCE Changing Blade Use the provided Allan wrench to remove the six screws, then hold the blade by each end and carefully remove the blade out of blade holder. Note: the flat side of the blade facing the table. Warning: Do not put your fingers against the sharp edge of the blade at any time. -
Page 6: Part List
PART LIST... - Page 7 PART LIST Parts Q’ty Parts Q’ty Bolt M8×52 Cross Screw M4 × 14 Washer φ8 Blade Spring Washer φ8 Nylon Block Cross Bar Headless Screw End Cap Main Base Front Bracket Blade Base Locker Nut Locker Washer Sleeve Rear Bracket Hexagon Socket Shoulder Bolt Locker Nut M10 Nut M8...
- Page 8 D-Cut LX Series Cutting Capacity Chart LX-230 LX-080 Limit on Limit on Limit on Janka Rate WOOD FLOORING Solid Wood Engineered Engineered Flooring Wood Flooring Wood Flooring Eastern White Pine Basswood White Pine Hemlock Chestnut Larch Douglas Fir Southern Yellow Pine (Loblolly and Shortleaf)
- Page 9 Hard Maple / Sugar Maple 1450 Sweet Birch 1470 Curupixa 1490 Sapele / Sapelli 1510 Kambala 1540 Peroba 1557 True Pine / Timborana 1570 Zebrawood 1575 Tualang 1624 Wenge / Red Pine 1630 Highland Beech 1686 Locust 1700 Kempas 1710 Merbau 1712 Blackwood...
