Summary of Contents for D-CUT TC-230

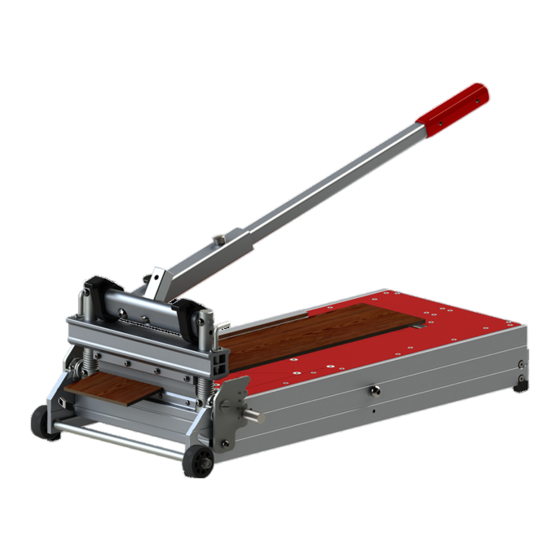

- Page 1 OPERATION MANUAL D-CUT Flooring / Trim Cutter TC-230 www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or solid stand. 8. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 CUTTING AND C Installation of the Cutter(1) Install the handle assembly to the cutter base as shown. Warning: Do not put your fingers against the sharp edge of the blade at any time. Straight Cut Insert the floor plank between the cutting blade and the base, flush with the guide bar on the working table, hold the plank...
- Page 4 Bevel Cut (1) Make a straight cut on a workpiece to your measurement and then pull the knob as pointed by an arrow, adjust the cutter head to your desired angle. Pull out the handle from the base to change the handle position on the cutting head.
- Page 5 Changing the Blade Use provided Allen wrench to remove the four screws, then carefully move the blade out of the small blade holder. Note: the flat side of the blade should face the working table. Warning: Do not put your fingers against the sharp edge of the blade at any time.
- Page 6 Explosive View...
- Page 7 Explosive View Parts Q’ty Parts Q’ty Lock Nut M10 Guide Bar Wheel Guide Bar Socket Flange Nut M10 Screw M5 × 8 Washer φ10 Working Table Wheel shaft Rear Cutter Frame Spring Washer φ5 Sleeve Cutter Base Round Head Screw M5 × 20 Nut M12 Flat Head Screw M5 ×...
