Summary of Contents for D-CUT LT-180

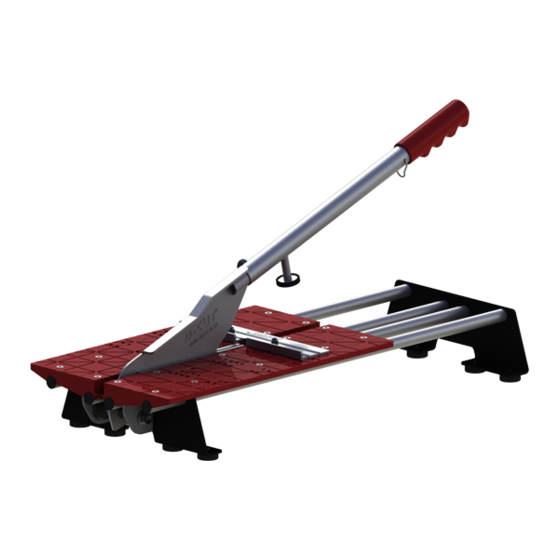

- Page 1 OPERATION MANUAL Vinyl / LVP Flooring Cutter LT-180 www.dcutproducts.com CUTTING AND C...
- Page 2 Assembly of the Cutter Use provided Allan wrench, screws, nuts and bolts to assemble: 1. Blade onto the base 2. Handle Warning: Avoid contact with the steel teeth along the cutting slot, which may cause injury. Installation of the Stopper Insert the stopper attachment into two metal holes as shown.
- Page 3 Square Cut Insert the material between the cutting blade and the stopper, flush with the stopper attachment as shown and hold the material then push handle down to complete the cut. Warning: Avoid contact with the steel teeth along the cutting slot, which may cause injury. Free Angle Cut Remove the stopper attachment from the cutting table.
- Page 4 P a r t L i s t Parts Q’ty Parts Q’ty Hex Screw M5 Head Nut M4 × Spring Washer Stopper Attachment Φ Washer Steel Tooth Φ Rubber Feet Rubber Pad Front Base Hook Cross Bar PVC Handle Screw M5 Handle ×...
