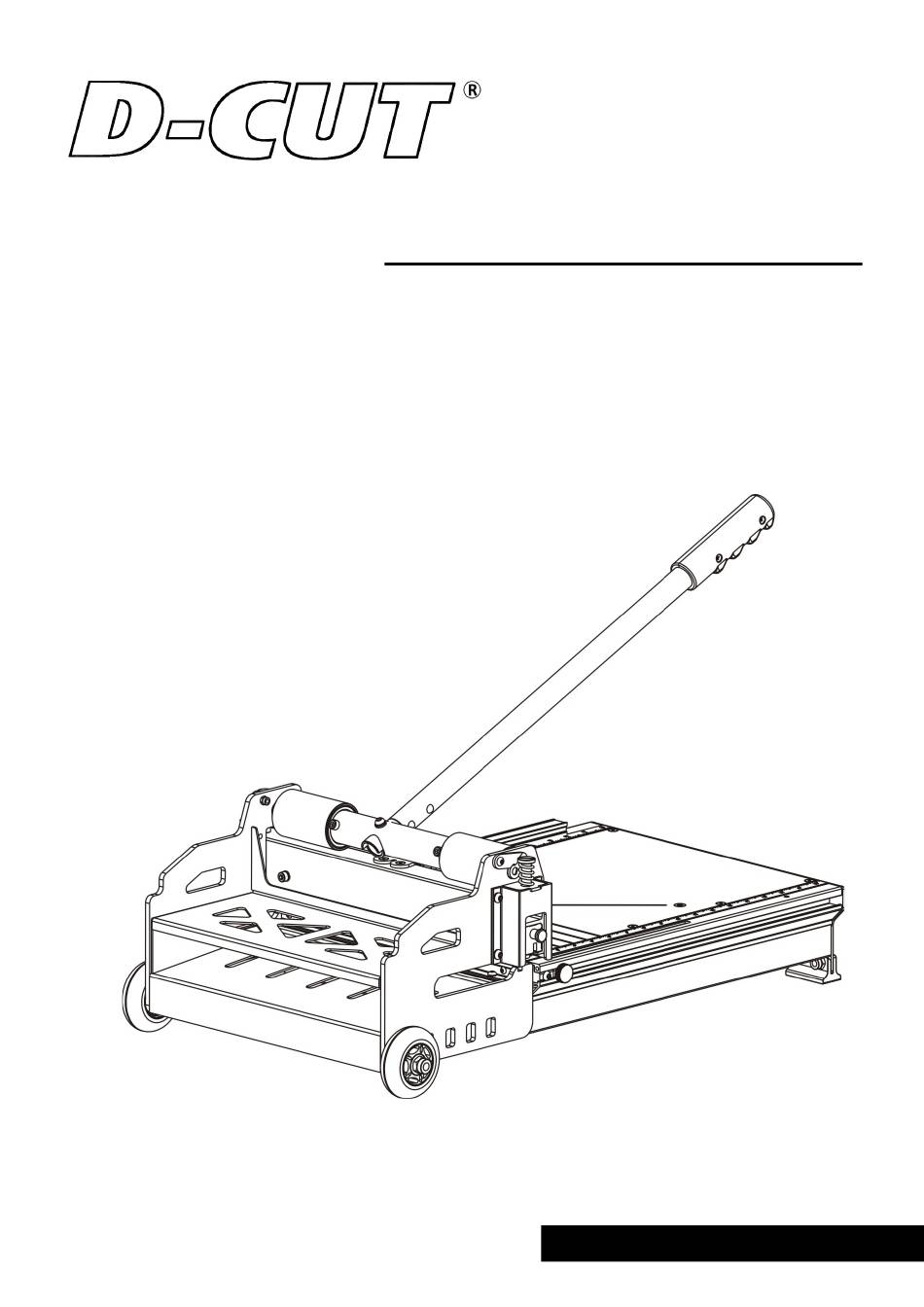

- Page 1 OPERATION MANUAL Vinyl Plank Flooring Cutter LH-320 www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or a solid stand. 8. Use right tools. Do not force the D-CUT LVT -flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 CUTTING AND C Installation of the Cutter Assemble the handle set to the cutter base with provided screws as shown. Warning: Do not put your fingers against the sharp edge of the blade at any time. Straight Cut Insert the floor plank between the cutting blade and the base, flush with the guide bar on the working table and hold the plank then pull handle down...
- Page 4 Lengthwise Cut Insert the floor plank between the cutting blade and the working table along with the guide bar from the side way. The guide bar may be locked on both sides of the working table. Keep moving the plank along with the guide bar after each cut until the plank is completely cut.
- Page 5 Changing the Blade (2) Pull out the blade to the left side as shown and remove the two screws, then carefully move the blade out of the small blade holder. Note: The flat side of the blade should face the working table. Warning: Do not put your fingers against the sharp edge of the blade at any time.
- Page 6 Explosive View...
- Page 7 Explosive View Parts Q’ty Parts Q’ty Cutter Base Handle Spring Washer 5 Right ABS Handle Locker Nut M5 Screw M4X30 Screw M4X14 Spring Washer 5 Left ABS Handle Screw M5X10 Guide Bar Nylon Bar Holder Screw M5X25 Side Cover Screw M5X16 Screw M5X16h Working Table Right Rotating Shaft...
