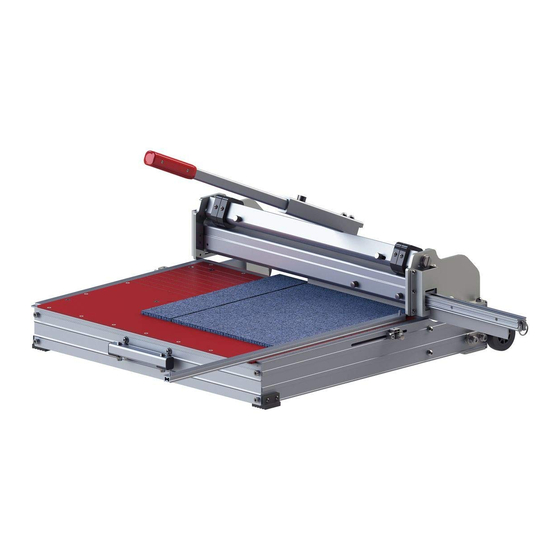

- Page 1 OPERATION MANUAL Carpet Tile / LVT Flooring Cutter LP-650 www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or solid stand. 8. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 CUTTING AND C Installation of the Cutter(1) Install the wheel assembly to the cutter base with provided nuts as shown. Warning: Do not put your fingers against the sharp edge of the blade at any time. Installation of the Cutter (2) Install the handle assembly to the cutter base with provided screws as shown.
- Page 4 Diagonal Cut Position the guide bar at 45°. Insert a carpet tile between the cutting blade and the base, along with the guide bar as shown, then pull the handle down to complete a cut. 45° Cut Position the guide bar at 45°. Insert the floor plank between the cutting blade and the base, along with the guide bar as shown, then pull the...
- Page 5 Notch Cut Make a lengthwise cut first to the desired length on the floor plank as mentioned above, then turn the plank 90°, and put desired cutting point under the blade. Unlock two screws on the blade holder and pull out the blade as shown to above mentioned desired cutting point, then pull the handle down to complete a cut.
- Page 6 Explosive View...
- Page 7 Explosive View Parts Q’ty Parts Q’ty Screw M10 × 40 Blade Holder Wheel Carry Handle Base Lock Nut M10 Spring Pin Assembly Wheel Base Short Supporting Bar Rubber Foot B Guide Bar Screw M6 ×12 Rotating Shaft Washer φ6 Washer φ16 Nylon Cam Ring Front Cutter Base Screw M8 ×...
