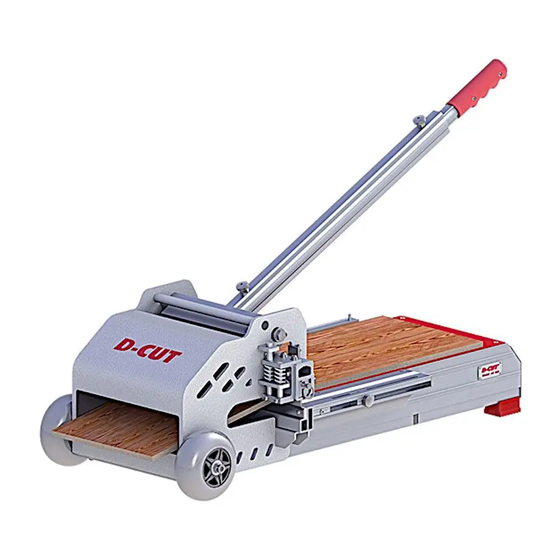

- Page 1 OPERATION MANUAL Carpet Tile / LVT Flooring Cutter AK-360 www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or solid floor. 8. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 CUTTING AND C Installation of the Cutter (1) Install the Cam assembly to the cutter base with provided nuts and rotating shaft as shown. After the cam bar is installed properly, remove the red nylon stopper so the cutter is ready for the cutting job. Installation of the Cutter (2) Install the extended working table to the cutter base with provided screws as...
- Page 4 45° Cut Position the guide bar at 45° . Insert the floor plank between the cutting blade and the base, along with the guide bar as shown, and then press the handle down to complete a cut. Lengthwise Cut Insert the floor plank between the cutting blade and the working table along with the guiding bar which can be locked on both sides of the...
- Page 5 Changing the Blade First loosen the two screws on the blade and remove the stopper screw on the blade holder and pull out the blade as shown. Use provided Allan wrench to remove the nine screws, and then carefully move the blade out of the small blade holder.
- Page 6 Explosive View...
- Page 7 Explosive View Parts Q’ty Parts Q’ty Screw M6×45 Blade Holder Assembly Spring washer φ6 LED Belt Assembly Wheel Nylon Bar A Nut M10 Right Handle Welding Assembly Screw M4×31 Guide Pillar Base Handle A Short Guide Pillar Left Handle Long Guide Pillar Nut M4 Screw M6×16 Knurling Screw M8...
