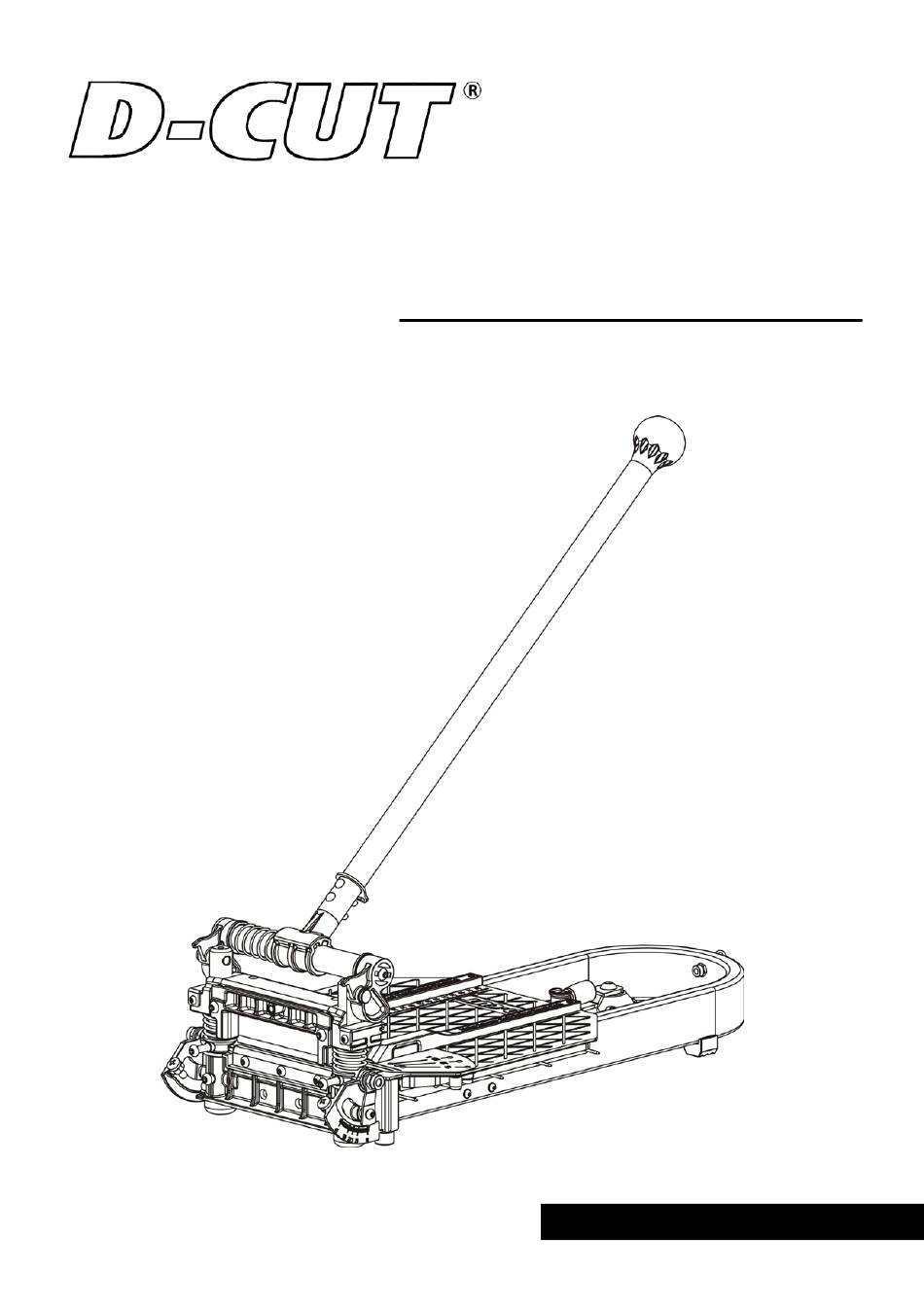

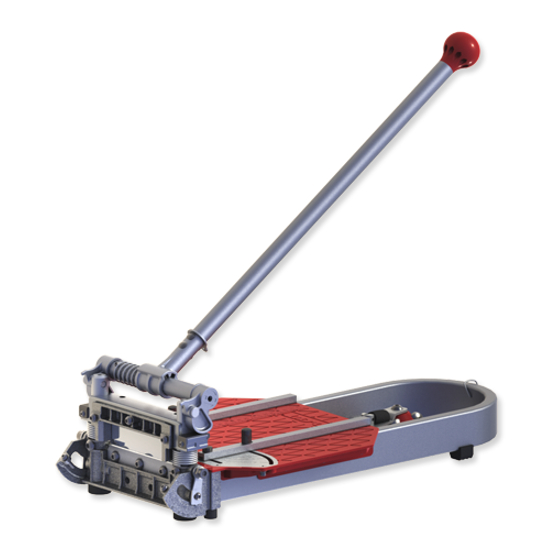

- Page 1 OPERATION MANUAL TC-100 Trim Cutter www.dcutproducts.com...
- Page 2 7. Make sure tool is secure. Operate only on a firm substrate or solid stand. 8. Use the right tool. Do not force the D-Cut Multi-flooring Cutter or use it for a job for which it was not designed; use only on approved materials.
- Page 3 Adjust the Cutter Head Position Turn the handle counter-clockwise as shown to change the cutter head to the vertical position. CUTTING AND C Handle Assembly Thread the handle to the handle base as shown. Square (vertical) Cut Place the work-piece along the angle attachment on the table and align the blade to the mark where needs to be cut.
- Page 4 Mitre Cut (1) Change the cutting head to the desired angle as shown. Mitre Cut (2) There are two slots on the handle base as shown. One of them is for vertical cut and another is for angle cut. Push the handle to right in order to change the position as shown.
- Page 5 Angle Cutting Change the angle attachment to the desired angle and place the work-piece along the attachment. Press down the handle to complete the cut. Accuracy Micro Adjustment (1) In case the cutting accuracy is off set, two screws under the working table can be adjusted in either direction as shown.
- Page 6 Changing the Blade Use the provided Allan wrench to remove the three screws, then hold the blade by each end and carefully remove the blade out of blade holder. Note: when putting a new blade on, keep the flat side of the blade facing the table.
- Page 7 Part List...
- Page 8 Part List Parts Q’ty Parts Q’ty Hex Screw M6 x 14 Adjusting Nut M8 Washer φ5 Hex Screw M8 x 14 Rubber Pad A Connector Hex Screw M6 x 30 Angle Board B Hex Screw M5 x 20 Bearing Base Nylon Hold Bar Bearing Barrier...
