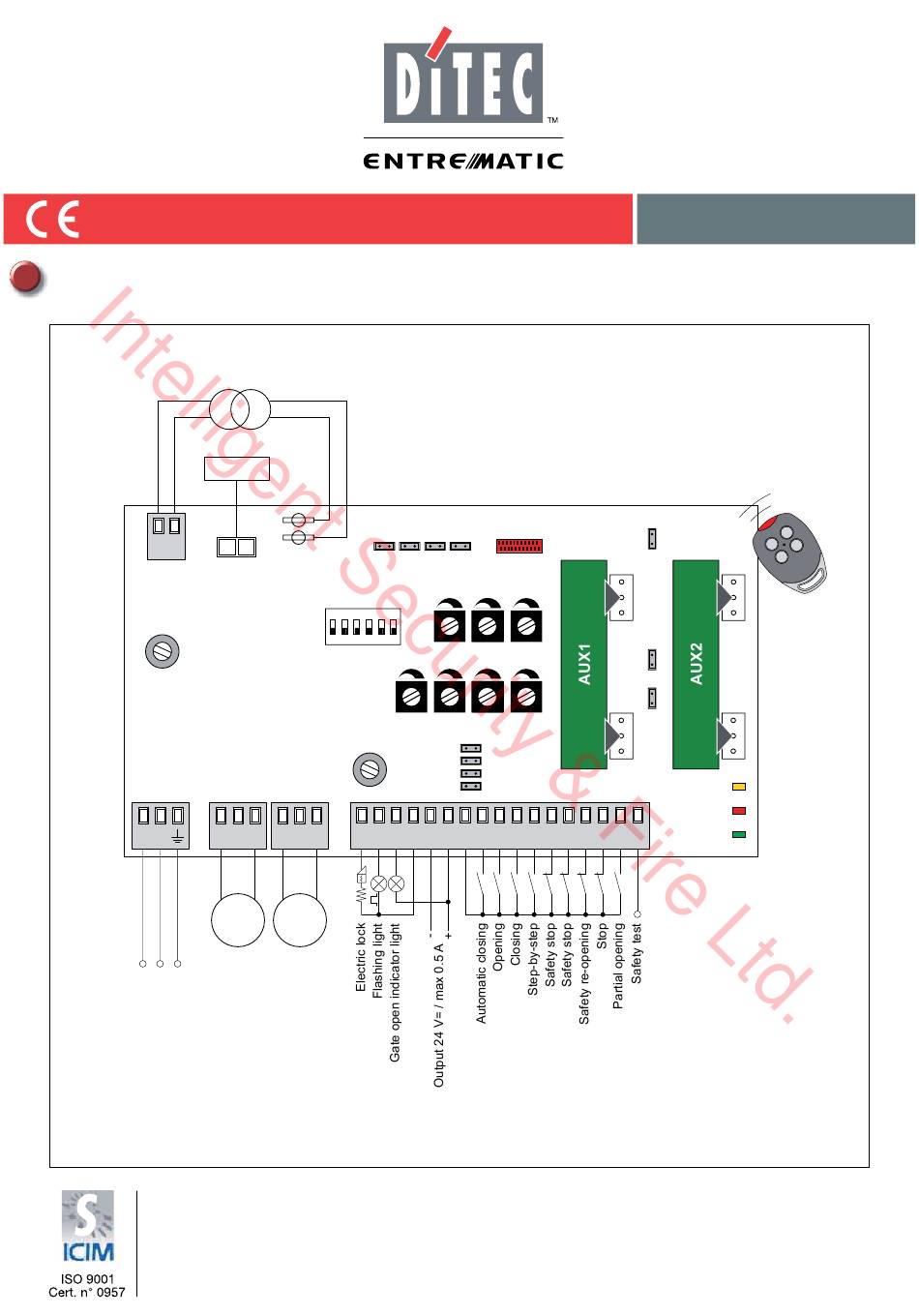

Installation manual for control panel for automations with one or two 24 V= motor.
TRF
F1
L N
Power supply
DITEC S.p.A.
Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY
Tel. +39 02 963911 - Fax +39 02 9650314
www.ditec.it - ditec@ditecva.com
Transformer
BATKH
24 V~
BAT
ON
OFF
1 2 3 4 5 6
F2
36 35 34 33 32 31
15 14 13 0 0 1 1 2 3 4 5 6 7 8 9 20 41
24V=
24V=
Motor 2
Motor 1
VIVAH
COM
FC
SO EO OM
TC TR
RP
VM M1 M2 R1
S1
S2
S3
S4
IP1776EN
rev. 2012-02-20
FS
GOL4
NIO
JR14
IN
SA
POWER
ALARM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIVAH and is the answer not in the manual?

Questions and answers

Related Manuals for DITEC VIVAH

Summary of Contents for DITEC VIVAH

  • Page 1 15 14 13 0 0 1 1 2 3 4 5 6 7 8 9 20 41 ALARM 24V= 24V= Motor 2 Motor 1 Power supply DITEC S.p.A. Via Mons. Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY Tel. +39 02 963911 - Fax +39 02 9650314 www.ditec.it - ditec@ditecva.com...
  • Page 2 INDEX Subject Page General safety precautions EC declaration of conformity Technical data 3.1 Applications Connection of power supply Commands 5.1 SOFA1-SOFA2 self-controlled safety edge Outputs and accessories Adjustments 7.1 Selection of automation type Connection of motors Start-up 10. Troubleshooting 11. Example application for one-motor automations 12.

  • Page 3: General Safety Precautions

    GENERAL SAFETY PRECAUTIONS This installation manual is intended for professionally competent personnel only. The installation, the power connections and the settings must be completed in conformity with Good or ing Methods and with the regulations in force. Before installing the product, carefully read the instructions. Bad installation could be ha ardous. The pac aging materials (plastic, polystyrene, etc.) should not be discarded in the environment or left within reach of children, as these are a potential source of hazard.

  • Page 4: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY Manufacturer: DITEC S.p.A. Address: via Mons. Ban , 3 21042 Caronno P.lla (VA) - ITALY declares that the control panel VIVAH is in conformity with the provisions of the following EC directives: EMC Directive 2004/108/EC; Low Voltage Directive 2006/95/EC.
  • Page 5 COMMANDS Command Function Description N.O. AUTOMATIC The permanent closing of the contact enables automatic clos- CLOSING ing. N.O. OPENING The closing of the contact activates the opening operation. N.O. CLOSING The closing of the contact activates the closing operation. N.O. STEP-BY-STEP The closing of the contact activates opening or closing operations in the following sequence: open-stop-close-open.
  • Page 6 5.1 SOFA1-SOFA2 self-controlled safety edge Command Function Description SAFETY TEST Place the SOFA1-SOFA2 device into its housing for plug-in cards SOFA1-SOFA2 AUX1 or AUX2. With JR14=OFF, connecting terminal 41 enables a safety edge test cycle before every operation. If the test fails the SA led ashes and the test is repeated.

  • Page 7: Outputs And Accessories

    OUTPUTS AND ACCESSORIES Output Value - Accessories Description Accessories power supply. Power supply output for external ac- cessories, including automation status lamp. 24 V= / 0.5 A Electronically protected output. Automation status lamp (proportional). The light switches off when the automation is closed; the light 24 V= / 3 W switches on when the automation is open;...
  • Page 8 ADJUSTMENTS Description DIP1 Plug-in cards operation. Step-by-step. Opening. NOTE: it sets the operating mode of the plug-in cards connected on AUX1 and AUX2. DIP2 Restore automatic closing time. 100% DIP3 Automation status at power on. Open. Closed. Indicates how the control panel considers NOTE: if the automatic clo- automation when powered up.
  • Page 9 Trimmer Description Setting automatic closing time. From 0 to 120 s. With DIP2=OFF, once a safety switch has been activated, the counter starts as soon as the safety switch is released (for example after passing through the photocells), Disabled and lasts for a period of time set with trimmer TC (50%). With DIP2=ON, the counter starts when automation is opened and lasts for the entire duration set with trimmer TC (100%).
  • Page 10 Flashing Receipt of command or change in status of a dip-switch. At least one of the safety contacts is open. Safety test failure (terminal 41). Operations count performed (only when con- trol panel is switched on): = 1000 operations = 10000 operations POWER ALARM Power supply on.

  • Page 11: Connection Of Motors

    CONNECTION OF MOTORS Control panel Control panel terminal terminal Motor 2 Motor 1 board board OBBI3BH Blac Blue OBBI3BH Blue Blac ARCBH ARCBH Blac Blue Blue Blac ARC1BH ARC1BH CUBIC30H Blac Blue CUBIC30H Blue Blac CUBIC6H CUBIC6H Blac Blue Blue Blac CUBIC6HV CUBIC6HV...
  • Page 12 START-UP WARNING The operations in point 4 are performed without safety devices. The trimmer can only be adjusted with the automation idle. At every start-up the control panel receives a RE ET and the rst operation is performed at reduced speed (automation position acquisition) one wing at a time ( rst motor M2 and then motor M1).

  • Page 13: Troubleshooting

    10. TROUBLESHOOTING Problem Possible causes Remedy The automation does not No power. Chec that the control panel is powe- open or close. (POWER ALARM led off). red correctly. Short circuited accessories. Disconnect all accessories from termi- (POWER ALARM led off). nals 0-1 (voltage must be 24 V=) and reconnect one at a time.
  • Page 14 11. EXAMPLE APPLICATION FOR ONE-MOTOR AUTOMATIONS M1<MAX 36 35 34 33 32 31 When the control panel is used in applications for au- OM=OFF tomations with one swinging door wing, for up-and- 24V= over doors or for sliding doors, these connections can be made: Motor 1 (Fig.

  • Page 15: Example Application For Two-Motors Swing Gates

    12. EXAMPLE APPLICATION FOR TWO-MOTORS SWING GATES M1<MAX 36 35 34 33 32 31 M2<MAX M1 M2 When the control panel is used in applications for au- 24V= 24V= tomations with two swinging door wings, these con- nections can be made: Motor 2 Motor 1 (Fig.
  • Page 16 13. EXAMPLE APPLICATION FOR UP-AND-OVER DOORS WITH IN-PARALLEL MOTORS M1<MAX 36 35 34 33 32 31 When the control panel is used in applications for au- OM=OFF tomations with up-and-over doors with two parallel 24V= 24V= motors, these connections can be made: Motor 2 Motor 1 S1=ON...
  • Page 17 IP1776EN 2012-02-20...
  • Page 18 DITEC S.p.A. Via Mons. Ban , 3 21042 Caronno P.lla (VA) Italy Tel. +39 02 963911 Fax +39 02 9650314 www.ditec.it ditec@ditecva.com DITEC BELGIUM LOKEREN Tel. +32 9 3560051 Fax +32 9 3560052 www.ditecbelgium.be DITEC DEUTSCHLAND OBERURSEL Tel. +49 6171 914150 Fax +49 6171 9141555 www.ditec-germany.de...
