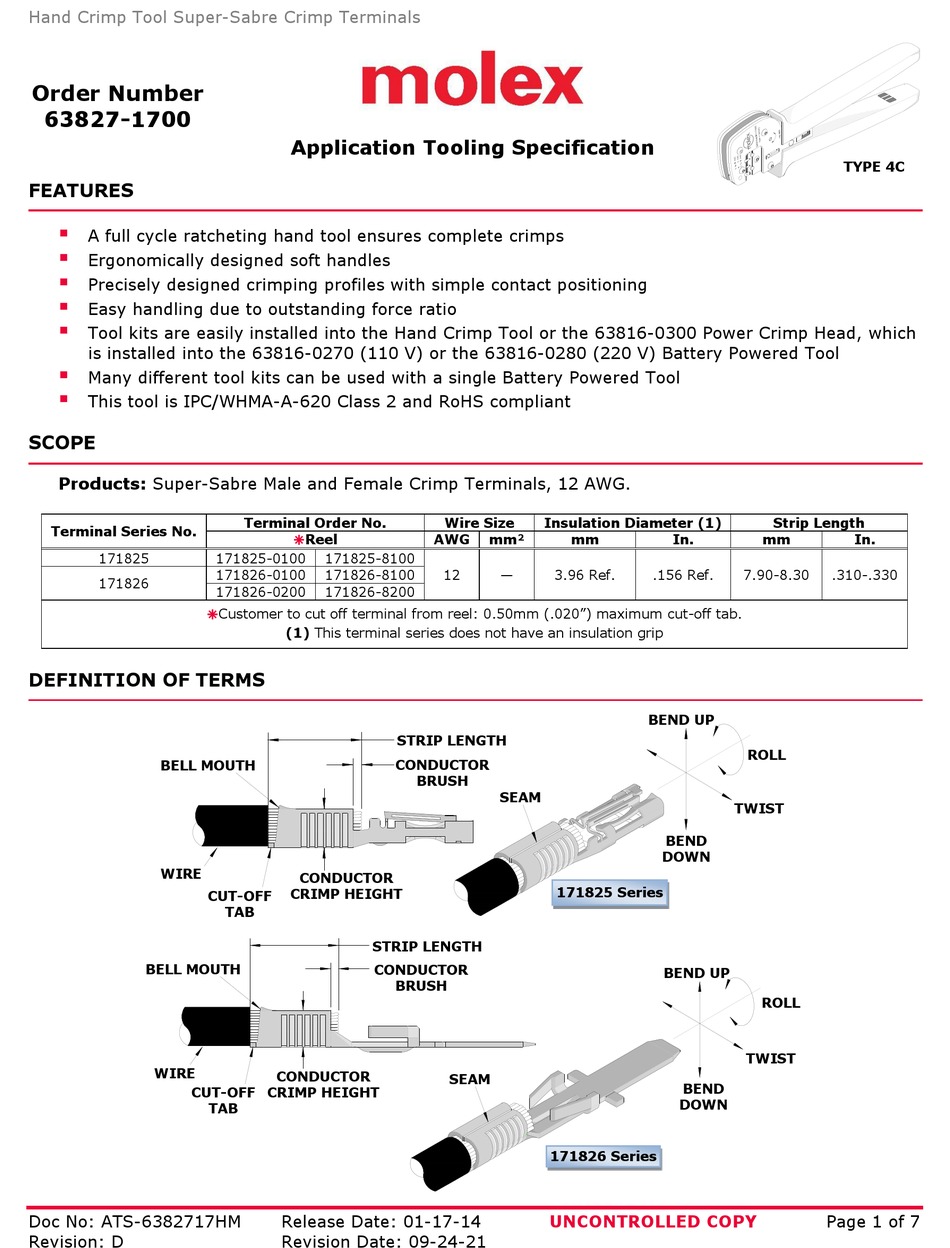

molex PremiumGrade 63827-1700 Manual

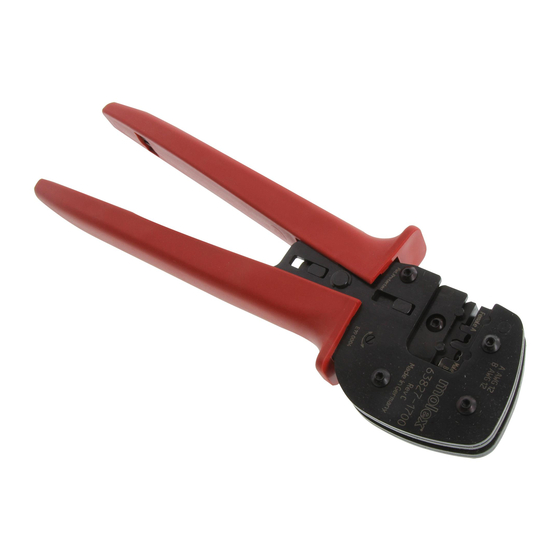

Hand Crimp Tool Super-Sabre Crimp Terminals
Order Number
63827-1700

FEATURES


A full cycle ratcheting hand tool ensures complete crimps

Ergonomically designed soft handles

Precisely designed crimping profiles with simple contact positioning

Easy handling due to outstanding force ratio

Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head, which
is installed into the 63816-0270 (110 V) or the 63816-0280 (220 V) Battery Powered Tool

Many different tool kits can be used with a single Battery Powered Tool

This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant

SCOPE

Products: Super-Sabre Male and Female Crimp Terminals, 12 AWG.
Terminal Series No.
171825
171826
Customer to cut off terminal from reel: 0.50mm (.020") maximum cut-off tab.

DEFINITION OF TERMS

BELL MOUTH
WIRE
CUT-OFF
BELL MOUTH
WIRE
CUT-OFF
Doc No: ATS-6382717HM
Revision: D
Application Tooling Specification
Terminal Order No.
Reel
171825-0100 171825-8100
171826-0100 171826-8100
171826-0200 171826-8200
(1) This terminal series does not have an insulation grip
CONDUCTOR
CRIMP HEIGHT
TAB
STRIP LENGTH
CONDUCTOR
CONDUCTOR
CRIMP HEIGHT
TAB
Release Date: 01-17-14
Revision Date: 09-24-21
Wire Size Insulation Diameter (1)
AWG mm² mm
12 — 3.96 Ref.
STRIP LENGTH
CONDUCTOR
BRUSH
SEAM
171825 Series
BRUSH
SEAM
171826 Series
UNCONTROLLED COPY
Strip Length
In. mm
.156 Ref. 7.90-8.30
BEND UP
ROLL
TWIST
BEND
DOWN
BEND UP
ROLL
TWIST
BEND
DOWN
Page 1 of 7
TYPE 4C
In.
.310-.330
