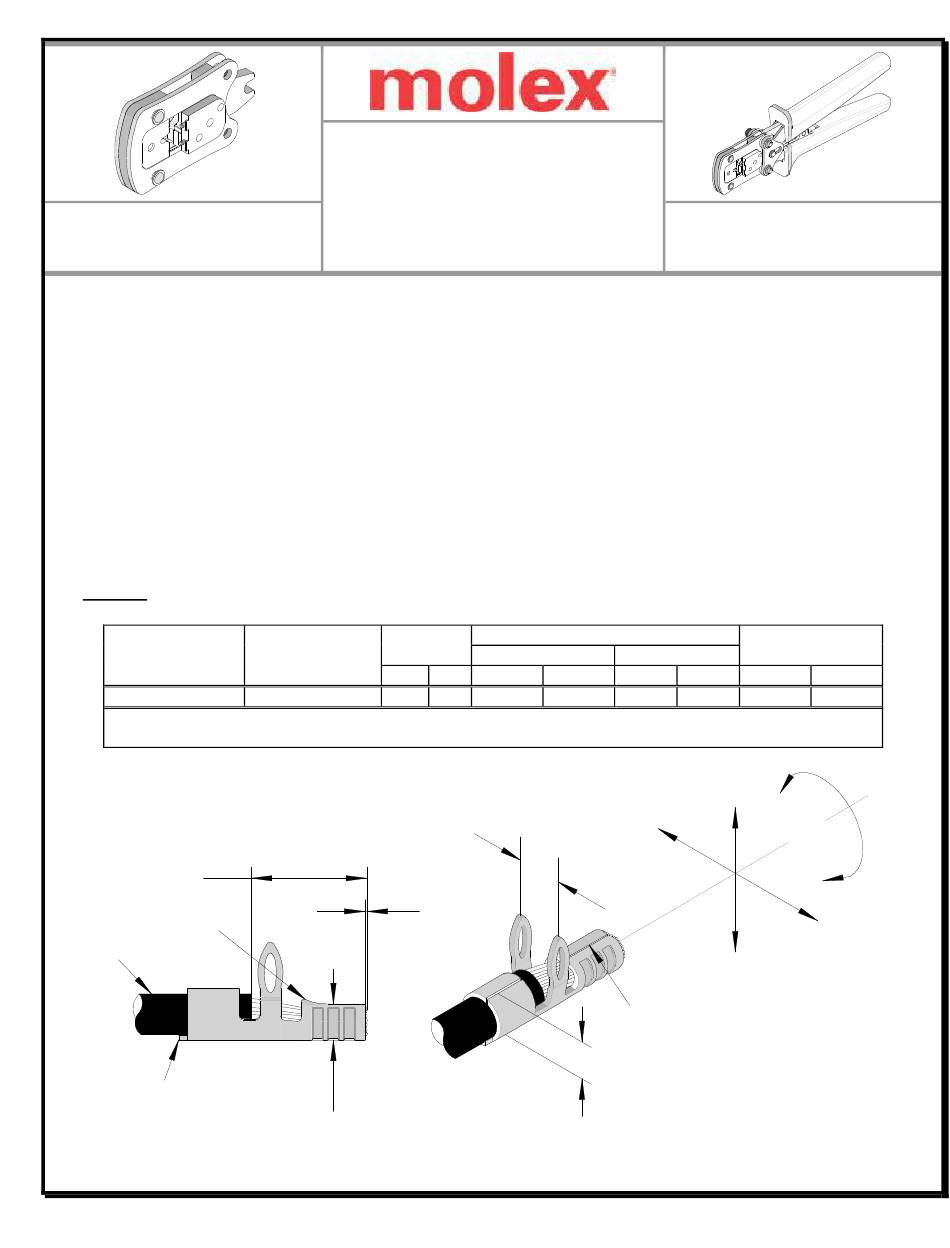

Hand Crimp Tool for Board-In Crimp Terminals
Modular Crimp Head
Order No. 63827-1370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: SolderRight™ Right Angle Board-In Crimp Terminal, 16 AWG
Terminal Series No. Terminal Order No.
171892
(1) To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
(2) Overall insulation OD specification for terminal.
DEFINITION OF TERMS
STRIP LENGTH
BELL MOUTH
WIRE
CUT-OFF TAB
Doc No: ATS-6382713HM
Revision: A
Application Tooling
Specification Sheet
Wire Size
AWG mm²
171892-0100
16
1.30 1.80-2.00 .071-.079
CONTACT GAP
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 07-02-13
Revision Date: 07-02-13
Insulation Diameter
IPC/WHMA-A620 (1) Terminal Max. (2)
mm
In.
mm
2.39
SEAM
INSULATION
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63827-1300
Strip Length
In.
mm
In.
.094
5.40-5.70 .212-.224
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for molex 63827-1300
Summary of Contents for molex 63827-1300
- Page 1 Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63827-1370 Order No. 63827-1300 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...
- Page 2 3. The above specifications are guidelines to an optimum crimp. 4. Molex does not repair hand tools (see Warranty on page 3). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
- Page 3 Repetitive use of this tool should be avoided. 2. Insulated rubber handles are not protection against electrical shock. 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. UNCONTROLLED COPY Doc No: ATS-6382713HM...
- Page 4 Hand Crimp Tool for Board-In Crimp Terminals CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet.
- Page 5 Crimping Spring HANDLE SPRING RATCHET RELEASE LEVER M4 X 20mm LONG BHCS Figure 7 CRIMPING SPRING (2) Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382713HM Release Date: 07-02-13 Page 5 of 5 Revision: A Revision Date: 07-02-13...
