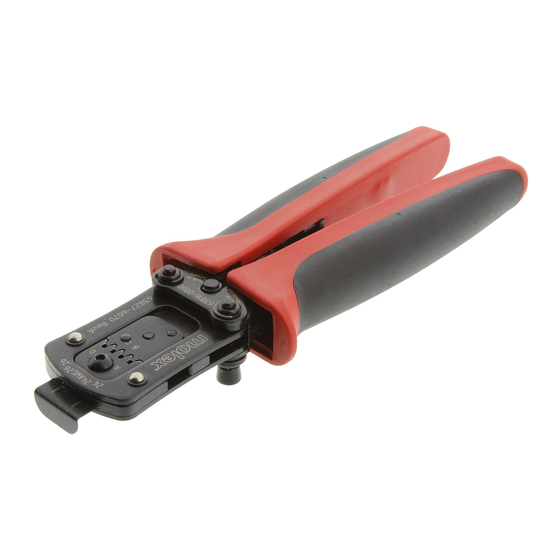

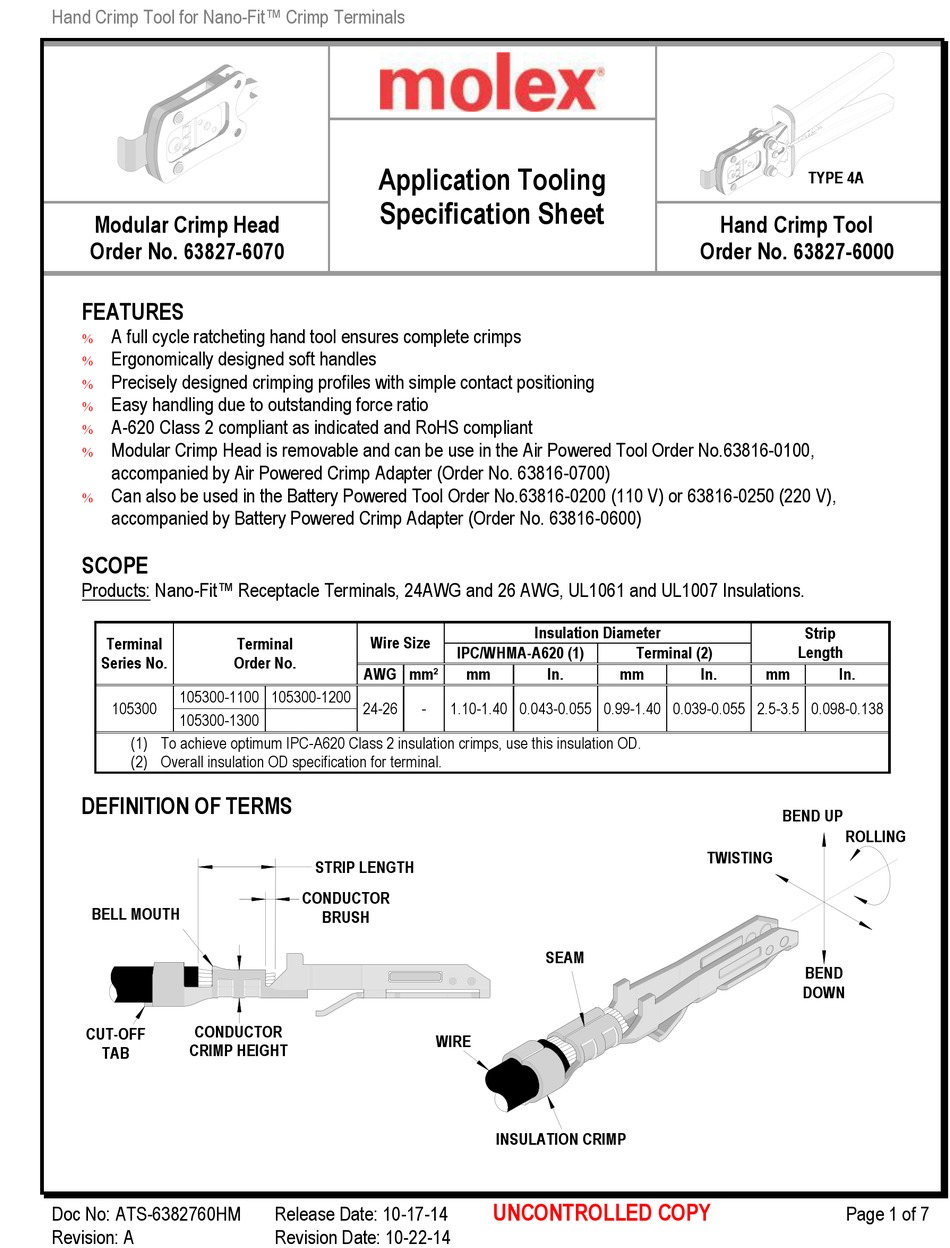

Hand Crimp Tool for Nano-Fit™ Crimp Terminals
Modular Crimp Head
Order No. 63827-6070
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
A-620 Class 2 compliant as indicated and RoHS compliant
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700)
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: Nano-Fit™ Receptacle Terminals, 24AWG and 26 AWG, UL1061 and UL1007 Insulations.
Terminal
Series No.
105300-1100 105300-1200
105300
105300-1300
(1) To achieve optimum IPC-A620 Class 2 insulation crimps, use this insulation OD.
(2) Overall insulation OD specification for terminal.
DEFINITION OF TERMS
BELL MOUTH
CONDUCTOR
CUT-OFF
CRIMP HEIGHT
TAB
Doc No: ATS-6382760HM
Revision: A
Application Tooling
Specification Sheet
Wire Size
Terminal
Order No.
AWG mm²
24-26
STRIP LENGTH
CONDUCTOR
BRUSH
Release Date: 10-17-14
Revision Date: 10-22-14
Insulation Diameter
IPC/WHMA-A620 (1)
mm
In.
-
1.10-1.40 0.043-0.055 0.99-1.40 0.039-0.055 2.5-3.5 0.098-0.138
SEAM
WIRE
INSULATION CRIMP
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63827-6000
Length
Terminal (2)
mm
In.
mm
BEND UP
TWISTING
TYPE 4A
Strip
In.
ROLLING
BEND
DOWN
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for molex 63827-6070
Summary of Contents for molex 63827-6070
- Page 1 Hand Crimp Tool for Nano-Fit™ Crimp Terminals Application Tooling TYPE 4A Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63827-6070 Order No. 63827-6000 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles ...
-
Page 2: Operation
3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased. - Page 3 Hand Crimp Tool for Nano-Fit™ Crimp Terminals 1. With the hand tool in the open position, pivot the terminal locator open by pulling on the locator knob and lift the wire stop blade up. See Figure 1. 2. Insert the terminal into the correct profile until the SWING HAND terminal is fully seated and stops.
-
Page 4: Maintenance
Hand Crimp Tool for Nano-Fit™ Crimp Terminals Terminal Locator Replacement/Change Over This section describes the procedure for changing locators. Removal 1. With the tool in the open position, pivot the terminal locator outward. 2. Remove the M4 BHCS. See Figure 4. Installation M4 BHCS PIVOT... -
Page 5: Warranty
3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. CAUTION: Molex crimp specifications are valid only when used with Molex terminals and tooling. Applications for the Modular Crimp Head WARNING: NEVER operate, service, install, or adjust this Modular Crimp Head without proper instruction and without first reading and understanding the instructions in the proper Manual or Specification Sheet. - Page 6 Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63827-6070 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter 63816-0250 Battery Power Tool (220 V) 63816-0600 Battery Power Crimp Adapter 63816-0100 Air Power Tool...
-
Page 7: Parts List
SPRING M4 X 12mm LONG BHCS RATCHET RELEASE LEVER LOCATOR M4 LOCKNUT CRIMPING Figure 10 SPRING (2) Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6382760HM Release Date: 10-17-14 Page 7 of 7 Revision: A Revision Date: 10-22-14...
