Quickstart Reference
WAGO-I/O-SYSTEM 750
Programmable Fieldbus Controller ETHERNET
750-881
10/100 Mbit/s; digital and analog signals
Version 1.0.1
Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum - allgemeine Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750-881 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAGO 750-881

Summary of Contents for WAGO 750-881

  • Page 1 Pos: 2 /Dokumentation allgemein/Einband/Einband Deckblatt @ 9\mod_1285229289866_0.doc @ 64941 @ Quickstart Reference WAGO-I/O-SYSTEM 750 Programmable Fieldbus Controller ETHERNET 750-881 10/100 Mbit/s; digital and analog signals Version 1.0.1 Pos: 3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Impressum - allgemeine Angaben, Anschriften, Telefonnummern und E-Mail-Adressen @ 3\mod_1219151118203_21.doc @ 21060 @...
  • Page 2 WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET © 2011 by WAGO Kontakttechnik GmbH & Co. KG All rights reserved. WAGO Kontakttechnik GmbH & Co. KG Hansastraße 27 D-32423 Minden Phone: +49 (0) 571/8 87 – 0 Fax: +49 (0) 571/8 87 – 1 69 E-Mail: info@wago.com...

  • Page 3: Table Of Contents

    WAGO-I/O-SYSTEM 750 Table of Contents 750-881 Programmable Fieldbus Controller ETHERNET Pos: 5 /Dokumentation allgemein/Verzeichnisse/Inhaltsverzeichnis - Überschrift 1 und Verzeichnis @ 3\mod_1219151230875_21.doc @ 21063 @ Table of Contents Notes about this Documentation..............4 Validity of this Documentation..............4 Copyright....................4 Symbols..................... 5 Number Notation..................

  • Page 4: Notes About This Documentation

    Pos: 7 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Hinweise zur Dokumentation - Überschrift 1 @ 4\mod_1237987661750_21.doc @ 29029 @ 1 Notes about this Documentation Pos: 8 /Serie 750 (WAGO-I/O-SYSTEM)/Hinweise zur Dokumentation/Gültigkeitsbereich Dokumentation Koppler/Controller 750-xxxx, ohne Variantenangabe @ 4\mod_1239095911562_21.doc @ 30110 @ 2 Validity of this Documentation This documentation is only applicable to the device: "Programmable Fieldbus Controller ETHERNET"...

  • Page 5: Symbols

    WAGO-I/O-SYSTEM 750 Notes about this Documentation 750-881 Programmable Fieldbus Controller ETHERNET Pos: 9.3 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Symbole @ 3\mod_1217394197593_21.doc @ 21010 @ 2 Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 6 Notes about this Documentation WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Pos: 9.4 /Dokumentation allgemein/Gliederungselemente/---Seitenwechsel--- @ 3\mod_1221108045078_0.doc @ 21810 @ Quickstart Reference...

  • Page 7: Number Notation

    WAGO-I/O-SYSTEM 750 Notes about this Documentation 750-881 Programmable Fieldbus Controller ETHERNET Pos: 9.5 /Alle Serien (Allgemeine Module)/Hinweise zur Dokumentation/Zahlensysteme @ 3\mod_1221059454015_21.doc @ 21711 @ 2 Number Notation Table 1: Number Notation Number code Example Note Decimal Normal notation Hexadecimal 0x64...

  • Page 8: Important Notes

    All changes to the coupler or controller should always be carried out by qualified personnel with sufficient skills in PLC programming. Pos: 12.5 /Serie 750 (WAGO-I/O-SYSTEM)/Wichtige Erläuterungen/Bestimmungsgemäße Verwendung 750-xxxx @ 3\mod_1224064151234_21.doc @ 24070 @ 3 2.1.3 Use of the 750 Series in Compliance with Underlying...

  • Page 9: Technical Condition Of Specified Devices

    The components to be supplied Ex Works, are equipped with hardware and software configurations, which meet the individual application requirements. WAGO Kontakttechnik GmbH & Co. KG will be exempted from any liability in case of changes in hardware or software as well as to non-compliant usage of components.

  • Page 10: Safety Advice (Precautions)

    All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work. Pos: 12.10.2 /Serie 750 (WAGO-I/O-SYSTEM)/Wichtige Erläuterungen/Sicherheitshinweise/Gefahr/Gefahr: Einbau nur in Gehäusen, Schränken oder elektrischen Betriebsräumen! @ 6\mod_1260180556692_21.doc @ 46731 @ DANGER Installation only in appropriate housings, cabinets or in electrical operation rooms! The WAGO-I/O-SYSTEM 750 and its components are an open system.
  • Page 11 WAGO-I/O-SYSTEM 750 Important Notes 750-881 Programmable Fieldbus Controller ETHERNET NOTICE Do not use any contact spray! Do not use any contact spray. The spray may impair contact area functionality in connection with contamination. Pos: 12.11.5 /Alle Serien (Allgemeine Module)/Wichtige Erläuterungen/Sicherheitshinweise/Achtung: Verpolung vermeiden! @ 6\mod_1260184045744_21.doc @ 46767 @...

  • Page 12: Quickstart Description

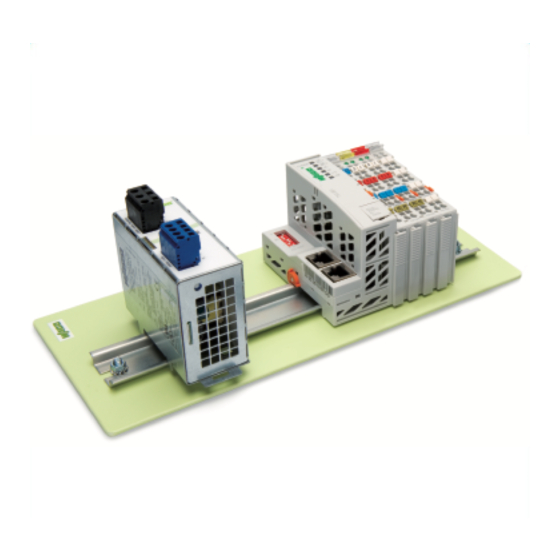

    Pos: 14 /Alle Serien (Allgemeine Module)/Überschriften für alle Serien/Schnellstartbeschreibung - Überschrift 1 @ 9\mod_1287492268613_21.doc @ 65713 @ 1 Quickstart Description Pos: 15 /Serie 750 (WAGO-I/O-SYSTEM)/Gerätebeschreibung/Beschreibung/Feldbuskoppler/-controller/Einleitender Text/Quickstart 750-0881: Aufbau der Hardware Ü2 und Einleitung @ 9\mod_1287491429331_21.doc @ 65710 @ 2 Hardware Design The fieldbus node is to be installed as follows (viewed from left to right): 750-881;...
  • Page 13 Quickstart Description 750-881 Programmable Fieldbus Controller ETHERNET Pos: 18 /Serie 750 (WAGO-I/O-SYSTEM)/Gerätebeschreibung/Ansicht/Feldbuskoppler/-controller/Legende/Ansicht - Legende zur Ansicht ETHERNET TCP/IP-Controller (750-880,881,882) - Tabellenkopf und Nr: 1 @ 7\mod_1266415064861_21.doc @ 50950 @ Table 3: Legend to the View ETHERNET TCP/IP Fieldbus Controller Designati...
  • Page 14 Quickstart Description WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET Pos: 24 /Serie 750 (WAGO-I/O-SYSTEM)/Gerätebeschreibung/Beschreibung/Feldbuskoppler/-controller/Einleitender Text/Quickstart 750-0881: Hinweis: Betriebsartenschalter in die obere Stellung schalten! @ 9\mod_1287492632163_21.doc @ 65716 @ Note Set the operating mode switch to the top position! Set the operating mode switch to the top position. At this setting, the firmware and application program are executed (Activate program execution / "RUN").

  • Page 15: Preparatory Measures

    Pos: 26 /Serie 750 (WAGO-I/O-SYSTEM)/Gerätebeschreibung/Beschreibung/Feldbuskoppler/-controller/Einleitender Text/Quickstart 750-0881: Beschreibung @ 9\mod_1287494243131_21.doc @ 65739 @ 2333444312222223332333 Preparatory Measures 3.2.1 Download the StarterKit archive In the Download section of the WAGO Web site you can download a ZIP archive that contains documentation (Quick Start Guide and Manual) and sample projects (Application1 and Application2). Information Information about the StarterKit ZIP archive To download the ZIP archive "EthernetStarterKit20.zip", with all the information...
  • Page 16 Quickstart Description WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET Figure 3: Contents of the WAGO-I/O-PRO CAA CD (folder view Select the language. Figure 4: Selecting the setup language Start the CoDeSys setup. Figure 3: Starting the CoDeSys setup Quickstart Reference...
  • Page 17 WAGO-I/O-SYSTEM 750 Quickstart Description 750-881 Programmable Fieldbus Controller ETHERNET Accept the license agreement. Figure 5: License agreement for the CoDeSys software Select the target directory. Figure 6: Selecting the target directory Quickstart Reference Version 1.0.1...
  • Page 18 Quickstart Description WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET Select the components to be installed. Figure 7: Selection of components Select the program folder. Figure 8: Selection of program folder Quickstart Reference Version 1.0.1...
  • Page 19 WAGO-I/O-SYSTEM 750 Quickstart Description 750-881 Programmable Fieldbus Controller ETHERNET Check the settings you have defined. Figure 9: Overview of configuration Complete the CoDeSys setup. Figure 10: Completing the CoDeSys setup Quickstart Reference Version 1.0.1...

  • Page 20: Starting Up The Ehernet Network

    Quickstart Description WAGO-I/O-SYSTEM 750 750-881 Programmable Fieldbus Controller ETHERNET 3.2.3 Starting Up the Ehernet Network This section provides you with a step-by-step sample procedure for starting up the Ethernet network. You must perform three steps to start up the network: •...
