WAGO I/O System 750/753
Controller PFC100; 2nd Generation; 2 x ETHERNET
750-8111
Product manual | Version 1.0.0
/WAGO/

Advertisement

loading
Need help?

Need help?

Do you have a question about the I/O System 750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAGO I/O System 750

Summary of Contents for WAGO I/O System 750

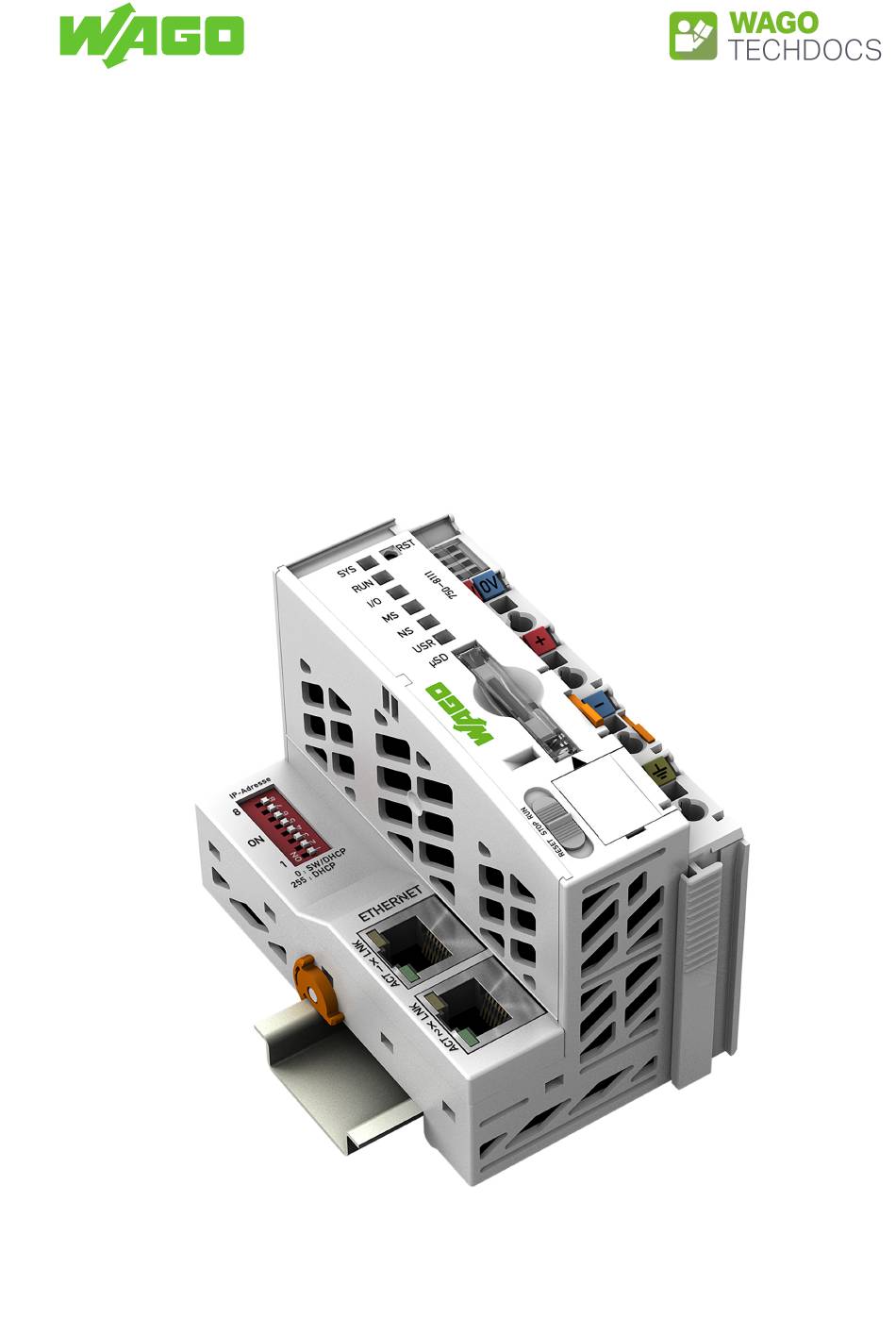

  • Page 1 WAGO I/O System 750/753 Controller PFC100; 2nd Generation; 2 x ETHERNET 750-8111 Product manual | Version 1.0.0 /WAGO/...
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Product manual | Version: 1.0.0 PFC00 G2 2ETH...

  • Page 3: Table Of Contents

    750-8111 Table of Contents Table of Contents 1 Provisions ........................ 4 Scope of Applicability .................... 4 2 Overview ...........................  5 3 Properties .........................  7 View .........................  7 Connections...................... 8 3.2.1 Power Supply .................... 8 3.2.2 Network Interfaces.................. 8 3.2.3 Service Interface ....................  9 Power Jumper Contacts/Field Supply ..............

  • Page 4: Provisions

    The product must only be installed and operated in accordance with the complete operating instructions. Knowledge of all applicable documents is required for proper use. You can find all documents and information on the product detail page. Applicable documents & System Manual I/O System 750/753 • Provisions • Safety • Planning •...

  • Page 5: Overview

    The controller can be used for applications in mechanical and systems engineering, in the processing industry and in building technology. All available I/O modules of the WAGO I/O System 750/753 can be connected to the con- troller. The controller can process any analog and digital signals from the automation en- vironment internally or provide them to other devices through one of the available inter- faces.
  • Page 6 Overview 750-8111 Note No direct access from fieldbus to the process image for I/O modules! Required data from the local bus process image must be mapped explicitly in the CODESYS program to the data in the fieldbus process image and vice versa! Direct ac- cess is not possible! Fieldbus configuration can be performed with the CODESYS V3 controller configuration.

  • Page 7: Properties

    — Figure 1: View LED Indicators – System/Fieldbus 8 System/Fieldbus LED Indicators [} 10] Slot for Mini-WSB (optional) & System Manual I/O System 750/753 Reset button (in hole) 8 Reset Button [} 12] LED Indicators – Power Supply 8 LED Indicators – Power Supply [} 10] Data contacts &...

  • Page 8: Connections

    Properties 750-8111 3.2 Connections 3.2.1 Power Supply Figure 2: Wiring Interface Connection Designation Description 24 V System power supply voltage: +24 V Field supply voltage U − Field supply voltage: 0 V Ground Field supply voltage ground 0 V System power supply voltage: 0 V Field supply voltage U −...

  • Page 9: Service Interface

    Figure 4: Service Interface (Cover Flap Open) It is used for communication with “WAGO-I/O-CHECK” and “WAGO Ethernet Settings.” The connection is made via the WAGO communication cable (see Requirements for Wiring and Accessories). 3.3 Power Jumper Contacts/Field Supply The self-cleaning power jumper contacts on the housing side have a spring-contact de- sign.

  • Page 10: Memory Card Slot

    Properties 750-8111 3.4 Memory Card Slot Figure 6: Memory Card Slot The slot for the microSD memory card is located on the front of the housing. The memory card is locked in the housing with a push-push mechanism. Inserting and removing the memory card is described in section “Service”...

  • Page 11: Network Connection Led Indicators

    Designation Color Description Red/green/orange/off Module status Red/green/orange/off No function Red/green/orange/off User LED, programmable using function blocks from the WAGO li- braries for LED control 8 Diagnostics via LED Indica- The meanings of the indicated states are described in tors – System/Fieldbus [} 16].

  • Page 12: Control Elements

    Properties 750-8111 3.6 Control Elements 3.6.1 Address Selection Switch Figure 11: Address selection switch (setting “0”) Table 1: Address Selection Switch Address Value Explanation The IP parameters are set via the settings in the Web-Based Management (WBM) or by the factory settings. 1 …...

  • Page 13: Schematic Circuit Diagram

    750-8111 Properties • Temporarily set fixed IP addresses • Perform a software reset (restart) • Reset settings 3.7 Schematic Circuit Diagram 24 V 10 nF ELECTRONICS Bob Smith 47 nF Termination 24 V Bob Smith 10 nF Termination 47 nF 10 nF 10 nF 750-8111...

  • Page 14: Functions

    Functions 750-8111 4 Functions 4.1 Function Overview System Functions • Product and system status • Real-time clock • CODESYS V3 runtime environment Hardware Functions • Mode selector switch/reset button • Service interface • Address selection switch Configuration Functions • Web-based Management (WBM) Network Functions •...

  • Page 15: Planning

    (see [} 21]). Only use memory cards available from and recommended by WAGO, as these are speci- fied for industrial applications under adverse environmental conditions and for use in this device. Compatibility with other commercially available memory cards cannot be guaran- teed.

  • Page 16: Diagnostics

    Diagnostics 750-8111 6 Diagnostics 6.1 Diagnostics via Indicators 6.1.1 Diagnostics via LED Indicators – Power Supply Figure 15: LED Indicators – Power Supply The “A” (system power supply) LED indicates the following diagnostics: Table 3: Diagnostics LED – System Power Supply Status Explanation Remedy Green...

  • Page 17: Table 6 "Run" Diagnostic Led

    IDE. 2. If the application cannot be started, restart the controller. 3. Contact WAGO Support if the er- ror occurs again. Orange/green, flashing Load above threshold value 1 •...

  • Page 18: Table 7 "I/O" Diagnostic Led

    1 ... 2 seconds. A hardware fault is present. • Contact WAGO Support. Red, flashing (2 Hz) An error is present which it may be 1. First, try to eliminate the error by possible to eliminate.

  • Page 19: Diagnostics Via Led Indicators - Network Connections

    750-8111 Diagnostics 6.1.3 Diagnostics via LED Indicators – Network Connections Figure 17: Network Connection LED Indicators The “LNK” LED displays ETHERNET connection status with the following diagnostics: Table 9: “LNK” Diagnostic LED Status Explanation Remedy Data transmission rate: 10 Mbit/s Green Data transmission rate: 100 Mbit/s The “ACT”...

  • Page 20: Service

    Service 750-8111 7 Service 7.1 Inserting and Removing a Memory Card Inserting a Memory Card 1. Use an operating tool or screwdriver to open the transparent cover flap by folding it upwards. An error indicates where to apply the tool. 2.

  • Page 21: Appendix

    “FW:01.02.xx(03)”). 8.3 Technical Data, Approvals, Guidelines and Standards Note Subject to changes! Please also observe the further product documentation! You can generate the current ü www.wago.com datasheet at any time at: /<item number>. See also 2 Data Sheet 750-8111 [} 22] Product manual | Version: 1.0.0...
  • Page 22 Controller PFC100; 2nd Generation; 2 x ETHERNET https://www.wago.com/750-8111 The PFC100 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
  • Page 23 Data Sheet | Item Number: 750-8111 https://www.wago.com/750-8111 Technical data Memory card slot Push-push mechanism; cover lid (sealable) Number of modules per node (max.) Number of modules without a bus extension (max.) Input and output process image (internal) max. 1000 words/1000 words Input and output process image (Modbus®) max.
  • Page 24 75 % 25 ppm Environmental Product Compliance RoHS Compliance Status Compliant,With Exemption RoHS Exemption 6(c) 7(a) 7(c)-I 7(c)-II Subject to changes. Please also observe the further product documentation! Current addresses can be found at:: w w w.wago.com Page 3/3 Version 30.01.2024...

  • Page 25: List Of Tables

    750-8111 List of Tables List of Tables Table 1 Address Selection Switch ....................Table 2 Mode Selector Switch ......................Table 3 Diagnostics LED – System Power Supply ................. Table 4 Diagnostics LED – Field Supply..................Table 5 “SYS” Diagnostic LED......................Table 6 “RUN”...

  • Page 26: List Of Figures

    List of Figures 750-8111 List of Figures Figure 1 View ..........................Figure 2 Wiring Interface......................Figure 3 Network Interfaces (RJ45) .................... Figure 4 Service Interface (Cover Flap Open) ................Figure 5 Power Jumper Contacts ....................Figure 6 Memory Card Slot ......................Figure 7 LED Indicators –...
  • Page 27 750-8111 List of Figures Product manual | Version: 1.0.0 PFC00 G2 2ETH...
  • Page 28 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Copyright – WAGO GmbH & Co. KG – All rights reserved. The content and structure of the WAGO websites, catalogs, videos and other WAGO media are subject to copyright. Distri- bution or modification of the contents of these pages and videos is prohibited. Furthermore, the content may neither be copied nor made available to third parties for commercial pur-...

This manual is also suitable for:

I/o system 753750-8111
