WAGO I/O System 750/753
Controller PFC100; 2nd Generation; 2 x EHTHERNET, RS-232/485
750-8112(/xxx-xxx)
Product manual
Valid for FW version 04.05.08(27)
1966249995 | 2 | en-US | 8/6/2024 9:59:
/WAGO/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750-8112 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for WAGO 750-8112 Series

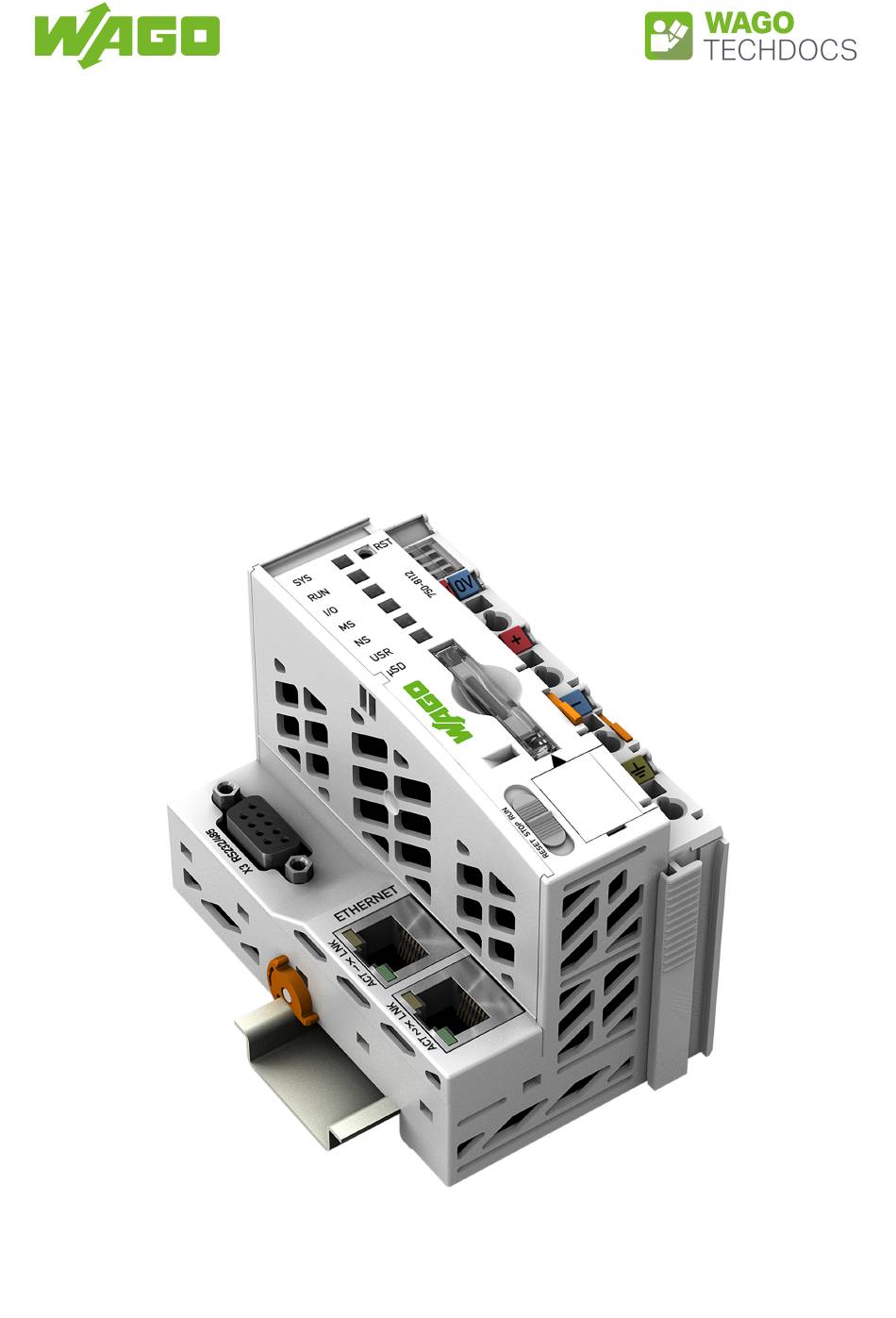

  • Page 1 WAGO I/O System 750/753 Controller PFC100; 2nd Generation; 2 x EHTHERNET, RS-232/485 750-8112(/xxx-xxx) Product manual Valid for FW version 04.05.08(27) 1966249995 | 2 | en-US | 8/6/2024 9:59: /WAGO/...
  • Page 2 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. 1966249995 | 2 | en-US | 8/6/2024 9:59: | Valid for FW version 04.05.08(27) Product manual | PFC100; G2; 2ETH, RS (T)
  • Page 3: Table Of Contents

    Table of Contents 750-8112(/xxx-xxx) Table of Contents 1 Provisions ........................ 4 Scope of Applicability .................. 4 2 Overview........................ 5 3 Properties ........................ 7 View........................ 7 Connections...................... 8 3.2.1 Power Supply ....................  8 3.2.2 Network Interfaces .................. 8 3.2.3 Service Interface .................. 9 3.2.4 Communication Interface ................
  • Page 4: Provisions

    1 Provisions 1.1 Scope of Applicability This document applies to the following products: 750-8112 (PFC100; G2; 2ETH RS) PFC100 Controller; 2nd generation; 2 × ETHERNET, RS-232/-485. ü http://www.wago.com/750-8112 Product Detail Page Version Firmware 04.05.08(27) and higher 750-8112/025-000 (PFC100; G2; 2ETH RS; T) Controller PFC100;...
  • Page 5: Overview

    The controller can be used for applications in mechanical and systems engineering, in the processing industry and in building technology. All available I/O modules of the WAGO I/O System 750/753 can be connected to the con- troller. The controller can process any analog and digital signals from the automation en- vironment internally or provide them to other devices through one of the available inter- faces.
  • Page 6 Overview 750-8112(/xxx-xxx) Note No direct access from fieldbus to the process image for I/O modules! Required data from the local bus process image must be mapped explicitly in the CODESYS program to the data in the fieldbus process image and vice versa! Direct ac- cess is not possible! Fieldbus configuration can be performed with the CODESYS V3 controller configuration.
  • Page 7: Properties

    Properties 750-8112(/xxx-xxx) 3 Properties 3.1 View 01 02 24V 0V µSD ETHERNET — — Figure 1: View LED Indicators – System/Fieldbus 8 System/Fieldbus LED Indicators [} 11] Slot for Mini-WSB (optional) & System Manual I/O System 750/753 Reset button (in hole) 8 Reset Button [} 13] LED Indicators –...
  • Page 8: Connections

    Properties 750-8112(/xxx-xxx) 3.2 Connections 3.2.1 Power Supply Figure 2: Wiring Interface Connection Designation Description 24 V System power supply voltage: +24 V Field supply voltage U − Field supply voltage: 0 V Ground Field supply voltage ground 0 V System power supply voltage: 0 V Field supply voltage U −...
  • Page 9: Service Interface

    The service interface is designed as a 4-pole male header and is located behind a cover flap. Figure 4: Service Interface (Cover Flap Open) It is used for communication with “WAGO-I/O-CHECK” and “WAGO Ethernet Settings.” The connection is made via the WAGO communication cable (see 8 Accessories [} 20]).
  • Page 10: Power Jumper Contacts/Field Supply

    Properties 750-8112(/xxx-xxx) Contact RS-232 (DCE) RS-485 Signal Description Signal Description Not assigned Not assigned Housing Shield Shield Shield Shield 3.3 Power Jumper Contacts/Field Supply The self-cleaning power jumper contacts on the housing side have a spring-contact de- sign. The field supply voltage is passed on to downstream I/O modules via these contacts. Figure 6: Power Jumper Contacts Contact Type...
  • Page 11: Indicators

    Red/green/orange/off PLC program status Red/green/orange/off Local bus status Red/green/orange/off Module status Red/green/orange/off No function Red/green/orange/off User LED, programmable using function blocks from the WAGO li- braries for LED control The meanings of the indicated states are described in 8 Diagnostics via LED Indica- tors –...
  • Page 12: Memory Card Slot Led Indicator

    Properties 750-8112(/xxx-xxx) Designation Color Description Yellow/off ETHERNET data exchange 8 Diagnostics via LED Indica- The meanings of the indicated states are described in tors – Network Connections [} 25]. 3.5.4 Memory Card Slot LED Indicator Figure 11: LED Indicator – Memory Card Slot Designation Color Description...
  • Page 13: Reset Button

    Properties 750-8112(/xxx-xxx) 3.6.2 Reset Button Figure 13: Reset Button The reset button is installed within a recess to prevent accidental operation. It is a short- travel button with a low actuating force of 1.1 … 2.1 N (110 … 210 gf). The button can be pressed with suitable object (e.g., a pen).
  • Page 14: Functions

    Functions 750-8112(/xxx-xxx) 4 Functions 4.1 Function Overview System Functions • Product and system status • Real-time clock • CODESYS V3 runtime environment Hardware Functions • Mode selector switch/reset button • Service interface • RS-232/RS-485 Communication Interface Configuration Functions • Web-based Management (WBM) Network Functions •...
  • Page 15 Functions 750-8112(/xxx-xxx) Navigation WBM Page Title User Legal Information WAGO Licenses WAGO Software License Agreement user Open Source Licenses Open Source Licenses user WBM Licenses WBM Third Party License Information user Trademarks Information Trademarks Information WBM Version WBM Version Info...
  • Page 16 Certificates Certificates admin Boot Mode Boot Mode Configuration admin Security Settings admin Integrity Advanced Intrusion Detection Environment admin (AIDE) WAGO Device Access WAGO Device Access admin Diagnostic Log Message Log Message Viewer user Download Download admin Network Capture Network Capture admin 1966249995 | 2 | en-US | 8/6/2024 9:59: | Valid for FW version 04.05.08(27)
  • Page 17: Planning

    Planning 750-8112(/xxx-xxx) 5 Planning This section provides helpful information for planing the use of the product in a node. 5.1 Requirements for Wiring and Accessories 5.1.1 Overcurrent Protection The controller has no internal overcurrent protection. For each power supply to the controller, appropriate overcurrent protection must be im- plemented externally, e.g., via fuses.
  • Page 18: Using The Communication Interface

    Planning 750-8112(/xxx-xxx) Two separate networks where each port has its own IP address Figure 16: 2 bridges with 1/1 ports Table 6: MAC ID and IP address assignment for 2 bridges with 1/1 ports Bridge MAC ID IP Addr. Port MAC ID Port MAC ID 5.1.3 Using the Communication Interface...
  • Page 19: Use As An Rs-485 Interface

    Planning 750-8112(/xxx-xxx) RxD (in) RxD (out) TxD (out) TxD (in) FB_GND FB_GND RTS (out) RTS (in) CTS (in) CTS (out) Figure 17: Termination with DTE-DCE Connection (1-to-1) For a DCE-to-DCE connection, the signal connections are crossed. RxD (out) RxD (out) TxD (in) TxD (in) FB_GND FB_GND...
  • Page 20: Using The Memory Card

    (see [} 20]). Only use memory cards available from and recommended by WAGO, as these are speci- fied for industrial applications under adverse environmental conditions and for use in this device. Compatibility with other commercially available memory cards cannot be guaran- teed.
  • Page 21: Codesys V3 Compatibility

    Planning 750-8112(/xxx-xxx) 5.2 CODESYS V3 Compatibility Table 9: Compatibility Overview Device Description Firmware Compiler Visualization Profile 6.0.0.15 10.01.04(23) 3.5.17.30 CODESYS V3.5 SP17 Patch 3 6.1.0.16 13.02.04(24) 3.5.18.10 CODESYS Visualization 4.1.1.0 6.1.1.11 03.03.04 (25) 3.5.18.50 CODESYS Visualization 4.2.0.0 6.2.0.xx 04.04.xx (26) 3.5.19.20 CODESYS Visualization 4.4.0.0 x.x.x.xx 05.04.xx (27)
  • Page 22: Diagnostics

    Diagnostics 750-8112(/xxx-xxx) 6 Diagnostics 6.1 Diagnostics via Indicators 6.1.1 Diagnostics via LED Indicators – Power Supply Figure 20: LED Indicators – Power Supply The “A” (system power supply) LED indicates the following diagnostics: Table 10: Diagnostics LED – System Power Supply Status Explanation Remedy Green...
  • Page 23: Table 13 "Run" Diagnostic Led

    “STOP” status or in the associated IDE. 2. If the application cannot be started, restart the controller. 3. Contact WAGO Support if the er- ror occurs again. Orange/green, flashing Load above threshold value 1 •...
  • Page 24: Table 14 "I/O" Diagnostic Led

    1 ... 2 seconds. A hardware fault is present. • Contact WAGO Support. Red, flashing (2 Hz) An error is present which it may be 1. First, try to eliminate the error by possible to eliminate.
  • Page 25: Diagnostics Via Led Indicators - Network Connections

    Diagnostics 750-8112(/xxx-xxx) 6.1.3 Diagnostics via LED Indicators – Network Connections Figure 22: Network Connection LED Indicators The “LNK” LED displays ETHERNET connection status with the following diagnostics: Table 16: “LNK” Diagnostic LED Status Explanation Remedy Data transmission rate: 10 Mbit/s Green Data transmission rate: 100 Mbit/s The “ACT”...
  • Page 26: Service

    Service 750-8112(/xxx-xxx) 7 Service 7.1 Inserting and Removing a Memory Card Inserting a Memory Card 1. Use an operating tool or screwdriver to open the transparent cover flap by folding it upwards. An error indicates where to apply the tool. 2.
  • Page 27: Appendix

    8 Appendix 8.1 Technical Data, Approvals, Guidelines and Standards Note Subject to changes! Please also observe the further product documentation! You can generate the current ü www.wago.com datasheet at any time at: /<item number>. See also 2 Data Sheet 750-8112 [} 28] 2 Data Sheet 750-8112/025-000 [} 31]...
  • Page 28 Controller PFC100; 2nd Generation; 2 x ETHERNET, RS-232/-485 https://www.wago.com/750-8112 The PFC100 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
  • Page 29 Data Sheet | Item Number: 750-8112 https://www.wago.com/750-8112 Technical data Memory Card Slot Push-push mechanism; cover lid (sealable) Number of modules per node (max.) Number of modules without a bus extension (max.) Input and output process image (internal) max. 1000 words/1000 words Input and output process image (Modbus®) max.
  • Page 30 Declarations of conformity and manufacturer's declarations Approval Standard Certificate Name EU-Declaration of Confor­ Approval Standard Certificate Name mity WAGO GmbH & Co. KG Article 58-2, Clause 3 MSIP-REM-W43-PFC750 National Radio Research UK-Declaration of Confor­ Agency mity WAGO GmbH & Co. KG Approvals for hazardous areas...
  • Page 31 Controller PFC100; 2nd Generation; 2 x ETHERNET, RS-232/-485; Ext. Temperature https://www.wago.com/750-8112/025-000 The PFC100 Controller is a compact PLC for the modular WAGO I/O System. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
  • Page 32 Data Sheet | Item Number: 750-8112/025-000 https://www.wago.com/750-8112/025-000 Technical data Memory Card Slot Push-push mechanism; cover lid (sealable) Number of modules per node (max.) Number of modules without a bus extension (max.) Input and output process image (internal) max. 1000 words/1000 words Input and output process image (Modbus®) max.
  • Page 33 Declarations of conformity and manufacturer's declarations Approval Standard Certificate Name EU-Declaration of Confor­ Approval Standard Certificate Name mity WAGO GmbH & Co. KG Article 58-2, Clause 3 MSIP-REM-W43-PFC750 National Radio Research UK-Declaration of Confor­ Agency mity WAGO GmbH & Co. KG Approvals for hazardous areas...
  • Page 34: List Of Tables

    List of Tables 750-8112(/xxx-xxx) List of Tables Table 1 Pin Assignment of Communication Interface ..............Table 2 Mode Selector Switch ......................Table 3 WBM Page Overview and Access Rights ................Table 4 Protection of the Power Supply..................Table 5 Assignment of MAC IDs and IP addresses for 1 bridge with 2 ports ......... Table 6 MAC ID and IP address assignment for 2 bridges with 1/1 ports ........
  • Page 35: List Of Figures

    List of Figures 750-8112(/xxx-xxx) List of Figures Figure 1 View ..........................Figure 2 Wiring Interface......................Figure 3 Network Interfaces (RJ45) .................... Figure 4 Service Interface (Cover Flap Open) ................Figure 5 Communication Interface ....................Figure 6 Power Jumper Contacts ....................Figure 7 Memory Card Slot ......................
  • Page 36 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Copyright – WAGO GmbH & Co. KG – All rights reserved. The content and structure of the WAGO websites, catalogs, videos and other WAGO media are subject to copyright. Distri- bution or modification of the contents of these pages and videos is prohibited. Furthermore, the content may neither be copied nor made available to third parties for commercial pur-...
