Manual
WAGO I/O SYSTEM 750 XTR
750-8202/040-000
PFC200 2ETH RS XTR

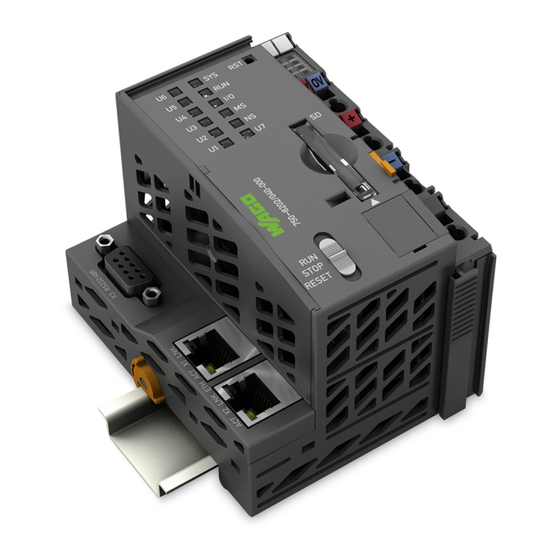

Controller PFC200; 2 × ETHERNET; RS-232/-485;
Extreme
Version 1.2.0, valid from FW Version 03.01.07(13)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFC200 2ETH RS XTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAGO PFC200 2ETH RS XTR

Summary of Contents for WAGO PFC200 2ETH RS XTR

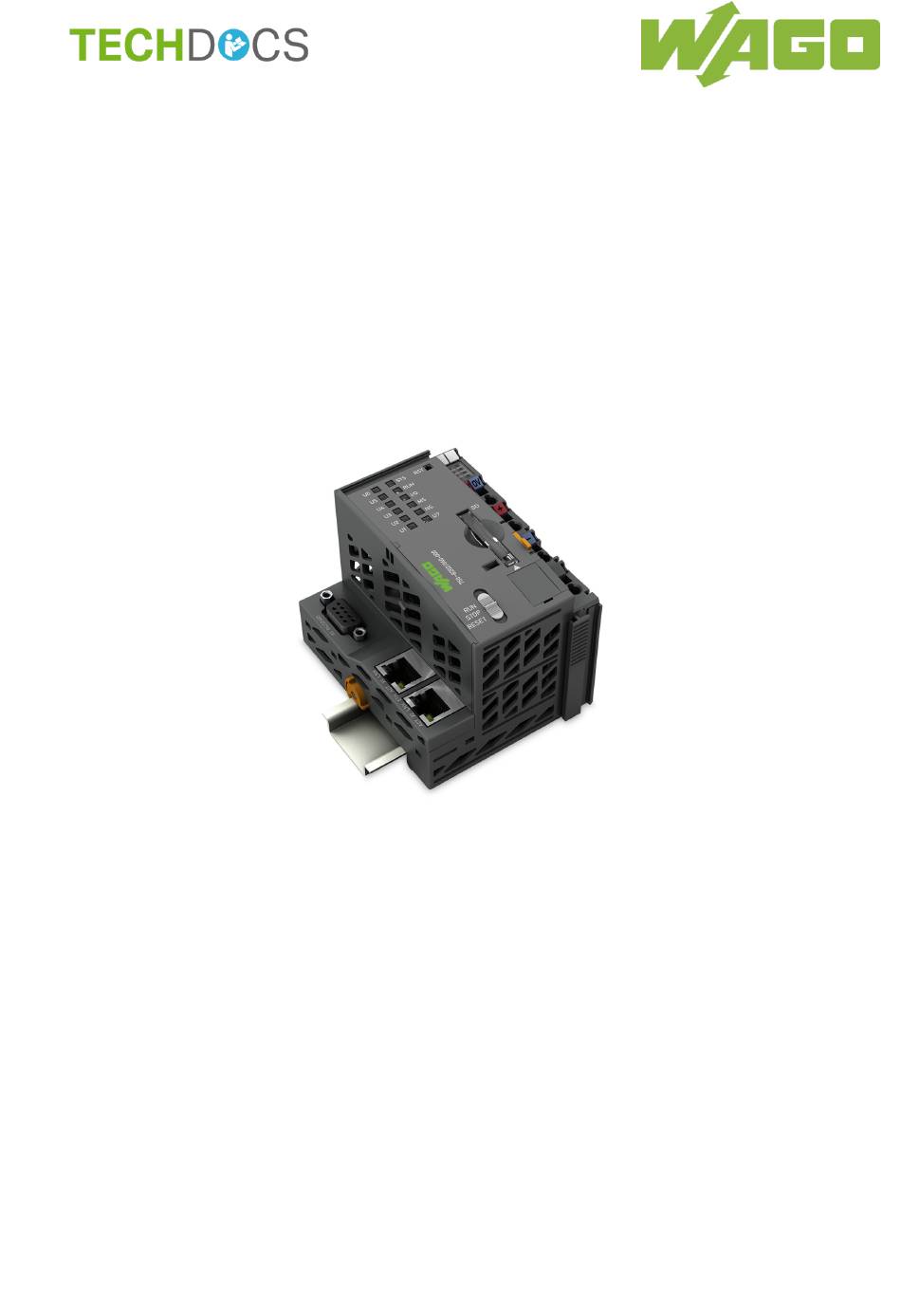

  • Page 1 Manual WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Controller PFC200; 2 × ETHERNET; RS-232/-485; Extreme Version 1.2.0, valid from FW Version 03.01.07(13)
  • Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 3: Table Of Contents

    WAGO I/O SYSTEM 750 XTR Table of Contents 750-8202/040-000 PFC200 2ETH RS XTR Table of Contents Notes about this Documentation ............15 Validity of this Documentation ..............15 Copyright....................15 Symbols ....................16 Number Notation ..................17 Font Conventions ................... 17 Important Notes ..................
  • Page 4 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.8.3 Supply ....................49 3.8.4 Clock ....................50 3.8.5 Programming ..................50 3.8.6 Local Bus ..................50 3.8.7 ETHERNET ..................51 3.8.8 Communication Interface ..............51 3.8.9 Connection Type ................
  • Page 5 Changing an IP Address Using the “CBM” Configuration Tool and a Terminal Program..............107 7.3.3 Changing an IP Address using “WAGO Ethernet Settings” .... 110 7.3.4 Temporarily Setting a Fixed IP Address .......... 112 Testing the Network Connection ............113 Changing Passwords ................
  • Page 6 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.3.2 “Project Details” Group ............123 7.8.1.3.3 “Task n” Group(s) ..............124 7.8.1.4 “General PLC Runtime Configuration” Page ......125 7.8.1.4.1 “General PLC Runtime Configuration” Group ......125 7.8.1.5...
  • Page 7 WAGO I/O SYSTEM 750 XTR Table of Contents 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.17.2 “Assign Owner of Service Interface (enabled after next controller reboot)” Group ............151 7.8.1.18 “Reboot Controller” Page ............152 7.8.1.18.1 “Reboot Controller” Group ............. 152 7.8.1.19 “Firmware Backup”...
  • Page 8 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.34.3 “Trap Receiver n” Group(s) ............ 176 7.8.1.34.4 “Add New Trap Receiver” Group ........... 176 7.8.1.35 “Configuration of SNMP v3 Users” Page ........177 7.8.1.35.1 “Actually Configured v3 Users” Group(s) ....... 177 7.8.1.35.2...
  • Page 9 WAGO I/O SYSTEM 750 XTR Table of Contents 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.1 “Firewall” > “General Configuration” Submenu ...... 200 7.8.1.44.2 “General Configuration” > “Interface xxx” Submenu ....201 7.8.1.44.3 “Firewall” > “MAC Address Filter” Submenu ......203 7.8.1.44.4 “MAC Address Filter”...
  • Page 10 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.51.5 “SNMP” > “(Secure)SNMP firewalling” Submenu ....232 7.8.2 Configuration using “WAGO Ethernet Settings” ......233 7.8.2.1 Identification Tab ................ 235 7.8.2.2 Network Tab ................236 7.8.2.3 PLC Tab ..................
  • Page 11 WAGO I/O SYSTEM 750 XTR Table of Contents 750-8202/040-000 PFC200 2ETH RS XTR e!RUNTIME Runtime Environment ............287 General Notes ..................287 CODESYS V3 Priorities ............... 288 Memory Spaces under e!RUNTIME ............ 289 9.3.1 Program and Data Memory ............. 289 9.3.2...
  • Page 12 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.5.4.5 Register 0x1104 – Watchdog Operation Mode ......313 10.5.5 Modbus Constants Registers ............314 10.5.6 Electronic Nameplate ..............314 10.5.6.1 Register 0x2010 – Revision (Firmware Index) ......314 10.5.6.2...
  • Page 13 WAGO I/O SYSTEM 750 XTR Table of Contents 750-8202/040-000 PFC200 2ETH RS XTR 13.1.2 Removing the Memory Card ............351 13.2 Firmware Changes ................352 13.2.1 Perform Firmware Upgrade ............. 352 13.2.2 Perform Firmware Downgrade ............353 13.2.3 Factory Reset .................. 354 Removal ....................
  • Page 14 Table of Contents WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.2.1 General Libraries ................380 16.2.1.1 CODESYS System Libraries ............380 16.2.1.2 SysLibCom.lib ................381 16.2.1.3 SysLibFile.lib ................382 16.2.1.4 SysLibFileAsync.lib ..............383 16.2.1.5 SysLibRtc.lib ................384 16.2.1.6...

  • Page 15: Notes About This Documentation

    In addition, ensure that any supplement to this documentation is included, if necessary. Validity of this Documentation This documentation is only applicable to the “PFC200 2ETH RS XTR” controller (750-8202/040-000). This documentation is only applicable from FW Version 03.01.07(13).

  • Page 16: Symbols

    Notes about this Documentation WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Symbols Personal Injury! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury. Personal Injury Caused by Electric Current! Indicates a high-risk, imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 17: Number Notation

    WAGO I/O SYSTEM 750 XTR Notes about this Documentation 750-8202/040-000 PFC200 2ETH RS XTR Additional Information: Refers to additional information which is not an integral part of this documentation (e.g., the Internet). Number Notation Table 1: Number Notation Number Code...

  • Page 18: Important Notes

    2.1.1 Subject to Changes WAGO Kontakttechnik GmbH & Co. KG reserves the right to provide for any alterations or modifications. WAGO Kontakttechnik GmbH & Co. KG owns all rights arising from the granting of patents or from the legal protection of utility patents.

  • Page 19: Technical Condition Of Specified Devices

    These modules contain no parts that can be serviced or repaired by the user. The following actions will result in the exclusion of liability on the part of WAGO Kontakttechnik GmbH & Co. KG: •...

  • Page 20: Packaging

    Important Notes WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR • Observe national and local regulations for the disposal of electrical and electronic equipment. • Clear any data stored on the electrical and electronic equipment. • Remove any added battery or memory card in the electrical and electronic equipment.

  • Page 21: Safety Advice (Precautions)

    WAGO I/O SYSTEM 750 XTR Important Notes 750-8202/040-000 PFC200 2ETH RS XTR Safety Advice (Precautions) For installing and operating purposes of the relevant device to your system the following safety precautions shall be observed: Do not work on devices while energized! All power sources to the device shall be switched off prior to performing any installation, repair or maintenance work.
  • Page 22 Important Notes WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Do not touch hot surfaces! The surface of the housing can become hot during operation. If the device was operated at high ambient temperatures, allow it to cool off before touching it.
  • Page 23 WAGO I/O SYSTEM 750 XTR Important Notes 750-8202/040-000 PFC200 2ETH RS XTR Avoid electrostatic discharge! The devices are equipped with electronic components that may be destroyed by electrostatic discharge when touched. Please observe the safety precautions against electrostatic discharge per DIN EN 61340-5-1/-3. When handling the devices, please ensure that environmental factors (personnel, work space and packaging) are properly grounded.

  • Page 24: Licensing Terms Of The Software Package Used

    They can be accessed via the WBM page “Legal Information” > “Open Source Software.” You can obtain the source code with licensing terms of the open-source software from WAGO Kontakttechnik GmbH & Co. KG on request. Send your request to support@wago.com with the subject “Controller Board Support Package.”...
  • Page 25 WAGO I/O SYSTEM 750 XTR Important Notes 750-8202/040-000 PFC200 2ETH RS XTR performance of your control system. Use encryption methods to protect your data and observe the information provided by the Federal Office for Information Security – “Cloud: Risks and Security Tips”.

  • Page 26: Device Description

    This controller can be used for applications in mechanical and systems engineering, in the processing industry and in building technology. You can connect all available I/O modules of the WAGO I/O SYSTEM 750 XTR to the controller, enabling it to internally process analog and digital signals from the automation environment, or to supply these signals to other devices via one of the available interfaces.
  • Page 27 CODESYS program to the data in the fieldbus process image and vice versa! Direct access is not possible! The fieldbus configuration can be defined with the WAGO-I/O-PRO or e!COCKPIT controller configuration, depending on the set runtime system (CODESYS 2 or e!RUNTIME).
  • Page 28 </dg_ Only use recommended memory cards! Use only the SD memory cards available from WAGO (item No. 758-879/000- 001 and 758-879/000-2108) as these are suitable for industrial applications subjected to environmental extremes and for use in this device. Compatibility with other commercially available storage media cannot be guaranteed.

  • Page 29: View

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR View Figure 1: View Table 3: Legend for Figure “View” Item Description See section Marking options (Mini WSB) “Display Elements” > “Power LED indicators – power pupply Supply Indicating Elements”...
  • Page 30 Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR “Mounting” > “Inserting Devices” Safe locking feature “Removal” > “Removing Devices” “Connectors” > Serial interface – X3 “Communication Interface” “Display Elements” > LED indicators – system “Fieldbus/System Indicating Elements”...

  • Page 31: Labeling

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR Labeling The front labeling includes: Device designation Name of the display elements, connections and control elements Serial number with hardware and firmware version The side labeling includes: Manufacturer's identification...

  • Page 32: Connectors

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Connectors 3.3.1 Data Contacts/Local Bus Communication between the controller and the I/O modules and system power supply for the I/O modules is provided via the local bus, which consists of 6 data contacts designed as self-cleaning gold spring contacts.

  • Page 33: Power Jumper Contacts/Field Supply

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.3.2 Power Jumper Contacts/Field Supply The controller 750-8202/040-000 is equipped with 2 self-cleaning power contacts for transferring of the field-side power supply to down-circuit I/O modules. These contacts are designed as spring contacts.

  • Page 34: Cage Clamp ® Connectors

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.3.3 CAGE CLAMP ® Connectors Figure 5: CAGE CLAMP ® Connectors Table 5: Legend for Figure “CAGE CLAMP ® Connectors” Contact Designation Description 24 V System power supply voltage +24 V Field-side power supply voltage U −...

  • Page 35: Service Interface

    750-8202/040-000 PFC200 2ETH RS XTR 3.3.4 Service Interface The service interface is located behind the flap. The Service interface is used for communication with WAGO-I/O-CHECK and “WAGO Ethernet Settings”. Figure 6: Service Interface (Closed and Open Flap) Table 6: Service Interface...

  • Page 36: Network Connectors

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.3.5 Network Connectors Figure 7: Network Connections – X1, X2 Table 7: Legend for Figure “Network Connections – X1, X2” Contact Signal Description TD + Transmit Data + TD −...

  • Page 37: Communication Interface

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.3.6 Communication Interface Figure 8: RS-232/RS-485 – Communication Connection – X3 Table 8: Legend for Figure “RS-232/RS-485 – Communication Connection – X3” RS-232 (DCE) RS-485 Contact Signal Description...

  • Page 38: Operating As An Rs-232 Interface

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.3.6.1 Operating as an RS-232 Interface Kommunikationsanschluss Depending on the device type DTE (Data Terminal Equipment, e.g., PC) or DCE (Data Communication Equipment, e.g., PFC, modem), the RS-232 signals have different data directions.

  • Page 39: Operating As An Rs-485 Interface

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.3.6.2 Operating as an RS-485 Interface To minimize reflection at the end of the line, the RS-485 line must be terminated at both ends by a cable termination. If required, one pull-up or pull-down resistor may be used.

  • Page 40: Display Elements

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Display Elements 3.4.1 Power Supply Indicating Elements Figure 12: Power Supply Indicating Elements Table 10: Legend for Figure “Power Supply Indicating Elements” Description Color Description Green/off Status of system power supply voltage...

  • Page 41: Fieldbus/System Indicating Elements

    Module status Orange/Off Red/Green/ Without function Orange/Off User LED 7, programmable using function Red/Green/ blocks from the WAGO libraries to control the Orange/Off LEDs User LED 6, programmable using function Red/Green/ blocks from the WAGO libraries to control the Orange/Off...

  • Page 42: Memory Card Indicating Elements

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.4.3 Memory Card Indicating Elements Figure 14: Indicating Elements, Memory Card Slot Table 12: Legend for Figure “Indicating Elements, Memory Card Slot” Designation Color Description Yellow/Off Memory card status Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 43: Network Indicating Elements

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.4.4 Network Indicating Elements Figure 15: Indicating Elements, RJ-45 Jacks Table 13: Legend for Figure “Indicating Elements, RJ-45 Jacks” Designation Color Description Green/Off ETHERNET connection status Yellow/Off ETHERNET data exchange Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 44: Operating Elements

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Operating Elements 3.5.1 Operating Mode Switch Figure 16: Mode Selector Switch The function of the mode selector switch depends on the activated runtime system (CODESYS 2 or e!RUNTIME).

  • Page 45: Reset Button

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.5.2 Reset Button Figure 17: Reset Button The Reset button is installed behind drilling to prevent operating errors. It is a shortstroke button with a low actuating force of 1.1 N … 2.1 N (110 gf … 210 gf).

  • Page 46: Slot For Memory Card

    </dg_ Only use recommended memory cards! Use only the SD memory cards available from WAGO (item No. 758-879/000- 001 and 758-879/000-2108) as these are suitable for industrial applications subjected to environmental extremes and for use in this device. Compatibility with other commercially available storage media cannot be guaranteed.

  • Page 47: Schematic Diagram

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR Schematic Diagram Figure 19: Schematic Diagram Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 48: Technical Data

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Technical Data 3.8.1 Device Data Table 16: Technical Data – Device Width 79 mm Height (from upper edge of DIN-rail) 65 mm Depth 100 mm Weight 210 g...

  • Page 49: Supply

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.8.3 Supply Table 18: Technical Data – Supply Internal current consumption (5 VDC) 510 mA Total current for I/O modules (5 VDC) 1700 mA Input current at nominal load typ.

  • Page 50: Clock

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.8.4 Clock </dg_ Table 19: Technical Data – Clock Drift - system clock (25 °C) 20 ppm Drift - RTC (25 °C) 3 ppm Buffer time RTC (25 °C) 30 days 3.8.5...

  • Page 51: Ethernet

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR 3.8.7 ETHERNET Table 22: Technical Data – ETHERNET ETHERNET 2 x RJ-45 (switched or separated mode) Transmission medium Twisted Pair S-UTP, 100 Ω, Cat 5, 100 m maximum cable length Baud rate 10/100 Mbit/s;...

  • Page 52: Mechanical Conditions

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.8.10 Mechanical Conditions Table 27: Technical Data – Mechanical Conditions Vibration resistance Max. 5g Follow the installation instructions 3.8.11 Climatic Environmental Conditions Table 28: Technical Data ‒ Climatic Environmental Conditions Surrounding air temperature, operation −40 °C …...

  • Page 53: Approvals

    Approvals More information about approvals. Detailed references to the approvals are listed in the document “Overview Approvals WAGO I/O SYSTEM 750”, which you can find via the internet under: www.wago.com  DOWNLOADS  Documentation  System Description. The following approvals have been granted to 750-8202/040-000 fieldbus...

  • Page 54: Standards And Guidelines

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 3.10 Standards and Guidelines 750-8202/040-000 fieldbus coupler/controller meets the following standards and guidelines: Table 29: Standards and Rated Conditions for Explosion Protection Applications ATEX acc. Directive 2014/34/EU General Requirements...

  • Page 55: Table 30: Climatic And Mechanical Environmental Conditions And

    WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR Table 30: Climatic and Mechanical Environmental Conditions and Shipbuilding Standard Test Value Transport EN 60870-2-2 Ct2(2k4) (except precipitation/water/moisture) Mechanical Environmental Conditions EN 61850-3 Achieved EN 60870-2-2 EN 60721-3-1...

  • Page 56: Table 31: Emc - Immunity To Interference

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The fieldbus coupler/controller 750-8202/040-000 meets the following EMC standards as these standards relate to the fieldbus coupler/controller: Table 31: EMC – Immunity to Interference Standard Test Value Electrostatic Discharge •...
  • Page 57 WAGO I/O SYSTEM 750 XTR Device Description 750-8202/040-000 PFC200 2ETH RS XTR Table 31: EMC – Immunity to Interference Standard Test Value Alternating Components of the Voltage to DC Line Connections • EN 61000-4-17 15 % • EN 60255-26 Damped Oscillatory Waves •...

  • Page 58: Table 32: Emc - Emission Of Interference

    Device Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 32: EMC – Emission of Interference Standard Test Value Enclosure Emission of Interference • EN 61000-6-3 30 dB(µV/m), QP, 30 MHz … 230 MHz • EN 55032 Class B 37 dB(µV/m), QP, 230 MHz …...

  • Page 59: Table 33: Standards And Rated Conditions For Rail Applications (En 50155)

    5.5 EMC (Emission of Interference, EN 50121-3-2 Immunity to Interference) EN 50121-4 EN 50121-5 9.11 Materials (Fire Protection) EN 45545-2 Hazard level HL3 WAGO is a company certified in accordance with the IRIS quality standard. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 60: Function Description

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Function Description </dg_ Network 4.1.1 Interface Configuration The ETHERNET X1 and X2 interfaces of the controller are connected with an internal 3-port switch, in which the third port is connected to the CPU.

  • Page 61: Network Security

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.1.2 Network Security 4.1.2.1 Users and Passwords Several groups of users are provided in the controller which can be used for various services. Default passwords are set for all users. We strongly recommend changing these...

  • Page 62: Wbm User Group

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 4.1.2.1.2 WBM User Group WBM has its own user administration system. The users in this system are isolated from the other user groups in the system for security reasons.

  • Page 63: Web Protocols For Wbm Access

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.1.2.2 Web Protocols for WBM Access The HTTP and HTTPS web protocols can be used to access the WBM pages for the controller. HTTPS is preferred because it uses the SSL/TLS protocol. The...
  • Page 64 Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR BSI Guidelines on Migration to TLS 1.2 The German Federal Office for Information Security guidelines on migration to TLS 1.2 contain “compatibility matrices” that show what software is comparable with TLS 1.2.

  • Page 65: Root Certificates

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.1.2.3 Root Certificates For communication encrypted with TLS, root certificates are used to verify the authenticity of the communication partner. A root certificate, which is signed by a certificate authority, serves to verify the validity of all certificates issued by this certificate authority.

  • Page 66: Network Configuration

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 4.1.3 Network Configuration 4.1.3.1 Host Name/Domain Name Without a host name configuration, the controller is assigned a default name which includes the last three values of the controller's MAC address, e.g., “PFCx00-A1A2A3.”...
  • Page 67 WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR and destination mask entries is always selected. The default gateway corresponds to the least specific routing entry. All network data packets such that no specific routing entry exists for their destination address and destination mask are sent to this default gateway.
  • Page 68 Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR For forwarding network communication through a router, it is necessary to note that corresponding routing entries must be provided not only for the router, but also for the respective endpoints of the communication. The routing entries of the endpoints must ensure that the desired network data packets are sent via the router, both when the connection is established and with the replies.

  • Page 69: Network Services

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.1.5 Network Services 4.1.5.1 DHCP Client The controller can get network parameters from an external DHCP master via the DHCP Client service. The following parameters can be obtained: •...

  • Page 70: Table 36: List Of Parameters Transmitted Via Dhcp

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The settings are made, for example, in the WBM via the “DHCP Configuration” page. The DHCP server also passes other parameters in addition to the IP address. The following table shows the complete list.

  • Page 71: Dns Server

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR Not all parameters can be set in the WBM. If you want to set other values for the existing parameters or want to pass other parameters via DHCP, the DHCP server must be manually configured.

  • Page 72: Cloud Connectivity Functionality

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 4.1.6 Cloud Connectivity Functionality With the cloud connectivity functionality and an IEC library, the controller is available as a gateway for Internet-of-Things (IoT) applications. This means the controller can collect the data from all the connected devices, access the Internet via the built-in Ethernet interface or the mobile communications module and send the data to the cloud.

  • Page 73: Components Of The Cloud Connectivity Software Package

    Observe the necessary data protection and security settings! Before using the cloud connectivity functionality, consult the corresponding handbook and familiarize yourself with data protection and security issues. You will find this in the Downloads area at www.wago.com. 4.1.6.1 Components of the Cloud Connectivity Software Package...

  • Page 74: Memory Card Function

    Memory Card Function </dg_ Only use recommended memory cards! Use only the SD memory cards available from WAGO (item No. 758-879/000- 001 and 758-879/000-2108) as these are suitable for industrial applications subjected to environmental extremes and for use in this device.
  • Page 75 WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR Memory card access from CODESYS only possible with FAT16, FAT32 or NTFS! If the CODESYS user “admin” (see the section “Network” > “Network Security” > “Users and Passwords” > “Services and Users“) is supposed to be able to access files created on the memory card, the memory card must be formatted with FAT16, FAT32 or NTFS.

  • Page 76: Data Backup

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 4.2.2 Data Backup The controller has a backup function and a restore function. The necessary settings can be made and the functions can be executed via the WBM pages or via the CBM “Backup” and “Restore” menus.

  • Page 77: Restore Function

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR The controller has an automatic update function. If this function is activated on a memory card before the data backup and a controller is booted from this memory card, this data is restored automatically on the internal memory of the controller.
  • Page 78 Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR File size must not exceed the size of the internal drive! Note that the amount of data in the media/sd/copy/ directory must not exceed the total size of the internal drive.

  • Page 79: Inserting A Memory Card During Operation

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.2.3 Inserting a Memory Card during Operation The fieldbus nodes and the PLC program are running. Insert a memory card during ongoing operation. During normal operation, the memory card is incorporated into the file system of the controller as a drive.

  • Page 80: Setting The Home Directory For The Runtime System

    Function Description WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 4.2.5 Setting the Home Directory for the Runtime System The home directory for the runtime system is located in the controller's internal memory by default. An existing boot project may be saved in the home directory.

  • Page 81: Load Boot Project

    WAGO I/O SYSTEM 750 XTR Function Description 750-8202/040-000 PFC200 2ETH RS XTR 4.2.6 Load Boot Project If a boot project exists, it may be loaded, depending on the home directory setting for the runtime system. The following table shows the possible results: Table 38: Loading a Boot Project “Home...

  • Page 82: Mounting

    Mounting WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Mounting Installation Position The following mounting positions are approved for the WAGO I/O SYSTEM 750 XTR: • Nominal mounting position (horizontal left) • Floor mounting position • Vertical top mounting position •...

  • Page 83: Figure 21: Mounting Positions

    WAGO I/O SYSTEM 750 XTR Mounting 750-8202/040-000 PFC200 2ETH RS XTR Figure 21: Mounting Positions Use an end stop in the case of vertical installation! When mounting in the “vertical top” or “vertical bottom" mounting position, also mount an end stop below the fieldbus node to protect the fieldbus node against sliding.

  • Page 84: Overall Configuration

    Mounting WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Overall Configuration The maximum total length of a fieldbus node without fieldbus coupler/controller is 780 mm including end module. The width of the end module is 12 mm. When assembled, the I/O modules have a maximum length of 768 mm.

  • Page 85: Mounting Onto Carrier Rail

    WAGO Kontakttechnik GmbH & Co. KG supplies standardized carrier rails that are optimal for use with the I/O system. If other carrier rails are used, then a technical inspection and approval of the rail by WAGO Kontakttechnik GmbH & Co. KG should take place.

  • Page 86: Wago Din Rail

    Mounting WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 5.3.2 WAGO DIN Rail WAGO carrier rails meet the electrical and mechanical requirements shown in the table below. Table 39: WAGO DIN Rail Order number Description 210-112 /-113 35 × 7.5;...

  • Page 87: Spacing

    WAGO I/O SYSTEM 750 XTR Mounting 750-8202/040-000 PFC200 2ETH RS XTR Spacing The spacing between adjacent components, cable conduits, casing and frame sides must be maintained for the complete fieldbus node. Figure 22: Spacing The spacing creates room for heat transfer, installation or wiring. The spacing to cable conduits also prevents conducted electromagnetic interferences from influencing the operation.

  • Page 88: Mounting Sequence

    WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Mounting Sequence Fieldbus couplers, controllers and I/O modules of the WAGO I/O SYSTEM 750 are snapped directly on a carrier rail in accordance with the European standard EN 60175 (DIN 35).

  • Page 89: Inserting Devices

    WAGO I/O SYSTEM 750 XTR Mounting 750-8202/040-000 PFC200 2ETH RS XTR Mixed operation Mixed operation (standard/XTR modules) within a node is possible when groups of modules are electrically isolated on the field side (i.e., electrically isolated power supply). Inserting Devices Do not work when devices are energized! High voltage can cause electric shock or burns.

  • Page 90: Inserting The I/O Module

    Mounting WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 5.6.2 Inserting the I/O Module Position the I/O module so that the tongue and groove joints to the fieldbus coupler or controller or to the previous or possibly subsequent I/O module engaged.

  • Page 91: Connect Devices

    WAGO I/O SYSTEM 750 XTR Connect Devices 750-8202/040-000 PFC200 2ETH RS XTR Connect Devices Only connect or disconnect lines when power is safely isolated! The lines to the device can carry hazardous voltages and currents. Contact with the lines when live can result in severe injury or death. Therefore, read and observe the following safety rules before you perform work on the device: Disconnect the respective system component from the power supply.

  • Page 92: Connecting A Conductor To The Cage Clamp

    Do not connect more than one conductor at one single connection! If more than one conductor must be routed to one connection, these must be connected in an up-circuit wiring assembly, for example using WAGO feed- through terminals. To open the CAGE CLAMP insert the actuating tool into the opening ®...

  • Page 93: Power Supply Concept

    Therefore, you should always dimension the overcurrent protection according to the anticipated power usage. The system and field voltage of the WAGO I/O SYSTEMs 750 XTR is supplied on the head stations and bus supply modules. For components that work with extra low voltage, only SELV/PELV voltage sources should be used.

  • Page 94: Supplementary Power Supply Regulations

    6.3.1 Supplementary Power Supply Regulations The WAGO I/O SYSTEM 750 XTR can also be used in shipbuilding applications and onshore/offshore installations (e.g., platforms, loading facilities), as well as in telecontrol applications. This is possible via certification under the standards of leading agencies such as Germanischer Lloyd and Lloyds Register.

  • Page 95: Figure 28: Power Supply Concept

    WAGO I/O SYSTEM 750 XTR Connect Devices 750-8202/040-000 PFC200 2ETH RS XTR Figure 28: Power Supply Concept Table 42: Legende for Figure “Power Supply Concept” Pos. Description XTR Fieldbus coupler / controller Supply filter; 24 VDC; higher isolation; extreme (750-626/040-000) XTR I/O modules Filter module for field-side power supply (surge);...

  • Page 96: Supply Example

    Connect Devices WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 6.3.2 Supply Example SupplSggggggggggggggggg The system supply and the field supply shall be separated! You should separate the system supply and the field supply in order to ensure bus operation in the event of a short-circuit on the actuator side.

  • Page 97: Table 43: Legend For Figure "Power Supply Example

    WAGO I/O SYSTEM 750 XTR Connect Devices 750-8202/040-000 PFC200 2ETH RS XTR Table 43: Legend for Figure “Power Supply Example” Item Description Power supply on the fieldbus coupler/controller via external system supply module Supply module 24 V Supply module with bus power supply 24 V...

  • Page 98: Power Supply Units

    WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 6.3.3 Power Supply Units The WAGO I/O SYSTEM 750 XTR requires 24 VDC voltage (system supply) for operation. Recommendation A stable power supply cannot always be assumed everywhere. Therefore, you should use regulated power supplies to ensure the quality of the supply voltage.

  • Page 99: Grounding

    WAGO I/O SYSTEM 750 XTR Connect Devices 750-8202/040-000 PFC200 2ETH RS XTR Grounding 6.4.1 Grounding the DIN Rail 6.4.1.1 Framework Assembly When setting up the framework, the carrier rail must be screwed together with the electrically conducting cabinet or housing frame. The framework or the housing must be grounded.

  • Page 100: Grounding Function

    100 Connect Devices WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 6.4.2 Grounding Function The grounding function increases the resistance against electro-magnetic interferences. Some components in the I/O system have a carrier rail contact that dissipates electro-magnetic interferences to the carrier rail.

  • Page 101: Shielding

    Higher shielding performance is achieved via low-impedance connection between shield and ground. For this purpose, connect the shield over a large surface area, e.g., WAGO shield connecting system. This is especially recommended for large-scale systems where equalizing current or high impulse- type currents caused by atmospheric discharge may occur.

  • Page 102: Shielded Signal Lines

    I/O module can be achieved even in the presence of interference acting on the signal cable. On some WAGO devices you can directly clamp the shield. For all other devices use the WAGO shield connecting system.

  • Page 103: Commissioning

    WAGO I/O SYSTEM 750 XTR Commissioning 103 750-8202/040-000 PFC200 2ETH RS XTR Commissioning Switching On the Controller Before switching on the controller ensure that you • have properly installed the controller (see section “Installation”), • have connected all required data cables (see section “Connections”) to the...

  • Page 104: Determining The Ip Address Of The Host Pc

    104 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Determining the IP Address of the Host PC To ensure that the host PC can communicate with the controller via ETHERNET, both devices must be located in the same subnet.

  • Page 105: Setting An Ip Address

    Adapt IP addressing to your specific system structure to ensure that the PC and the controller can communicate with one another using one of the available configuration tools (WBM, WAGO ETHERNET Settings or CBM – see section “Configuration”). Example for incorporating the controller (192.168.2.17) into an existing network: The IP address of the host PC is 192.168.1.2.

  • Page 106: Assigning An Ip Address Using Dhcp

    106 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.3.1 Assigning an IP Address using DHCP The Controller can obtain dynamic IP addresses from a server (DHCP/BootP). In contrast to fixed IP addresses, dynamically assigned addresses are not stored permanently.

  • Page 107: Changing An Ip Address Using The "Cbm" Configuration Tool And A Terminal Program

    WAGO I/O SYSTEM 750 XTR Commissioning 107 750-8202/040-000 PFC200 2ETH RS XTR 7.3.2 Changing an IP Address Using the “CBM” Configuration Tool and a Terminal Program You can also assign a new IP address to the ETHERNET interfaces X1 and X2 using the “CBM”...

  • Page 108: Figure 36: Cbm - Selecting "Networking

    108 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR In the Main menu use the keyboard (arrow keys or numeric keypad) to move to and select Networking and then press [Enter]. Figure 36: CBM – Selecting “Networking”...

  • Page 109: Figure 39: Cbm - Selecting The Ip Address

    WAGO I/O SYSTEM 750 XTR Commissioning 109 750-8202/040-000 PFC200 2ETH RS XTR In the menu TCP/IP Configuration select IP Address and press [Enter]. Figure 39: CBM – Selecting the IP Address In the menu Change IP Address enter the new IP address and confirm by clicking [OK].

  • Page 110: Changing An Ip Address Using "Wago Ethernet Settings

    To configure the controller use at least Version 6.4.1.1 dated 2015-06-29 of “WAGO Ethernet Settings”! You can use WAGO communication cables or WAGO radio adapters or even the IP network for data communication. Switch off the power supply to the controller.

  • Page 111: Figure 42: "Wago Ethernet Settings" - "Network" Tab

    “WAGO Ethernet Settings” will restart your controller. This action may require about 30 seconds.) You can now close “WAGO Ethernet Settings”, or make other changes directly in the Web-based Management system as required. To do this, click on [Run WBM] at the right in the window.

  • Page 112: Temporarily Setting A Fixed Ip Address

    112 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.3.4 Temporarily Setting a Fixed IP Address This procedure temporarily sets the IP address for the X1 interface to the fixed address “192.168.1.17”. When the switch is enabled, the fixed address is also used for interface X2.

  • Page 113: Testing The Network Connection

    WAGO I/O SYSTEM 750 XTR Commissioning 113 750-8202/040-000 PFC200 2ETH RS XTR Testing the Network Connection Carry out a ping network function to check whether you can reach the controller at the IP address you have assigned in the network.

  • Page 114: Changing Passwords

    114 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Changing Passwords Change standard passwords The standard passwords are documented in these instructions and therefore do not offer adequate protection! Change the passwords to meet your particular needs! To increase security all passwords should contain a combination of lower case letters (a …...

  • Page 115: Shutdown/Restart

    WAGO I/O SYSTEM 750 XTR Commissioning 115 750-8202/040-000 PFC200 2ETH RS XTR </dg_ Shutdown/Restart Switch off the power supply to shut down the controller. To perform a controller restart, press the Reset button as described in the Section “Triggering Reset Functions” > “Software Reset (Restart).”...

  • Page 116: Initiating Reset Functions

    On a cold start reset the CODESYS 2 application is reset and the memory containing the retain variables is cleared. This corresponds to the WAGO I/O PRO IDE “Reset (Cold)” command. </dg_ To perform a cold start reset, set the mode selector switch to “Reset” and hold it there for more than seven seconds.

  • Page 117: Software Reset

    WAGO I/O SYSTEM 750 XTR Commissioning 117 750-8202/040-000 PFC200 2ETH RS XTR All e!RUNTIME applications are reset with a cold start reset. All global data and the retain variables are set to their initialization values. This corresponds to the e!COCKPIT IDE “Reset Cold” command.

  • Page 118: Configuration

    WagoConfigToolLIB.lib (section “Appendix” > “WagoConfigToolLIB.lib”) or the e!RUNTIME library “WagoAppConfigTool.lib” • Access via the PC using “WAGO Ethernet Settings” (section “Configuration Using ‘WAGO Ethernet Settings’”). The CBM is basically for the initial configuration and startup of the controller. Therefore, it only provides a subset of the WBM parameters. For example, parameters that cannot be displayed in a terminal window in a reasonable way and are not necessary for initial startup are not displayed.
  • Page 119 WAGO I/O SYSTEM 750 XTR Commissioning 119 750-8202/040-000 PFC200 2ETH RS XTR The HTML pages (from here on referred to as “pages”) of the Web-Based Management are used to configure the controller. Proceed as follows to access the WBM using a web browser: Connect the controller to the ETHERNET network via the ETHERNET interface X1.

  • Page 120: Wbm User Administration

    120 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Some pages of the WBM are accessible only for certain users. They are only displayed if you have logged into the WBM. You can access the login form via the “Login”...

  • Page 121: Status Information" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 121 750-8202/040-000 PFC200 2ETH RS XTR Figure 45: Password Reminder Table 47: User Settings in the Default State Users Password user user admin wago Observe access rights Users in WBM are authorized exclusively for access to websites. User administration for controller applications is configured separately.

  • Page 122: Network Details Xn" Group(S)

    122 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.2.2 “Network Details Xn” Group(s) This group displays the network and interface properties of the controller. If the switch is enabled, one group (“Network Details X1/X2”) is shown for both connections.

  • Page 123: Plc Runtime Information" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 123 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.3 “PLC Runtime Information” Page All information about the enabled runtime system and PLC program created in the programming software is provided on the “PLC Runtime Information” page.

  • Page 124: Task N" Group(S)

    124 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.3.3 “Task n” Group(s) This group is only visible if CODESYS 2 is enabled as the runtime system. One dedicated group is displayed for each task when the PLC program is executed.

  • Page 125: General Plc Runtime Configuration" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 125 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.4 “General PLC Runtime Configuration” Page The settings for the boot project created with the programming software are given on the “General PLC Runtime Configuration” page. 7.8.1.4.1 “General PLC Runtime Configuration” Group Table 53: WBM “General PLC Runtime Configuration”...
  • Page 126 126 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The home directory change only takes effect after restarting the controller. For this purpose, use the WBM reboot function. Do not shut down the controller too early! Manual...

  • Page 127: Plc Webvisu" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 127 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.5 “PLC WebVisu” Page The settings for the web visualization created in the runtime system are shown on the “PLC WebVisu” page. 7.8.1.5.1 “Web Server Configuration” Group Table 54: WBM “PLC WebVisu” Page – “Web Server Configuration” Group...

  • Page 128: Configuration Of Host And Domain Name" Page

    128 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.6 “Configuration of Host and Domain Name” Page The settings for the general TCP/IP parameters are found on the “Configuration of Host and Domain Name” page. 7.8.1.6.1 “HostName” Group Table 55: WBM “Configuration of Host and Domain Name”...

  • Page 129: Tcp/Ip Configuration" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 129 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.7 “TCP/IP Configuration” Page The TCP/IP settings for the ETHERNET interfaces are shown on the “TCP/IP configuration” page. 7.8.1.7.1 “IP Configuration (Xn)” Group(s) If the switch is enabled, one group (“IP Configuration”) is shown for both connections.

  • Page 130: Default Gateway N" Groups

    130 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.7.2 “Default Gateway n” Groups You can configure two default gateways. The controller transmits all network data not going to a station on the local network to a default gateway. First the gateway with the lowest metric is addressed.

  • Page 131: Dns Server" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 131 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.7.3 “DNS Server” Group Table 59: WBM “TCP/IP Configuration” Page – “DNS Server” Group Parameters Explanation The addresses of the defined DNS servers are Configured: None/ displayed. If no server has been defined, DNS Server n “Configured: None”...

  • Page 132: Ethernet Configuration" Page

    132 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.8 “Ethernet Configuration” Page The settings for Ethernet TCP/IP are located on the “Ethernet Configuration” page. 7.8.1.8.1 “Switch Configuration” Group Table 60: WBM “Ethernet Configuration” Page – “Switch Configuration” Group...

  • Page 133: Interface Xn" Groups

    WAGO I/O SYSTEM 750 XTR Commissioning 133 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.8.2 “Interface Xn” Groups One group (“Interface X1” / “Interface X2”) is displayed for each connection. Table 61: WBM “Ethernet Configuration” Page – “Interface Xn” Groups Parameter Explanation Enabled You can enable or disable the interface.

  • Page 134: Routing" Page

    134 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.9 “Routing” Page On the “Routing” page you can find settings and information on the routing between the network interfaces. 7.8.1.9.1 “General Routing Configuration” Group Table 62: WBM “Routing” Page – “General Routing Configuration” Group...

  • Page 135: Static Routes" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 135 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.9.2 “Static Routes” Group Each configured static route has its own area in the display. To maintain compatibility with earlier firmware versions, at least two routing entries always exist. These can be disabled, but not removed. If a route is either removed or disabled, it is no longer entered in the system.

  • Page 136: Dynamic Routes" Group

    136 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.9.3 “Dynamic Routes” Group All default gateways received via DHCP are displayed here. Default gateways configured via DHCP are given the metric value 10, which means that they are normally used before the statically configured default gateways.

  • Page 137: Port Forwarding" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 137 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.9.5 “Port Forwarding” Group Each entry has its own area in the display. Table 65: WBM “Routing” Page – “Port Forwarding” Group Parameter Explanation Specify here whether port forwarding should be used.

  • Page 138: General Firewall Configuration" Page

    138 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.10 “General Firewall Configuration” Page 7.8.1.10.1 “Global Firewall Parameters” Group Table 66: WBM “General Firewall Configuration” Page – “Global Firewall Parameters” Group Parameters Explanation Enables/disables the complete functionality of the firewall.

  • Page 139: Firewall Parameters Interface Xxx" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 139 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.10.2 “Firewall Parameters Interface xxx” Group These settings in this group refer to the configuration of the firewall at IP level. Table 67: WBM “General Firewall Configuration” Page – “Firewall Parameter Interface xxx” Group...

  • Page 140: Configuration Of Mac Address Filter" Page

    140 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.11 “Configuration of MAC Address Filter” Page You set the firewall configuration at ETHERNET level on this page. The “MAC Address Filter Whitelist” contains a default entry with the following...

  • Page 141: Mac Address Filter State Xn" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 141 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.11.2 “MAC Address Filter State Xn” Group Table 69: WBM “Configuration of MAC Address Filter” Page – “MAC Address Filter State Xn” Group Parameters Explanation Enable or disable here the MAC address filter for the Filter enabled specific interface.

  • Page 142: Configuration Of User Filter" Page

    142 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.12 “Configuration of User Filter” Page 7.8.1.12.1 “User Filter” Group Table 71: WBM “Configuration of User Filter” Page – “User Filter” Group Parameters Explanation Count The number of configured user filters is displayed.

  • Page 143: Add New User Filter" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 143 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.12.3 “Add New User Filter” Group You can enter 10 filters. You only have to enter values in the fields that are to be set for the filter. At least one value must be entered, all other fields can remain empty.

  • Page 144: Configuration Of Time And Date" Page

    144 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.13 “Configuration of Time and Date” Page The settings for date and time are shown on the “Configuration of Time and Date” page. 7.8.1.13.1 “Date on Device” Group Table 74: WBM “Configuration of Time and Date”...

  • Page 145: Time Zone" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 145 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.13.3 “Time Zone” Group You can specify the appropriate time zone for your location in this group. The total number of possible time zones is over 500. A complete listing would exceed the scope of this documentation.

  • Page 146: Tz String" Group

    146 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.13.4 “TZ String” Group In this group you can enter a time zone that is not contained in the “Time Zone” selection. If the controller can associate the TZ string entered with a known time zone that had been missing from the “Time Zone”...

  • Page 147: Configuration Of The Users For The Web-Based Management" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 147 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.14 “Configuration of the Users for the Web-based Management” Page The settings for user administration are shown on this page. 7.8.1.14.1 “Change Password for Selected User” Group...

  • Page 148: Create Bootable Image" Page

    148 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.15 “Create Bootable Image” Page You can create a bootable image on the “Create Bootable Image” page. 7.8.1.15.1 "Create Bootable Image from Active Partition (<Active Partition>" Group The active partition that boot-up was performed from is displayed in brackets in the heading.
  • Page 149 WAGO I/O SYSTEM 750 XTR Commissioning 149 750-8202/040-000 PFC200 2ETH RS XTR Remove the memory card write protection! Because write access to the memory card is possible during the boot process, the memory card cannot be write protected when creating the image and during operation.

  • Page 150: Configuration Of Serial Interface Rs232" Page

    150 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.16 “Configuration of Serial Interface RS232” Page The settings for the serial interface are shown on the “Configuration of Serial Interface RS232” page. 7.8.1.16.1 “Serial Interface Assigned to” Group The application that the serial interface is currently assigned to is displayed.

  • Page 151: Configuration Of Service Interface" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 151 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.17 “Configuration of Service Interface” Page The settings for the service interface are shown on the “Configuration of the Service Interface” page. 7.8.1.17.1 “Service Interface assigned to” Group The application that the service interface is currently assigned to is displayed.

  • Page 152: Reboot Controller" Page

    152 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.18 “Reboot Controller” Page The settings for the system reboot are shown on the “Reboot Controller” page. 7.8.1.18.1 “Reboot Controller” Group Click the [Reboot] button to reboot the system.

  • Page 153: Firmware Backup" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 153 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.19 “Firmware Backup” Page You can find the controller data backup settings on the “Firmware Backup” page. Table 82: “Firmware-Backup” WBM Page Parameters Explanation You can select the data to be backed up here.
  • Page 154 154 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR No backup of the memory card! Backup from the memory card to the internal flash memory is not possible. Account for backup time Generation of backup files can take several minutes. Stop the CODESYS program before you start the backup procedure to help shorten the time required.

  • Page 155: Firmware Restore" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 155 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.20 “Firmware Restore” Page The settings for restoring the controller data are shown on the “Firmware Restore” page. Table 83: “Firmware Restore” WBM Page Parameters Explanation Select the data source for the restore here.
  • Page 156 156 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Note the firmware version! Restoring the controller operating system (“System” selection) is only permissible and possible if the firmware versions at the backup and restore times are identical.

  • Page 157: System Partition" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 157 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.21 “System Partition” Page The settings for specifying the partition that the system will be started from are shown on the “System Partition” page. 7.8.1.21.1 “Current Active Partition” Group The partition currently in use is displayed here.

  • Page 158: Mass Storage" Page

    158 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.22 “Mass Storage” Page A group containing information about the storage volume is displayed for each storage volume that is found, along with an additional group for formatting (when this is possible).

  • Page 159: Software Uploads" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 159 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.23 “Software Uploads” Page The settings for a device update are shown on the “Software Uploads” page. 7.8.1.23.1 “Upload New Software” Group Table 86: WBM “Software Uploads” Page – “Upload New Software” Group...

  • Page 160: Configuration Of Network Services" Page

    160 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.24 “Configuration of Network Services” Page The settings for various services are shown on the “Configuration of Network Services” page. Besides enabling/disabling the individual services, you can also limit the services for each particular interface via the firewall on the “General Firewall...

  • Page 161: Http" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 161 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.24.4 “HTTP” Group Table 91: WBM “Configuration of Network Services” Page – “HTTP” Group Parameter Explanation Service active Enable/disable the HTTP service here. Click the [Submit] button to apply the changes. The change takes effect immediately.

  • Page 162: Opc Ua" Group

    162 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.24.7 “OPC UA” Group Table 94: WBM “Configuration of Network Services” Page – “OPC UA” Group Parameter Explanation Service active Enable/disable the OPC UA service here. Click the [Submit] button to apply the changes. The change only takes effect once the controller restarts.

  • Page 163: Configuration Of Ntp Client" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 163 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.25 “Configuration of NTP Client” Page The settings for the NTP service are shown on the “Configuration of NTP Client” page. 7.8.1.25.1 “NTP Client Configuration” Group Table 95: WBM “Configuration of NTP Client” Page – “NTP Client Configuration” Group...

  • Page 164: Configuration Of Plc Runtime Services" Page

    164 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.26 “Configuration of PLC Runtime Services” Page The settings for various services of the activated runtime system are shown on the “Configuration of PLC Runtime Services” page. 7.8.1.26.1 “General Configuration” Group Table 96: WBM “Configuration of PLC Runtime Services”...

  • Page 165: Ssh Server Settings" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 165 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.27 “SSH Server Settings” Page The settings for the SSH service are shown on the “SSH Server Settings” page. 7.8.1.27.1 “SSH Server” Group Table 99: WBM “SSH Server Settings” Page – “SSH Server” Group...

  • Page 166: Tftp Server" Page

    166 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.28 “TFTP Server” Page The settings for the TFTP service are shown on the “TFTP Server” page. 7.8.1.28.1 “TFTP Server” Group Table 100: WBM “TFTP Server” Page – “TFTP Server” Group...

  • Page 167: Dhcp Configuration" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 167 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.29 “DHCP Configuration” Page The settings for the DHCP service are shown on the “DHCP Configuration” page. 7.8.1.29.1 “DHCP Configuration Xn” Group Table 101: WBM “DHCP Configuration” – “DHCP Configuration Xn” Group...

  • Page 168: Configuration Of Dns Service" Page

    168 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.30 “Configuration of DNS Service” Page The settings for the DNS service are shown on the “Configuration of DNS Service” page. 7.8.1.30.1 “DNS Service” Group Table 102: WBM “Configuration of DNS Service” Page – “DNS Service” Group...

  • Page 169: Modbus Services Configuration" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 169 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.31 “Modbus Services Configuration” Page The settings for various Modbus services are shown on the “Modbus Services Configuration” page. The groups are only visible if the e!RUNTIME system is enabled.

  • Page 170: Configuration Of Cloud Connectivity" Page

    You can find a detailed description of the “Cloud Connectivity” software package with a controller and information on PLC programming in Application Note A500920 in the Downloads area at www.wago.com! 7.8.1.32.1 “Software Version” Group Table 105: WBM “Configuration of Cloud Connectivity” Page – “Software Version” Group...

  • Page 171: Settings" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 171 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.32.3 “Settings” Group The parameters indicated depend on the cloud platform setting and, if applicable, on other settings in this group. Table 107: WBM “Configuration of Cloud Connectivity” Page – “Settings” Group...
  • Page 172 172 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 107: WBM “Configuration of Cloud Connectivity” Page – “Settings” Group Parameter Explanation Enter the path here to the file encoded in PEM Key file format that contains the private key for cloud service authentication.

  • Page 173: Table 108: Dependencies Of The Selection And Input Fields For The Selected Cloud Platform

    WAGO I/O SYSTEM 750 XTR Commissioning 173 750-8202/040-000 PFC200 2ETH RS XTR Table 108: Dependencies of the Selection and Input Fields for the Selected Cloud Platform Data Cloud Platform Protocol Selection or Input Field Service enabled Cloud platform Host name Group ID >...

  • Page 174: Configuration Of General Snmp Parameters" Page

    174 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.33 “Configuration of General SNMP Parameters” Page The general settings for SNMP are given on the “Configuration of General SNMP Parameters” page. 7.8.1.33.1 “General SNMP Configuration” Group Table 109: WBM “Configuration of General SNMP Parameters” Page – “General SNMP Configuration”...

  • Page 175: Configuration Of Snmp V1/V2C Parameters" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 175 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.34 “Configuration of SNMP v1/v2c Parameters” Page The general settings for SNMP v1/v2c are shown on the “Configuration of SNMP v1/v2c Parameters” page. 7.8.1.34.1 “SNMP v1/v2c Manager Configuration” Group Table 110: WBM “Configuration of SNMP v1/v2c Parameters”...

  • Page 176: Trap Receiver N" Group(S)

    176 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.34.3 “Trap Receiver n” Group(s) A dedicated group with the following information is displayed for each trap receiver: Table 112: WBM “Configuration of SNMP v1/v2c Parameters” Page – “Trap Receiver n” Group(s)

  • Page 177: Configuration Of Snmp V3 Users" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 177 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.35 “Configuration of SNMP v3 Users” Page The general settings for SNMP v3 are shown on the “Configuration of SNMP v3 Users” page. 7.8.1.35.1 “Actually Configured v3 Users” Group(s) Table 114: WBM “Configuration of SNMP v3”...

  • Page 178: Add New V3 User" Group

    178 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.35.3 “Add New v3 User” Group You can enter 10 users. Table 116: WBM “Configuration of SNMP v3 Users” Page – “Add New v3 User” Group Parameters Explanation Enter the user name here.

  • Page 179: Diagnostic Information" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 179 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 7.8.1.36 “Diagnostic Information” Page The settings for displaying diagnostic messages are shown on the “Diagnostic Information” page. Table 117: WBM “Diagnostic Information” Page Parameter Explanation Read all notifications Activate display of all messages.

  • Page 180: Configuration Of Openvpn And Ipsec" Page

    180 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.37 “Configuration of OpenVPN and IPsec” Page The general settings for OpenVPN and IPsec are shown on the “Configuration of OpenVPN and IPsec” page. 7.8.1.37.1 “OpenVPN” Group Table 118: WBM “Configuration of OpenVPN and IPsec” Page – “OpenVPN” Group...

  • Page 181: Certificate Upload" Group

    WAGO I/O SYSTEM 750 XTR Commissioning 181 750-8202/040-000 PFC200 2ETH RS XTR To transfer the selected file from the controller to the PC, click [Start Download] button. The changes only take effect after restarting the controller. For this purpose, use the WBM reboot function.

  • Page 182: Security Settings" Page

    182 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.38 “Security Settings” Page The network security settings are found on the “Security Settings” page. 7.8.1.38.1 “TLS Configuration” Group Table 123: “Security Settings” WBM Page – “TLS Configuration” Group...

  • Page 183: Open Source Licenses" Page

    WAGO I/O SYSTEM 750 XTR Commissioning 183 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.39 “Open Source Licenses” Page The licence conditions for the open source software used for the controller are listed in alphabetical order on the “Open Source Licenses” page.

  • Page 184: Wago Licenses" Page

    750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.40 “WAGO Licenses” Page The licence conditions for the WAGO software used in the controller are listed on the “WAGO Licenses” page. The Console-Based Management Tool (CBM) is basically used for the initial configuration and startup of the controller via a terminal program.

  • Page 185: Information" > "Network Details" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 185 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.41.2 “Information” > “Network Details” Submenu In this submenu, the network and interface properties of the controller are displayed. If the EHERNET interfaces are operated in “Switched” mode, a common table (“X1/X2”) is displayed for both connections.

  • Page 186: Plc Runtime" Menu

    186 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42 “PLC Runtime” Menu This menu contains other submenus with information and settings for the runtime system. Table 127: “PLC Runtime” Menu Menu Item Explanation 0. Back to …...

  • Page 187: Information" > "Runtime Version" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 187 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42.2 “Information” > “Runtime Version” Submenu In this submenu, the runtime version is displayed. Table 129: “PLC Runtime” > “Information” > “Runtime Version” Submenu Parameters Explanation The version of the currently enabled runtime system Version is shown.

  • Page 188: Information" > "Number Of Tasks" Submenu

    188 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42.5 “Information” > “Number of Tasks” Submenu In this submenu, the number of tasks in the PLC program are displayed. The submenu only appears when CODESYS 2 is enabled as the runtime system.

  • Page 189: Tasks" > "Task N" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 189 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42.8 “Tasks” > “Task n” Submenu In this submenu, information on the selected task is displayed. The submenu only appears when CODESYS 2 is enabled as the runtime system.

  • Page 190: General Configuration" > "Plc Runtime Version" Submenu

    190 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42.10 “General Configuration” > “PLC Runtime Version” Submenu In this submenu, select which PLC runtime system is enabled. Table 137: “PLC Runtime” > “General Configuration” > “PLC Runtime Version” Submenu...

  • Page 191: Plc Runtime" > "Webvisu" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 191 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.42.12 “PLC Runtime” > “WebVisu” Submenu This submenu contains information and settings for the Web visualization. Table 139: “PLC Runtime” > “WebVisu” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 192: Networking" Menu

    192 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43 “Networking” Menu This menu contains other submenus with settings for the network configuration. Table 140: “Networking” Menu Parameters Explanation 0. Back to … Back to the higher-level menu Opens a submenu with setting options for the 1.

  • Page 193: Host/Domain Name" > "Hostname" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 193 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.2 “Host/Domain Name” > “Hostname” Submenu In this submenu, you can set the hostname of the controller. Table 142: “Networking” > “Hostname” Submenu Parameters Explanation Enter here the hostname of the controller to be used...

  • Page 194: Tcp/Ip" > "Ip Address" Submenu

    194 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.5 “TCP/IP” > “IP Address” Submenu This submenu contains other submenus with settings for the ETHERNET interfaces. The submenu only appears if the controller is operated in “Separated” mode.

  • Page 195: Tcp/Ip" > "Default Gateway" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 195 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.7 “TCP/IP” > “Default Gateway” Submenu This submenu contains other submenus with settings for the default gateway. Table 147: “Networking” > “TCP/IP” > “Default Gateway” Submenu Menu Item Explanation 0.

  • Page 196: Tcp/Ip" > "Dns Server" Submenu

    196 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.9 “TCP/IP” > “DNS Server” Submenu This submenu contains the settings for the DNS server. Table 149: “Networking” > “TCP/IP” > “DNS Server” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 197: Ethernet" > "Switch Configuration" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 197 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.11 “Ethernet” > “Switch Configuration” Submenu This submenu contains the settings for the Switch configuration. Table 151: “Networking” > “Ethernet” > “Switch Configuration” Submenu Submenu Submenu Item / Explanation 0.

  • Page 198: Ethernet Ports" > "Interface Xn" Submenu

    198 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.43.13 “Ethernet Ports” > “Interface Xn” Submenu This submenu contains the settings for the selected ETHERNET interface. Table 153: “Networking” > “Ethernet” > “Ethernet Ports” > “Interface Xn” Submenu...

  • Page 199: Firewall" Menu

    WAGO I/O SYSTEM 750 XTR Commissioning 199 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44 “Firewall” Menu This menu contains other submenus for the firewall functionality settings. Table 154: “Firewall” Menu Menu Item Explanation 0. Back to … Back to the higher-level menu 1.

  • Page 200: Firewall" > "General Configuration" Submenu

    200 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.1 “Firewall” > “General Configuration” Submenu This submenu contains the general settings for the firewall. Table 155: “Firewall” > “General Configuration” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 201: General Configuration" > "Interface Xxx" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 201 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.2 “General Configuration” > “Interface xxx” Submenu This submenu contains the firewall settings on the IP level for the selected interface. Table 156: “Firewall” > “General Configuration” > “Interface xxx” Submenu...
  • Page 202 202 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR To make a selection, choose the appropriate menu item. To return to the higher-level menu, press [Q]. Click [<OK>] to apply the entry. Click [<Abort>] to discard the entry.

  • Page 203: Firewall" > "Mac Address Filter" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 203 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.3 “Firewall” > “MAC Address Filter” Submenu This submenu contains the settings for the MAC address filter. Table 157: “Firewall” > “MAC Address Filter” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 204: Mac Address Filter" > "Mac Address Filter Whitelist" Submenu

    204 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.4 “MAC Address Filter” > “MAC address filter whitelist” Submenu This submenu displays all available filter entries. Table 158: “Firewall” > “MAC Address Filter” > “MAC address filter whitelist” Submenu...

  • Page 205: Firewall" > "User Filter" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 205 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.6 “Firewall” > “User Filter” Submenu This submenu displays all available filter entries. Table 160: “Firewall” > “User Filter” Submenu Menu Item Explanation 0. Back to … Back to the higher-level menu 1.

  • Page 206: User Filter" > "Add New / No (N)" Submenu

    206 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.44.7 “User Filter” > “Add New / No (n)” Submenu In this submenu, you can create, change or delete filter entries. Table 161: “Firewall” > “User Filter” > “Add New / No (n)” Submenu...

  • Page 207: Clock" Menu

    WAGO I/O SYSTEM 750 XTR Commissioning 207 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.45 “Clock” Menu This menu contains other submenus for the date and time settings. Table 162: “Clock” Menu Menu Item Submenu Item / Explanation 0. Back to …...

  • Page 208: Administration" Menu

    208 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.46 “Administration” Menu This menu contains settings for controller administration. Table 163: “Administration” Menu Menu Item Submenu Item / Explanation 0. Back to … Back to the higher-level menu Opens a submenu with settings for the user 1.

  • Page 209: Administration" > "Users" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 209 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.46.1 “Administration” > “Users” Submenu This submenu contains settings for the user passwords. Table 164: “Administration” > “Users” Submenu Menu Item Explanation 0. Back to … Back to the higher-level menu 1.

  • Page 210: Package Server" Menu

    210 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.47 “Package Server” Menu This menu contains other submenus with functions for firmware backup and restore, as well as information and setting options for the current system partition.

  • Page 211: Firmware Backup" > "Auto Update Feature" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 211 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.47.2 “Firmware Backup” > “Auto Update Feature” Submenu This submenu contains a setting option for the Auto Update function. The submenu only appears if the data for the firmware backup has been selected.

  • Page 212: Package Server" > "Firmware Restore" Submenu

    212 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.47.4 “Package Server” > “Firmware Restore” Submenu This submenu contains a selection option for the restore source drive. In addition to the enabled partition, the current status is displayed.

  • Page 213: Package Server" > "System Partition" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 213 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.47.6 “Package Server” > “System Partition” Submenu This submenu contains information and setting options for the current system partition. Table 172: “Package Server” > “System Partition” Submenu Menu Item Explanation 0.

  • Page 214: Mass Storage" Menu

    214 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.48 “Mass Storage” Menu This menu contains information on the internal flash memory and, if inserted, on the external memory card. In addition to the menu item, the status is displayed for the enabled partition.

  • Page 215: Software Uploads" Menu

    WAGO I/O SYSTEM 750 XTR Commissioning 215 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.49 “Software Uploads” Menu This menu contains choices and settings for the device update. You can select fieldbus software, program licenses and update scripts, for example, for transfer from a PC to the controller.

  • Page 216: Ports And Services" Menu

    Opens a submenu with settings for the DHCPD 9. DHCPD service 10. DNS Opens a submenu with settings for the DNS service Opens a submenu with settings for the WAGO-I/O- 11. IOCHECK PORT CHECK port Opens a submenu with settings for the Modbus TCP 12. Modbus TCP...

  • Page 217: Ports And Services" > "Telnet" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 217 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.1 “Ports and Services” > “Telnet” Submenu This submenu contains the settings for the Telnet service. Table 176: “Ports and Services” > “Telnet” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 218: Ports And Services" > "Ftps" Submenu

    218 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.3 “Ports and Services” > “FTPS” Submenu This submenu contains the settings for the FTPS service. Table 178: “Ports and Services” > “FTPS” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 219: Ports And Services" > "Https" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 219 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.5 “Ports and Services” > “HTTPS” Submenu This submenu contains the settings for the HTTPS service. Table 180: “Ports and Services” > “HTTPS” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 220: Ports And Services" > "Ssh" Submenu

    220 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.7 “Ports and Services” > “SSH” Submenu This submenu contains the settings for the SSH service. Table 182: “Ports and Services” > “SSH” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 221: Ports And Services" > "Dhcpd" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 221 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.9 “Ports and Services” > “DHCPD” Submenu This submenu contains the settings for the DHCPD service. Table 184: “Ports and Services” > “DHCPD” Submenu Menu Item Explanation 0. Back to …...

  • Page 222: Ports And Services" > "Dns" Submenu

    222 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.11 “Ports and Services” > “DNS” Submenu This submenu contains the settings for the DNS service. Table 186: “Ports and Services” > “DNS” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 223: Ports And Services" > "Iocheck Port" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 223 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.12 “Ports and Services” > “IOCHECK PORT” Submenu This submenu contains settings for the WAGO-I/O-CHECK port. Table 187: “Ports and Services” > “IOCHECK PORT” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 224: Ports And Services" > "Modbus Udp" Submenu

    224 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.14 “Ports and Services” > “Modbus UDP” Submenu This submenu contains the settings for the Modbus UDP service. Table 189: “Ports and Services” > “Modbus UDP” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 225: Firewall Status" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 225 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.16 “…” > “Firewall Status” Submenu This submenu contains firewall settings for the selected service. Table 191: “Ports and Services” > “Firewall Status” Submenu Menu Item Submenu Item / Explanation 0.

  • Page 226: Ports And Services" > "Plc Runtime Services" Submenu

    226 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.17 “Ports and Services” > “PLC Runtime Services” Submenu This submenu contains the settings for the PLC runtime system services. Table 192: “Ports and Services” > “PLC Runtime Services” Submenu...

  • Page 227: Plc Runtime Services" > "Codesys 2" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 227 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.18 “PLC Runtime Services” > “CODESYS 2” Submenu This submenu contains the settings for the CODESYS 2 service. Table 193: “Ports and Services” > “PLC Runtime Services” > “CODESYS 2” Submenu...

  • Page 228: Plc Runtime Services" > "E!Runtime" Submenu

    228 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.50.19 “PLC Runtime Services” > “e!RUNTIME” Submenu This submenu contains the settings for the e!RUNTIME service. Table 194: “Ports and Services” > “PLC Runtime Services” > “e!RUNTIME” Submenu...

  • Page 229: Snmp" Menu

    WAGO I/O SYSTEM 750 XTR Commissioning 229 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.51 “SNMP” Menu This menu contains other submenus with the SNMP settings. Table 195: “SNMP” Menu Parameters Explanation 0. Back to … Back to the higher-level menu 1. General SNMP...

  • Page 230: Snmp" > "Snmp V1/V2C Manager Configuration" Submenu

    230 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.51.2 “SNMP” > “SNMP v1/v2c Manager Configuration” Submenu This submenu contains the SNMP v1/v2c Manager settings. Table 197: “SNMP” > “SNMP v1/v2c Manager Configuration” Submenu Parameters Submenu Item / Explanation 0.

  • Page 231: Snmp" > "Snmp V3 Configuration" Submenu

    WAGO I/O SYSTEM 750 XTR Commissioning 231 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.51.4 “SNMP” > “SNMP v3 Configuration” Submenu This submenu contains settings for SNMP v3. Table 199: “SNMP” > “SNMP v3 Configuration” Submenu Parameters Explanation 0. Back to …...

  • Page 232: Snmp" > "(Secure)Snmp Firewalling" Submenu

    232 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.1.51.5 “SNMP” > “(Secure)SNMP firewalling” Submenu These submenus contain the SNMP firewall settings. Table 200: “SNMP” > “(Secure )SNMP firewalling” Submenu Menu Item Submenu Item / Explanation 0. Back to …...

  • Page 233: Configuration Using "Wago Ethernet Settings

    To configure the controller, use at least Version 6.4.1.1 dated 2015-06-29 or newer of “WAGO Ethernet Settings”! You must select the correct COM port after starting “WAGO Ethernet Settings”. Figure 46: “WAGO Ethernet Settings” – Start Screen For this, click “Settings” and then “Communication”.

  • Page 234: Figure 47: "Wago Ethernet Settings" - Communication Link

    750-8202/040-000 PFC200 2ETH RS XTR Figure 47: “WAGO Ethernet Settings” – Communication Link Once you have configured “WAGO Ethernet Settings” and have clicked [Apply], connection to the controller is established automatically. If “WAGO Ethernet Settings” has already been started with the correct parameters, you can establish connection to the controller by clicking [Read].

  • Page 235: Identification Tab

    Besides some fixed values — e.g., item No., MAC address and firmware version — the currently used IP address and the configuration method are also shown here. Figure 48: “WAGO Ethernet Settings” – Identification Tab (Example) Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 236: Network Tab

    Specify the specific network parameters for static configuration. Restricted setting for default gateways! Only the default gateway 1 can be set via “WAGO Ethernet Settings.” The default gateway 2 can only be set in the WBM! Preferred DNS server, alternative DNS server Enter the IP address (when required) for an accessible DNS server when identifying network names.
  • Page 237 WAGO I/O SYSTEM 750 XTR Commissioning 237 750-8202/040-000 PFC200 2ETH RS XTR Hostname The host name of the controller is displayed here. In the controller's initial state, this name is composed of the string “PFCx00” and the last three bytes of the MAC address.

  • Page 238: Plc Tab

    238 Commissioning WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 7.8.2.3 PLC Tab Figure 50: “WAGO Ethernet Settings” – Protocol Tab Here you can select the runtime system. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 239: Status Tab

    WAGO I/O SYSTEM 750 XTR Commissioning 239 750-8202/040-000 PFC200 2ETH RS XTR 7.8.2.4 Status Tab Figure 51: “WAGO Ethernet Settings” – Status Tab General information about the controller status is displayed here. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 240: Run-Time System Codesys 2.3

    750-8202/040-000 PFC200 2ETH RS XTR Run-time System CODESYS 2.3 Installing the CODESYS 2.3 Programming System The WAGO target files must also be included for the installation of CODESYS. These contain all device-specific information for the WAGO 750/758 product series. Proceed as described below to install the CODESYS 2.3 programming software on a personal computer.

  • Page 241: Figure 52: Target System Settings (1)

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 241 750-8202/040-000 PFC200 2ETH RS XTR Click on [OK]. The “Target system settings” configuration window then opens. Figure 52: Target System Settings (1) To accept the default configuration for the fieldbus controller click [OK].

  • Page 242: Figure 54: Creating A New Function Block

    242 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR In this “New component” window create a new program function block. In the example shown here, the new function block “PLC_PRG” is created in the “ST” programming language.

  • Page 243: Creating The Plc Configuration

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 243 750-8202/040-000 PFC200 2ETH RS XTR 8.2.3 Creating the PLC Configuration Procedure for Creating the PLC Configuration The procedure explained in this section describes the PLC configuration for the I/O modules connected to the controller.

  • Page 244: Figure 57: Control Configuration - Edit

    There are three options for accepting the topology for the I/O modules connected to the fieldbus controller. The simplest way is to scan in the topology using WAGO-I/O-CHECK. To do this, click on the “Start WAGO-I/O-CHECK and scan” button. Figure 58: “Start WAGO-I/O-CHECK and Scan” Button Ensure proper installation of WAGO-I/O-CHECK! This function requires that the latest version of WAGO-I/O-CHECK be installed and the IP address set under “Online >...

  • Page 245: Figure 59: Wago-I/O-Check - Starting Screen

    WAGO-I/O-CHECK is started. Figure 59: WAGO-I/O-CHECK – Starting Screen To connect to the controller and read in the module configuration, click [Identify]. If this action is successful click [Save] and exit WAGO-I/O-CHECK. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 246: Figure 60: I/O Configurator Empty

    246 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The detected I/O modules then appear in the configuration window. Passive I/O Modules Remember that passive I/O modules, such as a power supply module (750-602/040-000) or end module (750-600/040-000) will not be shown in the I/O configurator.

  • Page 247: Figure 62: "Module Selection" Window

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 247 750-8202/040-000 PFC200 2ETH RS XTR You can select a module in the new “Module selection” window that then appears. Figure 62: “Module Selection” Window You can change the position of an I/O module by marking it and then using the arrow buttons at the right edge of the window to move it up or down.

  • Page 248: Figure 64: Variable Declaration

    248 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR To close the I/O Configurator, click [OK]. The individual inputs and outputs of the selected I/O module are displayed in the right half of the configuration window.

  • Page 249: Editing The Program Function Block

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 249 750-8202/040-000 PFC200 2ETH RS XTR 8.2.4 Editing the Program Function Block To edit the PLC_PRG program function block, go to the “Function block” tab and double-click on the PLC_PRG program module.

  • Page 250: Figure 68: Example Of An Allocation

    250 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Repeat Step 2 for the “Input_1” variable. Figure 68: Example of an Allocation To compile, click on Project > Compile all in the menu bar.

  • Page 251: Loading And Running The Plc Program In The Fieldbus Controller (Ethernet)

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 251 750-8202/040-000 PFC200 2ETH RS XTR 8.2.5 Loading and Running the PLC Program in the Fieldbus Controller (ETHERNET) Requirement: • The simulation is deactivated (Online > Simulation). • The PC is linked to the controller via ETHERNET. Refer to Section “Device Description”...

  • Page 252: Figure 70: Creating A Communication Link - Step 2

    252 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR In the “Name” field enter a designation for your fieldbus controller and then click on “Tcp/Ip (Level 2 Route)”. Then click [OK]. Figure 70: Creating a Communication Link – Step 2 In the “Communication Parameters”...

  • Page 253: Creating A Boot Project

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 253 750-8202/040-000 PFC200 2ETH RS XTR 8.2.6 Creating a Boot Project Create a boot project to ensure that the PLC program starts automatically again after a fieldbus controller restart. In the menu bar select Online > Create boot project.

  • Page 254: Creating Tasks

    254 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Two examples: Addressing by word %QW27 (28th word) Addressing by bit %IX1.9 (10th bit in word 2) Enter the character string of the absolute address without empty spaces. The first bit of a word has an address of 0.

  • Page 255: Figure 73: Changing Task Names 1

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 255 750-8202/040-000 PFC200 2ETH RS XTR To assign a new name to the task (e.g. PLC_Prog), click on “New Task”. Then select the type of task. In this example, this is the “cyclic” type.

  • Page 256: Figure 74: Call-Up To Add To The Program Module

    256 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Add the program module PLC_PRG that you have just created (see Section “Editing the Program Modules”). To do this, right-clock on the “Clock” symbol and in the contextual menu select “Attach program call-up”.

  • Page 257: Cyclic Tasks

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 257 750-8202/040-000 PFC200 2ETH RS XTR 8.4.1 Cyclic Tasks You can assign a priority for each task in order to establish the task processing sequence. Figure 75: Cyclic Task Order of Task Processing The priorities given below do not specifiy the order of task processing.

  • Page 258: Freewheeling Tasks

    258 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR … 31. These tasks all receive the same computing time from the operating system (“Completely Fair Scheduler” procedure). 8.4.2 Freewheeling Tasks So-called freewheeling tasks are not processed in cycles. Their processing depends solely on the current capacity of the system.

  • Page 259: System Events

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 259 750-8202/040-000 PFC200 2ETH RS XTR System Events Event tasks can be used in the CODESYS task configuration in addition to cyclical tasks. Event tasks call up certain events in the device.

  • Page 260: Table 202: Events

    260 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The following events can be activated: Table 202: Events Name Description start The event is called directly after the user program starts. stop The event is called directly after the user program stops.

  • Page 261: Creating An Event Handler

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 261 750-8202/040-000 PFC200 2ETH RS XTR 8.5.1 Creating an Event Handler The example here is provided to illustrate how to define and use an event handler. The event handler “excpt_dividebyzero” is used in this example.

  • Page 262: Figure 80: Codesys - New Module Has Been Generated

    262 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Figure 80: CODESYS – New Module has been Generated Handling for the event that has occurred is now programmed in this new function. In the example here, the event is documented in a global variable.

  • Page 263: Figure 82: Codesys - Variable Contents Prior To Division By "0

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 263 750-8202/040-000 PFC200 2ETH RS XTR Figure 82: CODESYS – Variable Contents Prior to Division by “0” Figure 83: CODESYS – Variable Contents After Division by “0” and Call-up of the Event Handler Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 264: Process Images

    264 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Process Images A process image is a memory area in which the process data is stored in a defined sequence and consists of the I/O modules attached to the local bus, the PFC variables, the bit memory address area and the slaves attached to the fieldbus.

  • Page 265: Process Images For I/O Modules Connected To The Controller

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 265 750-8202/040-000 PFC200 2ETH RS XTR Figure 85: Flag Area 8.6.1 Process Images for I/O Modules Connected to the Controller After starting the fieldbus controller, it automatically detects all connected I/O modules.

  • Page 266: Process Image For Slaves Connected To The Fieldbus

    (I/O module 1 to 64 ) in the RAM Write Byte %QB0 to %QB1999 * The use of up to 250 I/O modules is possible with the WAGO local bus extension modules. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 267: Codesys 2.3

    NVRAM: 128 kB Write * The use of up to 250 I/O modules is possible with the WAGO local bus extension modules. The total size of the memory for flag and retain variables is 128 kB (131060 bytes).

  • Page 268: Addressing Example

    268 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Addressing Example The following addressing example clarifies the access to the process image: Table 206: Arrangement of the I/O Modules for the Addressing Example Fieldbus controller...

  • Page 269: Local Bus Synchronization

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 269 750-8202/040-000 PFC200 2ETH RS XTR Table 207: Addressing Example I/O module Input data Output data Description Type End module 750-600 The passive 750-600 end module does not transmit any data.
  • Page 270 270 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Example: CODESYS task interval (CTI): 100 µs Local bus cycle (LBZ): 2000 µs Result: Matching of the CODESYS task interval to the local bus cycle of 2000 µs.

  • Page 271: Case 2: Codesys Task Interval Smaller Than Twice The Local Bus Cycle

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 271 750-8202/040-000 PFC200 2ETH RS XTR 8.9.2 Case 2: CODESYS Task Interval Smaller than Twice the Local Bus Cycle Execution of the local bus is synchronized with the set CODESYS task interval.

  • Page 272: Case 3: Codesys Task Interval Greater Than Twice The Local Bus Cycle

    272 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 8.9.3 Case 3: CODESYS Task Interval Greater than Twice the Local Bus Cycle The I/O data from the local bus are refreshed once prior to the CODESYS task and once after the CODESYS task.

  • Page 273: Case 4: Codesys Task Interval Greater Than 10 Ms

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 273 750-8202/040-000 PFC200 2ETH RS XTR 8.9.4 Case 4: CODESYS Task Interval Greater than 10 ms Synchronization takes place as in case 3; however, the output modules would be reset to their default state after 100 ms without a local bus cycle. This reliably prevents the execution of a local bus cycle after at least every 10 ms.

  • Page 274: Local Bus (Kbus) Settings

    274 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 8.9.5 Local Bus (KBus) Settings Figure 90: Local Bus (KBus) Settings Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 275: Effect Of Update Mode On Codesys Tasks

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 275 750-8202/040-000 PFC200 2ETH RS XTR Table 208: Local Bus (KBus) Settings Parameter Explanation The update mode is used to configure how the local bus process data is to be updated (refreshed).

  • Page 276: Synchronous Update Mode

    276 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 8.9.5.1.2 Synchronous Update Mode In the synchronous update mode the runtime behavior of CODESYS tasks can be influenced by the local bus. The minimum task interval that can then be achieved depends on the duration of a local bus cycle.

  • Page 277: Figure 91: Program Memory (Example)

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 277 750-8202/040-000 PFC200 2ETH RS XTR Figure 91: Program Memory (Example) Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 278: Data Memory And Function Block Limitation

    278 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 8.10.2 Data Memory and Function Block Limitation The data memory is set for 64 Mbytes in the controller's initial state. This set value has already been requested in the system after a successful program download and can be fully utilized.

  • Page 279: Remanent Memory

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 279 750-8202/040-000 PFC200 2ETH RS XTR 8.10.3 Remanent Memory A total of 128 kbytes of remanent memory is available for the IEC-61131 application. The remanent section is subdivided into the flag area (memory) and the retain area.

  • Page 280: Figure 95: Selecting The Visualization Technique In The Target System

    280 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR PC along with a web browser. An applet is stored in the file system of a Web server and is accessible to web browsers via an HTML page.

  • Page 281: Figure 96: Creating The Plc_Visu Starting Visualization

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 281 750-8202/040-000 PFC200 2ETH RS XTR Generate a start page for the visualization. Right-click the “Visualization” folder in the “Visualization” tab. Select Add object ... from the contextual menu. The “New visualization” dialog box opens.

  • Page 282: Limits Of Codesys Visualization

    282 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Frequently Asked Questions Additional information (FAQs) on CODESYS Web visualization is also provided in the Section “Frequently Asked Questions about CODESYS Web Visualization” and in the online Help function for CODESYS 2.3.
  • Page 283 WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 283 750-8202/040-000 PFC200 2ETH RS XTR Processor Time Make sure when configuring tasks, that there is sufficient processor time available for all processes. Network Load The controller's CPU processes both the PLC program and network traffic.

  • Page 284: Eliminating Errors In Codesys Web Visualization

    Using FTP, check if the entire Java archive “webvisu.jar” is available in the “/PLC” folder of the controller. The original file can be found in the installation path of CODESYS (usually under C:\Programme\WAGO Software\CODESYS V2.3\Visu\webvisu.jar). If necessary, replace the damaged file using FTP or force the download of all files in CODESYS with Purge All >...

  • Page 285: Faqs About Codesys Web Visualization

    WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 285 750-8202/040-000 PFC200 2ETH RS XTR 8.11.3 FAQs about CODESYS Web Visualization How can I optimize the applet for special screen resolutions? In order to optimize the Web visualization for display on a device with a fixed resolution, proceed as follows: In the “Target system settings”, enter the pixel width and height in the tab...
  • Page 286 286 Run-time System CODESYS 2.3 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Why does the visualization element “TREND” in the Web visualization only work “Online”? The following settings must be selected for visualization projects: Resources tab > Target system settings.

  • Page 287: E!Runtime Runtime Environment

    WAGO I/O SYSTEM 750 XTR e!RUNTIME Runtime Environment 287 750-8202/040-000 PFC200 2ETH RS XTR e!RUNTIME Runtime Environment General Notes Additional Information Information on the installation and startup of e!COCKPIT is provided in the corresponding manual. Information on programming is provided in the CODESYS 3 documentation.

  • Page 288: Codesys V3 Priorities

    288 e!RUNTIME Runtime Environment WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR CODESYS V3 Priorities A list of priorities implemented for the controller is provided below as supplementary information to the CODESYS 3 documentation. Table 210: CODESYS V3 Priorities Linux ®...

  • Page 289: Memory Spaces Under E!Runtime

    WAGO I/O SYSTEM 750 XTR e!RUNTIME Runtime Environment 289 750-8202/040-000 PFC200 2ETH RS XTR Memory Spaces under e!RUNTIME The memory spaces in the controller under e!RUNTIME have the following sizes: • Program and data memory: 60 Mbytes • Input data: 64 kbytes •...

  • Page 290: Modbus - Codesys 2

    290 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Modbus – CODESYS 2 </dg_ 10.1 General Modbus is a non-vendor-specific, open fieldbus standard for a wide range of applications in production and process automation. The Modbus communications...

  • Page 291: Configuration

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 291 750-8202/040-000 PFC200 2ETH RS XTR 10.3 Configuration All of the Modbus operating modes are configured using the CODESYS PLC configuration. Figure 98: CODESYS PLC Configuration - Modbus Settings The Modbus slave configuration is composed of four basic parameter groups: •...

  • Page 292: Modbus Settings

    292 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.3.1 Modbus Settings The “Modbus settings” group contains the following configuration parameters. Table 211: Modbus Settings Parameters Explanation PLC stop Response of the Modbus slave when the controller has halted...

  • Page 293: Modbus Tcp Settings

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 293 750-8202/040-000 PFC200 2ETH RS XTR 10.3.2 Modbus TCP Settings The “Modbus TCP Settings” contains the following configuration parameters for the “Modbus TCP” mode: Table 212: Modbus TCP Settings Parameters Explanation...

  • Page 294: Modbus Rtu Settings

    294 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.3.4 Modbus RTU Settings The “Modbus RTU Settings” group contains the following configuration parameters for the “Modbus RTU” mode: Table 214: Modbus RTU Settings Parameters...
  • Page 295 WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 295 750-8202/040-000 PFC200 2ETH RS XTR Table 214: Modbus RTU Settings Parameters Explanation Flow control Data flow control (Supported only for the setting “RS-232” for the physical interface.) None No data flow control...

  • Page 296: Data Exchange

    Modbus flag area – is an area, in which both Modbus Read and Write • services can be executed. Modbus register – is an area, in which the WAGO specific information and • configuration registers are contained. Only Modbus register services may be executed in this area.

  • Page 297: Process Image

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 297 750-8202/040-000 PFC200 2ETH RS XTR 10.4.1 Process Image The main data interfaces between the PLC and the Modbus slave are the local Modbus process images in the PLC address area based on IEC 61131. The Modbus input process image (Modbus Input) is in the PIO and the Modbus output process image (Modbus Output) in the PII.

  • Page 298: Flag Area

    298 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.4.2 Flag Area Modbus can also exchange data and fieldbus variables with the PLC via the flag area. Caution is urged, however, when using data and/or variables in this area that is accessed by both Modbus and the PLC.

  • Page 299: Modbus Registers

    750-8202/040-000 PFC200 2ETH RS XTR 10.4.3 Modbus Registers WAGO specific registers are implemented in the last Modbus-relevant address area; this simplifies the reading of certain system and Modbus information, as well as configuration. The Modbus address area reserved for these registers ranging from the Modbus starting address of 4096 (0x1000) up to the Modbus end address of 12287 (0x2FFF), without any allocation to the IEC 61131 address area.

  • Page 300: Modbus Mapping For Write Bit Services Fc5, Fc15

    300 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.4.4.2 Modbus Mapping for Write Bit Services FC5, FC15 The table below outlines the mapping for the Modbus-writing, bit-oriented services: • FC5 – Write Single Coil •...

  • Page 301: Modbus Mapping For Read Register Services Fc3, Fc4, Fc23

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 301 750-8202/040-000 PFC200 2ETH RS XTR 10.4.4.3 Modbus Mapping for Read Register Services FC3, FC4, FC23 The table below outlines the mapping for the Modbus-reading, register-oriented services: • FC3 – Read Holding Registers, •...

  • Page 302: Table 217: Modbus Mapping For Read Register Services Fc3, Fc4, Fc23

    302 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 217: Modbus Mapping for Read Register Services FC3, FC4, FC23 Modbus Address IEC 61131 Description (hexadecimal values Address in parentheses) 12288 … 65535 %MW0 …...

  • Page 303: Modbus Mapping For Write Register Services Fc6, Fc16, Fc22, Fc23

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 303 750-8202/040-000 PFC200 2ETH RS XTR 10.4.4.4 Modbus Mapping for Write Register Services FC6, FC16, FC22, FC23 The table below outlines the mapping for Modbus-writing, register-oriented services. • FC6 – Write Single Register, •...

  • Page 304: Table 218: Modbus Mapping For Write Register Services Fc6, Fc16, Fc22

    304 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 218: Modbus Mapping for Write Register Services FC6, FC16, FC22, FC23 Modbus Address IEC 61131 Description (hexadecimal values Address in parentheses) 12288 … 65535 %MW0 …...

  • Page 305: Wago Modbus Registers

    750-8202/040-000 PFC200 2ETH RS XTR 10.5 WAGO Modbus Registers System and Modbus data can be read and some Modbus parameters configured using the WAGO Modbus registers. The following table lists all of the WAGO Modbus registers. Table 219: WAGO Modbus Registers Modbus Address...

  • Page 306: Process Image Properties

    Major firmware version 8212 0x2014 Minor firmware version 8213 0x2015 MBS version The WAGO Modbus registers are described in more details in the following sections. 10.5.1 Process Image Properties 10.5.1.1 Register 0x1022 – Number of Registers in the Modbus Input Process Image This register contains the number of registers available in the Modbus input process image (Modbus input).

  • Page 307: Network Configuration

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 307 750-8202/040-000 PFC200 2ETH RS XTR 10.5.2 Network Configuration 10.5.2.1 Register 0x1028 – IP Configuration This register contains information about the set IP configuration. Possible values: 1 = BootP 2 = DHCP 4 = Fixed IP address 10.5.2.2...

  • Page 308: Plc Status Register

    308 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.5.3 PLC Status Register Register 0x1040 provides the status (state) that the controller is currently in. Possible values: 1 = PLC running − PLC status is RUNNING.

  • Page 309: Figure 102: State Diagram, Alternative_Watchdog Operation Mode

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 309 750-8202/040-000 PFC200 2ETH RS XTR Figure 102: State Diagram, ALTERNATIVE_WATCHDOG Operation Mode The state diagram for the ALTERNATIVE_WATCHDOG operation mode shows that the watchdog is always active as soon as a timeout time > 0 is set in the register 0x1102 (Watchdog Timeout).

  • Page 310: Register 0X1100 - Watchdog Command

    310 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Figure 103: State Diagram, Switchover Operation Mode 10.5.4.1 Register 0x1100 – Watchdog Command This register receives commands for the Modbus watchdog. It cannot be read, i.e.

  • Page 311: Table 220: Watchdog Commands

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 311 750-8202/040-000 PFC200 2ETH RS XTR Table 220: Watchdog Commands Value Name Explanation 0x5555 WATCHDOG_ Starts the configured watchdog; START in the WATCHDOG_UNCONFIGURED state if no timeout is configured, the response is an ILLEGAL_DATA_VALUE (0x03) exception.

  • Page 312: Register 0X1101 - Watchdog Status

    312 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 10.5.4.2 Register 0x1101 – Watchdog Status This register provides the current state of the Modbus watchdog. The following states are possible: Table 221: Watchdog Status...

  • Page 313: Register 0X1103 - Watchdog Config

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 313 750-8202/040-000 PFC200 2ETH RS XTR 10.5.4.4 Register 0x1103 – Watchdog Config This register contains the configuration parameters for the watchdog. The register is organized in bits, see following table. The register can be read and written in the states WATCHDOG_UNCONFIGURED, WATCHDOG_STOPPED and WATCHDOG_EXPIRED.

  • Page 314: Modbus Constants Registers

    Example: 5 for Version 5. 10.5.6.2 Register 0x2011 – Series Designator This register provides the designation (ID) for the WAGO series (Series Code) for the controller. Example: 750 for WAGO I/O SYSTEM 750. 10.5.6.3 Register 0x2012 – Device ID This register provides the device ID (WAGO Item No.) of the controller.

  • Page 315: Register 0X2013 - Major Firmware Version

    WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 315 750-8202/040-000 PFC200 2ETH RS XTR 10.5.6.4 Register 0x2013 – Major Firmware Version This register provides the major part for the firmware version. 10.5.6.5 Register 0x2014 – Minor Firmware Version This register provides the minor part for the firmware version.

  • Page 316: Diagnostics

    “PLC Status Registers”. The status of the Modbus Watchdog can be requested using a register service (FC3 or FC4) with a query to the WAGO specific register 0x1101 – “Watchdog Status Register”. Information about this is given in the Section “Modbus Watchdog”.
  • Page 317 WAGO I/O SYSTEM 750 XTR Modbus – CODESYS 2 317 750-8202/040-000 PFC200 2ETH RS XTR Table 224: Diagnostics for the Error Server Diagnostics Diagnostic text Method of Explanation saving 0x00090006 Modbus Slave Permanent Starting the Modbus slave in UDP start failed UDP mode failed.
  • Page 318 318 Modbus – CODESYS 2 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 224: Diagnostics for the Error Server Diagnostics Diagnostic text Method of Explanation saving 0x00090108 Modbus Slave Permanent Modbus slave RTU RTU configuration configuration for the RS-485 in RS-485 mode mode has failed.

  • Page 319: Modbus - E!Runtime

    WAGO I/O SYSTEM 750 XTR Modbus – e!RUNTIME 319 750-8202/040-000 PFC200 2ETH RS XTR Modbus – e!RUNTIME 11.1 Modbus Address Overview Figure 104: Modbus Address Overview Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 320: Modbus Registers

    320 Modbus – e!RUNTIME WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 11.2 Modbus Registers Table 225: WAGO Modbus Registers Modbus Address Data Length Access Description in Words Dec. Hex. Watchdog Configuration Registers 64,000 0xFA00 Watchdog command register...
  • Page 321 Hex. Constants Registers 64,160 0xFAA0 Constant 0x1234 64,161 0xFAA1 Constant 0xAAAA 64,162 0xFAA2 Constant 0x5555 64,250 0xFAFA Live register The WAGO Modbus registers are described in more details in the following sections. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 322: Modbus Watchdog

    322 Modbus – e!RUNTIME WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 11.2.1 Modbus Watchdog The Modbus watchdog monitors in the Modbus slave the ongoing Modbus communication with the Modbus master. All valid Modbus requests of a Modbus master from all the services supported by the Modbus slave are trigger events (see chapter “Modbus Mapping”).

  • Page 323: Figure 106: State Diagram, Simple_Watchdog Operation Mode

    WAGO I/O SYSTEM 750 XTR Modbus – e!RUNTIME 323 750-8202/040-000 PFC200 2ETH RS XTR Figure 106: State Diagram, SIMPLE_WATCHDOG Operation Mode The state diagram for the SIMPLE_WATCHDOG operation mode shows that the watchdog is always active as soon as a timeout > 0 is set in the register 0xFA01 (Watchdog Timeout).

  • Page 324: Register 0Xfa00 - Watchdog Command

    324 Modbus – e!RUNTIME WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 11.2.1.1 Register 0xFA00 – Watchdog Command This register receives commands for the Modbus watchdog. It cannot be read, i.e. it is not possible to read out the last command written.

  • Page 325: Register 0Xfa01 - Watchdog Timeout

    WAGO I/O SYSTEM 750 XTR Modbus – e!RUNTIME 325 750-8202/040-000 PFC200 2ETH RS XTR 11.2.1.2 Register 0xFA01 – Watchdog Timeout This register contains the value for the watchdog timeout. The step width is 1 ms and the maximum value is 65535 (corresponds to 65.535 s). The default value is 0.

  • Page 326: Register 0Xfa03 - Watchdog Config

    326 Modbus – e!RUNTIME WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 11.2.1.4 Register 0xFA03 – Watchdog Config This register contains the configuration parameters for the watchdog. The register is organized in bits, see following table. The register can be read and written irrespective of the watchdog state in the SIMPLE_WATCHDOG operation mode.

  • Page 327: Modbus Tcp Connection Watchdog Register

    WAGO I/O SYSTEM 750 XTR Modbus – e!RUNTIME 327 750-8202/040-000 PFC200 2ETH RS XTR 11.2.1.5 Modbus TCP Connection Watchdog Register The 0xFA04 register contains the time for the Modbus TCP connection watchdog. Time base is 10 ms. This enables the time to be set up to 655350 ms.

  • Page 328: Status Registers

    Registers 0xFA10–0xFA17 contain information from the electronic nameplate. It is possible to read the entire nameplate or a consecutive portion of it all at once. 11.2.3.1 Order Number The registers 0xFA10–0xFA13 contain the WAGO order number of the controller. Example: 0750-8202/0025-0001. 0xFA10 = 0750, 0xFA11 = 8202,...

  • Page 329: Constant Registers

    750-8202/040-000 PFC200 2ETH RS XTR 11.2.6 Constant Registers Registers 0xFAA0 … 0xFAA2 provide constants based on the “WAGO Modbus Registers” table. It is possible to read all of the constants, or a consecutive portion of them at once. 0xFAA0 = 0x1234,...

  • Page 330: Estimating The Modbus Master Cpu Load

    330 Modbus – e!RUNTIME WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 11.3 Estimating the Modbus Master CPU Load Due to the real-time characteristics of the Linux kernel used, many data points can generate many context changes. For a one-off update (transmitting and receiving of a function code), a CPU time of approx.

  • Page 331: Estimating The Modbus Master Cpu Load

    WAGO I/O SYSTEM 750 XTR Modbus – e!RUNTIME 331 750-8202/040-000 PFC200 2ETH RS XTR 11.4 Estimating the Modbus Master CPU Load Due to the real-time characteristics of the Linux kernel used, many data points can generate many context changes. For a one-off update (transmitting and receiving of a function code), a CPU time of approx.

  • Page 332: Diagnostics

    332 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Diagnostics 12.1 Operating and Status Messages The following tables contain descriptions of all operating and status messages for the controller which are indicated by LEDs. 12.1.1 Power Supply Indicating Elements...

  • Page 333: Fieldbus/System Indicating Elements

    WAGO I/O SYSTEM 750 XTR Diagnostics 333 750-8202/040-000 PFC200 2ETH RS XTR 12.1.2 Fieldbus/System Indicating Elements Figure 109: Indicating Elements for Fieldbus/System The SYS LED indication depends on the runtime system enabled (CODESYS 2 or e!RUNTIME). The following indications apply to the CODESYS 2 runtime system: Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 334: Table 231: Diagnostics Via Sys Led

    334 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 231: Diagnostics via SYS LED Status Explanation Remedy Green Ready to operate - System start completed without errors Orange Device is in startup/boot process and the RST button is not pressed.

  • Page 335: Table 232: Diagnostics Via Sys Led

    WAGO I/O SYSTEM 750 XTR Diagnostics 335 750-8202/040-000 PFC200 2ETH RS XTR The following indications apply to the e!RUNTIME runtime system: Table 232: Diagnostics via SYS LED Status Explanation Remedy Green Ready to operate - System start completed without errors...

  • Page 336: Table 233: Diagnostics Run Led

    336 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The RUN LED indication depends on the runtime system enabled (CODESYS 2 or e!RUNTIME). The following indications apply to the CODESYS 2 runtime system: Table 233: Diagnostics RUN LED...

  • Page 337: Table 234: Run Led Diagnostics

    WAGO I/O SYSTEM 750 XTR Diagnostics 337 750-8202/040-000 PFC200 2ETH RS XTR The following indications apply to the e!RUNTIME runtime system: Table 234: RUN LED Diagnostics Status Explanation Remedy Green Applications loaded and all in the “RUN” status Green flashing No application and Load an application or boot project.

  • Page 338: Table 235: Diagnostics I/O Led

    338 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR The I/O LED indicates following diagnostics: Table 235: Diagnostics I/O LED Status Explanation Solution Green Data cycle on the local bus, normal operating status. Orange flashing Startup phase; the local Wait until initialization has bus is being initialized.

  • Page 339: Table 236: Ms-Led Diagnostics

    WAGO I/O SYSTEM 750 XTR Diagnostics 339 750-8202/040-000 PFC200 2ETH RS XTR The MS LED indicates following diagnostics: Table 236: MS-LED Diagnostics Status Explanation Remedy No error Red flashing A configuration error An explanation of the flashing sequence (flashing exists.

  • Page 340: Diagnostics Messages Via Flashing Sequences

    340 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 12.2 Diagnostics Messages via Flashing Sequences 12.2.1 Flashing Sequences A diagnosis (fault/error) is always displayed as three flashing sequences in a cyclic manner: The first flashing sequence (flickering) initiates reporting of the fault/error.

  • Page 341: Figure 110: Flashing Sequence Process Diagram

    WAGO I/O SYSTEM 750 XTR Diagnostics 341 750-8202/040-000 PFC200 2ETH RS XTR Figure 110: Flashing Sequence Process Diagram Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 342: Example Of A Diagnostics Message Indicated By A Flashing Sequence

    342 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 12.2.2 Example of a Diagnostics Message Indicated by a Flashing Sequence The example below illustrates the representation of a diagnostics message via a flashing sequence. The I/O LED indicates a data error on the local bus. The data error is caused by the removal of an I/O module located at the 6th position of the bus node.

  • Page 343: Meaning Of Blink Codes And Procedures For Troubleshooting

    This section describes the diagnostics presented as blink codes via the I/O LEDs. If the diagnostics cannot be cleared by the measured specified for them, contact WAGO support. Be ready to explain to them the blink code that is displayed. Phone:...

  • Page 344: Table 238: Error Code 1, Explanation Of Blink Codes And Procedures For

    344 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 238: Error Code 1, Explanation of Blink Codes and Procedures for Troubleshooting Error Cause Remedy Argument Invalid parameter Switch off the power to the controller checksum for local and replace it.

  • Page 345: Table 239: Error Code 2, Explanation Of Blink Codes And Procedures For

    WAGO I/O SYSTEM 750 XTR Diagnostics 345 750-8202/040-000 PFC200 2ETH RS XTR Table 238: Error Code 1, Explanation of Blink Codes and Procedures for Troubleshooting Error Cause Remedy Argument Error occurred while Switch off the power to the controller writing to the serial and replace it.

  • Page 346: Table 240: Error Code 3, Explanation Of Blink Codes And Procedures For

    346 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 240: Error Code 3, Explanation of Blink Codes and Procedures for Troubleshooting Error Cause Solution Argument If a power supply module (e.g., 750-602) is connected to the controller, ensure that this module functions properly (see Section “LED Signaling”).

  • Page 347: Table 241: Error Code 4, Explanation Of Blink Codes And Procedures For

    WAGO I/O SYSTEM 750 XTR Diagnostics 347 750-8202/040-000 PFC200 2ETH RS XTR Table 241: Error Code 4, Explanation of Blink Codes and Procedures for Troubleshooting Error Cause Solution Argument Switch off the power to the controller. Maximum permissible Reduce the number of I/O modules number of I/O modules to an acceptable value.

  • Page 348: Table 244: Error Code 9, Explanation Of Blink Codes And Procedures For

    348 Diagnostics WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 244: Error Code 9, Explanation of Blink Codes and Procedures for Troubleshooting Error Cause Remedy Argument Invalid program Malfunction of the program sequence: statement Contact WAGO Support.

  • Page 349: Meaning Of Blink Codes And Procedures For Troubleshooting

    This section describes the diagnostics presented as blink codes via the MS LEDs. If the diagnostics cannot be cleared by the measured specified for them, contact WAGO support. Be ready to explain to them the blink code that is displayed. Phone: +49 571 887 44 55 5...

  • Page 350: Service

    350 Service WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Service 13.1 Inserting and Removing the Memory Card </dg_ 13.1.1 Inserting the Memory Card Use an actuating tool or a screwdriver to open the transparent cover flap by flipping it upwards.

  • Page 351: Removing The Memory Card

    WAGO I/O SYSTEM 750 XTR Service 351 750-8202/040-000 PFC200 2ETH RS XTR </dg_ 13.1.2 Removing the Memory Card First, remove any seal that may be in place. Use an actuating tool or a screwdriver to open the transparent cover flap by flipping it upwards.

  • Page 352: Firmware Changes

    Therefore, use only documentation appropriate for the target firmware after a firmware change. If you have any questions, feel free to contact our WAGO Support. 13.2.1 Perform Firmware Upgrade Do not switch the controller off! The controller can be damaged by interrupting the upgrade process.

  • Page 353: Perform Firmware Downgrade

    WAGO I/O SYSTEM 750 XTR Service 353 750-8202/040-000 PFC200 2ETH RS XTR 13.2.2 Perform Firmware Downgrade Do not switch the controller off! The controller can be damaged by interrupting the downgrade process. Do not switch the controller off during the downgrade process and do not...

  • Page 354: Factory Reset

    Stored boot projects are deleted, including existing web visualization data. Subsequently installed firmware functions are not overwritten. If you have any questions, contact WAGO Support. The controller is restarted after the factory reset. Proceed as follows to factory reset the controller: Press the Reset button (RST).

  • Page 355: Removal

    WAGO I/O SYSTEM 750 XTR Removal 355 750-8202/040-000 PFC200 2ETH RS XTR Removal Risk of injury due to sharp-edged blade contacts! The blade contacts are sharp-edged. Handle the I/O module carefully to prevent injury. Do not touch the blade contacts.

  • Page 356: Removing The I/O Module

    356 Removal WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 14.1.2 Removing the I/O Module Remove the I/O module from the assembly by pulling the release tab. Figure 113: Removing the I/O Module (Example) Electrical connections for data or power jumper contacts are disconnected when removing the I/O module.

  • Page 357: Use In Hazardous Environments

    Use in Hazardous Environments 357 750-8202/040-000 PFC200 2ETH RS XTR Use in Hazardous Environments The WAGO I/O SYSTEM 750 (electrical equipment) is designed for use in Zone 2 hazardous areas and shall be used in accordance with the marking and installation regulations.

  • Page 358: Marking Configuration Examples

    358 Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 15.1 Marking Configuration Examples 15.1.1 Marking for Europe According to ATEX and IECEx Figure 114: Marking Example According to ATEX and IECEx Figure 115: Text Detail – Marking Example According to ATEX and IECEx Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 359: Table 247: Description Of Marking Example According To Atex And Iecex

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 359 750-8202/040-000 PFC200 2ETH RS XTR Table 247: Description of Marking Example According to ATEX and IECEx Marking Description TUEV 07 ATEX 554086 X Approving authority resp. certificate numbers IECEx TUN 09.0001 X...

  • Page 360: Figure 116: Marking Example For Approved Ex I I/O Module According To

    360 Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Figure 116: Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Figure 117: Text Detail – Marking Example for Approved Ex i I/O Module According to ATEX and...

  • Page 361: Table 248: Description Of Marking Example For Approved Ex I I/O Module According To Atex And Iecex

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 361 750-8202/040-000 PFC200 2ETH RS XTR Table 248: Description of Marking Example for Approved Ex i I/O Module According to ATEX and IECEx Marking Description TUEV 12 ATEX 106032 X Approving authority resp. certificate numbers...

  • Page 362: (Cec)

    362 Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 15.1.2 Marking for the United States of America (NEC) and Canada (CEC) Figure 118: Marking Example According to NEC Figure 119: Text Detail – Marking Example According to NEC 500...

  • Page 363: Figure 120: Text Detail - Marking Example For Approved Ex I I/O Module

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 363 750-8202/040-000 PFC200 2ETH RS XTR Figure 120: Text Detail – Marking Example for Approved Ex i I/O Module According to NEC 505 Table 250: Description of Marking Example for Approved Ex i I/O Module According to NEC 505...

  • Page 364: Figure 122: Text Detail - Marking Example For Approved Ex I I/O Modules

    364 Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Figure 122: Text Detail – Marking Example for Approved Ex i I/O Modules According to CEC 18 attachment J Table 252: Description of Marking Example for Approved Ex i I/O Modules According to CEC 18...

  • Page 365: Installation Regulations

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 365 750-8202/040-000 PFC200 2ETH RS XTR 15.2 Installation Regulations For the installation and operation of electrical equipment in hazardous areas, the valid national and international rules and regulations which are applicable at the installation location must be carefully followed.
  • Page 366 366 Use in Hazardous Environments WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Explosive atmosphere occurring simultaneously with assembly, installation or repair work must be ruled out. Among other things, these include the following activities • Insertion and removal of components •...

  • Page 367: Special Notes Regarding Ansi/Isa Ex

    WAGO I/O SYSTEM 750 XTR Use in Hazardous Environments 367 750-8202/040-000 PFC200 2ETH RS XTR 15.2.2 Special Notes Regarding ANSI/ISA Ex For ANSI/ISA Ex acc. to UL File E198726, the following additional requirements apply: • Use in Class I, Division 2, Group A, B, C, D or non-hazardous areas only •...

  • Page 368: Appendix

    (with word alignment). The internal mapping method for data greater than one byte conforms to Intel formats. The following section describes the representation for WAGO I/O SYSTEM 750 XTR I/O modules in the process image, as well as the configuration of the process values.

  • Page 369: Digital Input Modules

    WAGO I/O SYSTEM 750 XTR Appendix 369 750-8202/040-000 PFC200 2ETH RS XTR 16.1.1 Digital Input Modules The digital input modules provide a process value of one bit per channel, which indicates the status of the respective channel. These bits are mapped into the input process image.

  • Page 370: Digital Output Modules

    370 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.1.2 Digital Output Modules The digital output modules provide one bit as the process value per channel that indicates the status of the respective channel. These bits are mapped into the output process image.

  • Page 371: 4-Channel Digital Output Modules With Diagnostics And Input Data

    WAGO I/O SYSTEM 750 XTR Appendix 371 750-8202/040-000 PFC200 2ETH RS XTR 16.1.2.4 4-Channel Digital Output Modules with Diagnostics and Input Data In addition to the 4-bit process values in the output process image, the digital output modules provide 4 bits of data in the input process image. A diagnostic bit for each output channel indicates an overload, short circuit or wire breakage.

  • Page 372: 16-Channel Digital Output Modules

    372 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.1.2.7 16-Channel Digital Output Modules Table 262: 16-Channel Digital Output Modules Output Process Image Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0...

  • Page 373: Analog Input Modules

    Information on the structure of control and status bytes For detailed information on the structure of a particular I/O module’s control/status bytes, please refer to that module’s manual. Manuals for each module can be found on the Internet at www.wago.com. 16.1.3.1 2-Channel Analog Input Modules...

  • Page 374: 3-Phase Power Measurement Module

    374 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.1.3.3 3-Phase Power Measurement Module The above Analog Input Modules have a total of 9 bytes of user data in both the Input and Output Process Image (6 bytes of data and 3 bytes of control/status).

  • Page 375: Analog Output Modules

    Information on the structure of control and status bytes For detailed information on the structure of a particular I/O module’s control/status bytes, please refer to that module’s manual. Manuals for each module can be found on the Internet at www.wago.com. 16.1.4.1 2 Channel Analog Output Modules...

  • Page 376: Specialty Modules

    376 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.1.5 Specialty Modules In addition to the data bytes, the control/status byte is also displayed for select I/O modules. This byte is used for the bi-directional data exchange of the I/O module with the higher-level control system.

  • Page 377: Ssi Transmitter Interface I/O Modules

    WAGO I/O SYSTEM 750 XTR Appendix 377 750-8202/040-000 PFC200 2ETH RS XTR 16.1.5.2 SSI Transmitter Interface I/O Modules The process image depends on the parameterized operating mode! The operating mode of the configurable I/O module can be set. Based on the operating mode, the process image of these I/O modules is then the same as that of the respective version.

  • Page 378: Table 271: Counter Modules

    378 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR and Output Process Image, which has a total of 3 words mapped into each image. Word alignment is applied. Table 271: Counter Modules Input Process Image Byte Designation...

  • Page 379: Can Gateway

    WAGO I/O SYSTEM 750 XTR Appendix 379 750-8202/040-000 PFC200 2ETH RS XTR 16.1.5.5 CAN Gateway The process image size of the CAN Gateway can be set in the specified sizes of 8, 12, 16, 20, 24, 32, 40 or 48 bytes.

  • Page 380: Codesys 2 Libraries

    380 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.2 CODESYS 2 Libraries Additional functions for the controller 750-8202/040-000are provided using libraries. 16.2.1 General Libraries This section contains general CODESYS libraries supported by the controller 750-8202/040-000. 16.2.1.1 CODESYS System Libraries All of the functions of the CODESYS system libraries listed below are supported.

  • Page 381: Syslibcom.lib

    WAGO I/O SYSTEM 750 XTR Appendix 381 750-8202/040-000 PFC200 2ETH RS XTR Table 274: CODESYS System Libraries Library Function C/IEC 61131 SysTaskInfo.lib Evaluation of task information in IEC 61131 the Online mode Util.lib Various logical operations IEC 61131 Util_no_Real.lib Various logical operations...

  • Page 382: Syslibfile.lib

    382 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR 16.2.1.3 SysLibFile.lib The controller 750-8202/040-000supports the following function blocks of the “SysLibFile.lib” library: SysFileClose SysFileCopy SysFileDelete SysFileEOF SysFileGetPos SysFileGetSize SysFileGetTime SysFileOpen SysFileRead SysFileRename SysFileSetPos SysFileWrite Ensure that files are saved! Files are not reliably saved on the data medium until you call up the “SysFileClose”...

  • Page 383: Syslibfileasync.lib

    WAGO I/O SYSTEM 750 XTR Appendix 383 750-8202/040-000 PFC200 2ETH RS XTR 16.2.1.4 SysLibFileAsync.lib The controller 750-8202/040-000supports the following function blocks of the “SysLibFileAsync.lib” library: SysFileCloseAsync SysFileCopyAsync SysFileDeleteAsync SysFileEOFAsync SysFileGetPosAsync SysFileGetSizeAsync SysFileGetTimeAsync SysFileOpenAsync SysFileReadAsync SysFileRenameAsync SysFileSetPosAsync SysFileWriteAsync Ensure that files are saved! Files are not reliably saved to the data medium until you call up the “SysFileCloseAsync”...

  • Page 384: Syslibrtc.lib

    The values for the input variables “DEVICENUMBER” of the “DiagGetBusState” and “DiagGetState” functions are based on the particular device and bus system and are as follows for the controller “PFC200 2ETH RS XTR” (750-8202/040- 000): Table 277: Input Variable “DEVICENUMBER”...

  • Page 385: Mod_Com.lib

    PI_INFORMATION SET_DIGITAL_INPUT_OFFSET SET_DIGITAL_OUTPUT_OFFSET SLAVE_ADDRESS The document containing a description of this library and the function blocks it includes is available for download on the Internet at www.wago.com. 16.2.1.8 SerComm.lib The controller 750-8202/040-000supports the following function blocks of the “SerComm.lib” library:...

  • Page 386: Table 278: Description Of The Configuration Scripts For "Information

    386 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 278: Description of the Configuration Scripts for “Information” Parameters Status Call-Up Output/Input Effective Controller Details: Identifies various information about the controller Product get_coupler_details read Product description Immediately...

  • Page 387: Table 279: Description Of The Configuration Scripts For "Codesys

    WAGO I/O SYSTEM 750 XTR Appendix 387 750-8202/040-000 PFC200 2ETH RS XTR Table 279: Description of the Configuration Scripts for “CODESYS” Parameters Status Call Output/Input Effecti Information CODESYS get_coupler_details Version of the CODESYS Immedia Webserver read codesys-Webserver- Webserver tely Version...

  • Page 388: Table 280: Description Of The Configuration Scripts For "Networking - Host/Domain Name

    388 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 280: Description of the Configuration Scripts for “Networking - Host/Domain Name” Parameters Status Call Output/Input Effecti Host Name Display of the host name. The return value is blank when...
  • Page 389 WAGO I/O SYSTEM 750 XTR Appendix 389 750-8202/040-000 PFC200 2ETH RS XTR Table 281: Description of the Configuration Scripts for “Networking - TCP/IP” Parameters Status Call Output/Input Effecti Default Gateway 1 Current status of the default gateway 1. get_default_gateway_ read...

  • Page 390: Table 282: Description Of The Configuration Scripts For "Networking - Ethernet

    390 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 282: Description of the Configuration Scripts for “Networking - ETHERNET” Parameters Status Call-Up Output/Input Effective Switch Configuration Query the switch configuration: Possible return values: read get_dsa_mode 0 = „switched“ mode 1 = „separated“...

  • Page 391: Table 283: Description Of The Configuration Scripts For "Ntp

    WAGO I/O SYSTEM 750 XTR Appendix 391 750-8202/040-000 PFC200 2ETH RS XTR Table 283: Description of the Configuration Scripts for “NTP” Parameters Status Call Output/Input Effecti Configuration Data Query the status of the NTP server get_ntp_config read Possible return values are:...

  • Page 392: Table 284: Description Of The Configuration Scripts For "Clock

    392 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 284: Description of the Configuration Scripts for “Clock” Parameters Status Call-Up Output/Input Effective Clock Time and Date get_clock_data read Local time and date date-local Date on device,...

  • Page 393: Table 285: Description Of The Configuration Scripts For "Administration

    WAGO I/O SYSTEM 750 XTR Appendix 393 750-8202/040-000 PFC200 2ETH RS XTR Table 285: Description of the Configuration Scripts for "Administration" Parameters Status Call Output/Input Effecti Configuration of Service Interface User of the serial interface. Active: Current value Configured: Value set, but not...

  • Page 394: Table 287: Description Of Configuration Scripts For "Ports And Services" - "Network Services

    394 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 287: Description of Configuration Scripts for “Ports and Services” – “Network Services Parameters Status Call-Up Output/Input Valid Network Services Telnet Read the status of the Telnet server.

  • Page 395: Table 288: Description Of Configuration Scripts For "Ports And Services" - "Plc Runtime Services

    WAGO I/O SYSTEM 750 XTR Appendix 395 750-8202/040-000 PFC200 2ETH RS XTR Table 288: Description of Configuration Scripts for “Ports and Services” – “PLC Runtime Services” Parameters Status Call Output/Input Effecti General Settings Version of the enabled PLC runtime get_runtime_config...
  • Page 396 396 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 288: Description of Configuration Scripts for “Ports and Services” – “PLC Runtime Services” Parameters Status Call Output/Input Effecti CODESYS 2 Settings Read status of the runtime- get_runtime_config cfg-...
  • Page 397 WAGO I/O SYSTEM 750 XTR Appendix 397 750-8202/040-000 PFC200 2ETH RS XTR Table 288: Description of Configuration Scripts for “Ports and Services” – “PLC Runtime Services” Parameters Status Call Output/Input Effecti e!Runtime Settings Read status of the runtime- get_runtime_config cfg-...

  • Page 398: Table 289: Description Of Configuration Scripts For "Ports And Services" - "Ssh/Tftp

    398 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 289: Description of Configuration Scripts for “Ports and Services” – “SSH/TFTP” Parameters Status Call-Up Output/Input Valid SSH Server Read the status of the SSH port. Possible return values:...
  • Page 399 WAGO I/O SYSTEM 750 XTR Appendix 399 750-8202/040-000 PFC200 2ETH RS XTR Table 290: Description of Configuration Scripts for “SNMP” Parameters Status Call-Up Output/Input Valid General SNMP information parameters get_snmp_data Specifies the SNMP parameter Right read device-name “sysName”. away Name of device...

  • Page 400: Table 290: Description Of Configuration Scripts For "Snmp

    400 Appendix WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 290: Description of Configuration Scripts for “SNMP” Parameters Status Call-Up Output/Input Valid SNMP Trap Receiver Configuration for v1 and v2c Any number of trap receivers can be configured. A trap receiver that has been set up is always active;...
  • Page 401 WAGO I/O SYSTEM 750 XTR Appendix 401 750-8202/040-000 PFC200 2ETH RS XTR Table 290: Description of Configuration Scripts for “SNMP” Parameters Status Call-Up Output/Input Valid Configuration of SNMP v3 Any number of SNMP v3 users can be created. A user that has been set up is always active; the complete data set must be deleted to deactivate a user.

  • Page 402: Wagolibcpuusage.lib

    The controller 750-8202/040-000supports the following function blocks of the “WagoLibCpuUsage.lib” library: CPU_Usage The document containing the description of the library and the function block it includes is available for download on the Internet at www.wago.com. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 403: Wagolibdiagnosticids.lib

    “WagoLibDiagnosticIDs.lib” library: DIAGNOSTIC_SEND_ID DIAGNOSTIC_SET_TEXT_FOR_ID The document containing the description of the library and the function block it includes is available for download on the Internet at www.wago.com. 16.2.1.12 WagoLibLed.lib The controller 750-8202/040-000supports the following function blocks of the “WagoLibLed.lib” library:...

  • Page 404: Wagolibnetsnmpmanager.lib

    SNMPM_GET_V3 SNMPM_SET SNMPM_SET_V3 The document containing a description of this library and the function blocks it includes is available for download on the Internet at www.wago.com. 16.2.1.15 WagoLibSSL.lib The controller 750-8202/040-000supports the following function blocks of the “WagoLibSSL.lib” library: SSL_CTX...

  • Page 405: Wagolibterminaldiag.lib

    The controller 750-8202/040-000supports the following function blocks of the “WagoLibTerminalDiag.lib” library: GET_TERMINALDIAG The document containing a description of this library and the function blocks it includes is available for download on the Internet at www.wago.com. Manual Version 1.2.0, valid from FW Version 03.01.07(13)

  • Page 406: List Of Figures

    Figure 30: Carrier Rail Contact (Example) ............100 Figure 31: Cable Shield at Ground Potential ............. 101 Figure 32: Examples of the WAGO Shield Connecting System ......102 Figure 33: Application of the WAGO Shield Connecting System ...... 102 Figure 34: “Open DHCP”, Example Figure ............106 Figure 35: CBM main menu (example) ..............
  • Page 407 WAGO I/O SYSTEM 750 XTR List of Figures 407 750-8202/040-000 PFC200 2ETH RS XTR Figure 48: “WAGO Ethernet Settings” – Identification Tab (Example)....235 Figure 49: “WAGO Ethernet Settings” – Network Tab ........236 Figure 50: “WAGO Ethernet Settings” – Protocol Tab ........238 Figure 51: “WAGO Ethernet Settings”...
  • Page 408 408 List of Figures WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Figure 95: Selecting the Visualization Technique in the Target System Settings ..................... 280 Figure 96: Creating the PLC_VISU Starting Visualization ......... 281 Figure 97: Remanent Main Memory ..............289 Figure 98: CODESYS PLC Configuration - Modbus Settings ......

  • Page 409: List Of Tables

    Table 38: Loading a Boot Project ................ 81 Table 39: WAGO DIN Rail ................... 86 Table 40: Permissible WAGO Carrier Rails When Using XTR PFC200 ....86 Table 41: Filter Modules for 24 V Power Supply ..........94 Table 42: Legende for Figure “Power Supply Concept” ........95 Table 43: Legend for Figure “Power Supply Example”...
  • Page 410 410 List of Tables WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 45: Default IP Addresses for ETHERNET Interfaces ....... 105 Table 46: Network Mask 255.255.255.0 ............105 Table 47: User Settings in the Default State ............121 Table 48: WBM “Status Information”...
  • Page 411 WAGO I/O SYSTEM 750 XTR List of Tables 411 750-8202/040-000 PFC200 2ETH RS XTR Table 79: WBM “Create Bootable Image” page – “Create bootable image from active partition” Group ..............148 Table 80: WBM “Configuration of Serial Interface RS232” Page – “Assign Owner of Serial Interface”...
  • Page 412 412 List of Tables WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 110: WBM “Configuration of SNMP v1/v2c Parameters” Page – “SNMP v1/v2c Manager Configuration” Group ......... 175 Table 111: WBM “Configuration of SNMP v1/v2c Parameters” Page –...
  • Page 413 WAGO I/O SYSTEM 750 XTR List of Tables 413 750-8202/040-000 PFC200 2ETH RS XTR Table 145: “Networking” > “IP Address” Submenu ..........194 Table 146: “Networking” > “TCP/IP” > “IP Address” Submenu > “Xn” ....194 Table 147: “Networking” > “TCP/IP” > “Default Gateway” Submenu ....195 Table 148: “Networking”...
  • Page 414 Table 217: Modbus Mapping for Read Register Services FC3, FC4, FC23 ..301 Table 218: Modbus Mapping for Write Register Services FC6, FC16, FC22, FC23 ......................303 Table 219: WAGO Modbus Registers ............... 305 Table 220: Watchdog Commands ..............311 Table 221: Watchdog Status ................312 Table 222: Watchdog Configuration ..............
  • Page 415 WAGO I/O SYSTEM 750 XTR List of Tables 415 750-8202/040-000 PFC200 2ETH RS XTR Table 231: Diagnostics via SYS LED ..............334 Table 232: Diagnostics via SYS LED ..............335 Table 233: Diagnostics RUN LED ..............336 Table 234: RUN LED Diagnostics ..............337 Table 235: Diagnostics I/O LED ................
  • Page 416 416 List of Tables WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Table 266: 2 Channel Analog Output Modules ..........375 Table 267: 4 Channel Analog Output Modules ..........375 Table 268: Serial interfaces with alternative data format ........376 Table 269: SSI transmitter interface modules with alternative data format ..
  • Page 417 WAGO I/O SYSTEM 750 XTR 750-8202/040-000 PFC200 2ETH RS XTR Manual Version 1.2.0, valid from FW Version 03.01.07(13)
  • Page 418 WAGO Kontakttechnik GmbH & Co. KG Postfach 2880 • D - 32385 Minden Hansastraße 27 • D - 32423 Minden Phone: +49 571 887 – 0 Fax: +49 571 887 – 844169 E-Mail: info@wago.com Internet: www.wago.com...

This manual is also suitable for:

750-8202/040-000

Table of Contents

Save PDF
