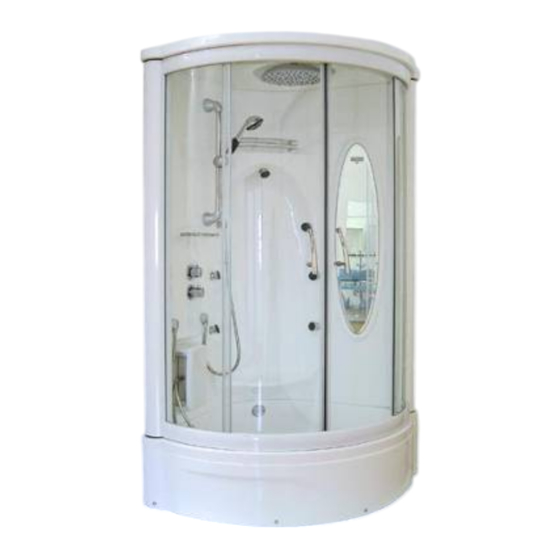

Dreamline Oceana DLG-63 Installation And User Manual

Dreamline Oceana DLG-63 Installation And User Manual

Advertisement

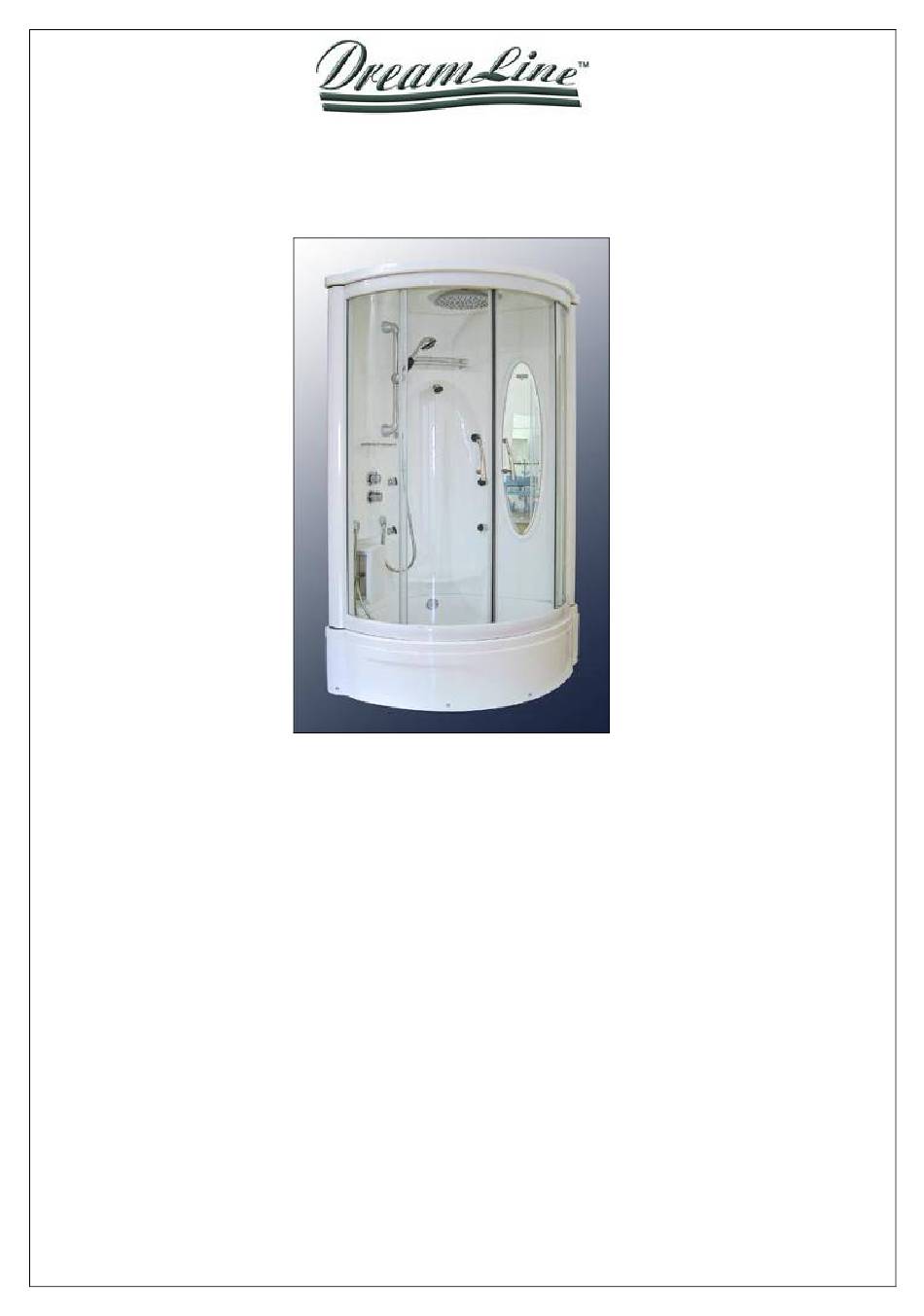

Shower Cabin Installation and User's guide

I. Mounting Preparation

1.
After opening the case, read this introduction carefully, check all the packed parts, examine the shower
cabinet for shipping damage. If the unit has been damaged or has a finishing defect, please contact your local
distributor within 2 business days. Please note that DreamLine Guarantee will not cover shipping damage or
such finishing defects once the unit has been installed. Your distributor's responsibility for damage in transit
is limited after the shower package has been transferred to the transportation company, so you may have to
contact the transportation company directly to report damage. Contact your distributor or DreamLine if you
have any questions.
2.
You should make sure that the floor is leveled and solid and will be able to support the total weight of the unit
and its occupant. You should also consult your local building codes on questions on installation compliance
standards.
3.
Install all of the required plumbing and drainage before securing the shower. Use a competent and licensed (if
required by local code) plumber for all plumbing installation.
4.
Please insure that prior to the installation the floor is leveled and the walls are at right angles. While some
adjustment in leveling of the tray is possible, irregular floor level or improper angle of side walls will result in
serious problems for your installation. Please, note that there are some adjustments and drilling might be
necessary during the installation processю
5.
Necessary Tools: Screwdriver, Electric drill, Regular drill bits (1/8", 7/64"), Phillips screwdriver, Level,
Measuring tape, Pencil and Stepladder. Bear in mind that you will need at least two people to assemble the
unit.
© 2002-2006 DreamLine™. All Rights Reserved
Oceana / DLG-63
Oceana/DLG-63
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oceana DLG-63 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline Oceana DLG-63

  • Page 1 If the unit has been damaged or has a finishing defect, please contact your local distributor within 2 business days. Please note that DreamLine Guarantee will not cover shipping damage or such finishing defects once the unit has been installed. Your distributor’s responsibility for damage in transit is limited after the shower package has been transferred to the transportation company, so you may have to contact the transportation company directly to report damage.
  • Page 2 Entry Door (2 Pcs) Handle (1 Pair) Stationary glass Foot Massager (Metal Flexible Entr y door Connecting Pipe 1 Pc attached) Potable Showerhead (Metal Flexible Lower guide rail Connecting Pipe 1 Pc attached) Tray pre-installation instructions © 2002-2006 DreamLine™. All Rights Reserved Oceana/DLG-63...
  • Page 3 12. Install parts such as foot massager (the hooks might be not pre-attached: Part# 5) and handheld showerhead (Step 11 - 14). 13. Secure the door stoppers (Step 8: Part# 4). © 2002-2006 DreamLine™. All Rights Reserved Oceana/DLG-63...
  • Page 4 Step 1 Step 2 Step 4 Step 3 Step 5 Step 6 Step 7 Step 8 Step 9 Step 10 © 2002-2006 DreamLine™. All Rights Reserved Oceana/DLG-63...
  • Page 5 NOTE: Allow 24 hours for the silicone to set before testing or using the shower. NOTE: Improper application of silicone sealant may cause your shower to leak. © 2002-2006 DreamLine™. All Rights Reserved Oceana/DLG-63...
