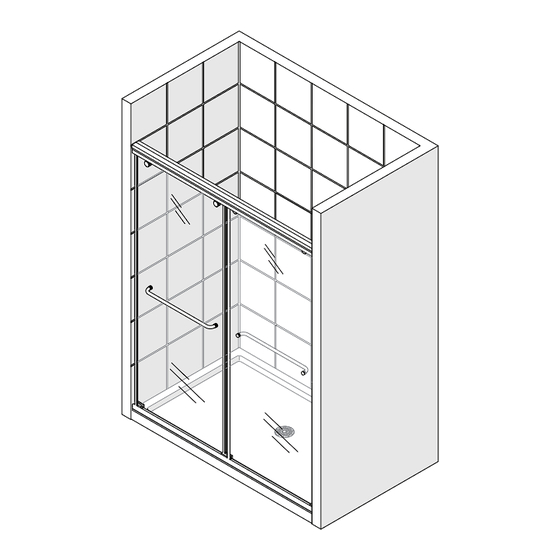

Dreamline Charisma SHDR-1348760 Series Installation Instructions Manual

Shower door & base
Hide thumbs

Advertisement

Quick Links

Download this manual
Charisma Shower Door & Base
S
D
B
I
I
HOWER
OOR AND
ASE
NSTALLATION
NSTRUCTIONS
PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION
STEP 1:
STEP 2:
Install Shower Base
Install Shower Door
1-866-731-2244
For more information about DreamLine
products please visit DreamLine.com
®
CHARISMA SHOWER DOOR & BASE Cover Page Ver 1 012020
©2020 DreamLine
All Rights Reserved
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Charisma SHDR-1348760 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dreamline Charisma SHDR-1348760 Series

Summary of Contents for Dreamline Charisma SHDR-1348760 Series

  • Page 1 PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION STEP 1: STEP 2: Install Shower Base Install Shower Door 1-866-731-2244 For more information about DreamLine products please visit DreamLine.com ® CHARISMA SHOWER DOOR & BASE Cover Page Ver 1 012020 ©2020 DreamLine All Rights Reserved...
  • Page 2 NSTRUCTIONS IMPORTANT DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice for the purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details.

  • Page 3: Tools Required

    3. Shower bases must be installed by a licensed plumber. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location and DreamLine ® is not responsible for code compliance standards for your project.
  • Page 4 ©2018 DreamLine. All Rights Reserved SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018...
  • Page 5 ©2018 DreamLine. All Rights Reserved SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018...
  • Page 6 ©2018 DreamLine. All Rights Reserved SINGLE THRESHOLD SHOWER BASE Center Drain Configuration MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in) DLT-1132320 32"× 32" 32" 32" 15" 16" DLT-1136360 36"× 36" 36" 36" 15" 18" DLT-1132420 32” x 42”...
  • Page 7 ©2018 DreamLine. All Rights Reserved SINGLE THRESHOLD SHOWER BASE Left-Hand Drain Configuration MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in) DLT-1130601 30"×60" 30" 60" 15" 12" DLT-1132601 32"×60" 32" 60" 15" 12" DLT-1134601 34"×60" 34" 60" 17" 12"...
  • Page 8 ©2018 DreamLine. All Rights Reserved SINGLE THRESHOLD SHOWER BASE Right-Hand Drain Configuration MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in) DLT-1130602 30"×60" 30" 60" 15" 12" DLT-1132602 32"×60" 32" 60" 15" 12" DLT-1134602 34"×60" 34" 60" 17" 12"...
  • Page 9 ©2018 DreamLine. All Rights Reserved NEO ANGLE SHOWER BASE MODEL SPECIFICATION W (in) A (in) B (in) C (in) DLT-2036360 36"×36" 36" 18 5/16" 25" 12" DLT-2038380 38"×38" 38" 20 5/16" 25" 12" DLT-2040400 40"×40" 40" 22 5/16" 25" 14 3/8"...
  • Page 10 ©2018 DreamLine. All Rights Reserved QUARTER ROUND SHOWER BASE MODEL SPECIFICATION W (in) C (in) R (in) DLT-7033330 33"×33" 33" 12" 21 5/8" DLT-7036360 36"×36" 36" 12" 21 5/8" DLT-7038380 38"×38" 38" 12" 21 5/8" SLIMLINE SHOWER BASE manual Ver 5 Rev 9a...
  • Page 11 ©2018 DreamLine. All Rights Reserved DOUBLE THRESHOLD SHOWER BASE Corner Drain Configuration MODEL SPECIFICATION W (in) C (in) DLT-1032320 32"×32" 32" 12" DLT-1036360 36"×36" 36" 12" DLT-1042420 42” x 42” 42” 12” SLIMLINE SHOWER BASE manual Ver 5 Rev 9a...
  • Page 12 ©2018 DreamLine. All Rights Reserved DOUBLE THRESHOLD SHOWER BASE Left-Hand Drain Configuration MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in) DLT-1034481 34"×48" 34" 48" 17" 12" DLT-1036481 36"×48" 36" 48" 18" 12" DLT-1036541 36"×54" 36" 54" 18" 12"...
  • Page 13 ©2018 DreamLine. All Rights Reserved DOUBLE THRESHOLD SHOWER BASE Right-Hand Drain Configuration MODEL SPECIFICATION D (in) W (in) D1 (in) W1 (in) DLT-1034482 34"×48" 34" 48" 17" 12" DLT-1036482 36"×48" 36" 48" 18" 12" DLT-1036542 36"×54" 36" 54" 18" 12"...
  • Page 14 ©2018 DreamLine. All Rights Reserved Shower Base Cross Section Diagram Cement board Finished Wall Shower Base (2"×4") Stud Mortar Drain* * not included This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product.
  • Page 15 ©2018 DreamLine. All Rights Reserved Shower Base Installation - Preparation 1. Ensure that the floor and the studs are at right angles. Provide a 5”×5” opening in the sub- floor for the drain. The 2” PVC waste pipe should extend above the surface of the...
  • Page 16 ©2018 DreamLine. All Rights Reserved 2. Install the shower drain (NOT INCLUDED) according to the drain installation manual (supplied with the drain). (Fig 2) Fig 2 3. Place the tray into the designated position so that the Drain cutout drops around the Drain Pipe and butt the Shower Base up against the studs.
  • Page 17 ©2018 DreamLine. All Rights Reserved 4. Level the tray and place marks on the studs above the upper edge of the tile flange. (Fig 4) Level base in two directions Fig 4 5. Mix the bedding material (Mortar, cement-sand mix, etc.) Concrete or plaster is not recommended.
  • Page 18 ©2018 DreamLine. All Rights Reserved 6. After the bedding material has been before poured and it sets, place the shower base into the position with the drain assembly sliding over the PVC waste pipe. It will be necessary to push...
  • Page 19 ©2018 DreamLine. All Rights Reserved Fig 7b SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018...
  • Page 20 To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. SLIMLINE SHOWER BASE manual Ver 5 Rev 9a 11/2018...
  • Page 21 TEL: 866-731-2244 FAX: 866-857-3638 REAM INE.COM For more information on DreamLine Shower Doors Enclosures please visit DreamLine.com ® ©2018 DreamLine. All Rights Reserved...
  • Page 22 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. Do Not Return Product to the Store. Contact DreamLine® with any questions...
  • Page 23 NOTES Record the following purchase information for your records or in the event you need to contact ® Purchase Order Store/Vendor Number Purchased From OD Number Installation Date (optional) *found on the shipping box or label if available. SKU Number Installed By: CHARISMA Shower Door Manual Ver 4 052020...

  • Page 24: Symbol Legend

    Table of Contents Section Title Page # Warnings and General Preparaton Model Specific Preparation Tools Detailed Diagram of Shower Door Components Parts List Installation Steps 8-19 Door Glass Installation Roller Assembly Adjustment Procedure Towel Bar Handle Installation Product Maintenance Troubleshooting Factory Parts Information 22-23 Symbol Legend...
  • Page 25 IMPORTANT GENERAL PREPARATION • DreamLine® reserves the right to alter, modify or redesign products any time without • After opening all boxes and packages, read this introduction carefully. Check that all the prior notice for product improvement and customer experience. Please refer to the items are included in the package by marking off the components on the “Detailed...
  • Page 26 Model Specific Preparation REQUIRED: No Out-of-Plumb Adjustment; Verify threshold and walls ±0.0 ±0.0 with a level Threshold must be level ±0.0 ±0.0 2” (50.8mm) minimum threshold Acrylic Tile 2” (50.08mm) minimum threshold Contact the manufacturer of the base, tub or threshold material with any questions regarding the drilling of holes into their product.
  • Page 27 Diagram on page 5; and packing list in this manual as a reference. Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any NOTE parts are damaged or missing, please contact DreamLine for replacement. The shipping ®...
  • Page 28 CHARISMA Shower Door Manual Ver 4 052020...

  • Page 29: Parts List

    Parts List CHARISMA Shower Door Manual Ver 4 052020...
  • Page 30 Parts List CHARISMA Shower Door Manual Ver 4 052020...

  • Page 31: Installation Steps

    Installation Steps W-Top *at model height NOTE ________” Measure and use a level to check for any out-of-plumb condition. W-Middle ________” If the Finished Opening Width (W) is less than 48” (1219.2mm) or 60” (1524mm), the Top Guide Rail (#01) and the Bottom Guide Rail (#02) must be cut to: W-Bottom W = Finished Opening (-) 1/16”...
  • Page 32 Before marking its desired position, make sure the Bottom Guide Rail (#02) NOTE is parallel to the front edge of the shower base or tub deck. Use a good quality waterproof, mildew-resistant 100% silicone caulk. Fig 2 Use painter’s tape to secure the Bottom Guide Rail (#02) in place while the silicone caulk cures.
  • Page 33 Plumb ±0.0 ±0.0 Draw the plumb line from the outside edge of the Bottom Guide Rail (#02) Fig 3a From the base or threshold deck, NOTE draw a plumb line up at least 74” (1880mm). *see Fig 3a Parts Needed Tools Needed At the 74-inch measurement, mark this NOTE...
  • Page 34 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 35 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 36 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 37 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 38 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 39 To avoid glass-to-metal contact, use 0-5/16” wedged shims when installing the Door Glass (#03) onto the Roller Assemblies (#10)! Secure the Door Glass (#03) onto the NOTE Roller Assemblies (#10) and fasten them with the provided bolts. Fig 9 Fig 9a Rotating the Roller Assembly (#10) Outer Disk: Roller Adjustment Disk The disk bolt is positioned off-center by 1/8”...
  • Page 40 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 41 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 42 Trim the bottom of the Bumper Vinyls (#13) to prevent binding in the guide blocks when installing them on the vertical edges of the Door Glass (#03). Fig 13 Hours NOTE The surfaces need to be clean and free of debris before applying silicone.

  • Page 43: Product Maintenance

    To maximize the life of your door, it is important to regularly inspect NOTE the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ® CHARISMA Maintenance Checklist ◻ Bottom Guide Rail secured and tight to the threshold ◻...

  • Page 44: Troubleshooting

    Suggested Solution Page(s) •Check all shipping/packaging material for missing parts/components. Missing Parts •If not found, contact DreamLine Customer Support [1-866-731-2244] to order factory ―― part replacement. Top Guide Rail (#01) and/or •If either the Top Guide Rail (#01) and Bottom Guide Rail (#02) is cut too short during Bottom Guide Rail (#02) was cut installation, contact DreamLine®...
  • Page 45 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 46 CHARISMA Shower Door Manual Ver 4 052020...
  • Page 47 NOTES CHARISMA Shower Door Manual Ver 4 052020...
  • Page 48 NOTES CHARISMA Shower Door Manual Ver 4 052020...
  • Page 49 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ®...
