FLEX ENCLOSURE

(30x30 & 34x34)

HOWER

NCLOSURE

NSTALLATION

NSTRUCTIONS

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

FLEX

STEP 2:

STEP 1:

Install Return Panel

Install Shower Door

ENCLOSURE

NOTE:

Refer to the Return Panel Manual for Enclosure Installation dimensions.

For more information about DreamLine

products please visit DreamLine.com

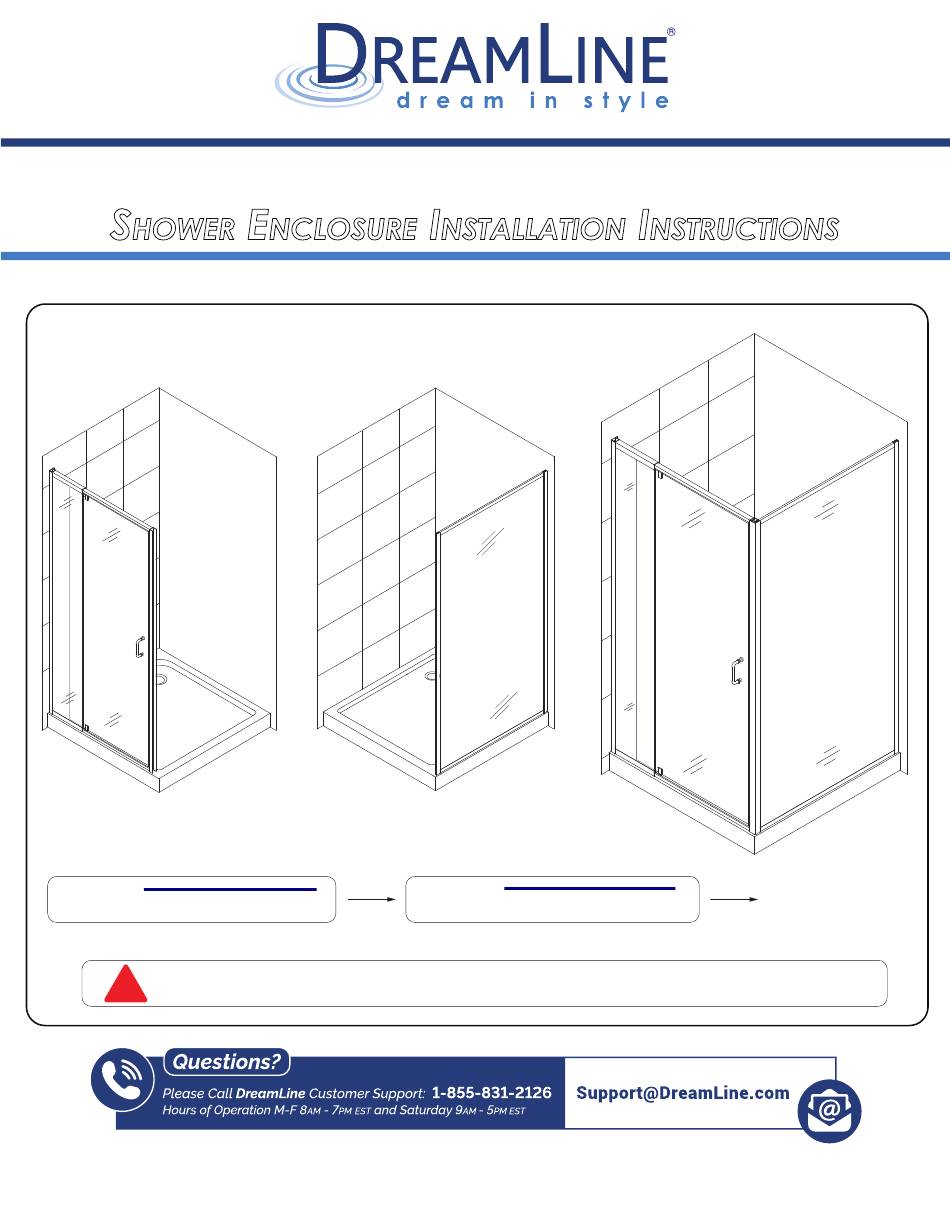

FLEX 30x30 & 34x34 Shower Enclosure Cover Page

Table of Contents

Need help?

Do you have a question about the SHDR-22287200-01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline SHDR-22287200-01

Page 1 Install Return Panel Install Shower Door ENCLOSURE NOTE: Refer to the Return Panel Manual for Enclosure Installation dimensions. For more information about DreamLine ® products please visit DreamLine.com ©2019 DreamLine All Rights Reserved FLEX 30x30 & 34x34 Shower Enclosure Cover Page...
Page 2 DreamLine.com Model#s: SHDR-22287200-01 SHDR-22327200-01 Finish -01 = Chrome Right hand door installation shown ® For more information about DreamLine products please visit DreamLine.com FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 3 NOTE: This manual will describe the installation of the single threshold model of the FLEX Shower Door. For the FLEX Shower Enclosure installation, please also use the manual that is packaged with the return panel glass. FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 4 “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine will not replace any ®...
Page 6 DreamLine for replacement. The shipping boxes may contain extra parts not used in ® your model configuration. NOTE: Retain these installation instructions for future reference. FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 7 Door Assembly Diagram Alluminum profile Stationary glass Expandable rail Glass door Alluminum profile Expandable rail FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 8 (02) on both sides. Be sure that the flanges on the Wall Profiles (01) face in towards the shower. See Fig. 2 & Fig. 3 for details. FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 9 The maximum adjustment width of the Expanding rails is 3”. The wall profiles allow for 1/2” adjustment for each side. See Fig. 4 for details. FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 13 10. Extend the Door assembly (02) toward the opposite wall and insert the Glass door side into the Wall profile (01). See Fig. 12 and Fig. 13 for details. . 12 FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 14 Adjust the top and bottom Expanding rails to the same length so that the door opening is square. Use a tape measure for accuracy. See Fig. 14 for details. . 14 FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 15 ST4.2×10 (04) with the raised white washers. Cover the exposed screw heads and washers with the Decorative caps (06). . 16 See Fig. 16 for details. FLEX Shower Door Manual Ver 2 Rev 8 01/2018 © 2018 DreamLine. All Rights Reserved...
Page 17 NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. FLEX Shower Door Manual Ver 2 Rev 8 01/2018...
Page 18 TEL: 866-731-2244 FAX: 866-857-3638 REAM INE.COM For more information on DreamLine Shower Doors Enclosures please visit DreamLine.com ®...
Page 19 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. Do Not Return Product to the Store. Contact DreamLine® with any questions 1-866-731-2244 ©2019 DreamLine...
Page 20 NOTE: This model is reversible for left or right-hand installation. This manual will show the right-hand return panel installation. For a left-hand installation, simply begin on the opposite wall and reverse the orientation of the parts as necessary. ©2019 DreamLine. All Rights Reserved FLEX Shower Enclosure Panel manual Ver 3 Rev 4 072019...
Page 21: Table Of Contents
Table of Contents Page # Section title Shower Enclosure Plan Preparation Tools Detailed Diagram of Shower Enclosure Components Parts List Installation Steps 8-16 Vinyl Seals Product maintenance This product should be installed by someone familiar with the construction requirements for this type of product and the care necessary for the safe installation and operation of the product.
Page 22: Shower Enclosure Plan
Shower Enclosure Plan RIGHT HAND RETURN PANEL SHOWN AS AN EXAMPLE SHDR-2230300-RT-01/04 SHDR-2234340-RT-01/04 34-1/2" 30-1/2” 1-1/2” minimum 1-1/2” minimum threshold required threshold required SHDR-2234460-RT-01/04 SHDR-22547200-RT-01/04 34-1/2" 34-1/2" 1-1/2” minimum 1-1/2” minimum threshold required threshold required 44-7/16” min to 48-7/6” max 50-7/16”...
Page 23 Shower Enclosure Plan (Cont’d.) This shower enclosure requires a minimum 1-1/2” wide threshold for installation. Compare the overall outside dimensions of the shower enclosure model size as shown on the “Shower Enclosure Plan” with the finished threshold to ensure proper fit prior to beginning installation. 1-1/2”...
Page 24: Preparation
2. Please note that you should consult your local building codes with questions on installation compliance standards. Building and plumbing codes may vary by location, and DreamLine ®...
Page 25: Tools
Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®...
Page 26: Detailed Diagram Of Shower Enclosure Components
Detailed Diagram of Shower Enclosure Components FLEX Enclosure Model RIGHT HAND RETURN PANEL SHOWN AS AN EXAMPLE FLEX Shower Enclosure Panel manual Ver 3 Rev 4 072019...
Page 27: Parts List
Parts List Door packing List 01 Wall profile* 2pcs* Decorative cover 02 Door assembly 1set Vinyl Seal with Flexible Fin 03 Wall anchor 8pcs Bottom Sweep vinyl 04 ST4.0 x 10 Pan head screw 10pcs Handle 05 ST4.2 x 40 Truss head screws 8pcs * Only one Wall Profile is used with the shower enclosure installation Return panel packing List...
Page 28: Installation Steps
Installation steps The overall width of the shower enclosure model is adjustable and can be adjusted to Wall Profile Return Profile the sizes listed in Table A (under W2) Mark the position of the Wall profile (#01) and the Return Panel Wall Profile (#11) on the walls according to the model size and dimensions provided in Table A below.
Page 29 Mark the holes on the wall for drilling through the pre-drilled holes in the Wall Profile (#01). Ø 5/16" Drill the holes into the wall using a Ø 5/16 drill bit and insert the Wall Anchors (#03). Apply silicone to the back surface of Wall Profile (#01 ) place it back in position on the wall.
Page 30 USE THE INSTALLATION MANUAL PACKAGED WITH THE FLEX DOOR TO ASSEMBLE AND INSTALL THE DOOR SECTION. (Fig 4) 28” and 32” model 42”, 48”, 54“ and 60” model Pre-assembled Assembly required Move the Door assembly onto the threshold and slide the Stationary glass profile into the Wall profile (#01).
Page 31 Slide the Corner profile (#10) over the vertical rail on the Return Panel Assembly (#09). Drill Ø 1/8” holes through the predrilled holes on the Corner profile (#10) into the aluminum profile on the Return Panel Assembly (#09). Ø 1/8” bit Secure the Corner profile (#10) to the Return Panel Assembly (#09) with the ST4.0 x 10 Pan head screw...
Page 32 Extend the width of the Door assembly (#02) by sliding the top and bottom expanding rails toward the Corner profile (#10). Insert the Door Glass side into the Corner profile (#10). (Fig7) NOTE: The maximum adjustment of the Expanding rails is 3”. Do not expand the rails more than 3”.
Page 33 From inside the shower, drill holes into the top and bottom Expanding rails through the predrilled holes using an Ø 1/8” drill bit. ATTENTION: Drill only through the first layer of the Expanding rail. Secure the Expanding rails using ST4.0 x 10 Pan head screw (#04) with the raised white washers.
Page 34 Perform the final adjustments to the Door assembly (#02) and Return panel glass (#09) as necessary. Operate the Door Glass to make sure that the magnetic strips are aligned and make full contact from top to bottom. Drill holes into the aluminum profile of the Door assembly through the predrilled holes in the Wall profile (#01) using an Ø...
Page 35 Drill holes into the aluminum profile of the Door assembly (#02) through the predrilled holes in the Corner Profile (#10) using an Ø 1/8 drill bit. Secure the Door assembly inside the Corner Profile (#10) using the ST4.0 x 10 Pan head screw (#04) with the raised white washers.
Page 36 Apply a good quality mildew-resistant silicone along the interior perimeter where the profiles meet the walls and threshold. (Fig 13) The surfaces need to be clean and free of debris before applying silicone. Allow 24 hours for the silicone to cure before using the shower. Hours Fig 13 RIGHT...
Page 37: Vinyl Seals
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and all hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ® DreamLine shower doors and enclosures are designed not to leak when ®...
Page 38 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ®...

This manual is also suitable for:

Shdr-22327200-01 Shdr-2230300-rt-04 Shdr-2234340-rt-04 Shdr-2234460-rt-04 Shdr-2234540-rt-04 Shdr-2234580-rt-04 ... Show all
