Appendix A—Back Panel Connector Pinouts

This appendix provides specifications for the various connectors on the back panel of the
MiniArray.

VGA 15-Pin Connector

This connector provides video analog data and horizontal and vertical synchronization signals
for VGA monitors.
Pin Identification
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

9-Pin DB9 (COM 1) Connector

This connector attaches the SBC board to the COM 1 serial port.
42
All manuals and user guides at all-guides.com
1
6
11

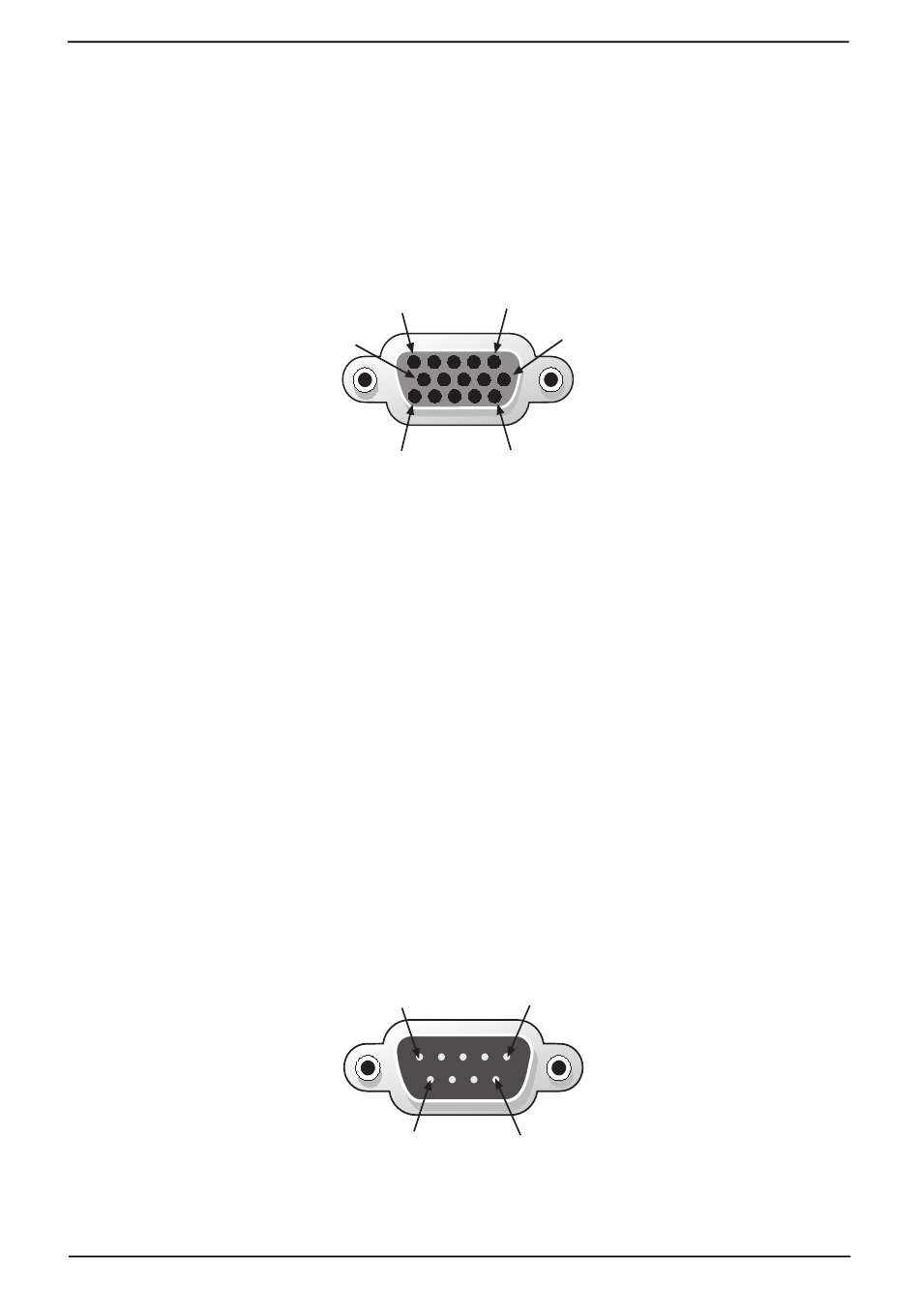

Figure A-1. 15-Pin VGA Connector
Description
Analog Red
Analog Green
Analog Blue
VESA Monitor Status Bit 2
Digital Ground
Digital Ground
Digital Ground
Digital Ground
NC
Digital Ground
VESA Monitor Status Bit 0
VESA Monitor Status Bit 1
Horizontal Sync
Vertical Sync
NC
1
6
Figure A-2. 9-Pin DB9 COM 1 Connector
5
10
15
5
9
