Installing expansion card here
requires removal of card cage.

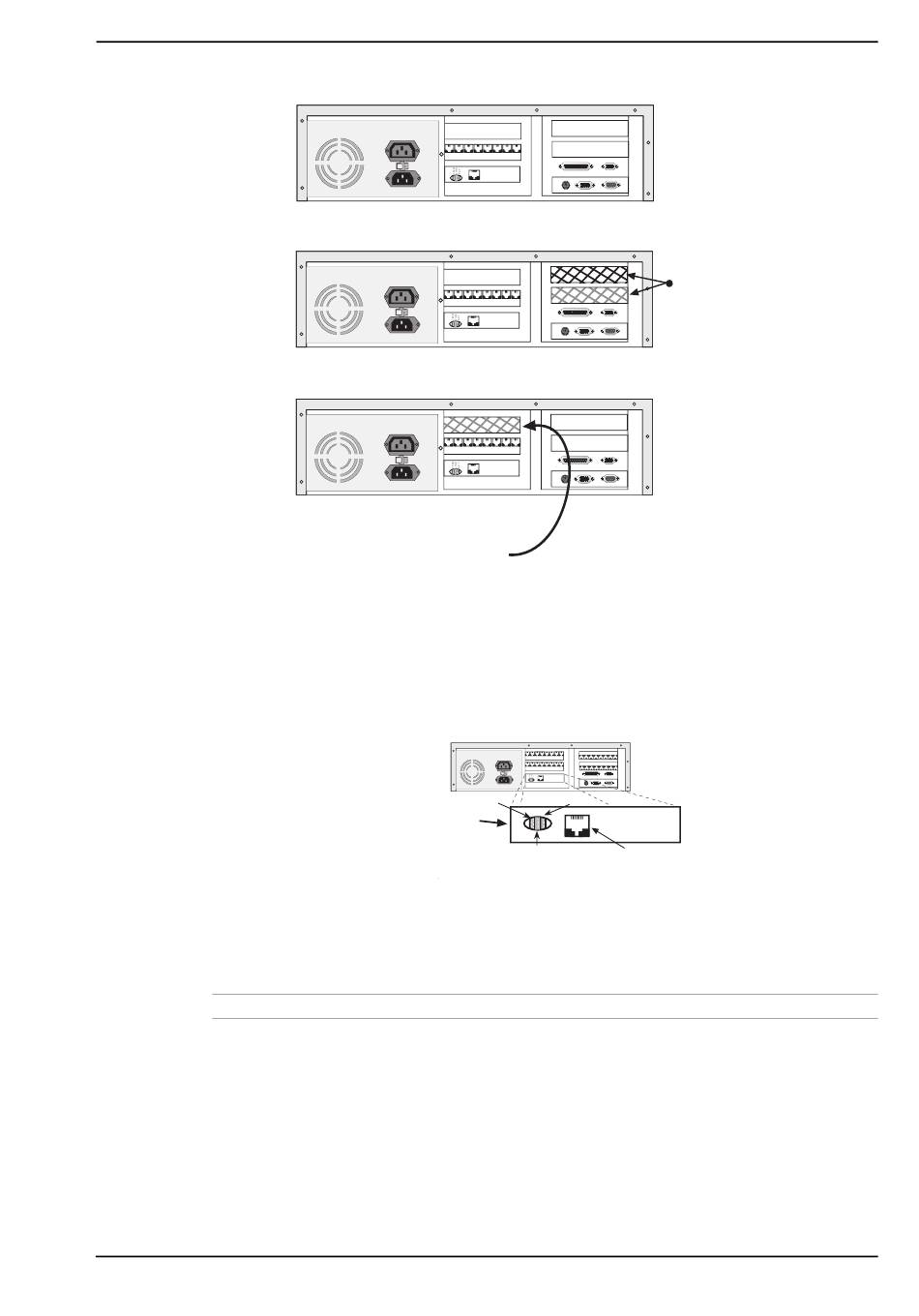

Figure 2-3c. Convenience of using outer expansion slots before the inner slot

NIC Cabling

The 10/100Mb PCI EtherNet Network Interface Card is located as shown in Figure 2-4. The
NIC has a single RJ-45 connector and three LEDs.
Connect the appropriate network cable to the NIC in the CommPlete 4000. The RJ-45 NIC
connector is shown and defined in Appendix A.
Note: Any cables connected to the CommPlete 4000 should be shielded to reduce interference.
CommPlete 4000 Communications Server Overview
All manuals and user guides at all-guides.com
Shipped Configuration
Network
Interface
Card
Fig. 2-4. NIC Board Connectors
}
100M ACT
LINK
RJ-45 UTP
Connector
Preferred
expansion
slots
15
