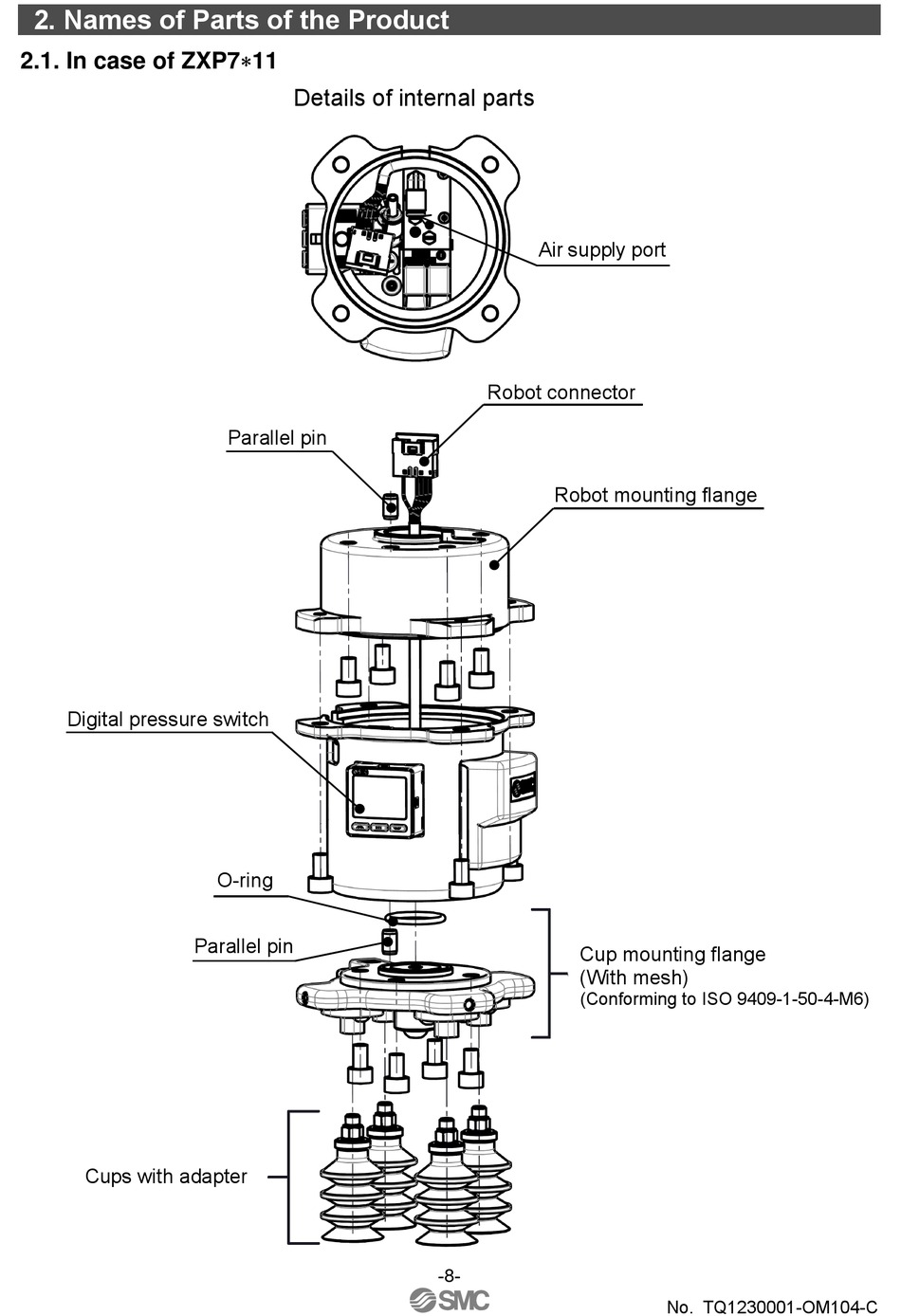

2. Names of Parts of the Product

2.1. In case of ZXP7∗11
Details of internal parts
Air supply port
Robot connector
Parallel pin
Robot mounting flange
Digital pressure switch
O-ring
Parallel pin
Cup mounting flange
(With mesh)
(Conforming to ISO 9409-1-50-4-M6)
Cups with adapter
-8-
No. TQ1230001-OM104-C
