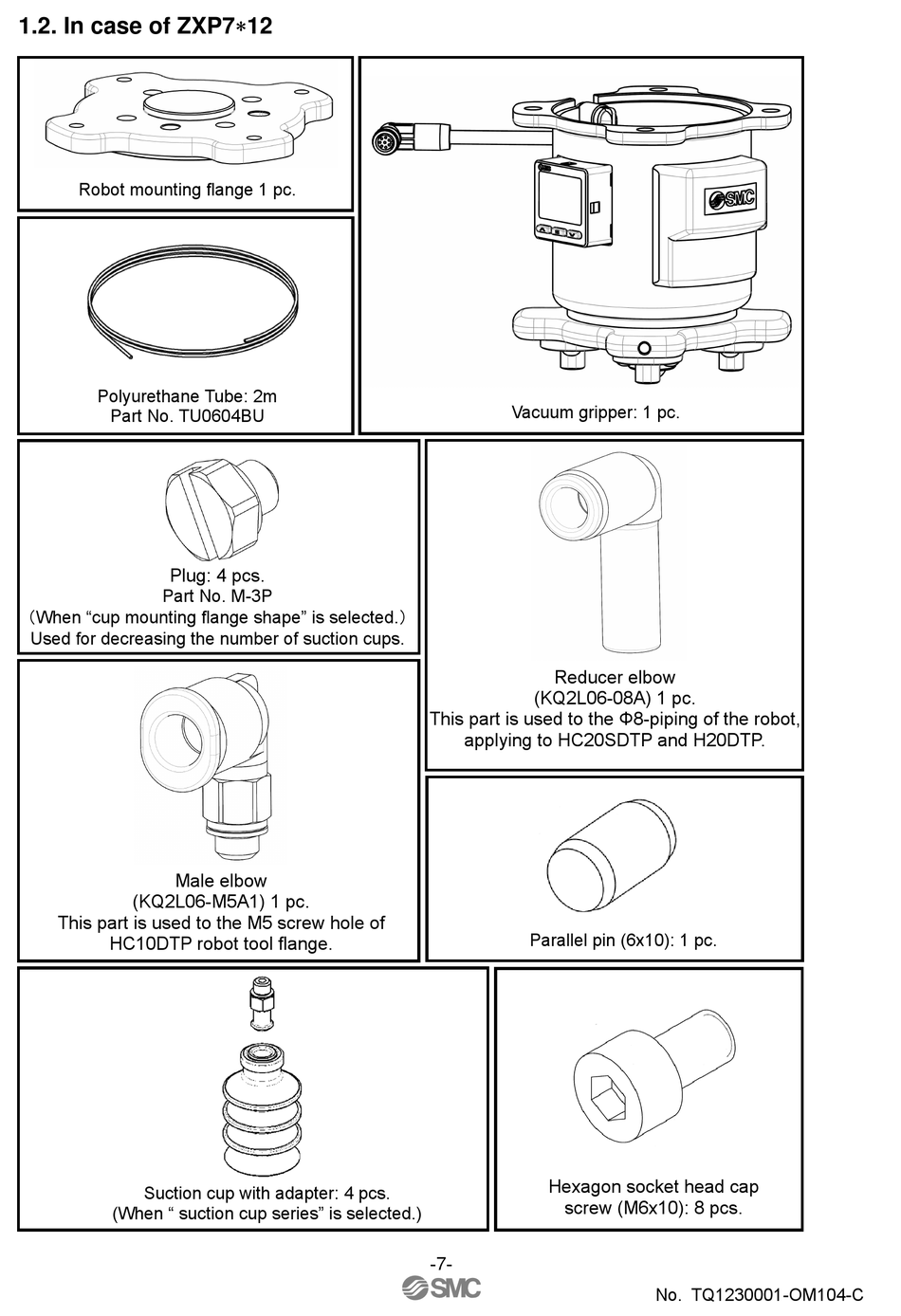

1.2. In case of ZXP7∗12
Robot mounting flange 1 pc.
Polyurethane Tube: 2m
Vacuum gripper: 1 pc.
Part No. TU0604BU
Plug: 4 pcs.
Part No. M-3P
(When "cup mounting flange shape" is selected.)
Used for decreasing the number of suction cups.
Reducer elbow
(KQ2L06-08A) 1 pc.
This part is used to the Φ8-piping of the robot,
applying to HC20SDTP and H20DTP.
Male elbow
(KQ2L06-M5A1) 1 pc.
This part is used to the M5 screw hole of
Parallel pin (6x10): 1 pc.
HC10DTP robot tool flange.
Hexagon socket head cap
Suction cup with adapter: 4 pcs.
screw (M6x10): 8 pcs.
(When " suction cup series" is selected.)
-7-
No. TQ1230001-OM104-C
