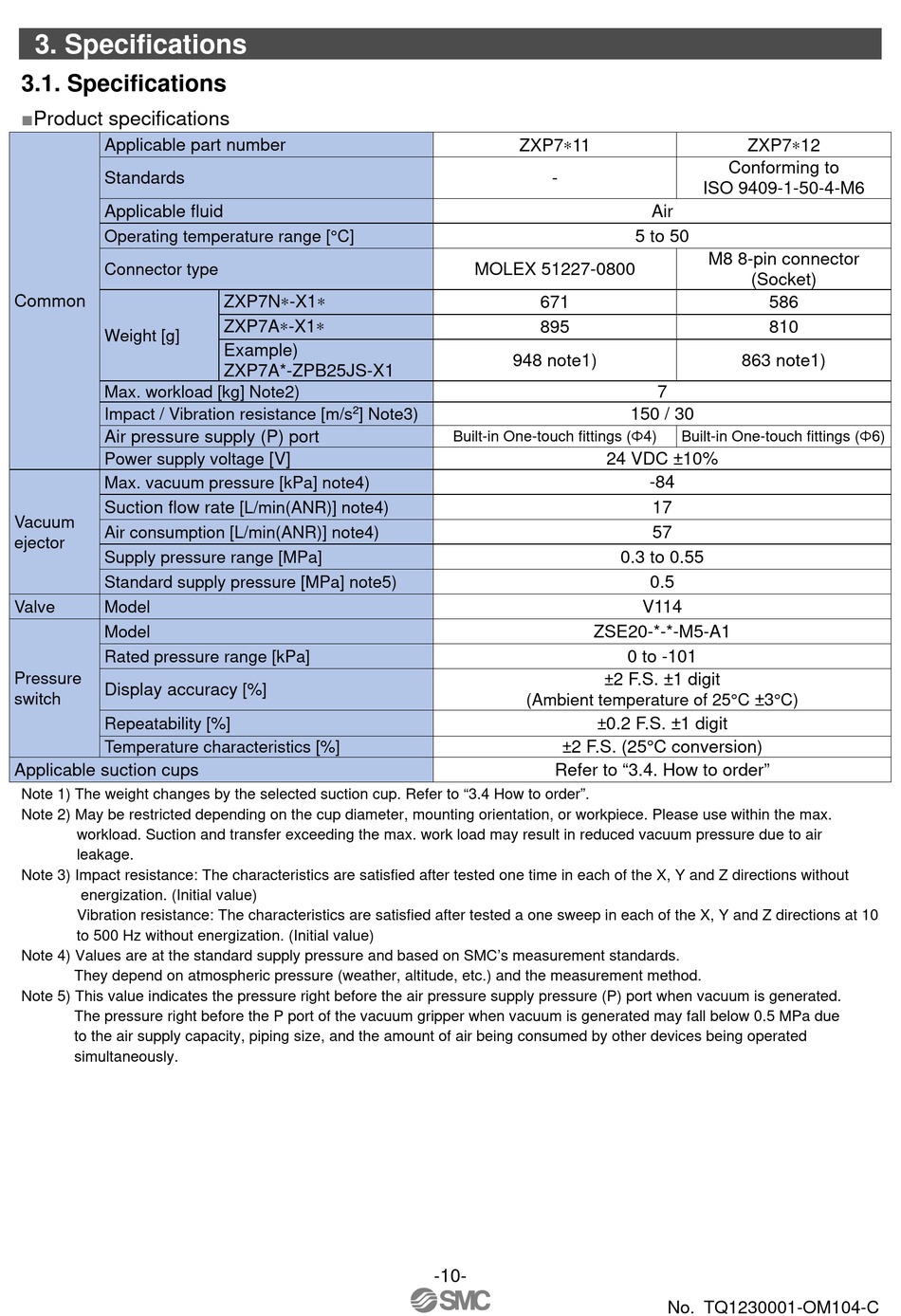

3. Specifications

3.1. Specifications
■Product specifications
Applicable part number
Standards
Applicable fluid
Operating temperature range [°C]
Connector type
Common
Weight [g]
Max. workload [kg] Note2)
Impact / Vibration resistance [m/s
Air pressure supply (P) port
Power supply voltage [V]
Max. vacuum pressure [kPa] note4)
Suction flow rate [L/min(ANR)] note4)
Vacuum
Air consumption [L/min(ANR)] note4)
ejector
Supply pressure range [MPa]
Standard supply pressure [MPa] note5)
Valve Model
Model
Rated pressure range [kPa]
Pressure
Display accuracy [%]
switch
Repeatability [%]
Temperature characteristics [%]
Applicable suction cups
Note 1) The weight changes by the selected suction cup. Refer to "3.4 How to order".
Note 2) May be restricted depending on the cup diameter, mounting orientation, or workpiece. Please use within the max.
workload. Suction and transfer exceeding the max. work load may result in reduced vacuum pressure due to air
leakage.
Note 3) Impact resistance: The characteristics are satisfied after tested one time in each of the X, Y and Z directions without
energization. (Initial value)
Vibration resistance: The characteristics are satisfied after tested a one sweep in each of the X, Y and Z directions at 10
to 500 Hz without energization. (Initial value)
Note 4) Values are at the standard supply pressure and based on SMC's measurement standards.
They depend on atmospheric pressure (weather, altitude, etc.) and the measurement method.
Note 5) This value indicates the pressure right before the air pressure supply pressure (P) port when vacuum is generated.
The pressure right before the P port of the vacuum gripper when vacuum is generated may fall below 0.5 MPa due
to the air supply capacity, piping size, and the amount of air being consumed by other devices being operated
simultaneously.
ZXP7N∗-X1∗
ZXP7A∗-X1∗
Example)
ZXP7A*-ZPB25JS-X1
2
] Note3)
ZXP7∗11
-
MOLEX 51227-0800
671
895
948 note1)
Built-in One-touch fittings (Φ4)
ZSE20-*-*-M5-A1
(Ambient temperature of 25°C ±3 °C)
± 0.2 F.S. ±1 digit
± 2 F.S. (25°C conversion )
Refer to "3.4. How to order"
-10-
ZXP7∗12
Conforming to
ISO 9409-1-50-4-M6
Air
5 to 50
M8 8-pin connector
(Socket)
586
810
863 note1)
7
150 / 30
Built-in One-touch fittings (Φ6)
24 VDC ±10%
-84
17
57
0.3 to 0.55
0.5
V114
0 to -101
± 2 F.S. ±1 digit
No. TQ1230001-OM104-C
