- Page 1 Green Motion DC 44/66 EV charger Green Motion DC 44/66 User manual...
- Page 2 Corporation's ("Eaton") experience and judgement and may not cover all contingencies. If further information is required, an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and conditions outlined in relevant Eaton selling policies or other contractual agreement between Eaton and the purchaser.
-
Page 3: Table Of Contents
7 .3 Cleaning or replacing filters ..........................14 7 .4 Disposal ................................14 FREQUENTLY ASKED QUESTIONS ....................15 TECHNICAL DATA ..........................15 9.1 Rating plate ..............................15 9.2 Technical datasheet ............................16 INFORMATION FOR CONTACTING SUPPORT .................. 17 GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN December 2022 www.eaton.com... -
Page 4: Introduction
Eaton technical support representative or a professional installer. There are no user-serviceable parts inside the Green Motion DC 44/66 EV charger. Failure to observe the above will void the guarantee provided and Eaton cannot be held legally accountable. -
Page 5: Scope Of The Document
1.1 Scope of the document This manual is intended for end users of the Green Motion DC 44 and Green Motion DC 66 EV chargers. It describes the operating environment, the product and its operating behaviour. The document does not cover installation and uninstallation, commissioning guidance or troubleshooting. -
Page 6: Cautions
The unit must be transported in conditions with a relative humidity below 95 %. The unit must be used at an altitude not exceeding 2000 m above sea level. GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN December 2022 www.eaton.com... -
Page 7: Discover Your Green Motion Dc 44/66

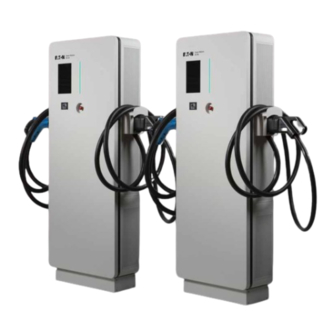

Safety guidelines • 3.2 Front and back views Green Motion DC 44/66 EV charger is designed for seamless use. Figure 1. Front and back views of Green Motion DC 44/66 EV charger Description Front view Back view Colour touchscreen display... -
Page 8: Types Of Cables
3.3 Types of cables The Green Motion DC 44/66 EV charger is supplied with two types of cables and connectors: 1. Combined Charging System (CCS) for the EU market. This is the default cable. 2. CHAdeMO. This cable is optional. -
Page 9: How To Start And Stop Charging
Step 4. To stop charging, unplug the connector from your vehicle. The connector usually needs to be released from inside your vehicle first. See the instruction manual for your vehicle. GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN December 2022 www.eaton.com... -
Page 10: Indicators And User Interfaces
Orange pulse An update is in progress Network error. EV charger cannot White + red dot flashing connect to the internet/backend Yellow light on Charger is set to unavailable GREEN MOTION DC 44/66 EV CHARGER USER MANUAL MN192005EN December 2022 www.eaton.com... -
Page 11: Colour Touchscreen Display
5.2 Colour touchscreen display Green Motion DC 44/66 EV charger is equipped with a colour touchscreen display located on the front door. See Figure 1. Table 4 provides an example of the screens shown during the startup phase. Due to continuous improvements, it is possible that changes will be implemented in the future to enhance the user experience. - Page 12 The display of the Green Motion DC 44/66 EV charger can show the following warnings: Table 4. Examples of warning screens Display Description This charger is not part of your eMSP and you do not have roaming rights. You cannot charge with your RFID card. If available, use Scan & Charge.
-
Page 13: Emergency Stop Button
5.3 Emergency stop button The emergency stop button is located on the front door of the Green Motion DC 44/66 EV charger, as per Figure 1. Push the button in case of emergency. The screen shown in Figure 5 will be displayed on the touchscreen after the emergency stop button is pressed. -
Page 14: How To Set The Unit As Out Of Order
7.1 How to set the unit as out of order The Green Motion DC 44/66 EV charger can be set as out of order by following the steps below: 1. On-site method: Press the emergency stop button. 2. Remote method: Access the Eaton Charging Network Manager and set the unit as out of order. -
Page 15: Frequently Asked Questions
• How long is the warranty period? The warranty period is two years. • If the problem persists, contact your local installer or your Eaton technical support representative using the email address BGTechSupport@eaton.com. 9. Technical data 9.1 Rating plate To locate the rating plate on the equipment, refer to Figure 6. -
Page 16: Technical Datasheet
Figure 6. Location of the rating plate Description Rating plate 9.2 Technical datasheet The latest version of the technical datasheet is available to download from www.eaton.com/greenmotiondc44_66. CE certification is also available at www.eaton.com/greenmotiondc44_66 or contact your local Eaton service representative at: BGTechSupport@eaton.com. -
Page 17: Information For Contacting Support
10. Information for contacting support Should any technical problems arise when operating the charging station, contact your Eaton technical support representative for assistance using the email address BGTechSupport@eaton.com. The following information should be provided when contacting the Eaton technical support representative: Product model and serial number •... - Page 18 Eaton Industries Manufacturing GmbH Place de la Gare 2 1345 Le Lieu, Switzerland Eaton.com/greenmotiondc44_66 © 2022 Eaton Eaton is a registered trademark. All rights reserved Publication No. MN192005EN All trademarks are property December 2022 of their respective owners.
