8. Disconnect the wires from the "Carte Pulvé" board and connect them to the interface.
9. Connect the wires from the interface to the "Carte Pulvé" board.

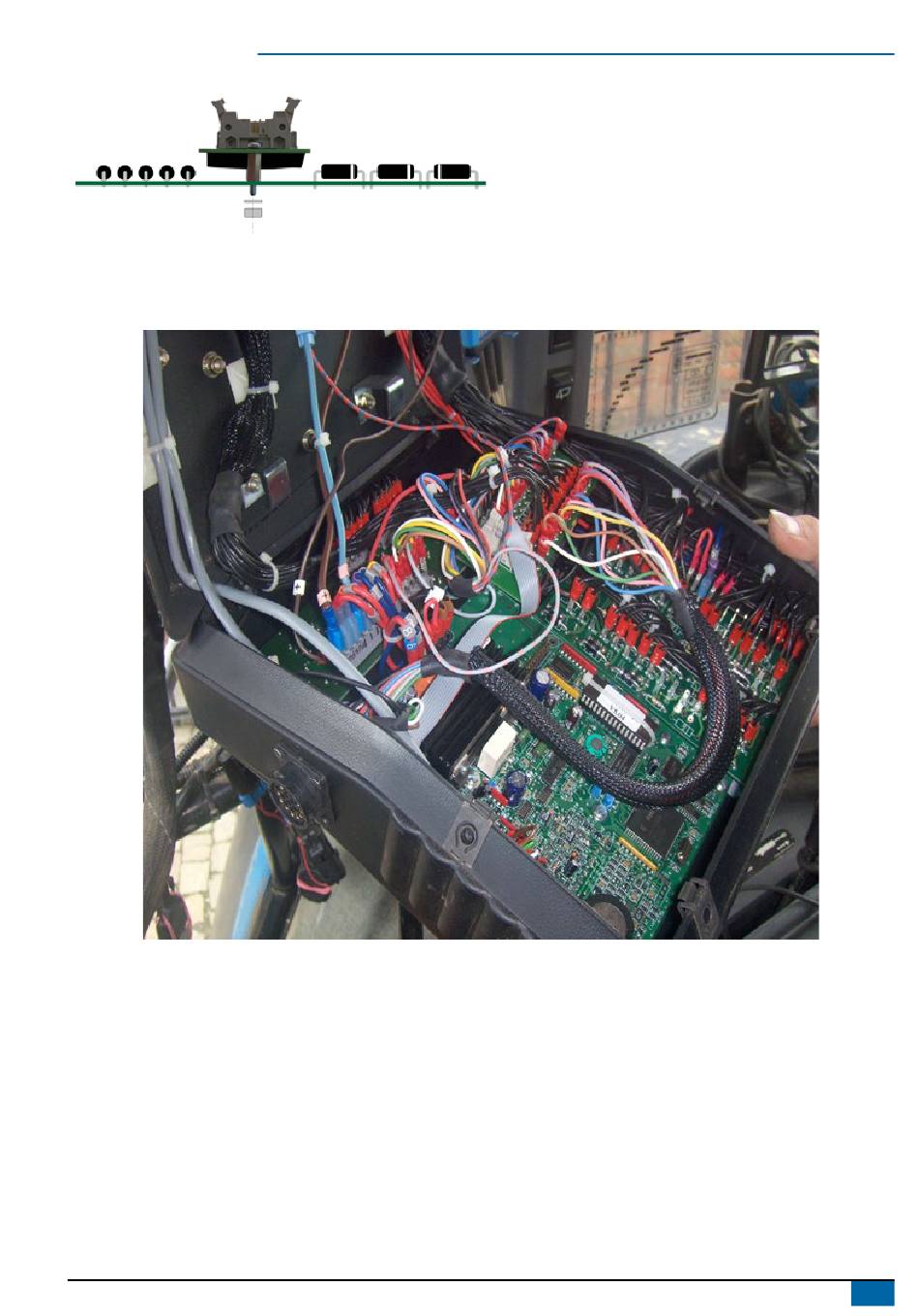

The above picture shows the ABSC interface built into a Trailed Sprayer without joystick (CASE-1, page 9).
factory installed aBsC Berthoud interface, diagrams and modifications.
Even if the Berthoud ABSC interface is already installed, please follow carefully the modifications and diagrams.
WARNING: If the below modifications are not realized, there is a big risk that the ABSC interface will burn at the first run
Diagram Description:
4. DiSconnect & reconnect harneSSeS & cabLeS
The BoomPilot SDM harness
harness.
1. Disconnect existing connection at the back of the Berthoud DP Tronic console.
2. Connect BoomPilot harness
3. Connect BoomPilot harness
tees into the existing system's connection between the Berthoud DP Tronic rate controller and flow control
(C)
to Berthoud DP Tronic console.
(C)
to existing Berthoud DP Tronic flow control harness.
(C)
4. Install the interface in the box by fixing it at a corner of the main
board as shown on the picture.
Note: Be sure that no contact is possible between the two boards
5. Connection of the wires depend on the sprayer type (See the
wiring diagrams starting page 8)
6. Connect the cable from the external connector to the board, if
not yet done, in the middle row.
7. Connect the interface to the CPU board with the flat cable.
