BoomPilot
®

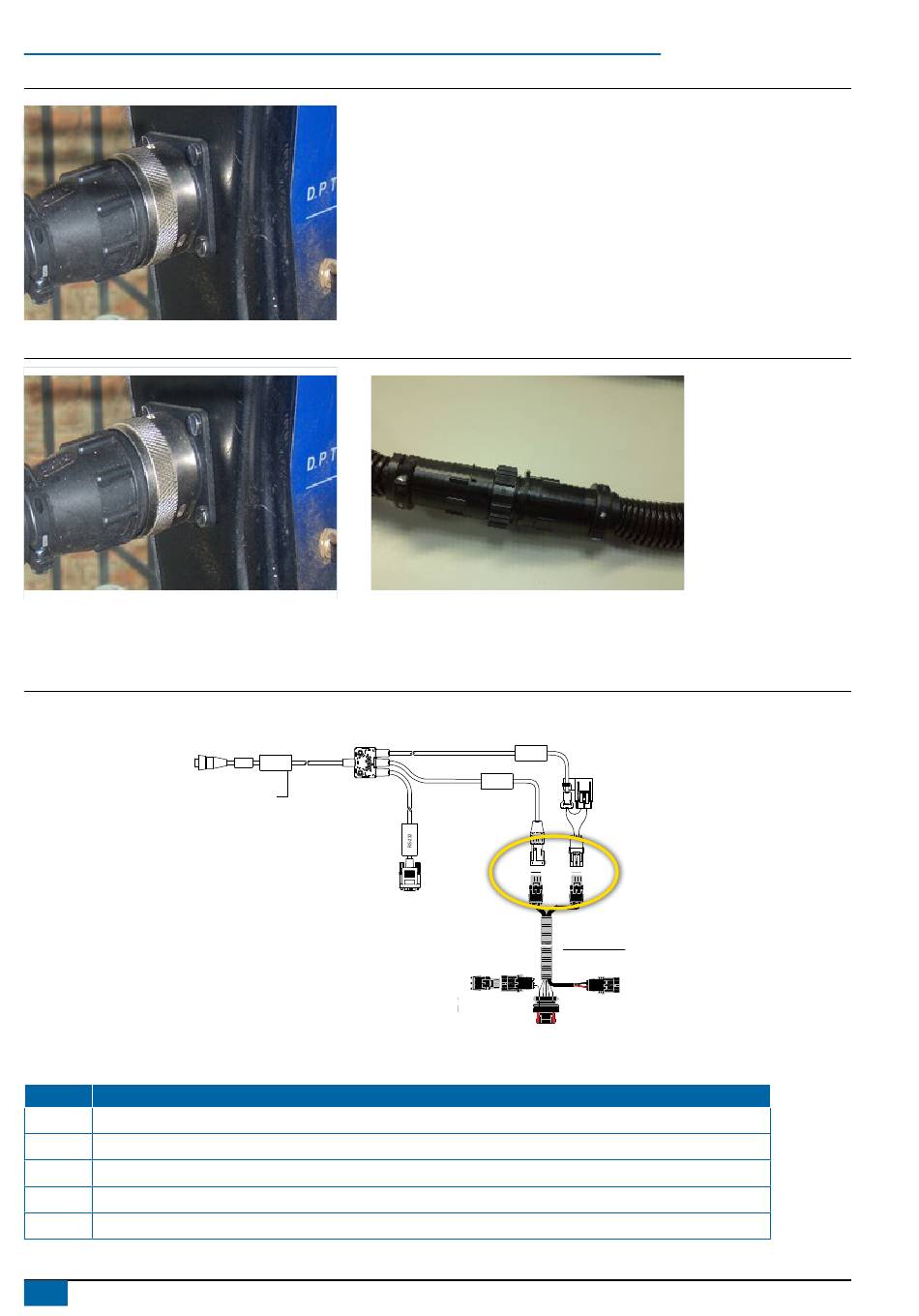

Figure 5: Disconnect existing connection
disconnect
existing harness
from console
Figure 6: BoomPilot harness to flow control harness
Connect C Controller
5.
connect power/can/Data cabLe to booMpiLot harneSS
Connect Power/CAN/data cable
Figure 7: Connect power/CAN/data cable to BoomPilot harness
B
Power/CAN/Data Cable
Position
Description
1
DP Tronic board, 'CARTE DP TRONIC
2
Sprayer board, 'CARTE PULVE'
3
Flex cable, from ABSC interface to DP Tronic board
4
Berthoud ABSC interface
5
Cable from ABSC interface to the 'Carte Pulve' board (Part of PN 902-422)
8
www.teejet.com
BoomPilot harness to controller
Connect C
flow control harness
to BoomPilot harness
(B)
(C).
Power/DATA
45-05626
POWER IN
CAN
A
B
B
A
C
BoomPilot harness
(CANBUS & Power)
