BoomPilot
®

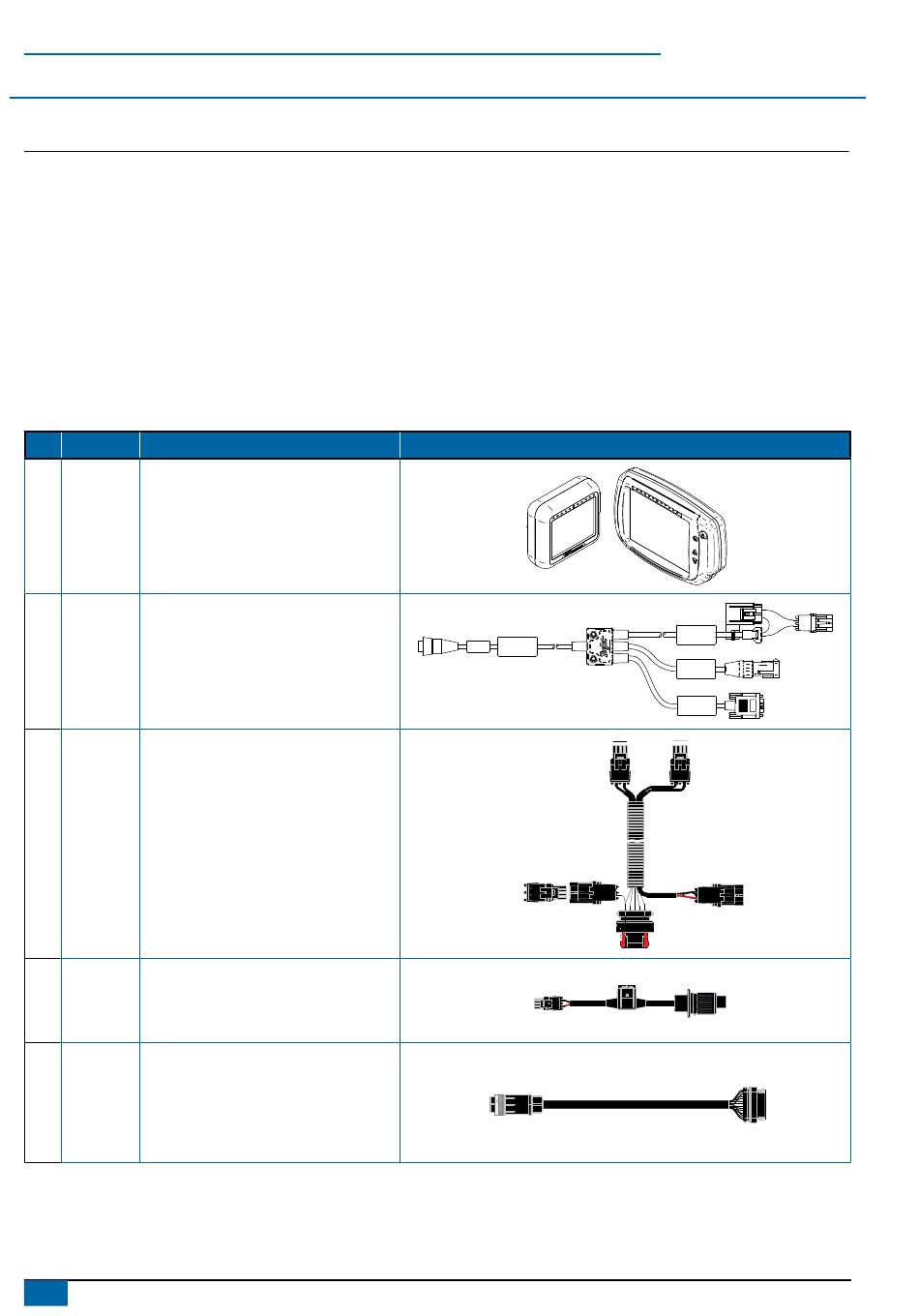

ReqUiRed ComPonents
Unpack the installation kit and identify the required parts for your installation.
Item
Part Number
Description
A
90-xxxxx*
Matrix Pro guidance controller kit ....................................................................................................................................1
B
45-05845
Power/CAN/data cable ....................................................................................................................................................1
C
198-413
BoomPilot harness (CANBUS & Power) ..........................................................................................................................1
D
48-XXXXX
Power cable with 3P COBO connector ............................................................................................................................1
E
990-888*
BoomPilot cable , 990-888 (Max. 15 Sections + Master for New Safi or Pneumatic Valves) ...........................................1
E
990-889*
BoomPilot cable , 990-889 (Max. 15 Sections + Master for Old Safi or ARAG Valves) ....................................................1
F
78-05072
BoomPilot section driver module (SDM) ..........................................................................................................................1
G
020-045
Installation manual, Berthoud DP Tronic..........................................................................................................................1
H
98-05243
Matrix Pro BoomPilot setup guide ...................................................................................................................................1
*Part number is dependent on kit contents
Item
Part #
Description
Part
number is
A
dependent
Matrix Pro guidance controller kit
on kit
contents
B
45-05845
Power/CAN/data cable
C
198-413
BoomPilot harness (CANBUS & Power)
D
48-XXXXX Power cable with 3P COBO connector
BoomPilot cable , 990-888 (Max. 15
E
990-888*
Sections + Master for New Safi or
Pneumatic Valves)
2
www.teejet.com
Illustration
Matrix Pro 570G
Power/DATA
45-05626
Matrix Pro 840G
POWER IN
CAN
RS-232
A
B
B
A
Quantity
