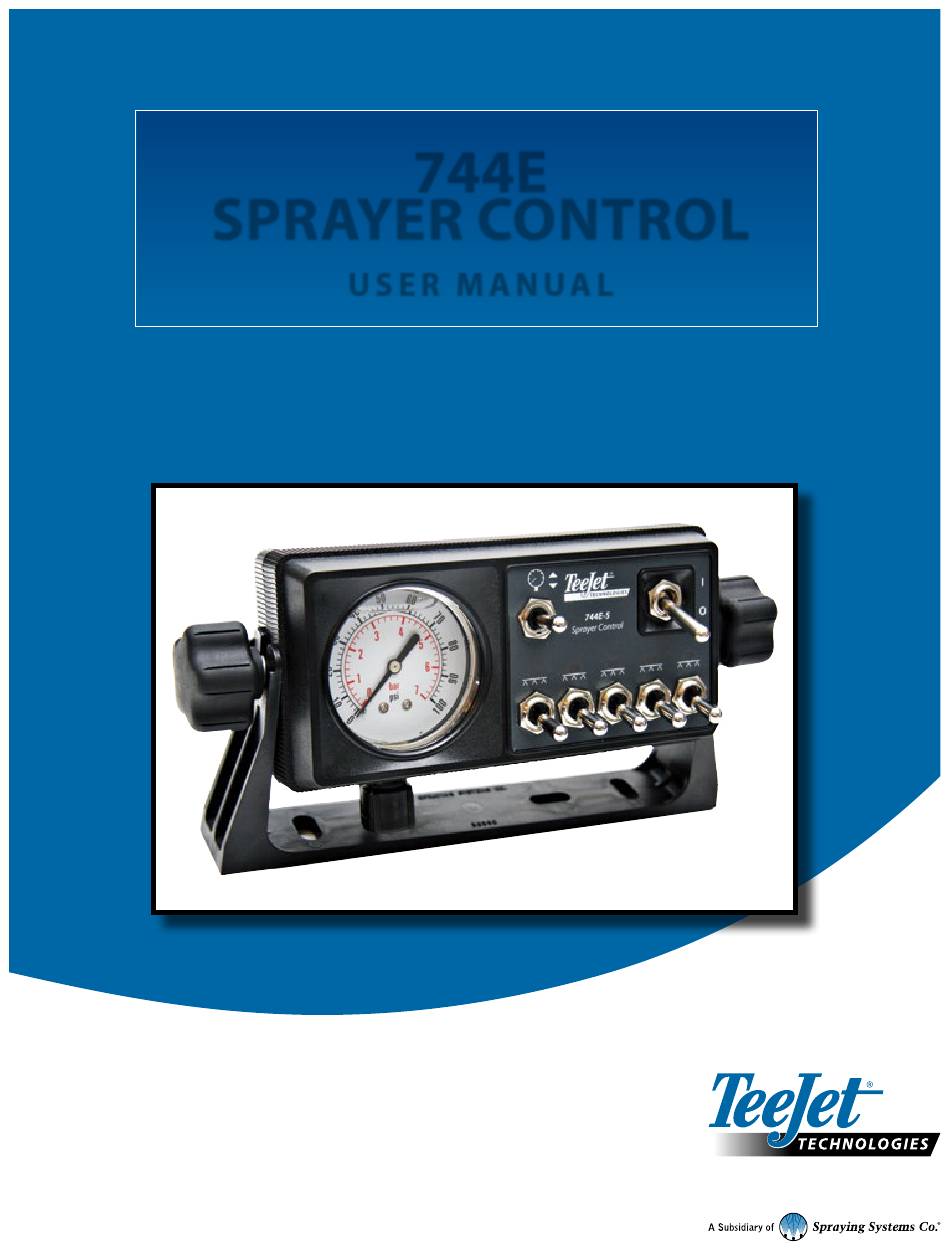

- Page 1 744e sprayer control U s e r M a n U a l...
- Page 2 Copyrights © 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.
- Page 3 744E Table of Contents chapter 1 - IntrodUctIon System Configurations ....................................... 3 Plumbing Diagram ....................................... 4 Kit Contents ..........................................4 Control Housing Assembly ....................................6 chapter 2 - InstallatIon Mounting Bracket ......................................... 7 Pressure Gauge ........................................7 Tube Assembly ........................................7 Connection to Manifold ..................................7 Connection to 744E Console .................................8 chapter 3 - MaIntenance...
- Page 4 744E chapter 1 - IntrodUctIon The 744E Sprayer Control provides manual spray control in a compact package. The console features a lighted pressure gauge for night use and heavy-duty switches with LED indicators. • Manual spray controller in a compact package. •...
- Page 5 744E system configurations Figure 2: 744E Sprayer Control; 3 and 5 Sections System Diagrams 75-50060 6pos Mate-n-lok 18ga 18ga 18ga 3pos Mate-n-lok Close 14ga Open 14ga Reg Valve 2pos WP n.c. +12V +12V 14ga 14ga Boom Valve 45-05385 45-10133 8.2 ft / 2.5m 16.4 ft / 5.0m Boom Valve 1.6 ft / 0.5m...
- Page 6 744E plumbing diagram Figure 3: 744E Plumbing Diagram Kit contents Unpack the installation kit and identify the required parts. Item Part Number Description Quantity 64-50029 Elbow, Gauge ..................................1 67-20002 Tubing Nut, Nylon ................................2 65-50005 Tubing Insert, Brass .................................4 64-50023 Mounting Bracket, Nylon ..............................1 60-10026 Lock Knob ..................................2 60-50000...
- Page 7 744E Item Part No. Description Illustration 64-50029 Elbow, Gauge 67-20002 Tubing Nut, Nylon 65-50005 Tubing Insert, Brass 64-50023 Mounting bracket, nylon 60-10026 Lock knob 60-50000 ¼″ External tooth lock washer 60-50003 1″ Bolt; steel; Zinc plated 60-50001 Flat washer; steel; Zinc plated 60-50009 Lock washer;...
- Page 8 744E Item Part No. Description Illustration TeeJet 744E - 5 sections console, 75-50061 100 PSI TeeJet 744E - 3 sections console, 75-50060 100 PSI TeeJet 45-10133 DC: xx/xx Harness, TJ744E 3 Section, 45-10133 7′/2.1m 45-10134 Harness, TJ744E 5 Section, 13′/4m TeeJet 45-10134 DC: xx/xx...
- Page 9 744E chapter 2 - InstallatIon Mounting Bracket tube assembly 1. Make sure all switches on the 744E Sprayer Control are turned to Fluid leakage around the gauge indicates a poor connection or a the “Off” position. defective gauge. 2. Determine the best location for the 744E Sprayer Control in the NOTE: All cables and tubes must be placed in a way, so that they vehicle cab according to the following guidelines: cannot be snagged or pulled with the operator’s feet.
- Page 10 744E Connection to 744E Console Figure 7: Pressure gauge tube assembly to the 744E console 1. Locate the gauge elbow on the TJ744 console (M). to console M 2. Remove the tube nuts from the gauge elbow and slide the tubing through the nut. The threaded portion of the nut should face its respective gauge elbow.
- Page 12 744e sprayer control U s e r M a n U a l TeeJet 744E Manual Sprayer Control for use with Ball Valves • Manual spray controller in a compact package • 3 or 5 sections control • Liquid filled 100 PSI (7 bar) pressure gauge •...
