BoomPilot
®

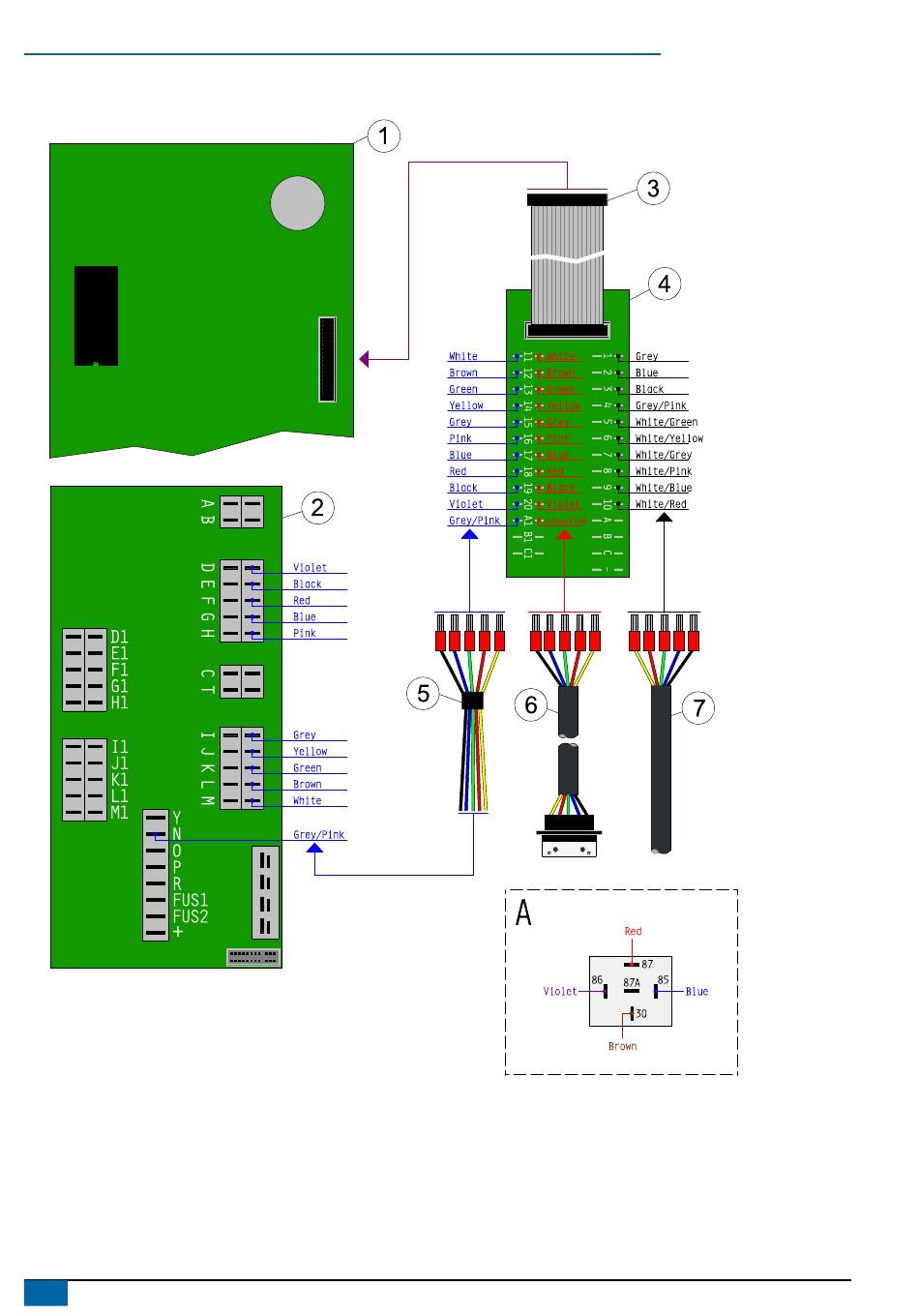

CASE-2: BOXER DPT
with Joystick
Carte
DP Tronic
Carte pulve
In this case, the relay wiring should be modified to match the cabling shown in A. That means that the RED and the BROWN wires should be
reverted, so that the RED is connected to position 87 of the relay and the BROWN connected to position 30 of the relay.
The GRAY/PINK wire should be removed from the relay and be connected to the "Carte Pulvé" on position N.
10
