Description

1.1

Introduction

The PACE5000 single-channel and PACE6000 single/dual-channel, Pressure Automated
Calibration Equipment measures and controls pneumatic pressures and displays, on a
touch-screen, the pressure measurement and controller status. The touch-screen enables
selections and settings in both measure and control modes. The instrument can be
operated remotely through communication interfaces.
The rear of the instrument houses all the electrical and pneumatic output and input
connections. The electrical connections provide an a.c. power supply, serial and parallel
communication interfaces, d.c. output and logic input and output. The system pneumatic
controller module contains a positive and negative pressure supply port, an output port,
vent port and reference port.
K0443 Issue No. 3

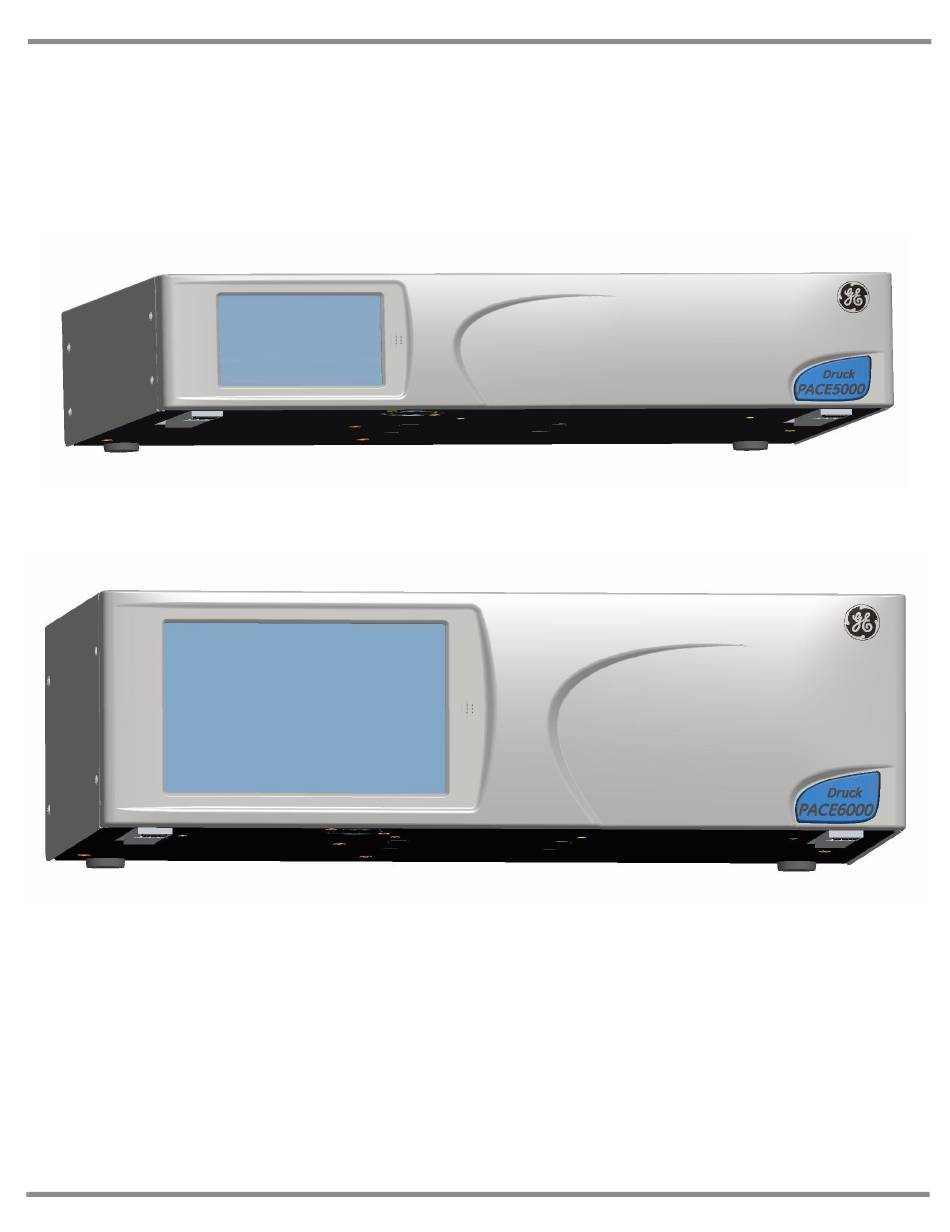

Figure 1-1 PACE5000 General view
Figure 1-2 PACE6000 General view
