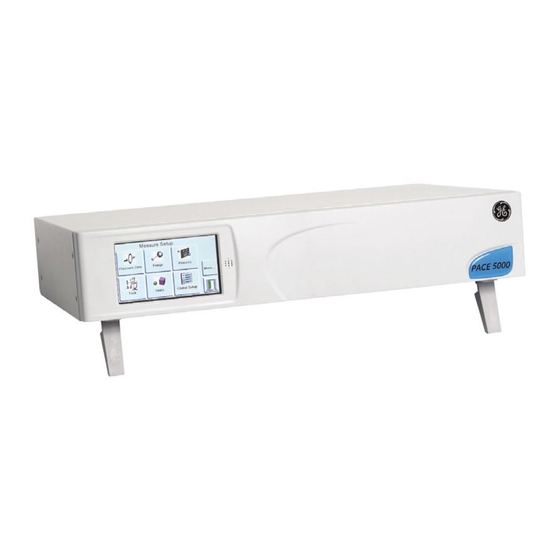

GE PACE5000 Calibration Manual
Pressure automated calibration equipment
Hide thumbs
Also See for PACE5000:
- User manual (99 pages) ,
- Technical manual (176 pages) ,
- User manual (86 pages)
Related Manuals for GE PACE5000
Summary of Contents for GE PACE5000
- Page 1 Digital Solutions Pressure Automated Calibration Equipment Calibration manual - K0450 Revision B PACE5000 PACE6000 PACE1000...
- Page 2 © 2010 General Electric Company. All Rights Reserved. Specifications are subject to change without notice. GE is a registered trademark of General Electric Company. Other company or product names mentioned in this document may be trademarks or registered trademarks of their respective companies, which are not affiliated with GE.
- Page 3 PACE Series Calibration Manual Introduction This technical manual provides calibration instructions for the PACE Pressure Controllers and Indicators. The features shown and described in this manual may not be available on some models. Safety The manufacturer has designed this equipment to be safe when operated using the procedures detailed in this manual.
- Page 4 Abbreviations The following abbreviations are used in this manual; the abbreviations are the same in the singular and plural. Absolute a.c. Alternating current Altitude British pipe thread Calculated airspeed Countersunk d.c. Direct current Digital Pressure Instrument e.g. For example etc. And so on Fig.
- Page 5 Negative °C Degrees Celsius Associated Publications K0447 PACE5000/6000 User Guide and Safety Instructions K0467 PACE1000 Indicator User Guide and Safety Instructions K0443 PACE5000/6000 Controller User Manual K0470 PACE1000 Indicator User Manual K0476 Pressure Control Module User Guide and Safety Instructions...
- Page 6 WARNINGS TURN OFF THE SOURCE PRESSURE(S) AND CAREFULLY VENT THE PRESSURE LINES BEFORE DISCONNECTING OR CONNECTING THE PRESSURE LINES. PROCEED WITH CARE. ONLY USE EQUIPMENT WITH THE CORRECT PRESSURE RATING. BEFORE APPLYING PRESSURE, EXAMINE ALL FITTINGS AND EQUIPMENT FOR DAMAGE. REPLACE ALL DAMAGED FITTINGS AND EQUIPMENT.
- Page 7 PACE Series Calibration Manual Pressure Units and Conversion Factors Pressure units Factor (hPa) Pressure units Factor (hPa) O @ 20°C mbar 0.978903642 O @ 20°C 1000.0 97.8903642 0.01 0.0980665 Pa (N/m kg/m 980.665 kg/cm 10.0 torr 1.333223684 10000.0 1013.25 mmHg @ 0°C 1.333223874 68.94757293 cmHg @ 0°C...
-
Page 8: Table Of Contents
Table of Contents Introduction..............................1 Calibration Status............................1 Calibration Equipment ..........................1 Preliminary Operations ..........................1 Notes on Calibration ............................1 PACE Controller Connection ......................2 Gauge Reference..........................2 PACE Indicator Connection ......................3 Gauge Reference..........................3 Calibration Check (All Ranges).........................4 Procedure..............................4 Calibration Adjustment..........................5 Appendix A PACE Menus and Screens ....................6 PACE Controller Menus ........................6 PACE Controller Screens.........................7 PACE Indicator Menus ........................8... -
Page 9: Introduction
Calibration menu. Calibration Equipment The original GE Calibration Certificate shows the measurement uncertainty of the original calibration standard. To preserve uncertainty of the PACE calibration, checks and adjustments must be performed using a calibrator uncertainty of less than or equal to the original calibration standard. -
Page 10: Pace Controller Connection
PACE Controller Connection WARNING ON COMPLETION OF CALIBRATION, OPEN THE ON/OFF VALVE TO VENT TRAPPED PRESSURE FROM THE SUPPLY + PORT TO ATMOSPHERE. Connect the calibrator for each pressure range as follows: Connect the output of the pressure standard to the PACE module output port. Fit an on/off valve to the supply + input of the PACE controller. -
Page 11: Pace Indicator Connection
PACE Series Calibration Manual PACE Indicator Connection Connect the indicator for each pressure range as follows: Connect the output of the pressure standard to the indicator port. Gauge Reference If the pressure standard has a reference connection, then connect this to the indicator reference port. -
Page 12: Calibration Check (All Ranges)
Calibration Check (All Ranges) Note: The PACE adds the barometric reading to a gauge range to produce an absolute range. Procedure Set the calibrator to measure mode: Connect calibration standard for the pressure range to be checked. Press Task and select Basic. With the pressure standard connected to the correct pressure port, select Measured Pressure and press Range to select the gauge pressure range to be checked. -
Page 13: Calibration Adjustment
PACE Series Calibration Manual Calibration Adjustment To adjust a calibration range of the calibrator, proceed as follows: Connect the calibrator for the range to be adjusted, as detailed in Calibration Check. Note: The calibration adjustments may be carried out in any order. Select Measured Pressure/Global Set-up/Calibration, enter the Calibration PIN (4321). -
Page 14: Appendix Apace Menus And Screens
Appendix A PACE Menus and Screens A.1 PACE Controller Menus Calibration procedure next page K0450 Revision B [EN] English... -
Page 15: Pace Controller Screens
PACE Series Calibration Manual A.2 PACE Controller Screens [EN] English K0450 Revision B... -
Page 16: Pace Indicator Menus
A.3 PACE Indicator Menus Calibration procedure next page K0450 Revision B [EN] English... -
Page 17: Pace Indicator Screens
PACE Series Calibration Manual A.4 PACE Indicator Screens [EN] English K0450 Revision B... - Page 20 www.gemeasurement.com...
