2 Installation
Pneumatic Connection Examples (Figures 2-2 and 2-4)
These examples show a single channel connection detail using supply equipment described above.


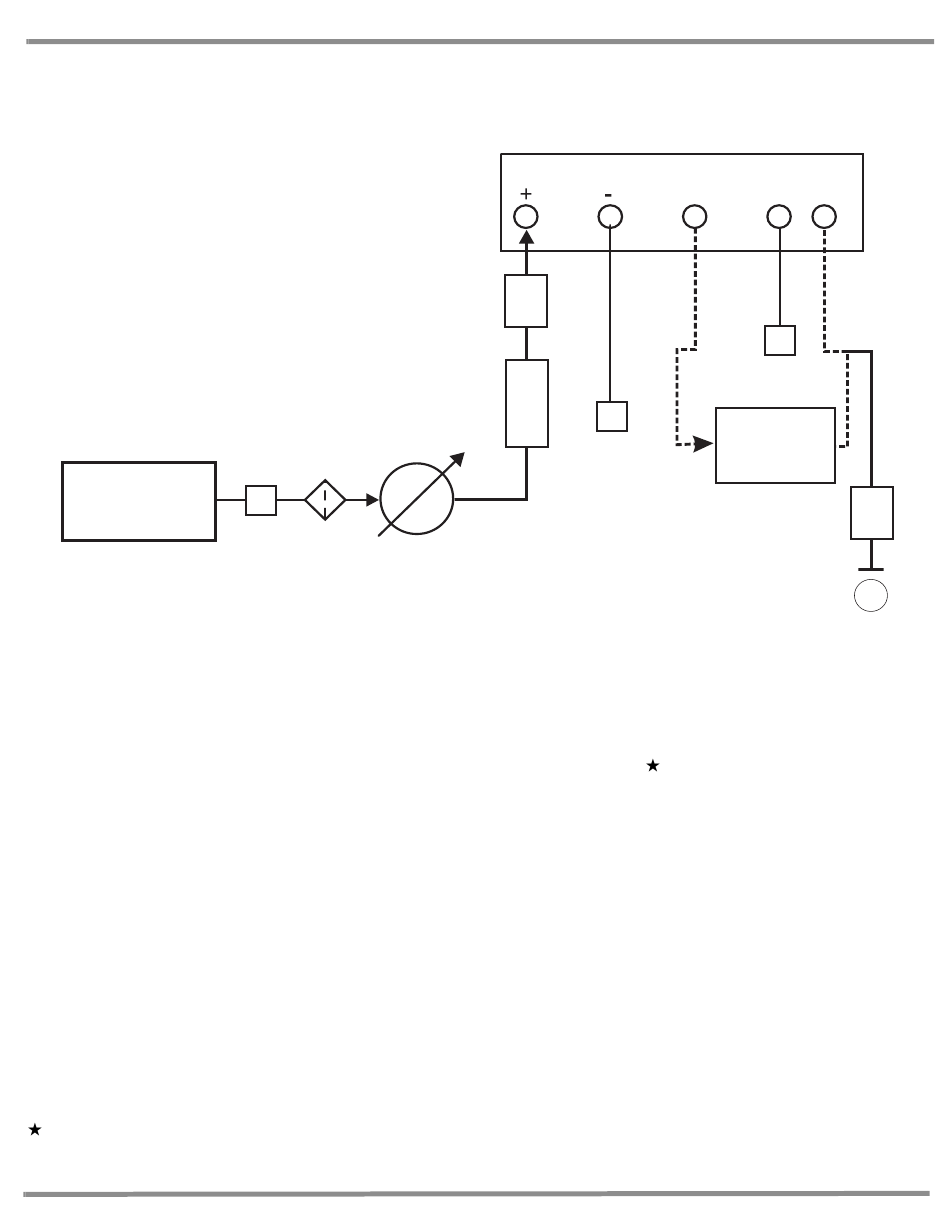

Figure 2-2, Pneumatic Connections without vacuum supply
Key to Figure 2-2
1 Pressure source
4 Regulate to between 110% full-scale and MWP
5 Diffuser *
8 Protection device
Notes: Refer to Section 6 Reference and Specification for details of other system components.
* High pressure gas exhaust - depending on pressure range.
† Optimum controller transient response and minimum time to set-point may be degraded if either
the pneumatic supply or vacuum system has restricted flow. Installing a reservoir volume, which
has larger capacity than the load volume, located in close proximity to the controller supply ports
can improve the controller response.
8
To protect the control module, for ranges above 100 bar, from over-pressure a suitable protection
device (such as a relief valve or bursting disc) must be fitted to limit the applied supply pressure to
below the MWP.
Optional differential connection kit.
K0443 Issue No. 3
ƒ
‚
2 Conditioner
6 Unit under test
9 Optional differential connection
8
SUPPLY
ˆ
‡
…
„
3 Filter
7 Optional reservoir †
2 - 4
OUTLET VENT REF
…
†
a atmosphere
‰
a
