Installation

4 Installation
4.1

Mechanical connection

Generally the device must be suspend on the carrier/ligfting equipment so, that it can swing freely in any position.
If this there any restriction in these swinging, mechanical breacks/damages could occur to the suspension or parts of the
device.
4.1.1

Fork sleeves (optional)

●
To establish a mechanical connection between the fork lift and the fork sleeve you have to put the fork into
the fork sleeve and fix it with the locking bolt or with a chain/rope, connected to the eyelet on the fork
sleeves and the lift frame.
●
It is definitely necessary to establish this connection. Otherwise the device could slide form the forks.
DANGER OF ACCIDENTS!

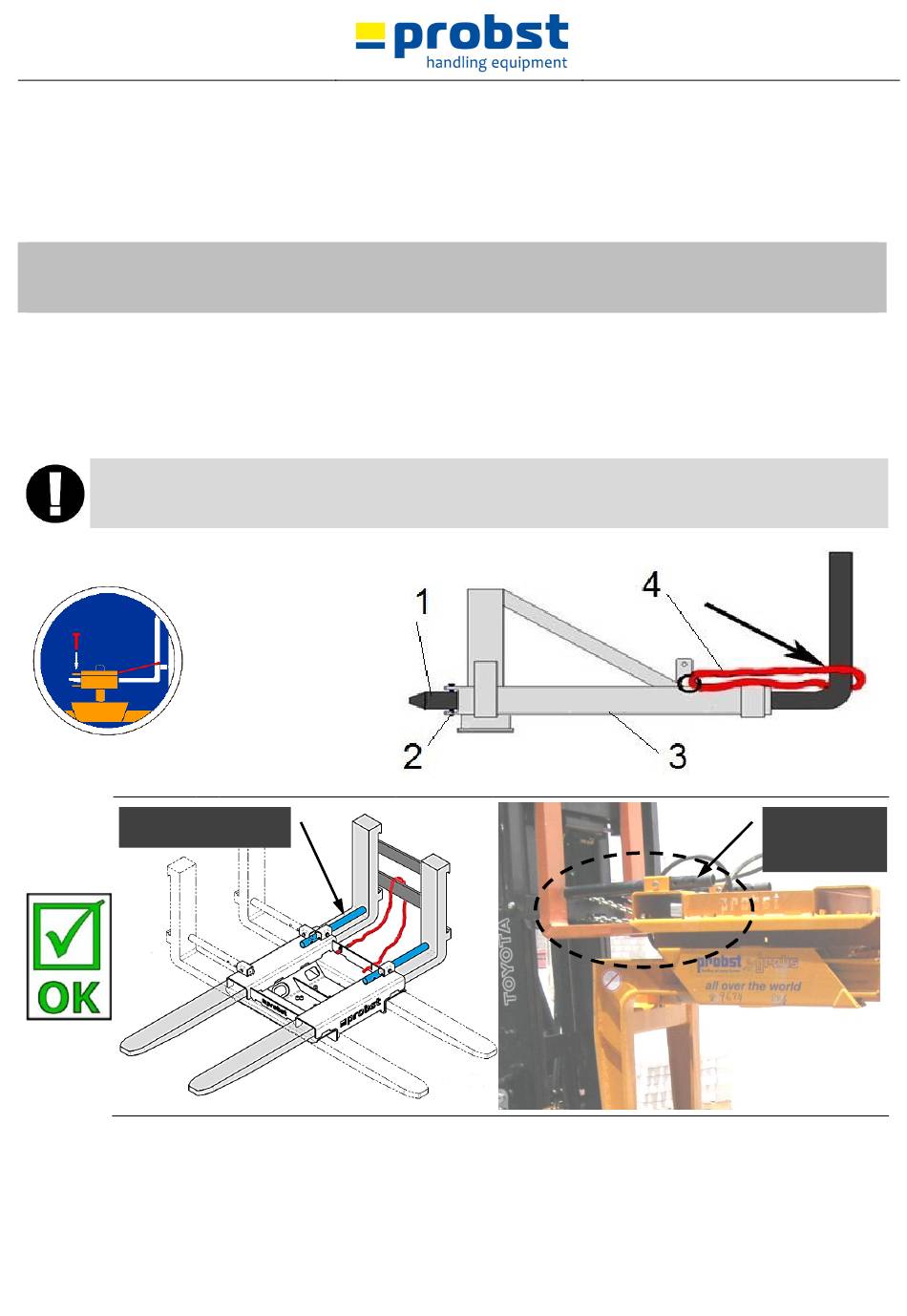

Adjustable spacer
1 Fork (of fork lift truck)
2 locking bolt
3 Fork sleeve
4 Chain/rope
11 / 17
Adjustable
spacer
