- Page 1 Operating Instructions Translation of original operating instructions Grab for Prefabricated Concrete Products FTZ FTZ-UNI-15 5310.0256...
-
Page 2: Table Of Contents
Maintenance and care ............................16 Maintenance ..............................16 MECHNICAL ..............................16 Trouble shooting ............................17 Repairs ................................17 Safety procedures ............................18 Hints to the type plate ..........................19 Hints to the renting/leasing of PROBST devices ..................19 2 / 19... -
Page 3: Ec-Declaration Of Conformity
DIN EN 349 Minimum distance to avoid squeezing any parts of the body (ISO 13854). Authorized person for EC-dokumentation: Name: J. Holderied Address: Probst GreiftechnikVerlegesysteme GmbH; Gottlieb-Daimler-Str. 6; D-71729 Erdmannhausen Signature, informations to the subscriber: Erdmannhausen, 19.08.2014................(M. Probst, Managing director) -
Page 4: Safety
Operating Instructions Safety FTZ-UNI-15 3 Safety Safety symbols Danger to life! Identifies imminent hazard. If you do not avoid the hazard, death or severe injury will result. Hazardous situation! Identifies a potentially hazardous situation. If you do not avoid the situation, injury or damage to property can result. -
Page 5: Safety Marking
Operating Instructions Safety FTZ-UNI-15 Safety Marking PROHIBITION SIGN Symbol Meaning Order-No.: Size: 2904.0213 30 mm The transportation of non rectangular goods is not allowed! 2904.0212 50 mm 2904.0211 80 mm 2904.0210 30 mm It is not allowed to be under hanging loads. Danger to life! 2904.0209... -
Page 6: Personal Safety Requirements
Operating Instructions Safety FTZ-UNI-15 Personal safety requirements ● Each operator must have read and understood the operating instructions. ● Only qualified, authorized personal is allowed to operate the device and all devices which are connected (lifting equipment). ● The manual guiding is only allowed for devices with handles. -
Page 7: Safety Procedures
Operating Instructions Safety FTZ-UNI-15 Safety procedures 3.4.1 General ● The use of the device is only permitted in proximity to the ground. Do not swing it over peoples heads. ● The manual guiding is only allowed for devices with handles. -
Page 8: General
(also natural kerbs), as well as “Kassler Bord” (Bus- and Train-profil-stones) and so on. Connected with lifting equipment e.g. a excavator or a crane. The device (FTZ-UNI-15) is universal usable because of the great opening width and a high carrying capacity.Look at the technical data list for details. - Page 9 Operating Instructions General FTZ-UNI-15 NOT ALLOWED AKTIVITIES: Unauthorized alterations of the device and the use of any self-made additional equipment could cause danger and are therefore forbidden!! Never exceed the carrying capacity and the nominal width/gripping range of the device.
-
Page 10: Survey And Construction

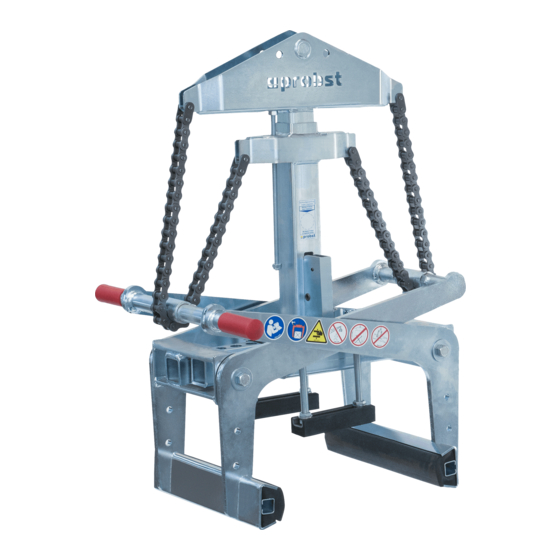

Operating Instructions General FTZ-UNI-15 Survey and construction Automatic release to adjust Bolt for eyelet fullautomatically gripping and opening Upper part Telescope-tube Handle to control the FTZ-UNI-15 Handle to control the FTZ-UNI-15 Spring bolt to adjust the Gripping arm gripping range... -
Page 11: Installation
Operating Instructions General FTZ-UNI-15 Installation Mechanical connection Load hook and chains ● Fit suspension ring in the load hook of the lifting equipment/carrier. ● Ensure that the single chains are not twisted and may be easily pulled through the jaws ●... -
Page 12: Adjustments
Operating Instructions Adjustments FTZ-UNI-15 5 Adjustments Adjustment of the gripping range Before the product can be lifted and transported, the gripping range has to be adjusted to the dimensions of the product. ● The adjustment of the gripping range may never take place on both sides at the same time. Always adjust the gripping range first to the one and then on the other side. -
Page 13: Adjustment Of The Threaded Rod
Operating Instructions Adjustments FTZ-UNI-15 Adjustment of the threaded rod The gripping range must be adjusted always in the right way (see adjustment of the gripping range). Otherwise there is no warranty that the tension force is sufficient for a safety gripping of the gripping good. Otherwise there is a danger that the load could fall down. -
Page 14: Gripping Ranges
Operating Instructions Adjustments FTZ-UNI-15 Gripping ranges Adjustment of the gripping area through the Possible gripping areas for gripping goods positions of the adjustable holes (symmetrical): (product dimension): Pos.1 + Pos.1 from ~ 80 (right) (left) Pos.2 + Pos.2 from ~ 80... -
Page 15: Operation
Operating Instructions Operation FTZ-UNI-15 6 Operation Operating for devices with automatic release ● The device is connected to the lifting equipment/carrier (e.g. excavator). ● Before lifting the device, the gripping range has to be adjusted. ● The device is placed over the product, set down, the device closes round the product and it can be lifted. -
Page 16: Maintenance And Care
Operating Instructions Maintenance and care FTZ-UNI-15 7 Maintenance and care Maintenance To ensure the correct function, safety and service life of the device the following points must be executed in the maintenance interval. Used only original spare parts, otherwise the warranty expires. -
Page 17: Trouble Shooting
Operating Instructions Maintenance and care FTZ-UNI-15 Trouble shooting ERROR CAUSE REPAIR The clamping-power is not big enough, the load is slipping out (optional) The grippers are worn Replace the grippers (optional) The maximum load is exceed Reduce the weight of. -
Page 18: Safety Procedures
Operating Instructions Maintenance and care FTZ-UNI-15 Safety procedures It is the contractors responsibility to ensure that the device is checked by an expert in periods of max. 1 year and all recognized errors are removed ( see BGR 500). -
Page 19: Hints To The Type Plate
Example: Hints to the renting/leasing of PROBST devices With every renting/leasing of PROBST devices the original operating instructions must be included unconditionally (in deviation of the users country's language, the respective translations of the original operating instructions must be delivered additionally)! - Page 20 Bkl 420 ÖW max ca. 774 (Gripper Length) Paketmaß von 0 - 750mm Zwischenraum (Gap) (Gripping Range 0 - 750 mm) Tragfähigkeit: 1500 [kg] Carrying Capacity: 1500 [kg] / (3300 [lbs.]) Grab for Prefabricated Concrete Products FTZ Bei Änderungen Rücksprache TB ! Gewicht: 88,2 kg Schutzvermerk nach DIN 34 beachten!
- Page 21 43100345 21000080 21000080 21000166 21000166 43100346 43100386 20250038 20100039 20100018 21600002 43100349 20440008 43100347 20000037 33100004 20540011 20440008 WA-Einsatz 40110040 20000037 20000037 20440008 20000008 20100018 43100348 20030006 33100004 33100004 21600002 20440008 36370001 10800015 20000037 10800015 36370001 Bei Änderungungen Rücksprache TB ! 20030006 Gewicht: 88,2 kg...
- Page 22 40110154 20530050 40110054 Bei Änderungen Rücksprache TB ! Gewicht: 0,5 kg Schutzvermerk nach DIN 34 beachten! Nachdruck nur mit unserer Genehmigung! Benennung Datum Name Einsatz für WA-L,komplett Erst. 24.8.2011 Perumal.Hurth Gepr. Blatt Artikelnummer/Zeichnungsnummer E40110040 Kunde: Urspr. N236-1 Ers. f. Ers. d. Zust.
- Page 23 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
- Page 24 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
- Page 25 Proof of maintenance The claim under guarantee for this device only exists and is subject to the proper execution of the mandatory maintenance works. (In case of warranty request please always attach a copy of the proof of maintenance) Operator: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Device type: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Article -No.:...
