Woodhaven 8395 Assembly

Identify and verify that you have all the parts listed.
You'll need a #2 & #3 Phillips screwdriver for assembly.
DW
B
PC
DW
PC
PC
B
8395: Offset
Router Plate
Please Read Carefully!

Parts List:

Part Description
8395P Large Router Offset Plate . . . . . . . . . . . . . . . .1
MF020 1-1/4" Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
BUSH004 5/8" Spacer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5590 Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
MF054 8-32 x 1/2" screws . . . . . . . . . . . . . . . . . . . . . .3
MF035 10-24 x 1/2" screws . . . . . . . . . . . . . . . . . . . . 3

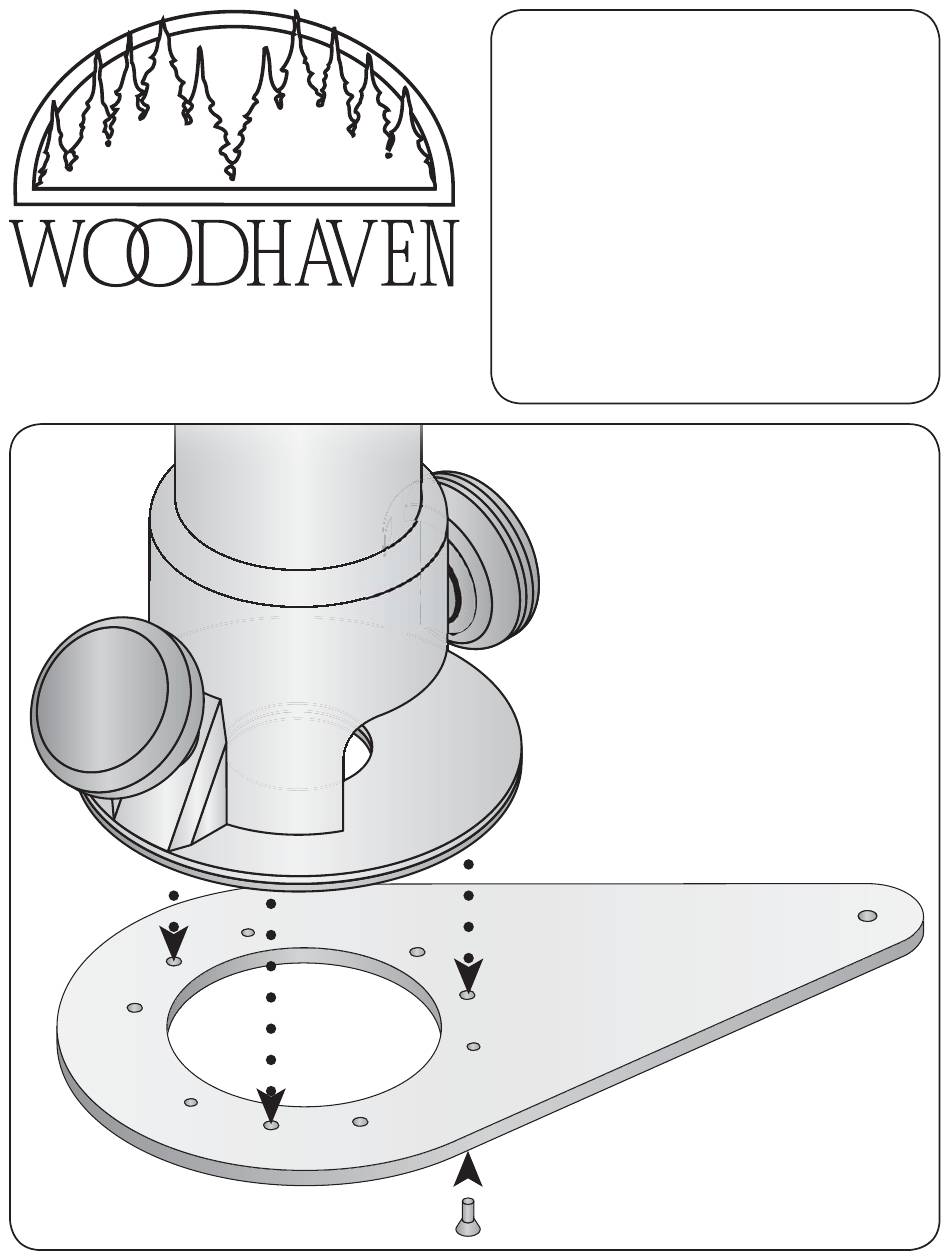

Remove the base plate and screws from your
router (set aside for safe keeping) and attach your
router to the 8395P plate using the screws indicated.
PC = Porter Cable 690 & 892, plus other
routers with three hole Porter Cable pattern:
Use MF035 - 10-24 x 1/2" screws.
B = Bosch 1617-1618:
Use MF035 - 10-24 x 1/2" screws. Use the THREE
mounting holes hidden under the four hole base plate.
DW = DeWalt DW616-618:
Use MF054 - 8-32 x 1/2" screws. Use the THREE
mounting holes hidden under the four hole base plate.
8395P
B
DW
Quantity
