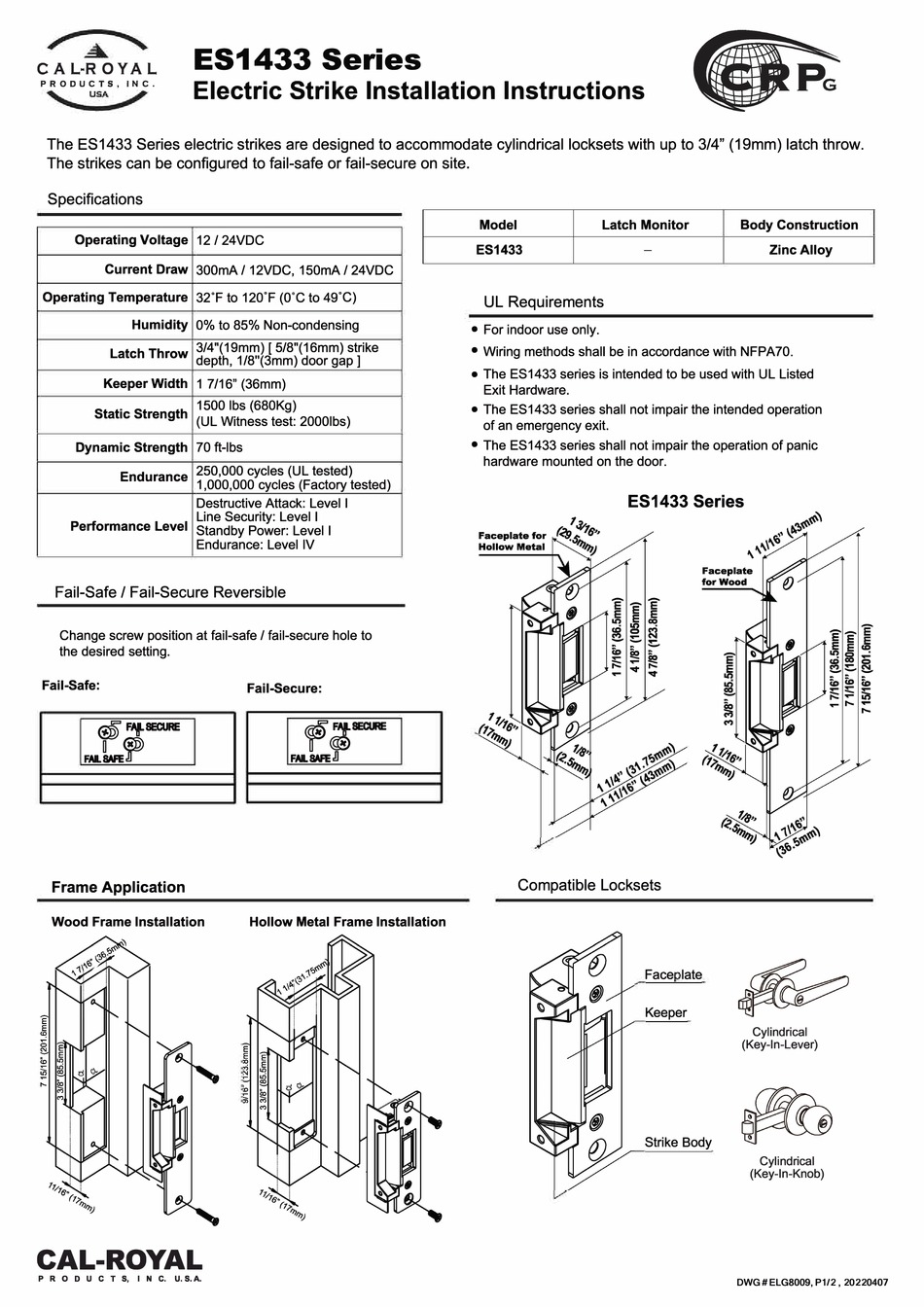

ES1433 Series
CA L•R OYAL
Electric Strike Installation Instructions
PRODUCTS, INC .
The ES1433 Series electric strikes are designed to accommodate cylindrical locksets with up to 3/4" (19mm) latch throw.
The strikes can be configured to fail-safe or fail-secure on site.
Specifications
Operating Voltage 12 / 24VDC
Current Draw 300mA / 12VDC, 150mA / 24VDC
°
Operating Temperature 32
Humidity 0% to 85% Non-condensing
Latch Throw 3/4"(19mm) [ 5/8"(16mm) strike
depth, 1/8"(3mm) door gap]
Keeper Width 1 7/16" (36mm)
1500 lbs (680Kg)
Static Strength
(UL Witness test: 2000lbs)
Dynamic Strength 70 ft-lbs
Endurance 250,000 cycles (UL tested)
1,000,000 cycles (Factory tested)
Destructive Attack: Level I
Line Security: Level I
Performance Level
Standby Power: Level I
Endurance: Level IV
Fail-Safe/ Fail-Secure Reversible
Change screw position at fail-safe / fail-secure hole to
the desired setting.
Fail-Safe:
@
FAf-SECURE
u@
FAILSAl'EJI
Frame Application
Wood Frame Installation
CAL-ROYAL
P R O D U C T S, I N C. U.S. A.
° °
F to 120 F (0'C to 49 C)
Fail-Secure:
@ F A/i LSEClR:
u®
FAILSAl'EJI
Hollow Metal Frame Installation
Model Latch Monitor
ES1433
-
UL Requirements
• For indoor use only.
• Wiring methods shall be in accordance with NFPA70.
• The ES1433 series is intended to be used with UL Listed
Exit Hardware.
• The ES1433 series shall not impair the intended operation
of an emergency exit.
• The ES1433 series shall not impair the operation of panic
hardware mounted on the door.
ES1433 Series
Compatible Locksets
Face late
Keeper
Strike Body
Body Construction
Zinc Alloy
Cylindrical
(Key-In-Lever)
Cylindrical
(Key-In-Knob)
DWG # ELG8009, P1/2 , 20220407
