Cal-Royal CIL Series Installation Instructions

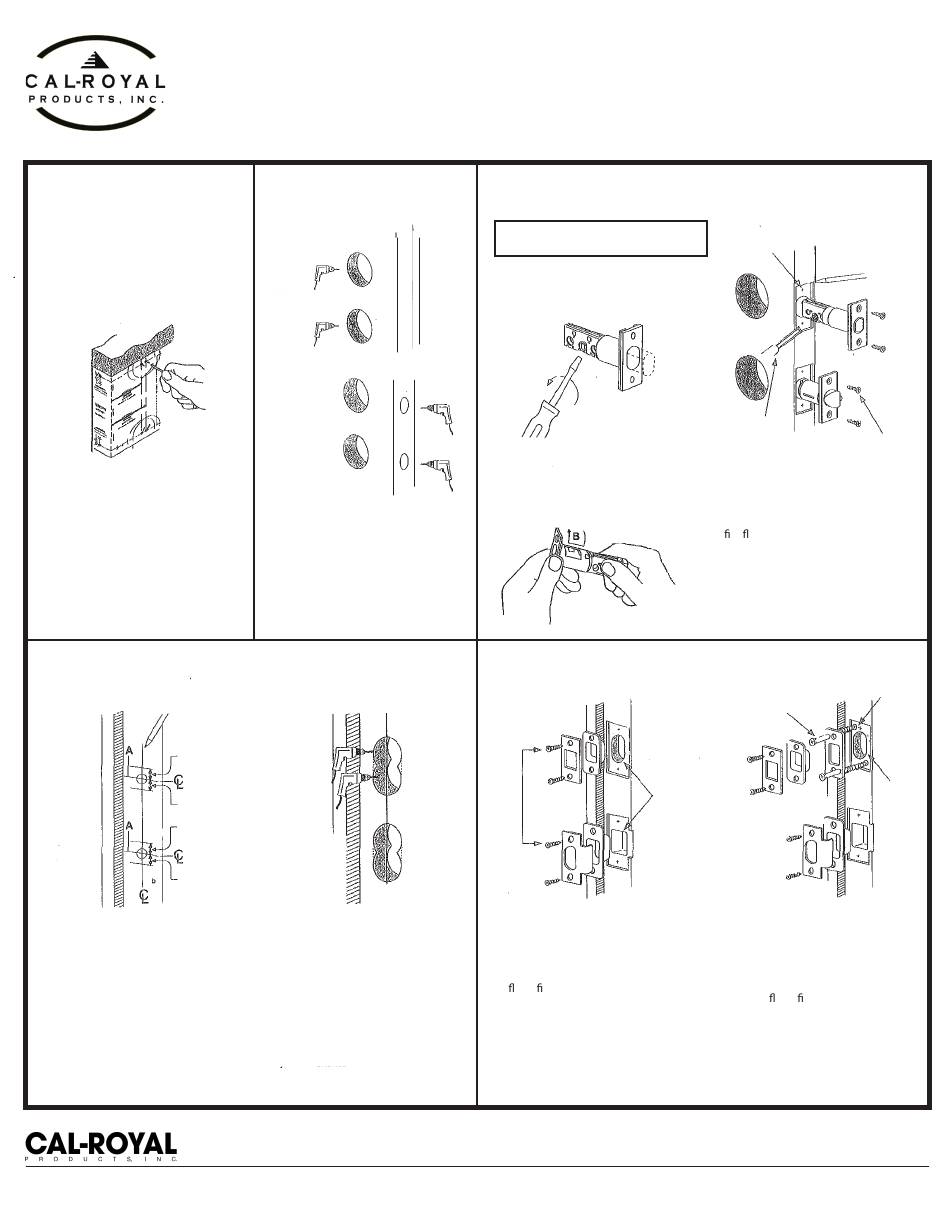

INSTALLATION INSTRUCTIONS FOR CIL INTERCONNECTED LOCKS
1. MARK DOOR
A. Check lock for proper backset and
door thickness of the door before
marking.
B. Fold template at correct markings
for door.
C. Mark appropriate centers for
2-1/8" (54mm) holes.
D. Mark center for 1" (25mm) diameter
latch holes in door edge.
4. PREPARE DOOR JAMB
B
3/8" (10mm)
B
3/8" (10mm)
B
3/8" (10mm)
B
3/8" (10mm)
A. Locate exact centerline of bolt and
mark centerline of jamb.
B. Mark drill points 3/8" (10mm) above
and below centerline.
6605 Flotilla St.
Commerce, CA 90040 USA
2. DRILL HOLES
B
2-1/8" (54mm)
C
1" (25mm)
A. Determine backset (2-3/4"
or 2-3/8") of the lock.
B. Drill the 2-1/8" (54mm) holes
about halfway through door face
from both sides to avoid
damaging wood surface.
C. Drill 1" (25mm) diameter holes on
door edge.
C
7/8" (22mm)
1-1/8" (32mm)
deep
D
7/8" (22mm)
11/16" (17mm)
deep
C. Drill two overlapping 7/8" (22mm)
holes 1-1/4" deep for deadbolt.
Clean out hole.
D. Drill two overlapping 7/8" (22mm)
holes 11/16" deep for latchbolt into
door jamb as shown
Tel: (323) 888-6601
Fax: (323) 888-6699
3. INSTALL DEADBOLT & LATCHBOLT
ADJUSTABLE DEADBOLT IS FACTORY
PRESET 2-3/4" (70MM) BACKSET
A. Bolt must be retracted.
Retract bolt. (If necessary, use screw
driver to turn cam and retract bolt).
B. How to adjust for 2-3/8" (60mm)
backset.
NOTE: Rotate faceplate and push down
to move housing to next position
5. INSTALL STRIKE
A
B
A. Place strike box in hole. Place strike
over the strike box and use it as
pattern for cutout.
B. Chisel about 1/8" (3.2mm) deep for
ush t of box and strike
C. Install strike box and strike.
Drill 9/64" (3.5mm)
Mortise @ 5/32" (4mm)
deep cutout
Combi-screws
C. Insert latch bolt and dead bolt into
corresponding holes. Trace around
faceplate.
D.Chisel out excess wood until faceplate
ts at with door edge.
E. Drill (4) 9/64" (3.5mm) holes and
secure latchbolt and deadbolt with
combi-screws supplied.
C
A. Place reinforcer in cutout with
screw holes as shown.
Mark & drill 3/16 (5mm) pilot
holes
B. Chisel about 1/4" (6mm) deep
for ush t of reinforcer, box
and strike.
C. Install reinforcer with 3" (76mm)
wood screws.
D. Install strike box and strike.
