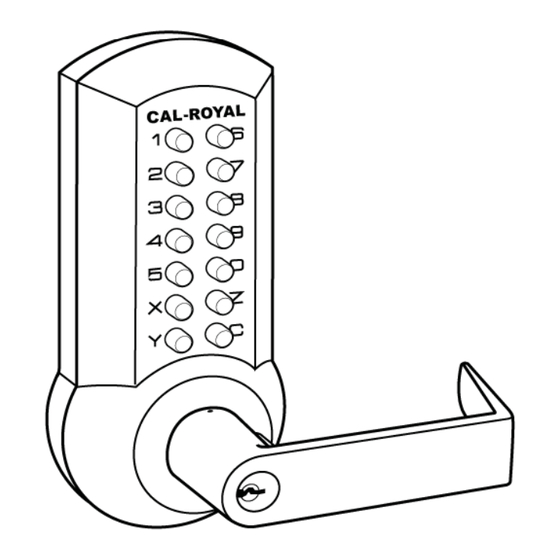

CRCODE-202
Mechanical Lock
Before Installing:
1. Please read the instructions carefully to prevent missing important steps.
*Note: Improper installations may result in damage to the lock which will
2. Please keep this Instruction Manual for future reference.
3. Contact dealer if particular installation is needed.
void the factory warranty.
6605 Flotilla St.,
Commerce, CA 90040
Tel (323) 888-6601 Fax (323) 888-6699
www.cal-royal.com
Instruction and Programming Manual
Advertisement
Table of Contents
Related Manuals for Cal-Royal CRCODE-202
Summary of Contents for Cal-Royal CRCODE-202
- Page 1 CRCODE-202 Mechanical Lock Instruction and Programming Manual Before Installing: 1. Please read the instructions carefully to prevent missing important steps. *Note: Improper installations may result in damage to the lock which will void the factory warranty. 2. Please keep this Instruction Manual for future reference.
-
Page 3: Table Of Contents
Door Handing Installation Procedure Mark and Drill Door Change Door Handing Cut spindle according to door thickness Alignment post location CRCODE-202 Exploded View Latch and Spindle Installation Adapter Instructions Outside Lock Installation Inside Lock Installation Install Strike Plate Check and Adjust... -
Page 4: Parts
Parts CAL-ROYAL PARTS REMARKS Outside Lock Inside Lock 70mm 2 ” backset Spindle Spindle Adapter 8-32 X ” screws backplate f ixing bolts 10-32 X 1 ” screws 35mm - 44mm (1 ” - 1 ”) 10-32 X 1 screws 51mm - 57mm (2”... -
Page 5: Checklist Before Installation
CHANGE THE LEVER HANDLE AND LATCH DIRECTION ACCORDINGLY *THE EXAMPLE IN THIS MANUAL IS A RIGHT HAND DOOR Installation Procedures use the drill the install adjust reset code right parts holes 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 6: Mark And Drill Door
3.2 Cut a rabbet of 1/8” deep to allow strike to 3.3 Align hole of the strike with vertical line. Tighten strike plate using two screws provided. 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 7: Change Door Handing
2. Pull lever off. 3. Switch lever to opposite direction. 4. Push lever until it clicks. 5. Make sure the inside lever is secure and working smoothly. 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 8: Cut Spindle According To Door Thickness
Outside Lock . Post positions provided for: Left hand, 2 ” backset Left hand, 2 ” backset Right hand, 2 ” backset Right hand, 2 ” backset 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 9: Crcode-202 Exploded View
Exploded View of CRCODE-202 Latch and Spindle Installation cup, skip this step) 2. Insert the latch into the side hole. 3. Fix the latch with two 8-32x34” wood screws. 4. Fit the spindle into the latch according to the handing of the door (refer to “Adapter Instructions”) -
Page 10: Outside Lock Installation
2. Align hub onto the spindle and 4 screw posts through prep doors. 3. Align the mounting plate of the Inside lock and fasten with 4 screws. 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 11: Inside Lock Installation
6. If there is no binding of the latch or handles, the lock is reposition the strike plate slightly until the correct position is found. Re-tighten the bolts. 6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... -
Page 12: To Change Access Code
To Change Access Code CAL-ROYAL 1. Press current access code. 2. Turn lever 70° and hold. 3. Press the Y button. (Y button will stay pressed until code is changed) 5. Push the code change tool onto each button in turn, pushing in the buttons approximately 2mm turn counter-clockwise 180°. -
Page 13: Access Code Recovery
To Change Access Code CAL-ROYAL 8. Press “C” and the new access code. 9. Turn the lever. The Y button will pop back up once the code is changed. *Before pressing the access code, make sure to press Access Code Recovery 1. -
Page 14: Flotilla St., Commerce, Ca
6605 Flotilla St., Commerce, CA 90040 Tel (323) 888-6601 Fax (323) 888-6699 www.cal-royal.com... - Page 16 6605 FLOTILLA ST., COMMERCE, CA 90040 TEL. (323) 888-6601 FAX. (323) 888-6699 WEBSITE: www.cal-royal.com EMAIL: sales@cal-royal.com...
