ADJUSTING THE ROBOTIC ARM
This section will provide you with detailed instructions on how to calibrate the robotic arm in the
event that it's no long aligned correctly with the DVD/RW drive or Disc Bins. Please follow the
instruction carefully.

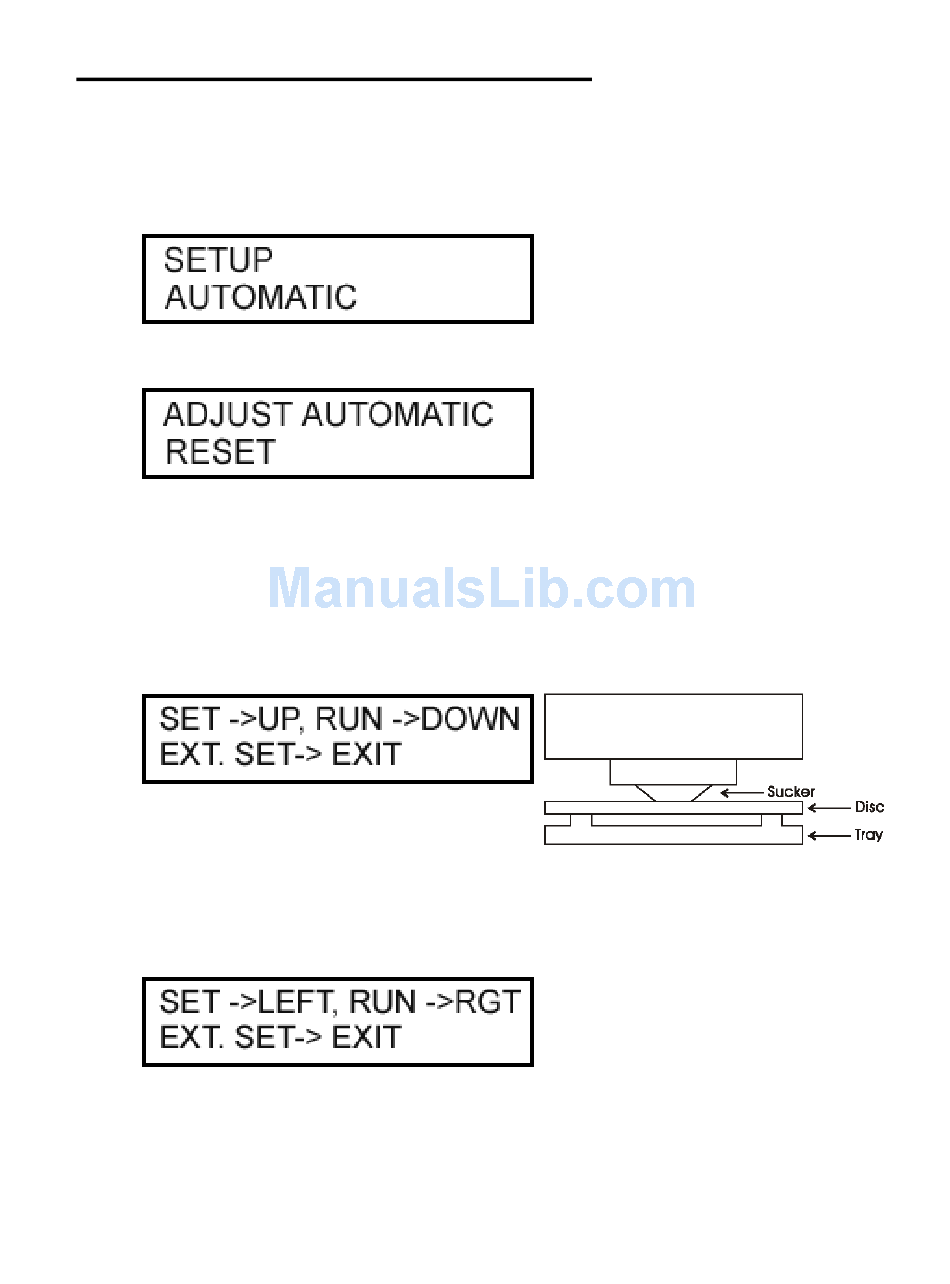

1. Enter the Setup Mode and scroll to the Automatic function.
2. Press the Run button to enter the Adjustment mode.
The Adjustment Mode allows you to adjust the arm in the following ways:
•
RESET
This function will reset the robotic arm to the factory defaults.
•
ADJ HEIGHT OF H. DRIVE
This allows you to adjust pickup position up or down for the first DVD/RW drive. You only
need to calibrate one drive for this function. Press SET to move the arm up or RUN to
move the arm down. Press and HOLD SET to exit.
•
ADJ ANGLE OF H. DRIVE
This allows you to move the pickup position to the left or the right for the first DVD/RW
drive. Again, you only need to calibrate the first drive. Press SET to move the arm to the
left or RUN to move the arm to the right. Press and HOLD SET to exit.
