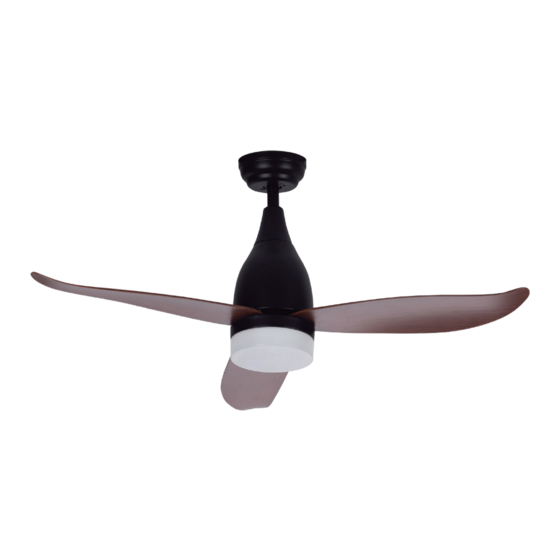

- Page 1 WIND HELIX CEILING FAN WITH LIGHT MANUAL ASSEMBLY ENGLISH...
- Page 4 WIND HELIX To download this user guide in your language, visit our website: www.create-store.com/uk Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr...
-
Page 5: Table Of Contents
WIND HELIX INDEX Box c o n te n t s Step 1. Woo d roo f Step 1. c o nc re te ce i li ng Step 1. Fals e ce il ing C h oi c e o f grab b a r Step 2. -
Page 6: Box C O N Te N T S
BOX CONTENTS FLOWER DRIVER REMOTE CONTROL LED PLATE EMBELLISHER ENGINE (x3) BLADES TULIPA SHANK EXTENSION POST MOUNTING BRACKET ENGINE TRIM (1) EXPANSION SCREWS SCREWS FOR BALANCING KIT TRIM + ENGINE (2) WOOD SCREWS SPLICING TERMINALS (x7) BLADE SCREWS ATTENTION! Before starting the as- sembly, remember to disconnect the light from the electrical panel so as not to suffer an electric shock. -
Page 7: Step 1. Wood Roof
STEP 1. WOOD ROOF PARTS AND TOOLS MATERIAL NOT INCLUDED (2) WOOD SCREWS SUPPORT OF OPTIONAL ACCORDING TO MOUNTING TYPE OF ROOF Mark with a pencil the 4 holes of the piece If necessary, depending on the type of K in the roof. roof, you will need to use a drill to make the hole in the wood. -
Page 8: Step 1. Concrete Ceiling
STEP 1. CONCRETE CEILING PARTS AND TOOLS MATERIAL NOT INCLUDED (1) EXPANSION SCREWS SUPPORT OF MOUNTING Disassemble the part M separating it into pieces. Ø8mm Mark with a pencil the 2 central holes of With the help of a drill, make the two cor- the piece K on the ceiling using the same responding holes with a Ø8 mm drill bit. - Page 9 Place the piece K matching their holes Enter the part in order M2, M3 and then with the screws M1. Make sure the ceiling the nut M4. cables are on one side of the piece K. Tighten the piece M4 with a No. 10 wrench, Make sure the part K It is perfectly hooked until you feel it's ok fixed.
-
Page 10: Step 1. False Ceiling
STEP 1. FALSE CEILING PARTS AND TOOLS MATERIAL NOT INCLUDED FIXING SCREWS WITH SPRING LEVER SUPPORT OF MOUNTING Mark the 2 central holes of the piece on With the help of a drill, make the 2 corre- the ceiling with a pencil K using the same sponding holes. -
Page 11: Choice Of Grab Bar
CHOICE OF GRAB BAR Before you start, choose the desired height. (10cm+/-) You will have to choose between the height of the piece Yo wave J. · If you choose the height of the piece J, You must follow the instructions below. ·... -
Page 12: Step 2. Assembly Of The Main Body
Snap the tilt bracket onto Tighten the two screws on Put the pin back in the the pin. the tilt bracket with the piece J. screwdriver. Secure the pin with the The piece is already J ready locking piece so that it does to use. - Page 13 insert the piece L As shown Once the pieces are inserted A Y L, you must insert the ca- in the picture. bles of the part H inside the bar. If you want, you can tape the wires down to make it more easy to pass them inside.
-
Page 14: Step 3. Driver Connection
Once the bar is well anchored to the piece H, slide piece L down. The main body of the fan motor will be assembled. STEP 3. DRIVER CONNECTION DRIVER SPLICING TERMINALS Remember to set the notch Put the tilt bracket into the Before continuing, check on the tilt bracket back so slot on the part K. - Page 15 Join the part connections B. with the connections of Once the cables are con- engine, each with its corresponding color. nected, insert the part B. in- side the piece K, As shown in the picture. Select and connect all the Once connected, place the You will need to attach the ground cables, including...
- Page 16 slide piece A upwards to fit it on the protruding screws of Once fitted, turn the piece the piece K. A toward the left. Make sure no wires get pinched. Finally, with the help of a screwdriver, tighten the screws so that the piece is well fixed. ENGLISH...
-
Page 17: Step 4. Blade Assembly
STEP 4. BLADE ASSEMBLY (x7) BLADE SCREWS (x3) BLADES With the motor well placed, Place the first blade E fastening it with the washers and the we will begin the assembly screws Q with the help of the screwdriver, without tighten- of the blades E. -
Page 18: Step 5. Fi Tti N G T He T Rim 1
STEP 5. FITTING THE TRIM SCREWS FOR EMBELLISHER EMBELLISHER Using a screwdriver, remove the 3 center screws from the Pass the fan cables through motor for later use. If these screws come in a sealed bag, the center hole of the piece use them for this step. -
Page 19: Step 6. Led Board Connection
STEP 6. LED BOARD CONNECTION LED PLATE Connect the part wires D to those of the fan joining the connections, each cable with its same color. Then attach the part D to the fan with the help of the magnets so that it stays in place. ENGLISH... -
Page 20: Step 7. Placement Of La Tulipa
STEP 7. PLACEMENT OF LA TULIPA TULIPA place the piece F on the fan by fitting it onto the motor and turn it clockwise. Do not forget to check that the piece is well secured. Once checked, you can connect the electricity and enjoy your new fan with light. -
Page 21: Blade Balancing Kit
BLADE BALANCING KIT BALANCING KIT Your ceiling fan may have swinging problems when operating due to irregularities in the blades or brackets. In addition, incorrect mounting of the system or twisted bearings could cause additional problems. The following procedure is recommended to remedy these prob- lems: 1. - Page 24 ENGLISH...
