Create WIND HELIX Assembly Manual page 15

4

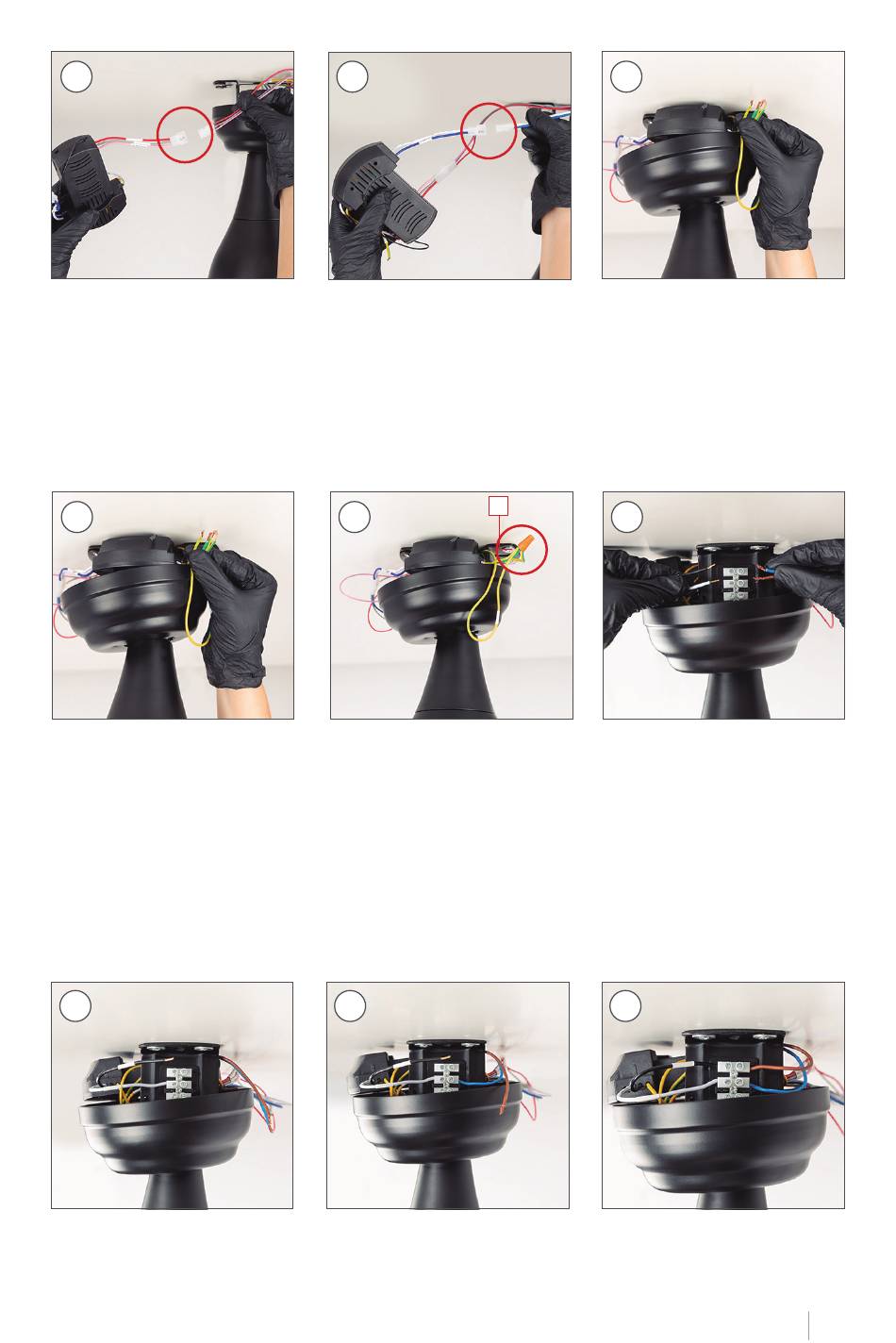

Join the part connections B. with the connections of
engine, each with its corresponding color.
7
Select and connect all the
ground cables, including
the one for your installation.
10
Connect the L cable of the
driver to the PHASE cable
of your installation.
5
O
8
Once connected, place the
part O screwing it on until it
is secure.
11
connect the wire N from the
driver to the NEUTRAL ca-
ble of your installation.
6
Once the cables are con-
nected, insert the part B. in-
side the piece K, As shown
in the picture.
9
You will need to attach the
remaining wires from the
piece B. and the phase and
neutral cables of its instal-
lation in the strip of the
piece K, as it's shown in the
following.
12
Make sure no wires are
pinched.
