135756113 Gun FStart G Compliant HVLP-13-Mva
135756115 Gun FStart G Compliant HVLP-15-Mva
135756118 Gun FStart G Compliant HVLP-18-Mva
135756122 Gun FStart G Compliant HVLP-22-Mva
135756612 Gun FStart G Compliant LVLP-12-Mva
135756613 Gun FStart G Compliant LVLP-13-Mva
135756615 Gun FStart G Compliant LVLP-15-Mva
135756618 Gun FStart G Compliant LVLP-18-Mva
135756622 Gun FStart G Compliant LVLP-22-Mva
Translation from the original manual - Index C

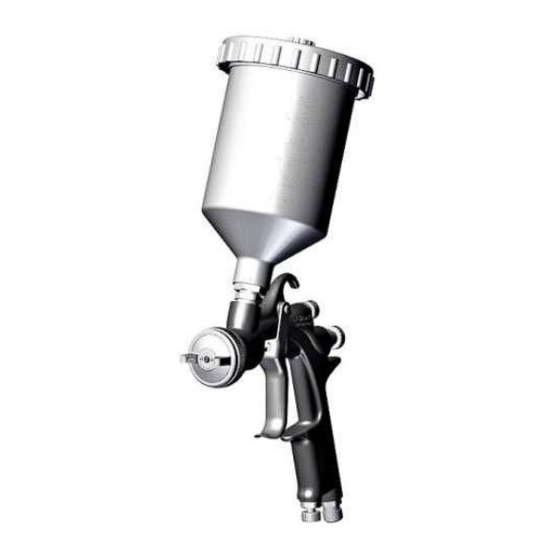

FStart Gravity
II 2G Ex h IIB T6 Gb X
582119110-US
SAMES KREMLIN SAS
13 Chemin de Malacher
38240 Meylan
Tél.: 33 (0)4 76 41 60 60
www.sames-kremlin.com
135756213 Gun FStart G CONV-13-Lva
135756215 Gun FStart G CONV-15-Lva
135756218 Gun FStart G CONV-18-Lva
135756222 Gun FStart G CONV-22-Lva

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FStart Gravity 135756113 and is the answer not in the manual?

Questions and answers

Related Manuals for SAMES KREMLIN FStart Gravity 135756113

Summary of Contents for SAMES KREMLIN FStart Gravity 135756113

  • Page 1 135756622 Gun FStart G Compliant LVLP-22-Mva II 2G Ex h IIB T6 Gb X Translation from the original manual - Index C 582119110-US SAMES KREMLIN SAS 13 Chemin de Malacher 38240 Meylan Tél.: 33 (0)4 76 41 60 60 www.sames-kremlin.com...

  • Page 2: Table Of Contents

    Any communication or reproduction of this document, in any form whatsoever, and any exploitation or communications of its contents are prohibited, except with the express written permission of SAMES KREMLIN. The descriptions and characteristics contained in this document are subject to change without prior notice. © SAMES KREMLIN 2020...

  • Page 3: Safety

    • With regard to the fluids and paints used with its equipment, SAMES KREMLIN cannot be held responsible for direct or indirect material damage caused in use, for the poor compatibility of the materials in contact, for the inherent risks to personnel and the environnment, for wear and tear, for malfunctions of the equipment or isntallations and for the quality of the finished product.
  • Page 4 • It is imperative that the spray booths are properly ventilated to Ventilation prevent any high concentration of fluid or paint and maintain it lower than the LEL (Lower Explosion Limit). • If ventilation is shut off, toxic substances or contamination may remain in the spray booth and cause a risk of fire, poisoning or irritation.
  • Page 5 • In order to prevent the accumulation of electrostatic charges which could generate an electric arc in a flammable or explosive environment, it is necessary that all conductive components of the system are grounded. • The gun must be ‘grounded’ via the fluid hose or the air hose. •...
  • Page 6 • Parts and accessories must only be supplied or approved by SAMES KREMLIN. Equipment • SAMES KREMLIN cannot be held responsible for personal injury as modification well as breakdowns and/or damage resulting from modifications to the equipment. • Any modification of equipment made by the user and not authorized by SAMES KREMLIN will result in loss of certification.

  • Page 7: Declaration

    3. Declaration Refer to the declaration delivered with the equipment. 4. Identification of the product Description of FStart Gravity Guns recommended to spray varnishes, lacquers, shades, polyurethanes. Description of the ATEX / UKCA marking • Each device is marked with the name of the manufacturer, the reference of the device and important information for the use of the device (air pressure, electrical power,etc.).
  • Page 8 Description Manufacturer trademark SAMES KREMLIN logo Gun model FStart Gravity CE : European conformity : For use in explosive area II : group II 2 : class 2 Surface equipment meant to an area where explosive II 2 G atmospheres due to gas, vapours, mists are liable to appear from time to time in usual operating.

  • Page 9: Technical Data

    5. Technical data FSTART G CONV FSTART G HVLP FSTART G LVLP Gravity Version Maximum air supply 6 bar / 87 psi pressure (network) Maximum fluid supply 6 bar / 87 psi pressure Air flow rate 23.3m3/h 20.4m3/h 23m3/h Air pressure at the gun 3 bar / 43.5 psi 2.2 bar / 31.9 psi 2.5 bar / 36.3 psi...

  • Page 10: Fstart Gravity Materials

    FStart Gravity materials Gun body Chrome die-cast aluminum Aircap Clear anodized aluminium Nozzle INOX (Stainless steel) Needle INOX (Stainless steel) Gravity cup Plastic Air and fluid connections Fittings mounted on the gun Air and fluid supply (depending on model) Air hose (anti-static quality) HVLP / LVLP : minimum ∅...

  • Page 11: Installation

    The 1 m / 39.37" distance indicated in the diagram is given for information purposes only and hold harmless to SAMES KREMLIN. The user is responsible for the extraction and conditioning of the painting area where the equipment is used, for working...

  • Page 12: Installation Diagram - Air Pressure Adjustment With Or Without Gauge At The Gun Handle

    The 1 m / 39.37" distance may be modified if trials carried out by the user deem this necessary. • Using the grounding air hose, connect the gun to an air regulator that can supply at least 3 bar / 43.5 psi. •...

  • Page 13: Start-Up

    8. Start-up • Assemble the aircap on the gun by positioning it according to the desired spray orientation. • Open at the maximum the air needles. • Open the fluid needle as far as i twill go without a stop. •...

  • Page 14: Gun Handling

    10. Gun handling When assembling the aircap on the gun, hold it vertically in order to correctly align the aircap before screwing the aircap ring. Proper position Improper position • Keep the gun perpendicular to the surface to be painted. •...

  • Page 15: Maintenance

    Maintenance 11.1 Preventive maintenance Daily • Check groundings. • Clean the outside of the spray nozzle with a soft brush and solvent. • Flush the spray gun. • When the spraying system will not be used for an extended period of time, take off the nozzle and immerse it in s solvent filled container.

  • Page 16: Assembly Errors

    Before reassembling the different components, some precautions must be taken: • Clean all the parts with the appropriate cleaning solvent and a brush. • Install new seals if it is necessary after having lubricated them with PTFE grease. • Install new parts if it is necessary. 13.
  • Page 17 Trouble Cause Solution • Cut the pressure on • No fluid out of the gun Clogged nozzle the pump. Depressurize the hoses. • Remove and clean the nozzle with solvent by means of the brush. • Check the seal condition. •...

  • Page 18: Fstart Gravity Commercial References

    15. FStart Gravity commercial references Principle of designation FStart HVLP = Gravity HVLP (High volume, Low pressure) CONV (Conventional) Nozzle size: LVLP Aircap materialAircap material • (Low volume, Low pressure) 12 : 1.2 mm • 13 : 1.3 mm • 15 : 1.5 mm FStart G HVLP-13 22-Mva aircap •...
  • Page 19 135756113 Gun FStart G Compliant HVLP-13-Mva 135756115 Gun FStart G Compliant HVLP-15-Mva 135756118 Gun FStart G Compliant HVLP-18-Mva 135756122 Gun FStart G Compliant HVLP-22-Mva 135756213 Gun FStart G CONV-13-Lva 135756215 Gun FStart G CONV-15-Lva FStart 135756218 Gun FStart G CONV-18-Lva Gravity 135756222 Gun FStart G CONV-22-Lva...

  • Page 20: Available Projectors - References P/Ns

    15.1 Available projectors – references P/Ns 131756112 Nozzle + Needle FStart HVLP-12 131756113 Nozzle + Needle FStart HVLP-13 131756115 Nozzle + Needle FStart HVLP-15 131756118 Nozzle + Needle FStart HVLP-18 131756122 Nozzle + Needle FStart HVLP-22 131756212 Nozzle + Needle FStart CONV-12 131756213 Nozzle + Needle FStart CONV-13 131756215...

  • Page 21: Available Accessory - References P/Ns

    15.2 Available accessory – references P/Ns Gravity plastic cup 129756928 for FStart Accessory 129756907 Pack of 10 filters for FStart gravity cup 15.3 Available packages – references P/Ns 152756280 Pack Airspray Lucky ‘FStart G HVLP + air hose’ Packages 152756380 Pack Airspray Lucky ‘FStart G CONV + air hose’...

  • Page 22: Maintenance Kit 129.756.901

    16. Maintenance kit 129.756.901 16.1 Visual diagrams...

  • Page 23: Parts List And Fstart Gravity Maintenance Kit (Spare Parts)

    Maintenance kit FStart Gravity 129.756.901 composed of: Needle packing 129.756.903 Trigger set + air adjusters 129.756.906 Rear line assembly 129.756.904 16.2 Parts list and FStart Gravity maintenance kit (spare parts) Designation Quantity Included in maintenance kit Positions 129.756.901 Needle packing 129.756.903 Packing gasket Needle...

  • Page 24: Dimensions Fstart Gravity (Dimensions In Mm)

    Accessory required for assembly / disassembly Designation Visual Wrench delivered with the FStart Gravity gun 17. Dimensions FStart Gravity (Dimensions in MM)

  • Page 25: Warranty

    SAMES KREMLIN only bears the cost of the parts needed to replace the defective material. No guarantee will be granted by SAMES KREMLIN for the following: - For defects and deteriorations resuslting from abnormal storage and / or storage conditions at the customer’s premises or for maintenance or use of the item that does...
  • Page 26 SAMES KREMLIN, nonché le normativ e nazionali e/o SAMES KREMLIN y a la normativ a nacional y /o local, preconizações de SAMES KREMLIN, bem como com locali, • •...
  • Page 27 обору дов ание в theo các khuy ến nghị của SAMES KREMLIN cũng như 的 建 议 以 及 国 家 和 /或 地 方 法 规 ， 安 装 、 使 用 、 维 护 和 维 修 设 备 ，...
  • Page 28 ‫ﺑﯾﺎن اﻟﺗواﻓﻖ ﻣﻊ اﻻﺗﺣﺎد اﻷوروﺑﻲ‬ AB UYGUNLUK BEYANI Le fabricant / The manufacturer / Der Hersteller SAMES KREMLIN SAS / El fabricante / Il produttore / O fabricante 13, chemin de Malacher / De fabrikant / Tillverkare / Valmistaja / Producent / Výrobce 38 240 - MEYLAN - FRANCE / Proizvajalec / Výrobca / Gyártó...
  • Page 29 / Выполнено в Мейлане, на /发 布 于 Meylan, 时 间 / Được lập tại Meylan, vào / Meylanで行 わ れ た、オ ン / ‫ﯾﺦ‬ ‫ر‬ ‫ﺑﺗﺎ‬ ،‫ن‬ ‫ﻣﯾﻼ‬ ‫ﻓﻲ‬ ‫ت‬ ‫ﺗﺄﺳﺳ‬ / Meylan'da yapıldı. 01/03/2021 - 03/01/2021 SAMES KREMLIN - 4 - N° : 578 146 130-2203.doc...
  • Page 30 ‫إﻋﻼن اﻟﻣطﺎﺑﻘﺔ ﻣن اﻟﻣﻣﻠﻛﺔ اﻟﻣﺗﺣدة‬ İNGİLTERE UYGUNLUK BEYANI Le fabricant / The manufacturer / Der Hersteller SAMES KREMLIN SAS / El fabricante / Il produttore / O fabricante 13, chemin de Malacher / De fabrikant / Tillverkare / Valmistaja / Producent / Výrobce 38 240 - MEYLAN - FRANCE / Proizvajalec / Výrobca / Gyártó...
  • Page 31 / Выполнено в Мейлане, на /发布于Meylan, 时间 / Được lập tại Meylan, vào / Meylanで行われた、オン / ‫ﯾﺦ‬ ‫ر‬ ‫ﺑﺗﺎ‬ ،‫ن‬ ‫ﻣﯾﻼ‬ ‫ﻓﻲ‬ ‫ت‬ ‫ﺗﺄﺳﺳ‬ Meylan'da yapıldı. 01/03/2021 - 03/01/2021 SAMES KREMLIN - 6 - N° : 578 146 130-2203.doc...
