Hardware Installation and Maintenance Guide for SG100 and SG1000 Appliances
SG100 and SG1000 appliances overview
Port
1 Network ports 1-4
2 BMC management
port
3 Diagnostic and
support ports
4 Admin Network
port 1
5 Admin Network
port 2

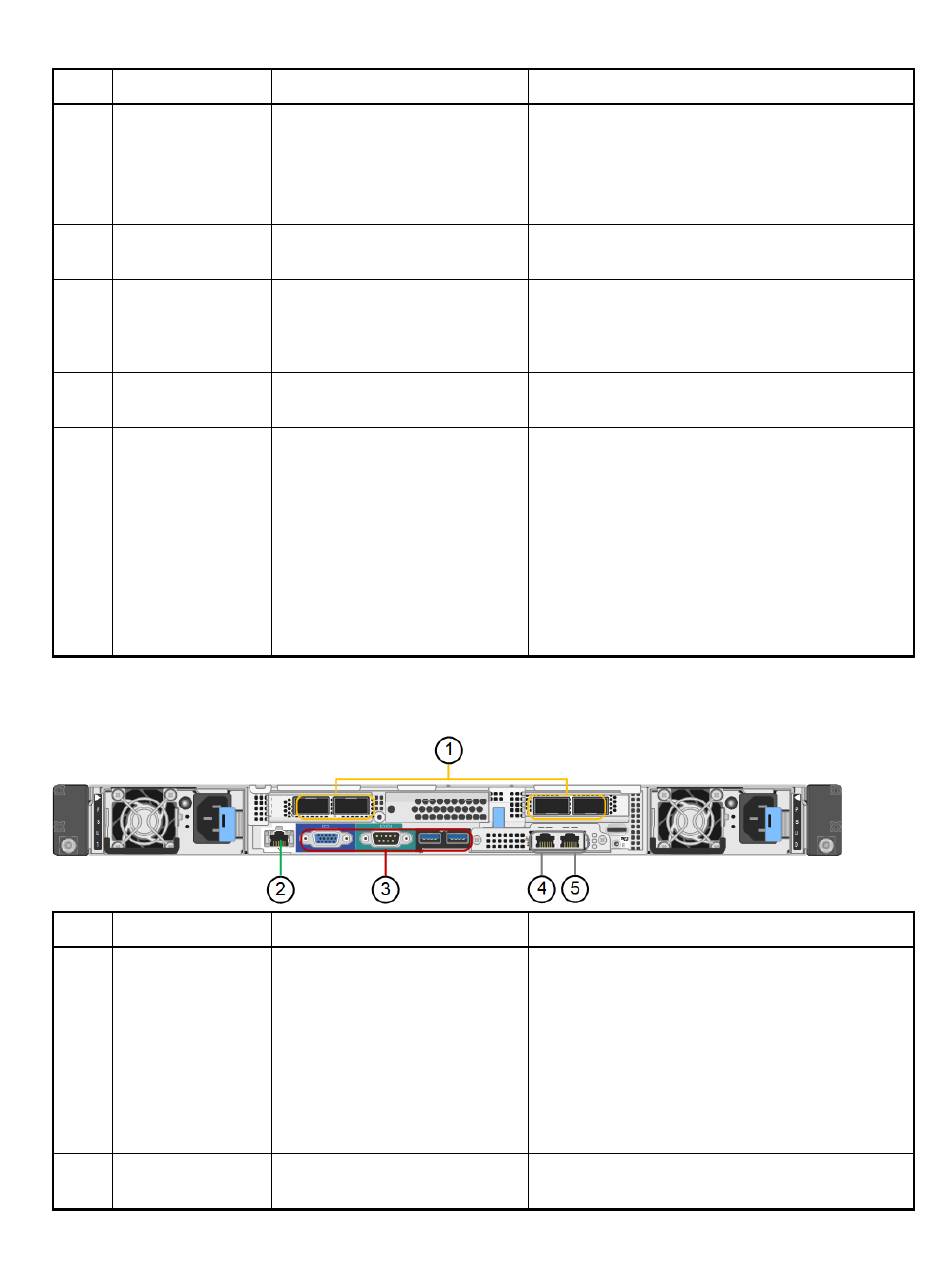

Connectors on the rear of the SG1000
This figure shows the connectors on the back of the SG1000.
Port
1 Network ports 1-4
2 BMC management
port
Type
10/25-GbE, based on cable or
SFP transceiver type (SFP28 and
SFP+ modules are supported),
switch speed, and configured link
speed
1-GbE (RJ-45)
• VGA
• Serial, 115200 8-N-1
• USB
1-GbE (RJ-45)
1-GbE (RJ-45)
Type
10/25/40/100-GbE, based on
cable or transceiver type, switch
speed, and configured link speed.
QSFP28 and QSFP+
(40/100GbE) are supported
natively and SFP28/SFP+
transceivers can be used with a
QSA (sold separately) to use
10/25GbE speeds.
1-GbE (RJ-45)
Use
Connect to the Grid Network and the Client
Network for StorageGRID.
Connect to the appliance baseboard management
controller.
Reserved for technical support use.
Connect the appliance to the Admin Network for
StorageGRID.
Options:
• Bond with management port 1 for a redundant
connection to the Admin Network for
StorageGRID.
• Leave disconnected and available for temporary
local access (IP 169.254.0.1).
• During installation, use port 2 for IP
configuration if DHCP-assigned IP addresses
are not available.
Use
Connect to the Grid Network and the Client
Network for StorageGRID.
Connect to the appliance baseboard management
controller.
