Summary of Contents for Clarke CHHDP830

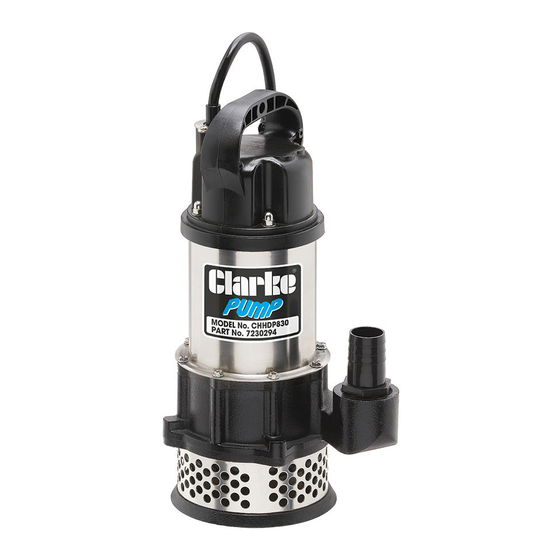

- Page 1 HIGH HEAD DRAINING PUMP MODEL NO: CHHDP830 PART NO: 7230294 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/22...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE submersible pump. The CLARKE range of submersible pumps are suitable for discharging pools, ponds, fountains, pits and any waste water drainage. They can handle foul water containing suspended material as stated in the specification. The pumps are not suitable for handling inflammable, corrosive, explosive or dangerous liquids. -
Page 3: Overview And Features
OVERVIEW & FEATURES 1. Water inlet screen 2. Power cable with plug 3. Water outlet elbow 4. Hose adaptor 5. Lifting handle Pump Performance curve Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: Safety Precautions
3. NEVER use this pump if any part is damaged. Have it inspected and repaired by your local CLARKE dealer. 4. ALWAYS use an extension cable suitable for outdoor use when operating outdoors. Using the correct cable reduces the risk of electric shock. -
Page 5: Servicing & Repairs
4. If the power cable becomes damaged, it must be replaced rather than repaired. 5. Your CLARKE water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local CLARKE dealer. -
Page 6: Environmental Recycling Policy
ENVIRONMENTAL RECYCLING POLICY Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE. In effect, this means that this product must not be disposed of with general household waste. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 8: Connecting The Pump
• The outlet adaptor fitting allows for connection of 32 mm (1¼”) hose which should be secured with a hose clamp. • Suitable hoses are available from your local CLARKE dealer. POSITIONING THE PUMP 1. It may be safer to raise and lower the pump into deep water using a rope attached to the lifting handle. -
Page 9: Using The Pump
USING THE PUMP WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY. WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES. 1. -
Page 10: Cleaning, Maintenance And Storage
5. If the pump shows signs of wear or damage, contact your CLARKE dealer for advice. DO NOT attempt to repair the pump yourself, as you may damage the waterproof seals and invalidate your guarantee. -
Page 11: Troubleshooting
5. The impeller may be jammed. Disconnect from the mains supply and remove any objects that may be obstructing the impeller. 6. If the pump still fails to start, consult your CLARKE dealer. PUMP WILL 1. Check that the inlet is not blocked. -
Page 12: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 13 COMPONENT PARTS Motor cover O-ring Motor housing O-ring Rotor & shaft Gasket Stator and coil Washer Bearing bracket Screw Seal cover Screw Impeller Power cable Impeller Cable plate Upper pump housing Screw Bottom pump housing Base Bolt Strainer Short screw Capacitor Long screw Bearing...
- Page 14 • Zinc plated for corrosion meter. resistance. Hoses, clips and other items are available from your CLARKE dealer. GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
