SUBMERSIBLE
WATER PUMPS
CS120S - CS120SA
CS240S - CS240SA
OPERATING & MAINTENANCE
INSTRUCTIONS
Model Nos.
CS85S - CS85SA
CS185S - CS185SA
CS305S - CS305SA
1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS85S and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke CS85S

  • Page 1 SUBMERSIBLE WATER PUMPS Model Nos. CS85S - CS85SA CS120S - CS120SA CS185S - CS185SA CS240S - CS240SA CS305S - CS305SA OPERATING & MAINTENANCE INSTRUCTIONS 1000...
  • Page 2: Table Of Contents

    Pump Specifications ............ 9 - 10 Spare Parts and Servicing ........... 11 SPARE PARTS & SERVICING A range of suitable hose is available from your CLARKE dealer or Spare Parts and Service,please contact your nearest dealer, or CLARKE International, on one of the following numbers.
  • Page 3: Warranty Conditions

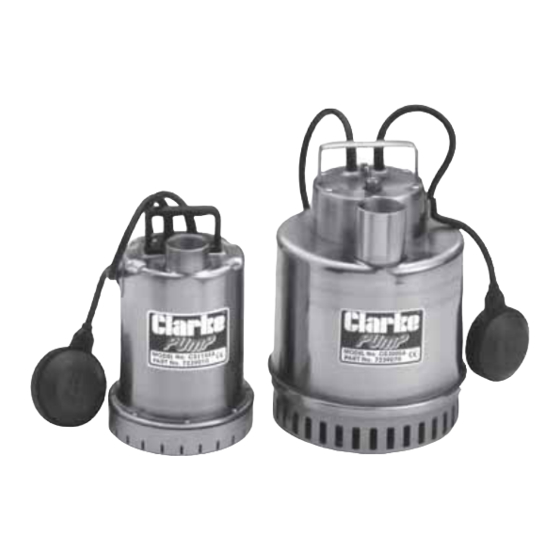

    Thank you for purchasing this Clarke Submersible Pump. These highly efficient pumps are designed for pumping clean water, or water containing sand or solids in suspension, (please see Features, page 5), and are ideally suited for draining ponds, pools, building excavations etc., where water temperature does not exceed 50°C.
  • Page 4: Electrical Connections

    ELECTRICAL CONNECTIONS All models should have their mains lead connected to a standard 230Volt (50Hz) electrical supply through an approved plug or a suitably fused isolator switch. We recommend that these pumps be fitted with a Residual Current Device (RCD). NOTE: This is mandatory when pump is used for pumping swimming pools and ponds If the pump is to be connected to an outdoor electrical supply, make sure that both the plug and the socket are of a BS approved waterproof design.
  • Page 5: Features

    FEATURES These pumps are of rugged and durable construction, designed for long lasting continuous operation and their stainless steel bodies provide good anti corrosive properties. The motor is provided with built in overload protection. For your information the charts, on pages 9 and 10, show the flow rate for each pump at various heads.
  • Page 6: Installation

    Rating Plate, denotes the MAXIMUM depth to which the pump may be submerged, in metres. Take all necessary precautions as described on page 2 before plugging in, and switching ON. SUITABLE HOSE, and SPARE/REPLACEMENT HOSE ADAPTERS ARE AVAILABLE FROM YOUR CLARKE DEALER...
  • Page 7: Maintenance

    These pumps should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. Do not use the pump if there is any damage to the mains supply cable, or to the float switch or its cable.
  • Page 8: Trouble Shooting

    Replace the strainer and try again. If the pump still fails to start, consult your CLARKE dealer for advice. Automatic Type (with float switch) 2.1 Check all above.
  • Page 9: Pump Specifications

    PUMP PERFORMANCE DATA CS85S & CS85SA Outlet Dia........1”/25mm Motor Output ......250Watts Motor Speed ......2,800RPM Head Max......... 6M Max. Submersion Depth ..5M Max. Capacity ......80L/min Weight ........3.3/3.5kg Cable ........10M Dimensions* ......155x212mm Part No.
  • Page 10 CS240S & CS240SA Outlet Dia........ 1½”/ 38mm Motor Output ......600Watts Motor Speed ......2,800RPM Head Max....... 11M Max. Submersion Depth ..5M Max. Capacity ....... 215L/min Weight ........8.7/9.0kg Cable ........10M Dimensions* ......212x290mm Part No. CS240S ....
