Summary of Contents for RTA Products Techni Mobili RTA-3520

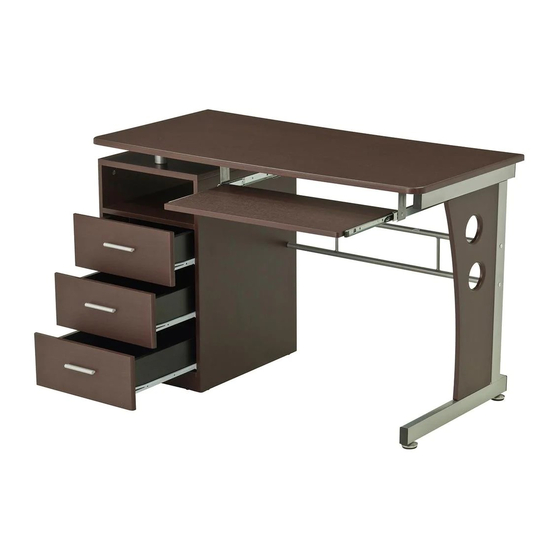

- Page 1 MODEL RTA-3520 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.LS-6541-0322-4...
- Page 2 RTA-3520 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people. SAMPLE - DO NOT SCAN •...
-
Page 3: Main Parts List
RTA-3520 MAIN PARTS LIST Left panel Middle panel Glide studs Cabinet shelf Bottom panel panel Cabinet top panel Right panel Back panel Bottom skirt Back metal panel structure Right metal leg Keyboard Slider base Desktop sliders, bracket SET of 1 right and 1 left Keyboard panel... - Page 4 RTA-3520 MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M3x15 M4x14 M6x40 M6x60 M6x75 M4x35 M6x35 M4x20 Ø40mm M6x25 Plastic washer M6x12 Screwdriver M4x4...
- Page 5 RTA-3520 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
- Page 6 RTA-3520 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until hardware listed in the all pieces are assembly instructions.
-
Page 7: Assembly Steps
RTA-3520 ASSEMBLY STEPS STEP 1 Grab all the sets of drawer sliders 22 (total 12 pcs) and separate them into 2 groups according to their shape: - The “Flat” ones will be used on the next step. - The “L Shaped” will be used until step 19, set them aside. (“Flat”... - Page 8 RTA-3520 STEP 3 • Attach the bolts B to panel 1 into the indicated holes. Hardware: • Assemble the shelf 5 to panel 1 at the top as explained in page 5. Note that the surface with the groove faces towards the bottom. The groove will be located at the back.
- Page 9 RTA-3520 STEP 5 • Attach the bolts B to panel 2 into the indicated holes. Hardware: • Assemble panel 2 to panels 5, 6 and 8 as explained in page 5. M6x40 Bolt Cam locks alignment STEP 6 • Bring the cabinet upright. •...
- Page 10 RTA-3520 STEP 7 STEP 8 • On the right panel 10, check and make sure the inserts are aligned to receive Hardware: Screw the glide studs 3 into the screws: The groove on the inserts the bottom holes of the leg 9. must run vertically.
- Page 11 P.10 RTA-3520 P.10 STEP 10 Place the tabletop 12 upside-down and attach the brackets 14 with Hardware: screws F making sure they face towards the inside. M6x12 Facing towards the inside STEP 11 Attach the keyboard sliders 15 to the brackets 14 with screws G. Notes: Hardware: •...
- Page 12 P.11 RTA-3520 P.11 STEP 13 • Place the plastic washers L over the holes on the cabinet top panel 4. • With the help of another person, place the tabletop 12 over the Hardware: cabinet and leg, making the holes from the tubes 16 coincide with the holes on panel 4 and the washers L.
- Page 13 P.12 RTA-3520 P.12 STEP 16 STEP 15 For each of the 3 drawers, assemble the side panels Hardware: For each of the 3 drawers, slide the bottom 17 and 18 to the front panel 20 through the grooves of the side panel 19 with bolts B as panels and into the front panel as shown.
- Page 14 P.13 RTA-3520 P.13 STEP 20 • Insert the drawers into the cabinet, starting with the bottom one, then the middle, then the top one. Insert at an angle with their fronts facing down, making sure the wheels from the drawer slide in the middle of the sliders inside the cabinet.
- Page 15 P.14 RTA-3520 P.14 ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 16 P.15 RTA-3520 P.15 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 80 Lbs. (36.3 Kg) 20 Lbs. 20 Lbs. (9.10 Kg) (9.10 Kg) 20 Lbs. (9.10 Kg) 15 Lbs. (6.8 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions. •...
- Page 17 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 18 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
