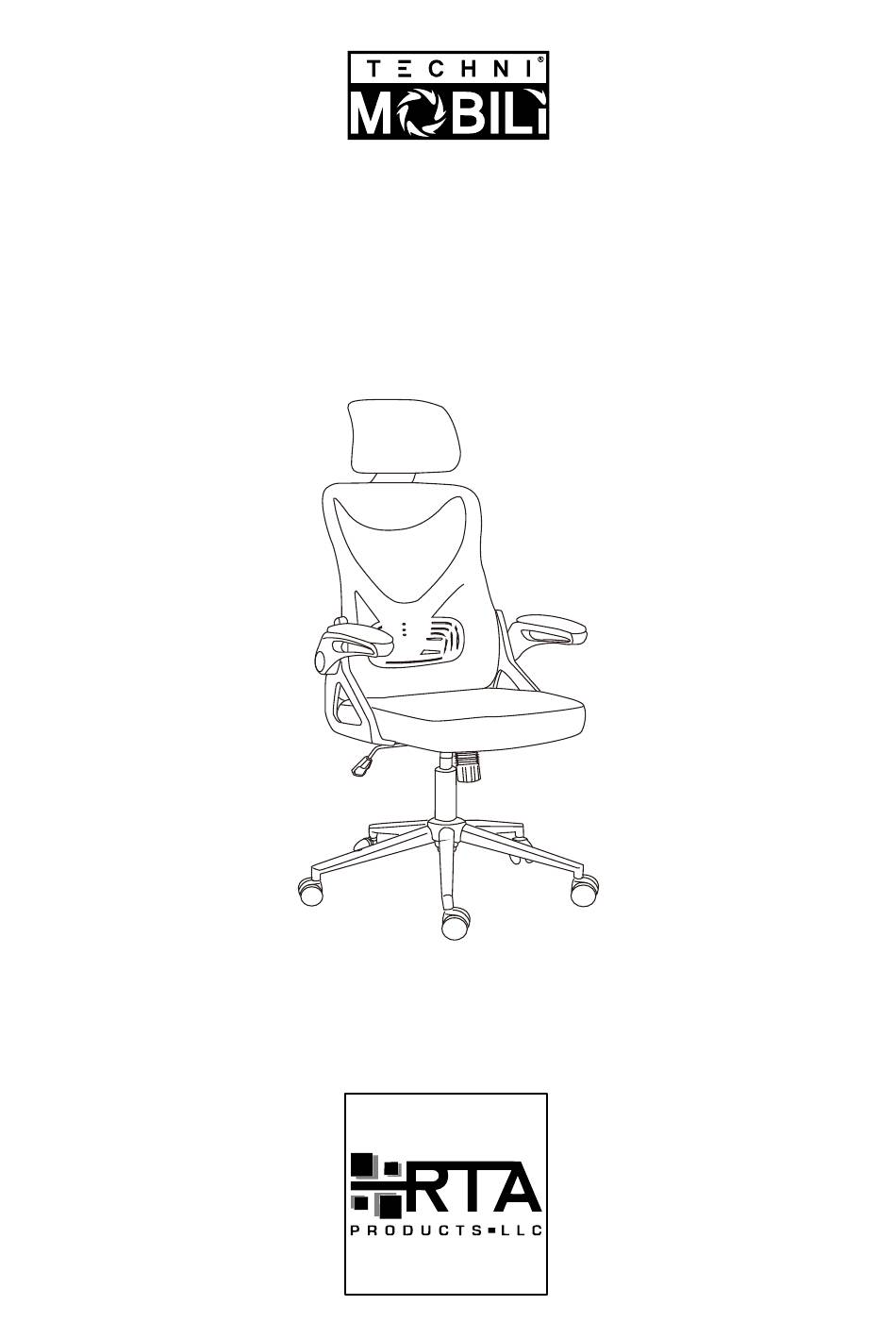

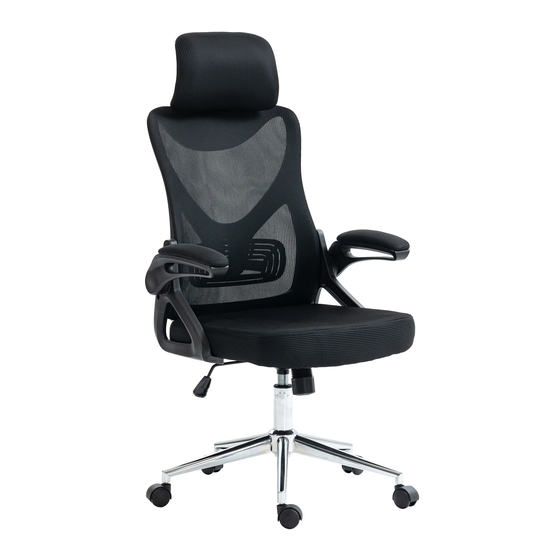

- Page 1 Modern Ergonomic Office Chair MODEL RTA-3263C ASSEMBLY INSTRUCTIONS REV-1-AFSI-7708-1123 Thank you for purchasing our product...
- Page 2 Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible Please email us at: for shipping costs plus any International local taxes or duties.
- Page 3 RTA-3263C BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step. 30mm •...
- Page 4 RTA-3263C ASSEMBLY STEPS STEP 1 Insert the casters F into the legs of the star base C using pressure, then insert the gas lift E in the middle of the base. STEP 2 Check if the armrests G-L, G-R flip up smoothly. If they feel too tight or very Hardware loose, use the special tool socket wrench to tighten or loosen them.
- Page 5 RTA-3263C STEP 4 Hardware Assemble the seat B to the armrests G-L, G-R with screws K and washers L. M6x35 Ø8, Ø16 RIGHT LEFT STEP 5 Hardware Assemble the mechanism D to the seat B with screws J and washers L, making sure that the tilt knob faces towards the front.
- Page 6 RTA-3263C CHAIR'S FUNCTIONS To raise or lower the chair’s height, pull UP the lever that is under the seat on the right side. The chair goes down while sitting on it, or up if you lift your body. The chair also tilts freely by pulling OUT the same lever to unlock this function. The mechanism under the seat has a tension knob at the front that you can turn either way to apply more or less tension to the tiltilng function.
- Page 7 TECHNI MOBILI WARRANTY EXECUTIVE/MANAGER CHAIR: 2-YEAR WARRANTY RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship.
