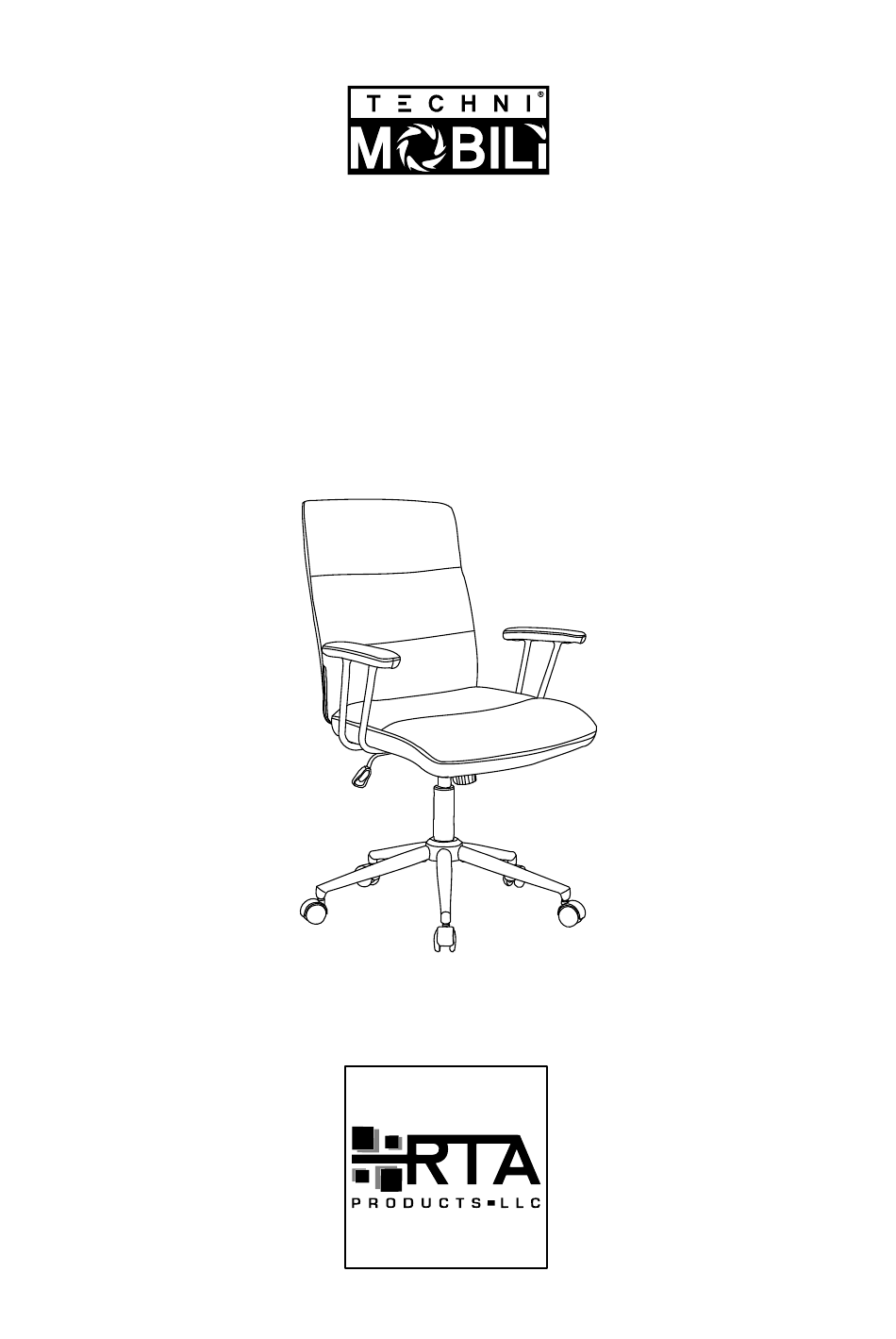

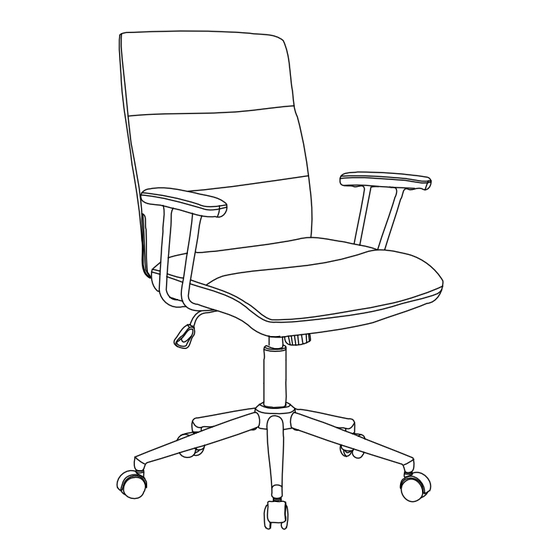

- Page 1 www.technimobili.com HIGH BACK BOUCLE CHAIR MODEL RTA-3270C ASSEMBLY INSTRUCTIONS REV-AFSI-1-8283-0824 Thank you for purchasing our product...
-
Page 2: Main Parts List
Customers & AK-HI-PR orders: of all the parts and & Replacement Parts within the 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. charge, while the customer is responsible Please email us at: for shipping costs plus any International local taxes or duties. -
Page 3: Assembly Steps
RTA-3270C ASSEMBLY STEPS STEP 1 THEN: Insert the legs LAST: Assemble the FIRST: Remove C-3 C-2 into the base C-1. legs with screws I. from the base C-1. (M6x12) STEP 2 FIRST: Insert the casters F into THEN: Insert the gas lift E and the cover the legs C-2 using pressure. - Page 4 RTA-3270C STEP 4 FIRST: Place the mechanism D over the THEN: Secure D seat B with its knob facing towards the front. with screws K. (Front) (M6x20) (Front) (Back) STEP 5 Assemble the metal plate of the backrest A to the seat B with screws L. (Front) NOTE: The plate from A goes over D.
-
Page 5: Care And Maintenance
RTA-3270C CHAIR'S FUNCTIONS HEIGHT Pull Handle UP. Turn CLOCKWISE for TENSION less tension (-); TILTING COUTERCLOCKWISE Pull Handle OUT for more tension (+). to UNLOCK; With less tension, the Push Handle IN to LOCK. tilting feels easier. WARNINGS Not paying attention to the following warnings could result in injuries. Do not use the chair if the frame parts are damaged, or Only one person at a time and refrain... - Page 6 RTA-3270C TECHNI MOBILI WARRANTY RTA Products, LLC has warranted the Techni Mobili office chairs to the original purchaser who acquired a new product from RTA Products or its authorized resellers of the product against defects in material or workmanship. This warranty is expressly limited to the repair or replacement (at its option) of defective chair components or materials that fails under normal use as a result of a defect in materials or workmanship.
