【Introduction】
IES5024-2F is a type of plug-and-play industrial Ethernet switch which can supports 22 RJ45 Ethernet ports and 2 100M Fiber ports
(SC/ST optional).
IES5024-2F adopt our patent technology SW-Ring for the purpose accomplishing redundancy for Ethernet ring network (self-recovery time <20ms) to
enhance the reliability of the network. Furthermore, IES5024-2F can also support numerous intelligent network management functions, including QoS,
VLAN, Port Trunking, velocity configuration and alarm enabling functions. To satisfy applications in different industrial environments, IES5024-2F can
also provide wide temperature type in accommodation with limit temperature (-40 ~ 75°C).
【Packing List】
The IES5024-2F switch is shipped with following items.
IES5024-2F Ethernet switch(Plus Terminal Block) ×1
Hardware Installation Guide ×1
DIN-Rail setting fittings(wall mounting for optional)
【Features】
Technology
Standard IEEE802.3/802.3u/802.3x/IEEE802.1Q/
IEEE802.1p/IEEE802.3D/IEEE802.3W
Support SW-Ring(Patent technology) self-recovery time＜20ms
Support IEEE802.1Q VLAN
Support IEEE802.1P QoS, support WRR
Support IGMP, port trunking and port mirroring
Support WEB management, easy to management
Support 8K MAC address
Reliable Industrial Grade Design
-20～60℃ operating temperature range
No fan design
IP30 protection
19 inch rack mounting

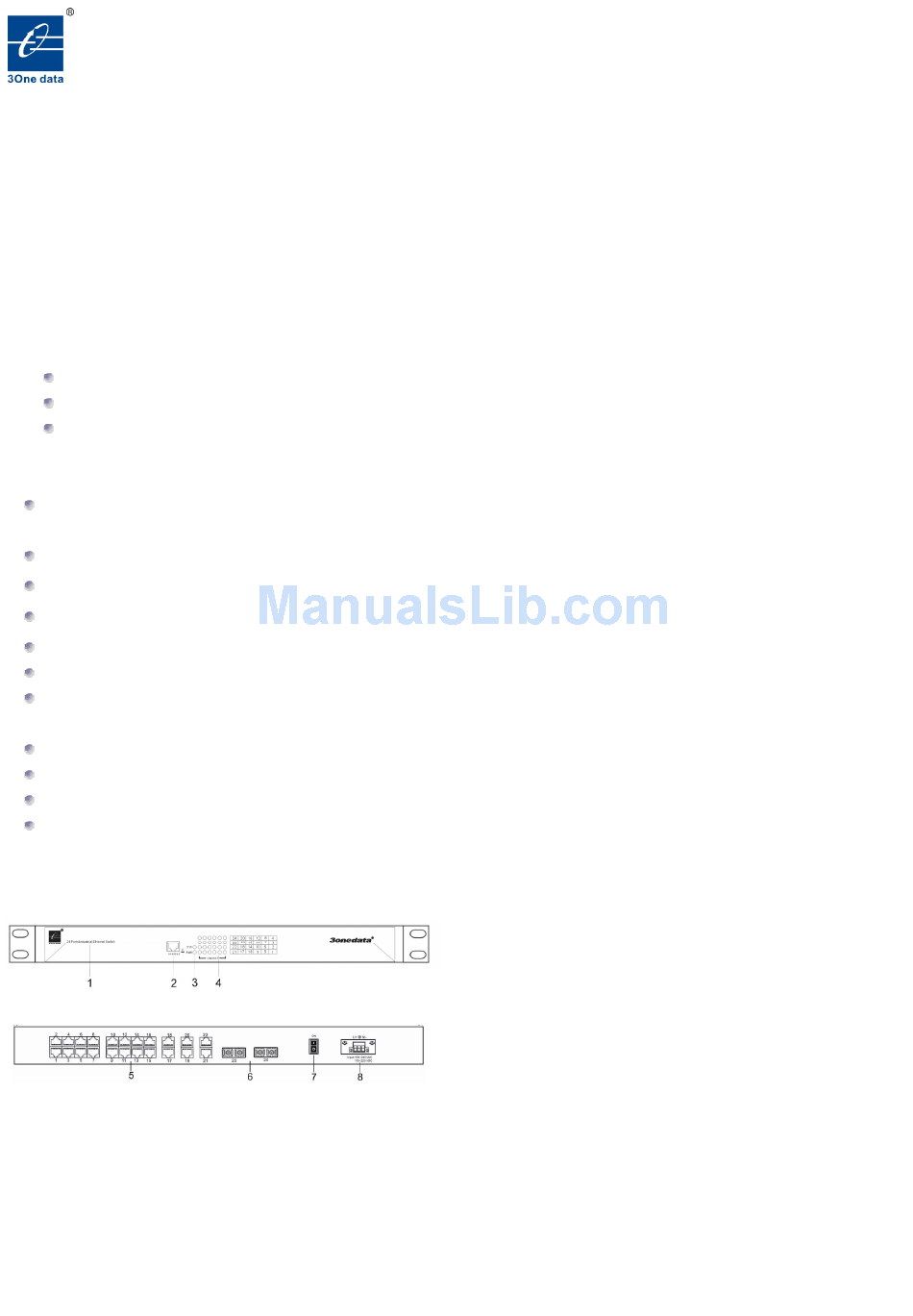

【Panel Layout】
Front panel
Back panel
1. Product marking
2. Console port
3. power/system LED
4. Link/ACT LED
5. 100BaseT(X) Ethernet port
6. 100Base-FX Fiber ports
7. power switch ON/OFF
8. power input terminal block
IES5024-2F
Industrial Ethernet switch
Hardware Installation Guide
Advertisement
Related Manuals for 3onedata IES5024-2F
Summary of Contents for 3onedata IES5024-2F
-
Page 1: Packing List
Hardware Installation Guide 【Introduction】 IES5024-2F is a type of plug-and-play industrial Ethernet switch which can supports 22 RJ45 Ethernet ports and 2 100M Fiber ports (SC/ST optional). IES5024-2F adopt our patent technology SW-Ring for the purpose accomplishing redundancy for Ethernet ring network (self-recovery time <20ms) to enhance the reliability of the network. -
Page 2: Power Input
IES5024-2F 【Power Input】 IES5024-2F provide 3 bits terminal blocks as AC power input (85～264 V) and DC power input (100～300 V)，terminal diagram is as below, 【Communication Connector】 IES5024-2F provides 22 10/100BaseT(X) Ethernet Ports and 2 ports 100M Fiber ports(SC/ST optional). - Page 3 MDI (straight-through cable) MDI-X (Cross over cable) MDI/MDI-X auto connection makes IES5024-2F easy to use for customers without considering the type of network cable. 100Base-FX Fiber port 100Base-FX full-duplex SM or MM port, SC/ST type .The fiber port must be used in pair, TX (transmit) port connect remote switch’s RX(receive) port;...
-
